Data General DG-1G-RJ45 – 10GBASE-T Copper SFP+ Transceiver

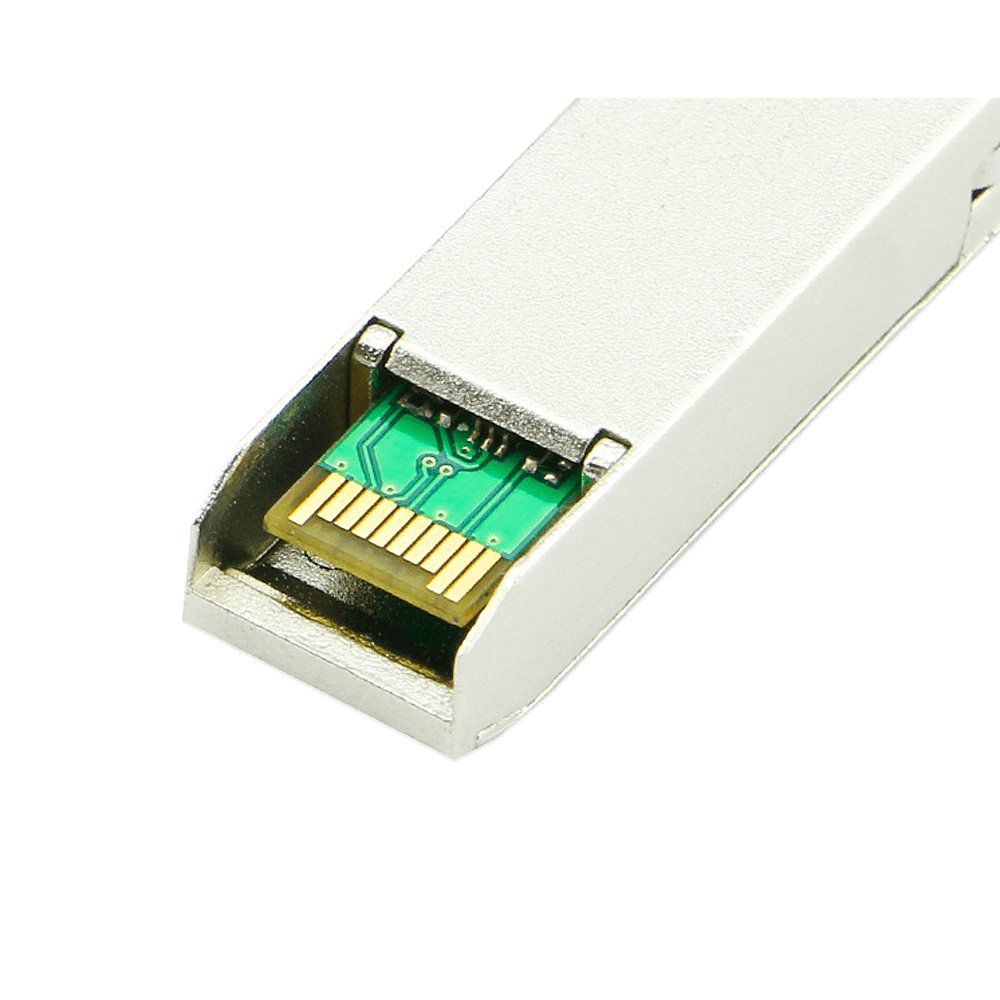

The DG-1G-RJ45 is a hot-pluggable copper SFP+ transceiver that provides 10Gbps Ethernet connectivity over twisted-pair copper cables. Compliant with IEEE 802.3 standards, it supports multiple data rates, including 10G, 5G, 2.5G, and 1G, making it a versatile solution for data centers, enterprise networks, and high-performance computing environments.

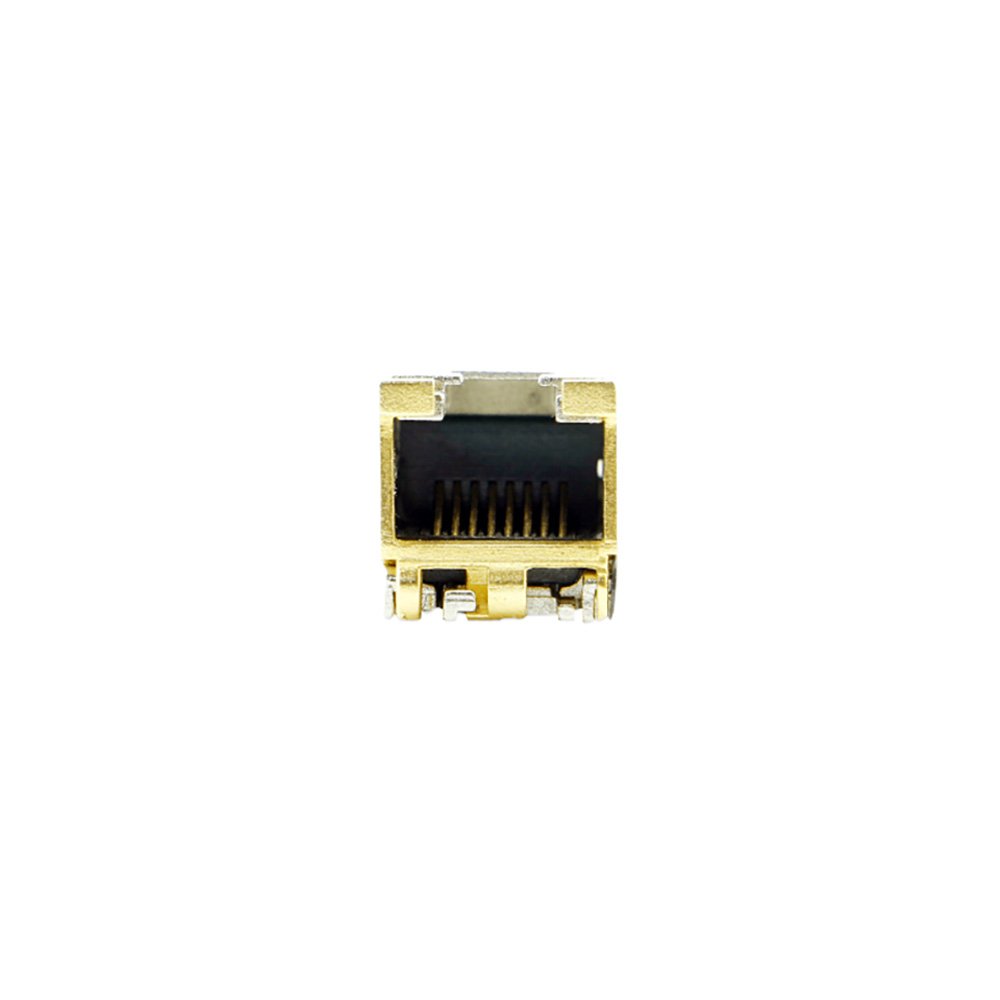

Equipped with an RJ-45 connector, this SFP+ module operates over CAT6A cables, offering a transmission distance of up to 30 meters. It features auto-negotiation and automatic crossover detection, eliminating the need for external crossover cables.

The DG-1G-RJ45 operates with a single +3.3V power supply and is designed for ambient operating temperatures between 0°C and 70°C, ensuring reliable performance in diverse environments. It integrates seamlessly into network switches, routers, and storage systems, providing cost-effective, high-speed Ethernet connectivity without requiring fiber infrastructure.

Technical Specifications:

General Features:

• Data Rate: 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps
• Interface Type: RJ-45 Connector
• Supported Standards: IEEE 802.3 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T
• Cable Type: CAT6A (for 10G at 30m)
• Hot-Pluggable: Yes
• Auto-Negotiation: Yes
• Automatic Crossover Detection: Yes

Electrical Characteristics:

• Power Supply Voltage: +3.3V ± 5%
• Power Consumption: ≤3.0W
• Maximum Voltage: 4V (not allowed for continuous operation)
• Current Consumption: 700-900mA

Optical & Electrical Performance:

• Line Frequency: 125 MHz
• Input Voltage (Vcc): 3.13V – 3.47V
• Tx Output Impedance: 100Ω differential (1MHz to 125MHz)
• Rx Input Impedance: 100Ω differential (1MHz to 125MHz)
• Data Rate: 1Gbps to 10Gbps (IEEE 802.3 compliant)

Mechanical & Environmental Specifications:

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Form Factor: SFP+ MSA Compliant

Applications:

• High-Speed Data Centers
• Enterprise LAN and WAN Networks
• Switch-to-Switch 10G Copper Connections
• Storage Area Networks (SANs)
• Cloud and Virtualized Environments

The DG-1G-RJ45 10GBASE-T Copper SFP+ Transceiver is an ideal solution for cost-effective, high-speed networking, enabling seamless integration into modern Ethernet infrastructures.
