Data General AP680-AX3000-O

Description

Data General DG-AP680-AX3000-O – Wi-Fi 6 Dual-Radio Outdoor IP68 Access Point AX 3000 Mbps

The Data General DG-AP680-AX3000-O Wi-Fi 6 Dual-Radio Outdoor Access Point is an enterprise-grade, high-performance outdoor AP built to deliver fast, secure, and reliable wireless connectivity in challenging outdoor environments. Supporting 802.11ax (Wi-Fi 6) technology, OFDMA, and MU-MIMO, it enables high-density deployments with increased capacity and lower latency.

Its IP68-rated enclosure makes it waterproof, dustproof, and resistant to extreme temperatures (-40°C to +65°C), ensuring long-lasting performance in parks, stadiums, transport hubs, and industrial facilities. Featuring dual-band coverage (2.4 GHz & 5 GHz) with omnidirectional antennas, it offers a seamless and stable Wi-Fi experience for a large number of simultaneous users.

The DG-AP680-AX3000-O supports hybrid cloud and local management, allowing for flexible deployment via Ruijie Cloud, wireless controllers, or standalone mode. It also integrates advanced security features, including WPA3, 802.1X authentication, and rogue AP detection, making it a future-proof solution for large-scale wireless networks.

Technical Specifications:

Wireless & Performance:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax), backward-compatible with 802.11a/b/g/n/ac
• Dual-Radio Configuration:
  • 2.4 GHz (Radio 1): 2×2 MU-MIMO, peak data rate 574 Mbps
  • 5 GHz (Radio 2): 2×2 MU-MIMO, peak data rate 2.402 Gbps
• Combined Peak Data Rate: 2.976 Gbps
• Security Protocols: WPA3, WPA2, 802.1X, PPSK, MAC authentication, rogue AP detection
• Advanced Features:
  • OFDMA (Orthogonal Frequency-Division Multiple Access)
  • MU-MIMO for high-density environments
  • Transmit Beamforming (TxBF) for improved coverage
  • Seamless Layer 2/3 roaming optimization
  • Dynamic Frequency Selection (DFS) to reduce interference
  • AI-powered RF optimization for enhanced performance

Hardware & Interfaces:

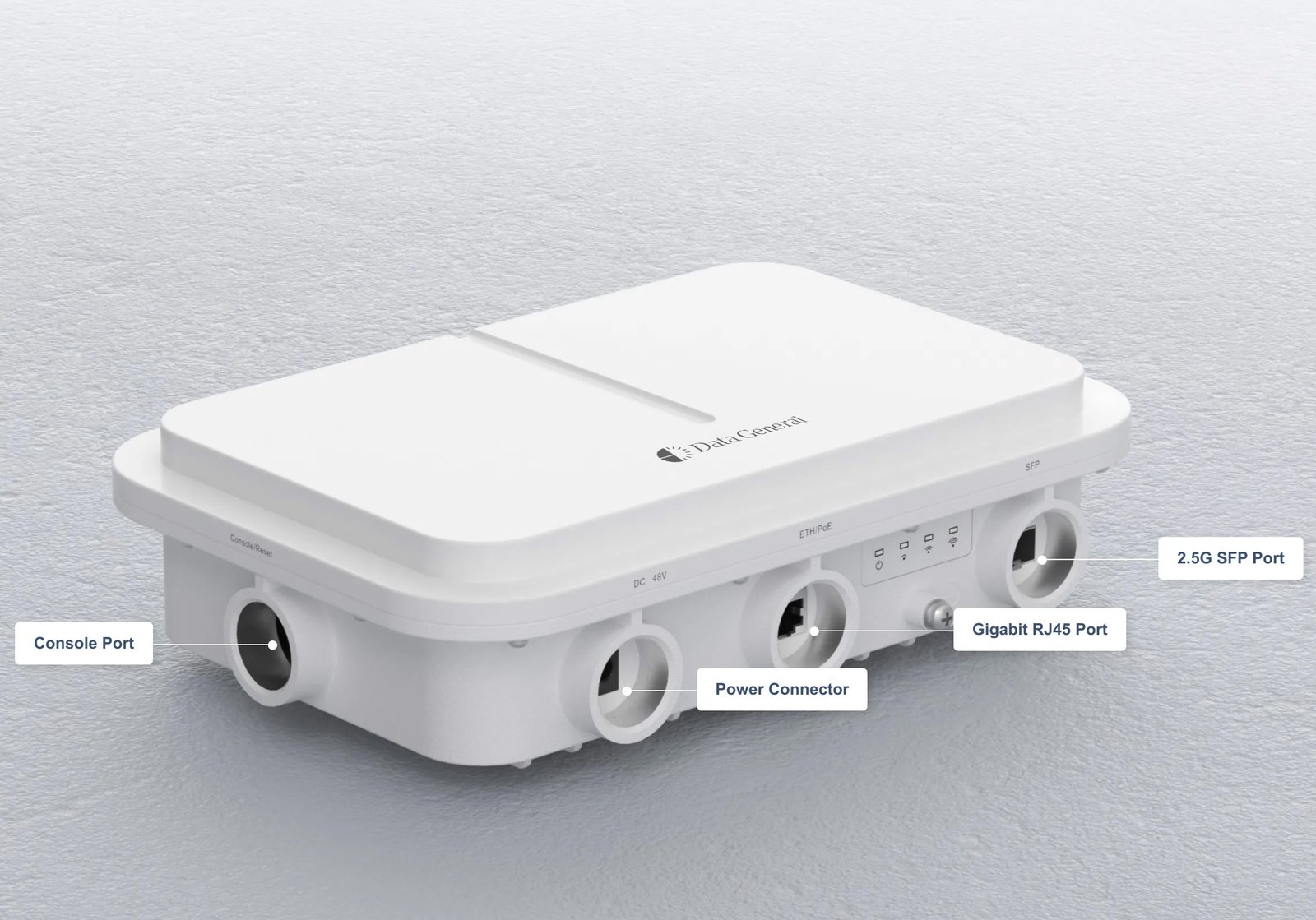

• Ethernet Ports:
  • 1 × 2.5GE SFP port
  • 1 × 10/100/1000Base-T Ethernet port (PoE input support)
  • 1 × RJ45 console port
• Antenna Configuration:
  • 2.4 GHz: 2 built-in omnidirectional antennas, 4 dBi gain
  • 5 GHz: 2 built-in omnidirectional antennas, 6 dBi gain
  • Bluetooth: Integrated omnidirectional antenna, 5 dBi gain
• Power Supply Options:
  • 48V DC input (0.35A, adapter not included)
  • PoE input (IEEE 802.3af/at)
• Max Power Consumption: 12.95W
• Bluetooth: 5.1 (BLE) for IoT applications & asset tracking

Environmental & Compliance:

• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 0% to 100% RH (non-condensing)
• IP Rating: IP68 (dustproof & waterproof)

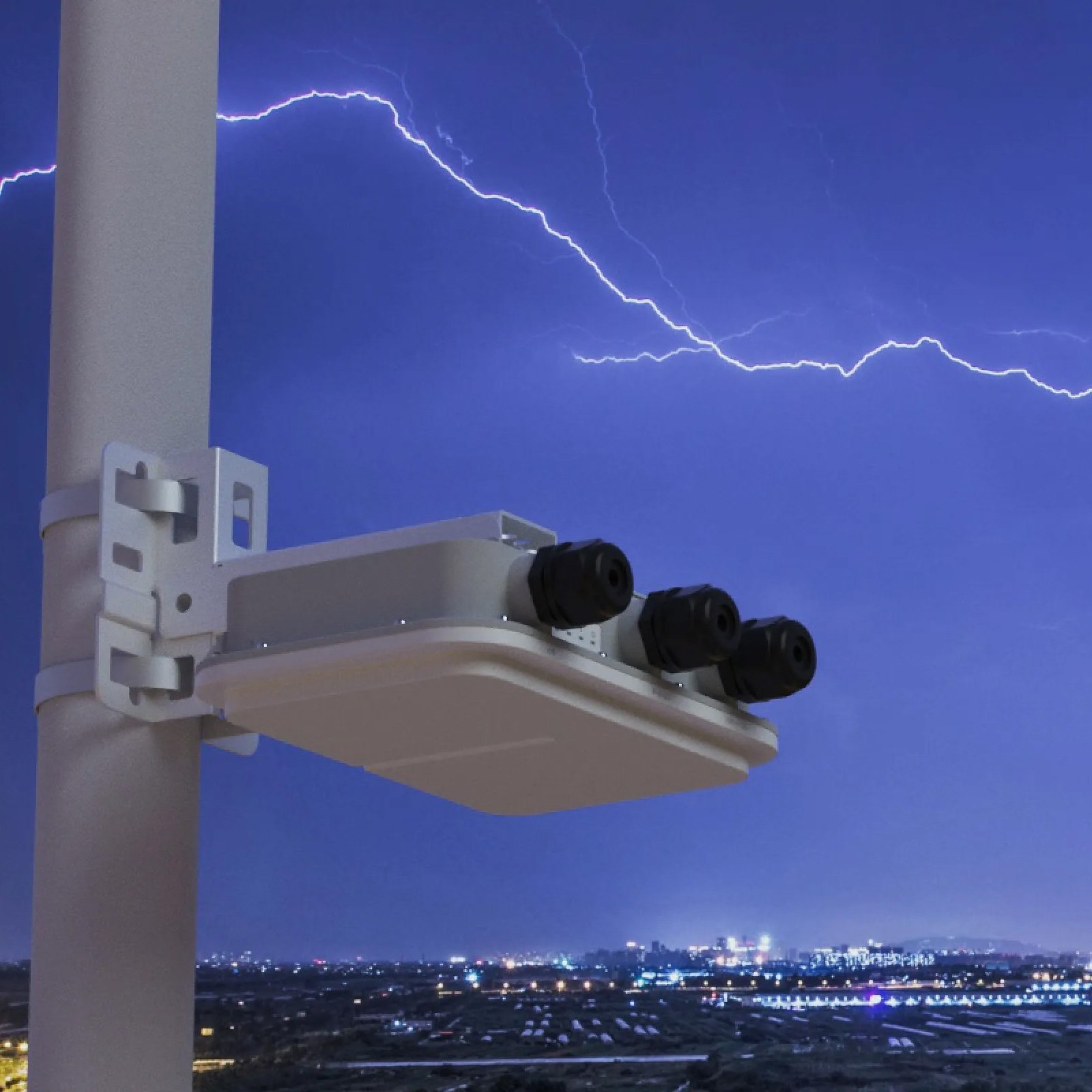

• Surge Protection: 9 kV
• Mean Time Between Failures (MTBF): 200,000 hours (22 years at 25°C)

Mounting & Dimensions:

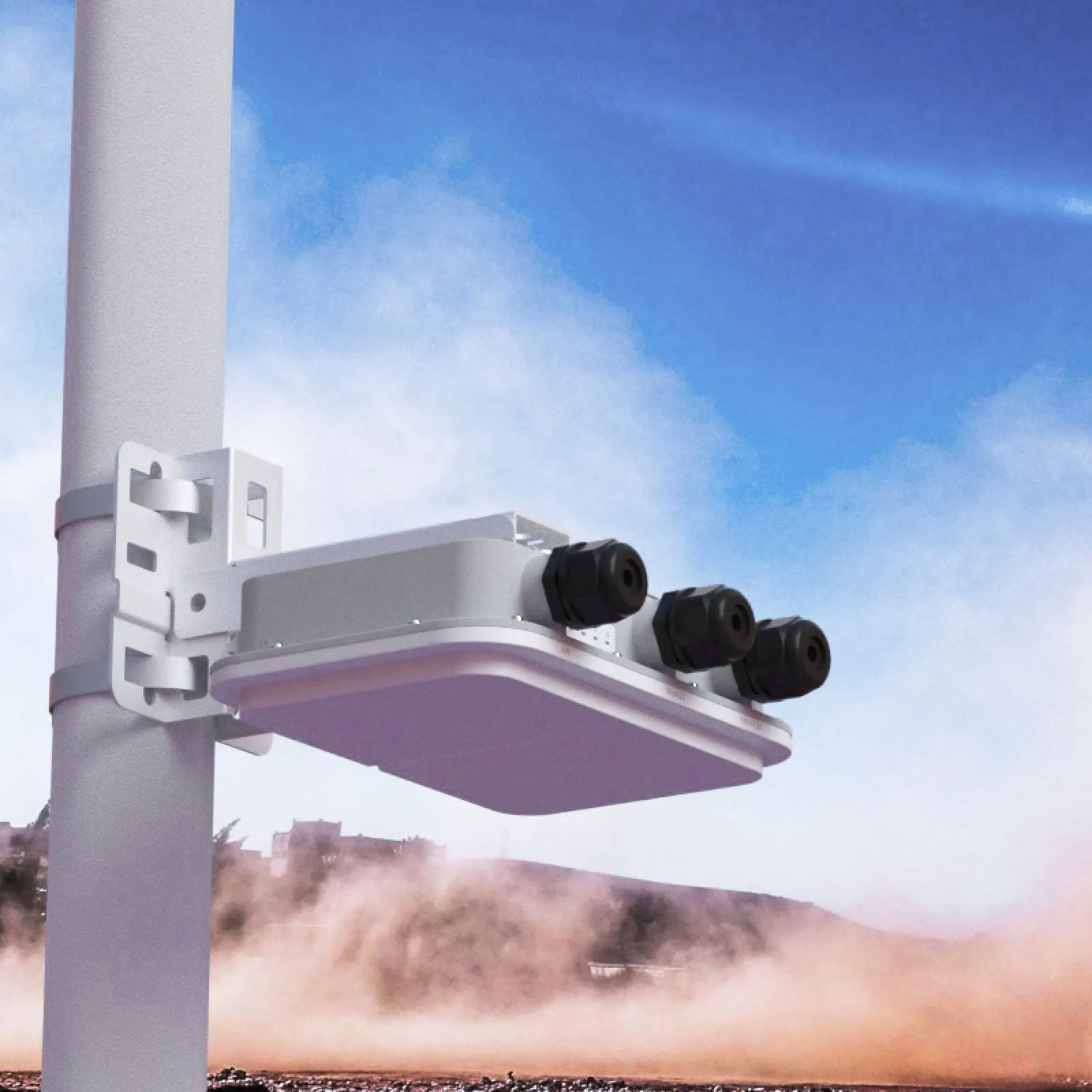

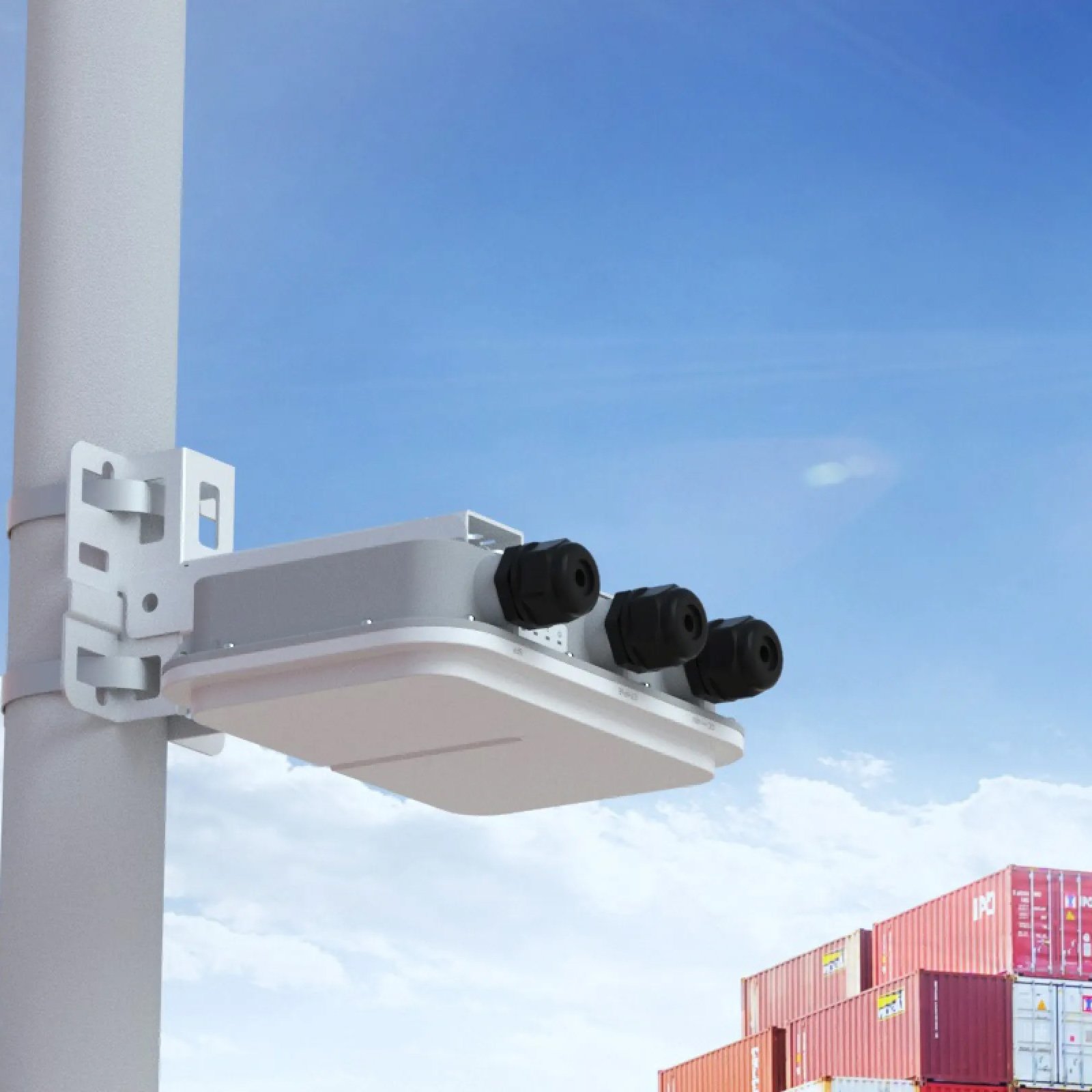

• Mounting: Wall, Pole, or Ceiling-mount (mounting bracket included)

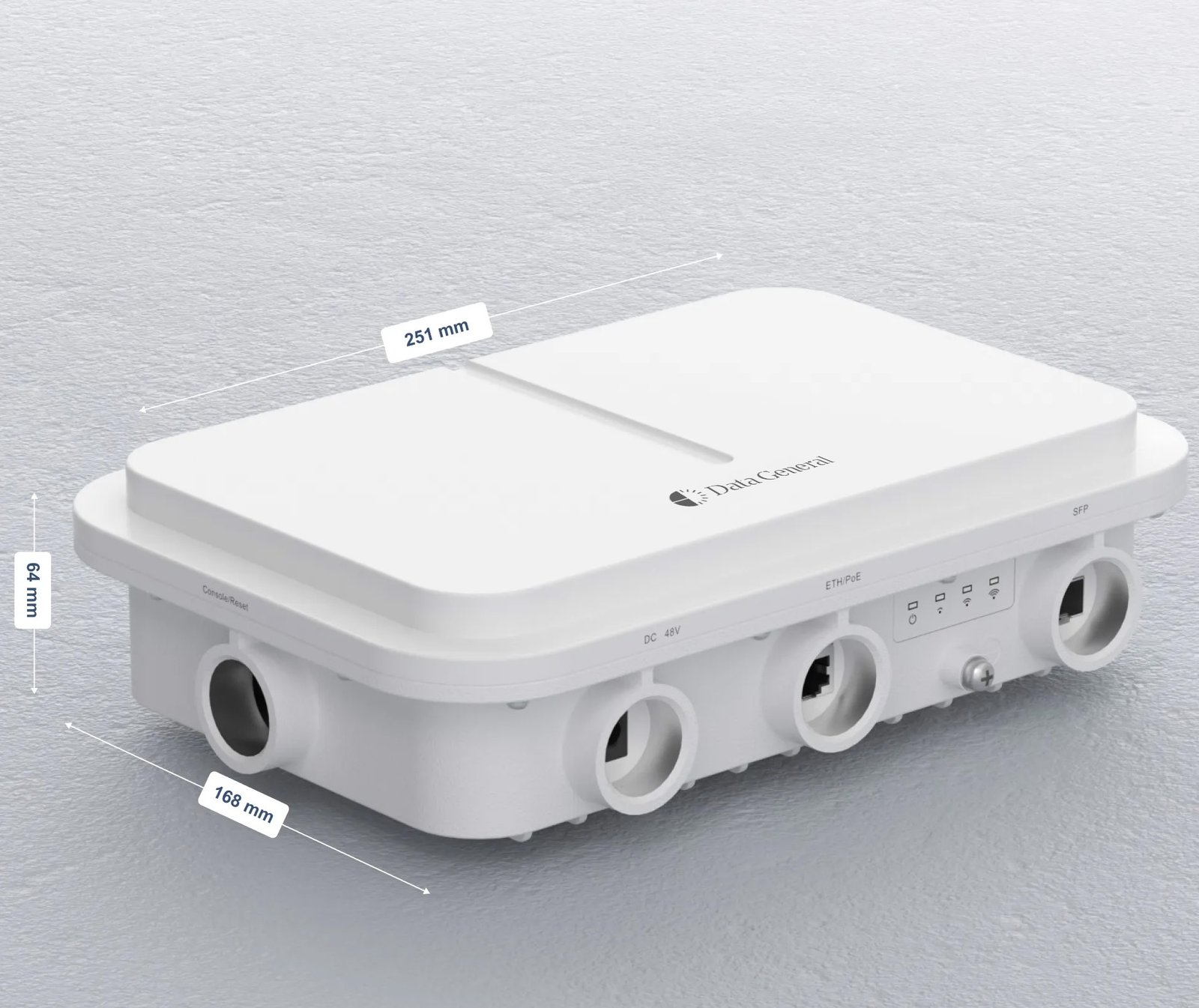

• Dimensions: 251 mm × 168 mm × 64 mm (9.88 in. × 6.61 in. × 2.52 in.)
• Weight: 1.0 kg (2.2 lbs) (Main Unit)

Key Features & Benefits:

• Wi-Fi 6 with dual-radio design for high-speed, low-latency networking
• Supports up to 1,024 client connections for high-density outdoor environments
• IP68-certified rugged enclosure for weatherproof and durable performance
• Omnidirectional antennas for broad wireless coverage
• AI-powered network optimization & seamless roaming
• Secure authentication with WPA3, 802.1X, and rogue AP detection
• PoE & DC power options for flexible deployment
• Integration with Ruijie Cloud for remote monitoring and management

The Data General DG-AP680-AX3000-O Wi-Fi 6 Outdoor Omni Access Point is the perfect solution for businesses, municipalities, and enterprises looking for a secure, scalable, and high-performance outdoor Wi-Fi network.
