Data General AP680-AX3000-S

Description

Data General DG-AP680-AX3000-S – Wi-Fi 6 Dual-Radio IP68 Outdoor Access Point sector antenna 3000 Mbps

The Data General DG-AP680-AX3000-S Wi-Fi 6 Dual-Radio Outdoor Access Point is an enterprise-grade, high-performance AP designed for outdoor deployment in harsh environments. Featuring Wi-Fi 6 (802.11ax) technology, OFDMA, MU-MIMO, and beamforming, it provides ultra-fast speeds, increased efficiency, and seamless roaming.

With dual-band support (2.4 GHz & 5 GHz) and four spatial streams, the DG-AP680-AX3000-S delivers optimized performance with up to 2.976 Gbps combined data rate. It is ideal for high-density outdoor environments, such as smart cities, university campuses, sports arenas, and large public areas.

The AP is IP68-certified, making it resistant to dust, water, extreme temperatures (-40°C to +65°C), and electrical surges (9 kV protection). Its built-in directional antennas ensure optimized long-range coverage, while hybrid management (cloud/local) provides flexible deployment options.

Supporting PoE and DC power input, the DG-AP680-AX3000-S is designed for maximum reliability and minimal downtime, making it a scalable and cost-effective outdoor networking solution.

Technical Specifications:

Wireless & Performance:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax), backward-compatible with 802.11a/b/g/n/ac
• Dual-Radio Configuration:
  • 2.4 GHz (Radio 1): 2×2 MU-MIMO, peak data rate 574 Mbps
  • 5 GHz (Radio 2): 2×2 MU-MIMO, peak data rate 2.402 Gbps
• Combined Peak Data Rate: 2.976 Gbps
• Security Protocols: WPA3, WPA2, 802.1X, PPSK, MAC authentication, rogue AP detection
• Advanced Features:
  • OFDMA (Orthogonal Frequency-Division Multiple Access)
  • MU-MIMO for high-density user environments
  • Transmit Beamforming (TxBF) for extended range
  • Seamless Layer 2/3 roaming support
  • Dynamic Frequency Selection (DFS) to minimize interference

Hardware & Interfaces:

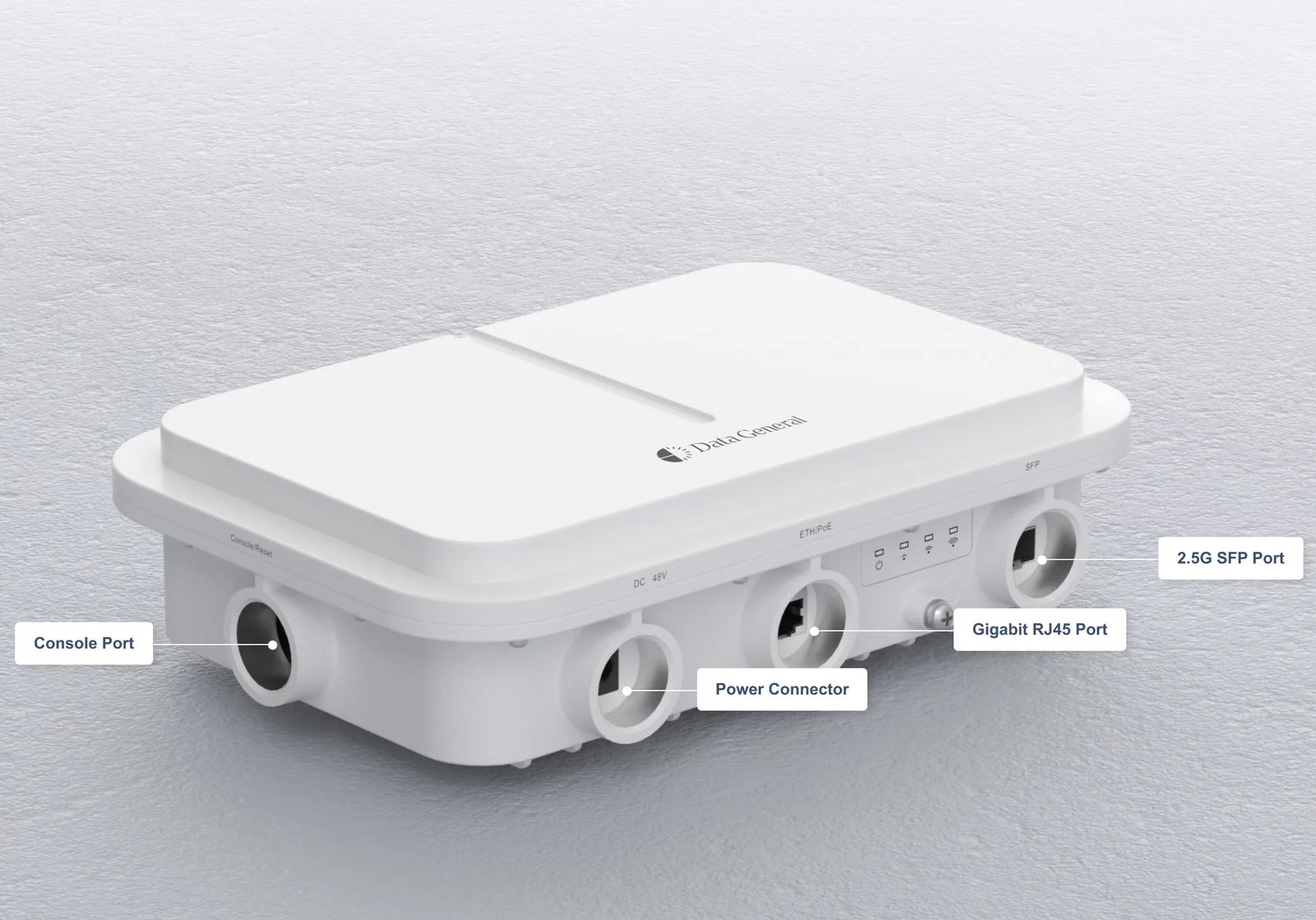

• Ethernet Ports:
  • 1 × 2.5GE SFP port
  • 1 × 10/100/1000Base-T Ethernet port (PoE input support)
  • 1 × RJ45 console port
• Antenna Configuration:
  • 2.4 GHz: 2 built-in directional antennas, 9 dBi gain
  • 5 GHz: 2 built-in directional antennas, 9 dBi gain
  • Bluetooth: Integrated omnidirectional antenna (4.5 dBi gain)
• Power Supply Options:
  • 48V DC input (0.35A, adapter not included)
  • PoE input (IEEE 802.3af/at)
• Max Power Consumption: 12.95W
• Bluetooth: 5.0 (BLE) for IoT applications & asset tracking

Environmental & Compliance:

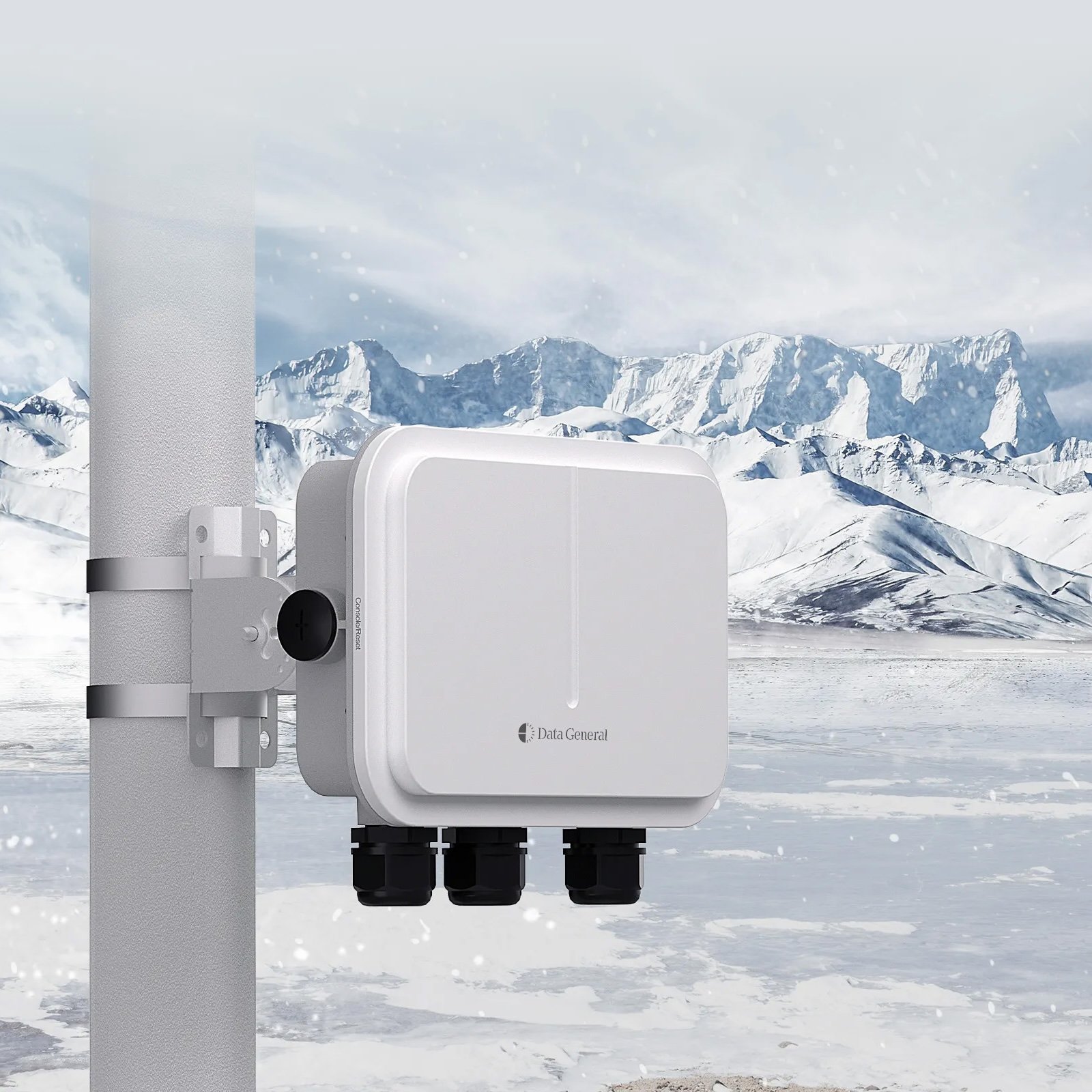

• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 0% to 100% RH (non-condensing)

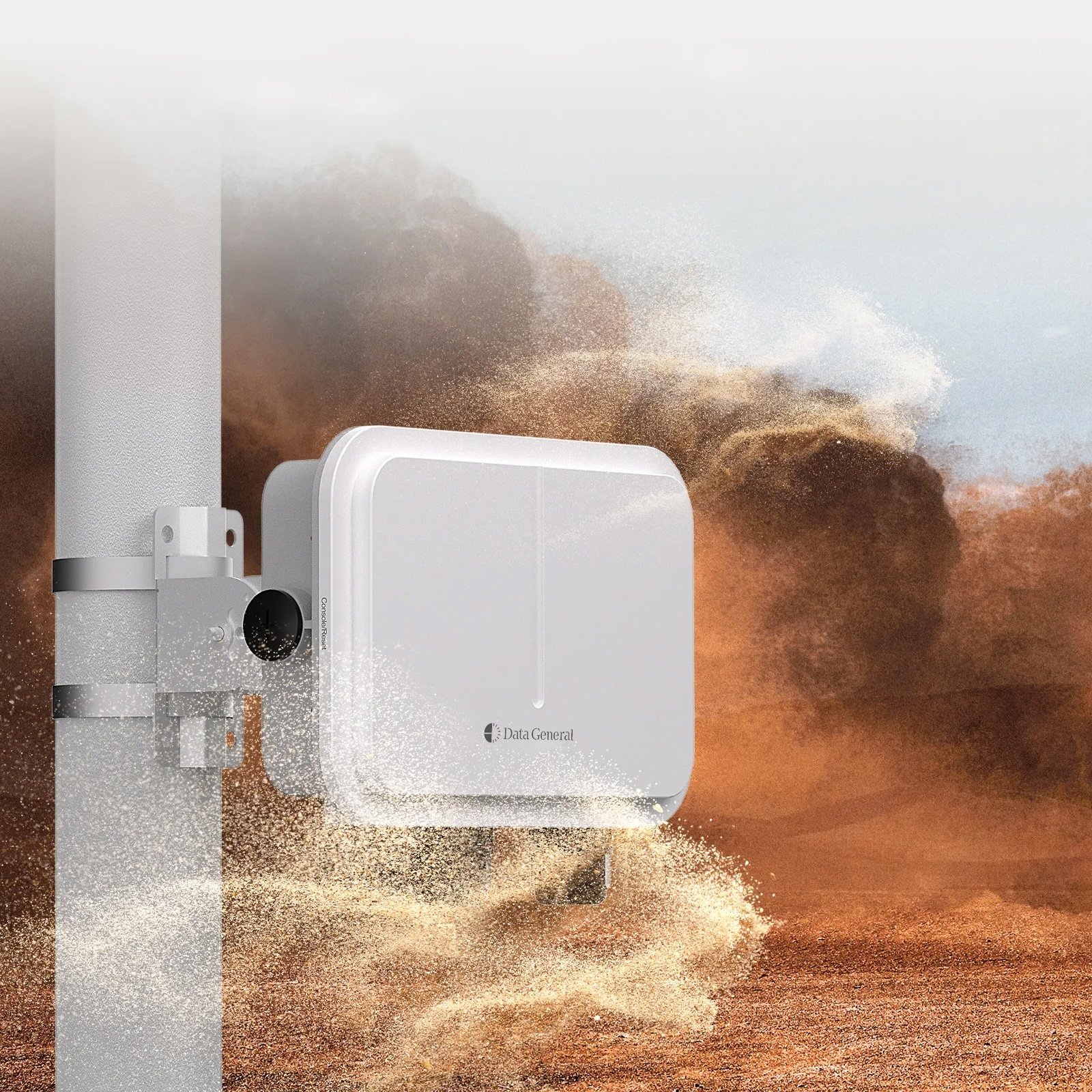

• IP Rating: IP68 (dustproof & waterproof)

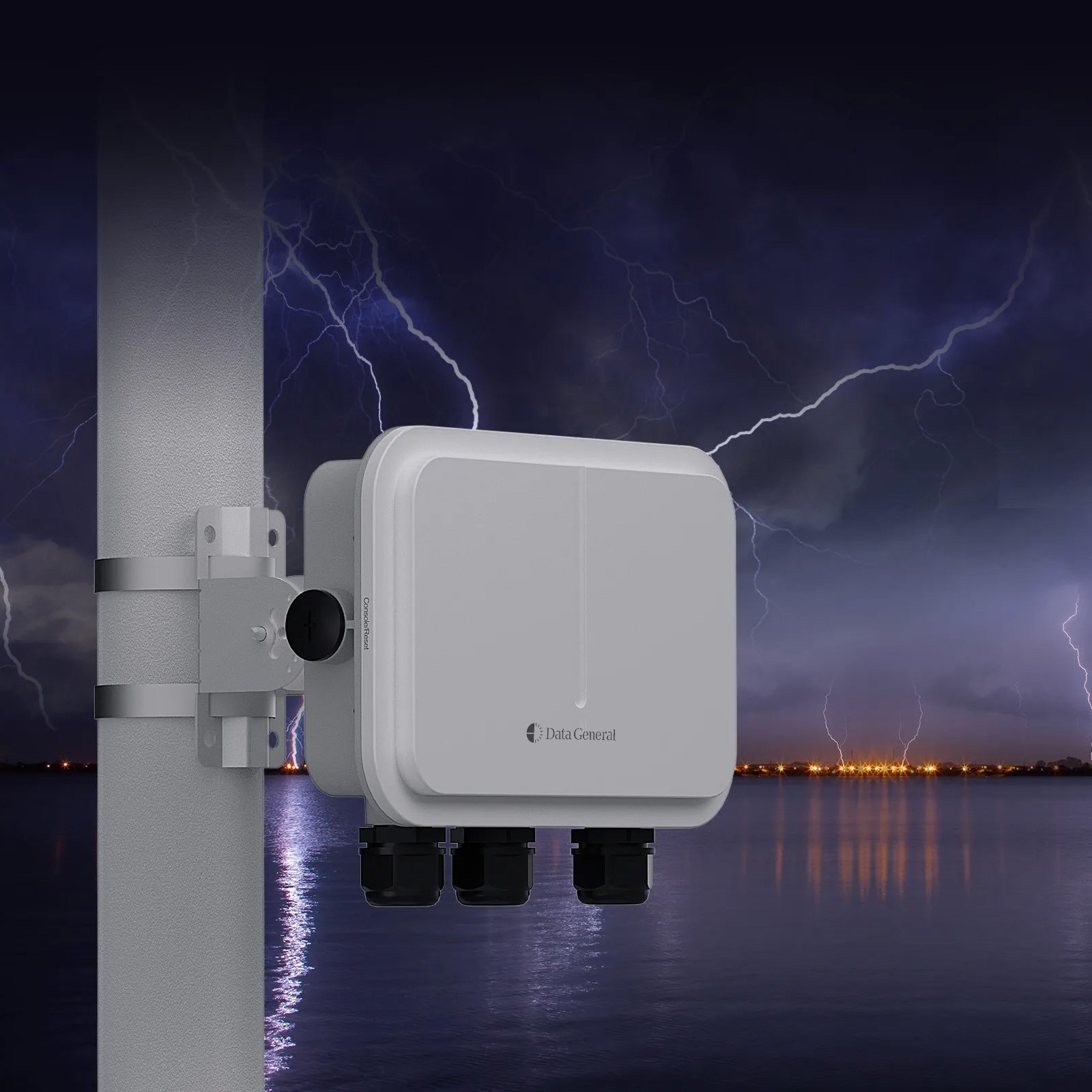

• Surge Protection: 9 kV
• Mean Time Between Failures (MTBF): 200,000 hours (22 years at 25°C)

Mounting & Dimensions:

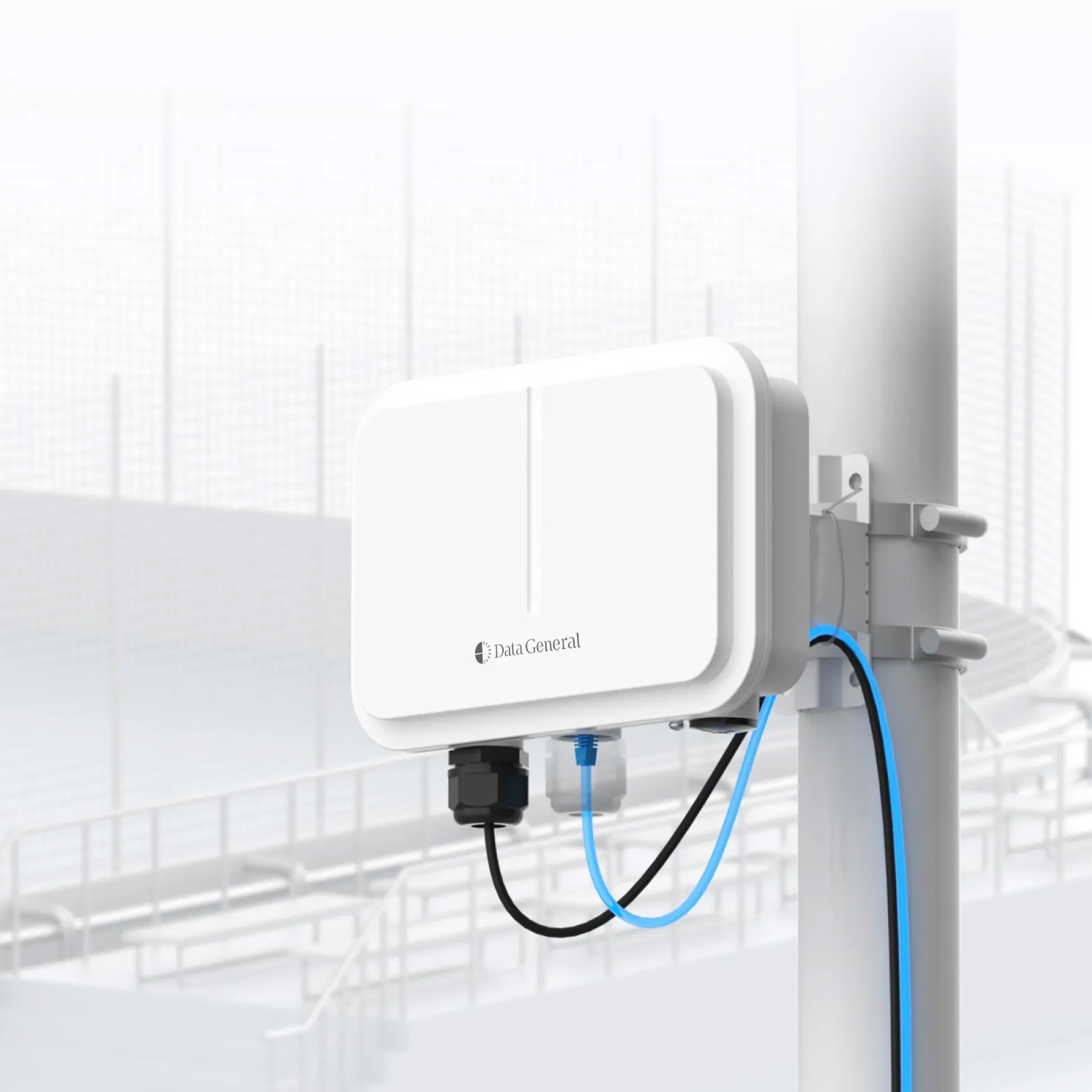

• Mounting: Wall or Pole-mount (mounting bracket included)

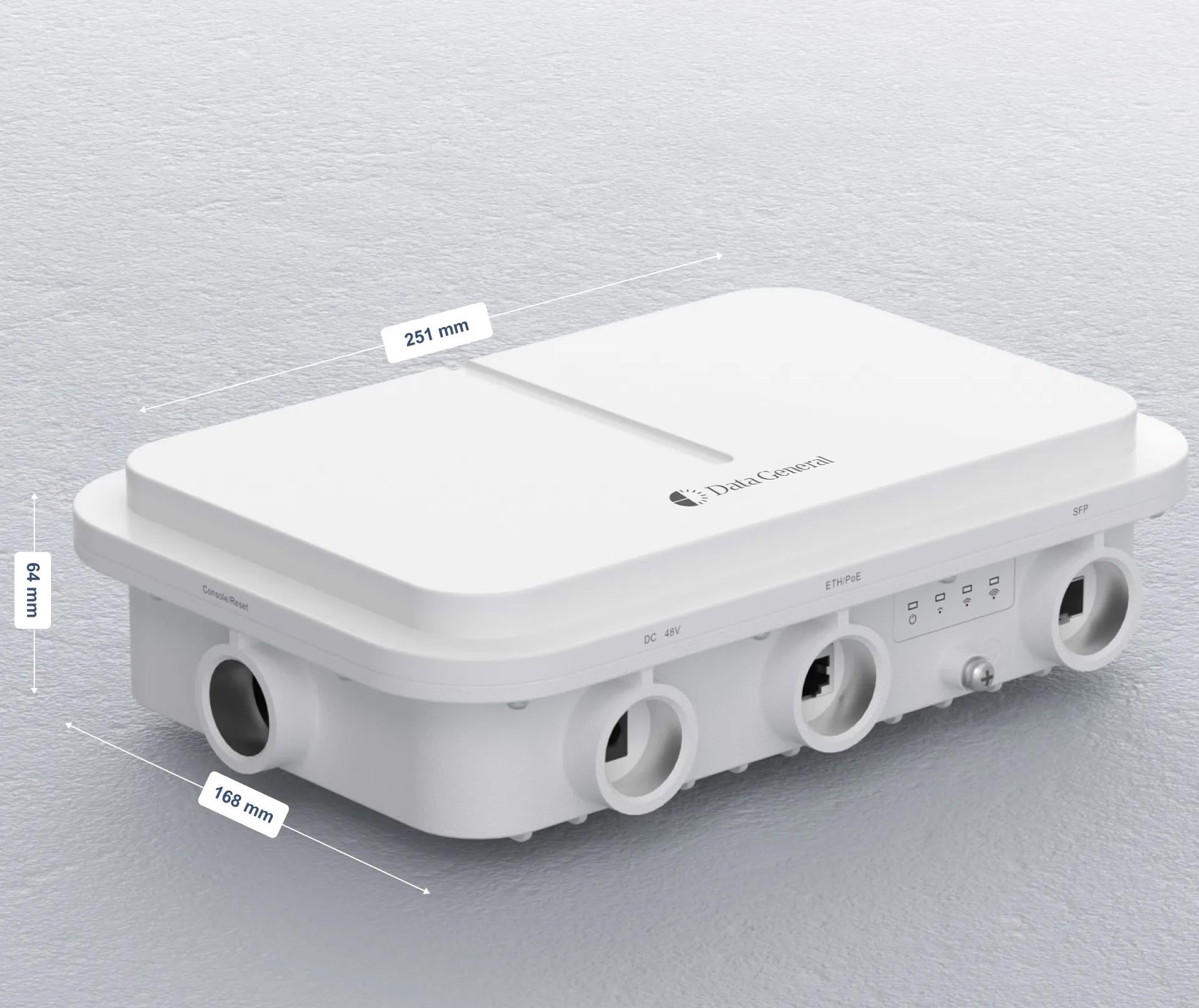

• Dimensions: 251 mm × 168 mm × 64 mm (9.88 in. × 6.61 in. × 2.52 in.)
• Weight: 1.5 kg (3.31 lbs) (Main Unit)

Key Features & Benefits:

• Wi-Fi 6 with dual-radio design for high-speed performance & efficiency
• Supports up to 1,024 client connections
• IP68-certified rugged enclosure for harsh outdoor environments
• Built-in directional antennas for optimized coverage
• OFDMA, MU-MIMO & TxBF for low-latency & high-capacity networking
• Seamless integration with Ruijie Cloud & hybrid cloud controllers
• PoE & DC power options for flexible deployments
• Advanced security with WPA3, 802.1X, and rogue AP detection

The Data General DG-AP680-AX3000-S Wi-Fi 6 Outdoor Access Point is an ideal solution for businesses, municipalities, and enterprises seeking high-performance, scalable, and secure outdoor wireless connectivity.
