Data General AP820-AX3000

Description

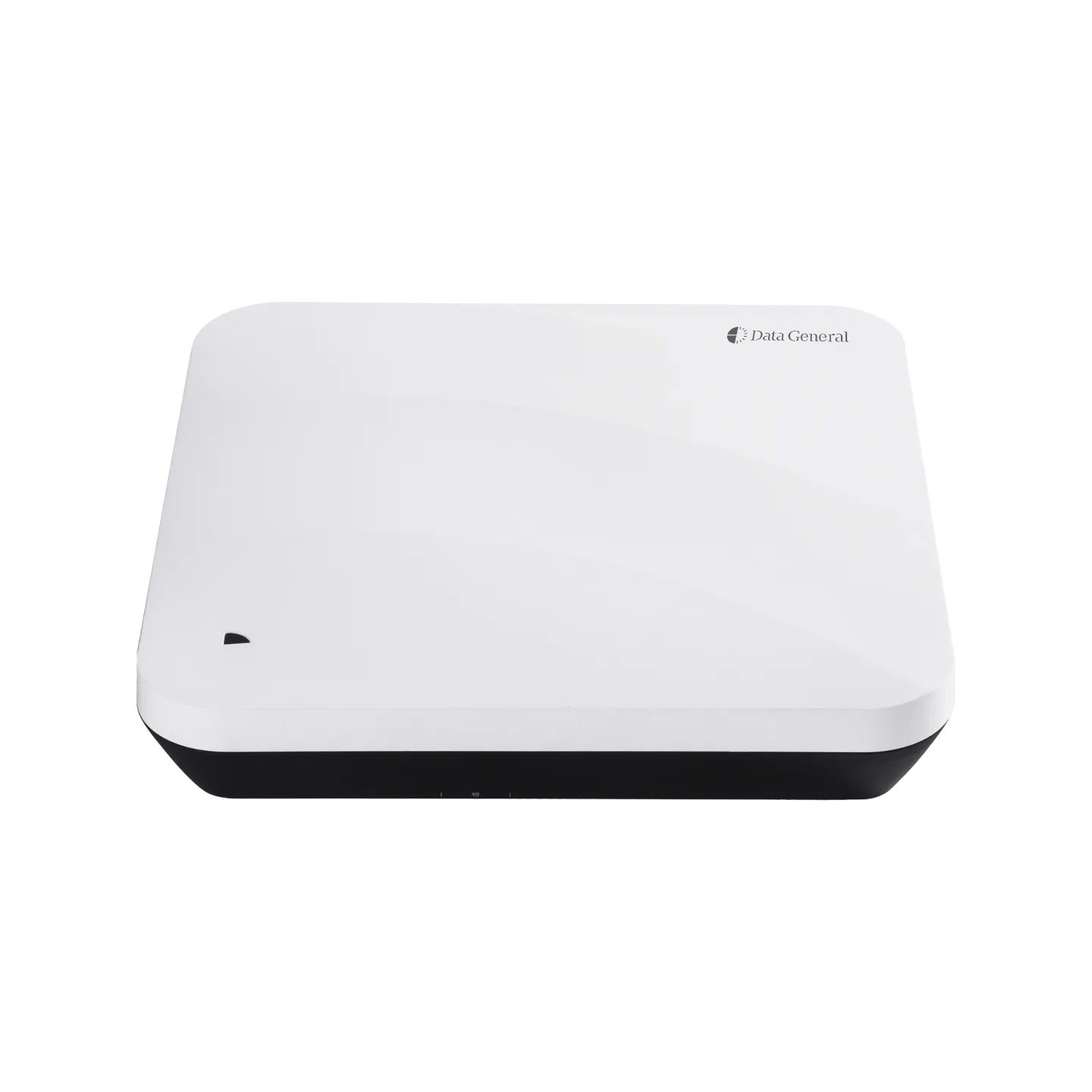

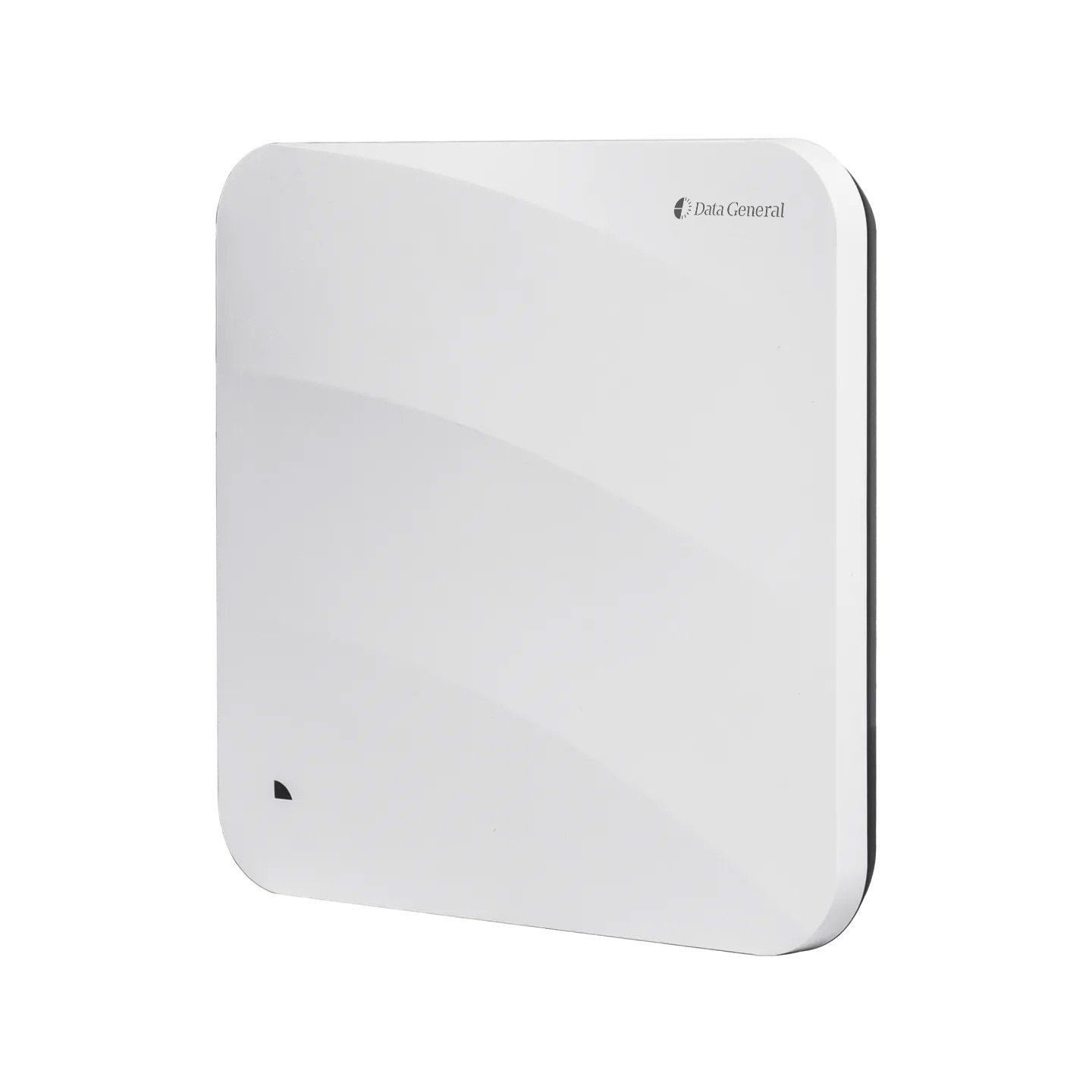

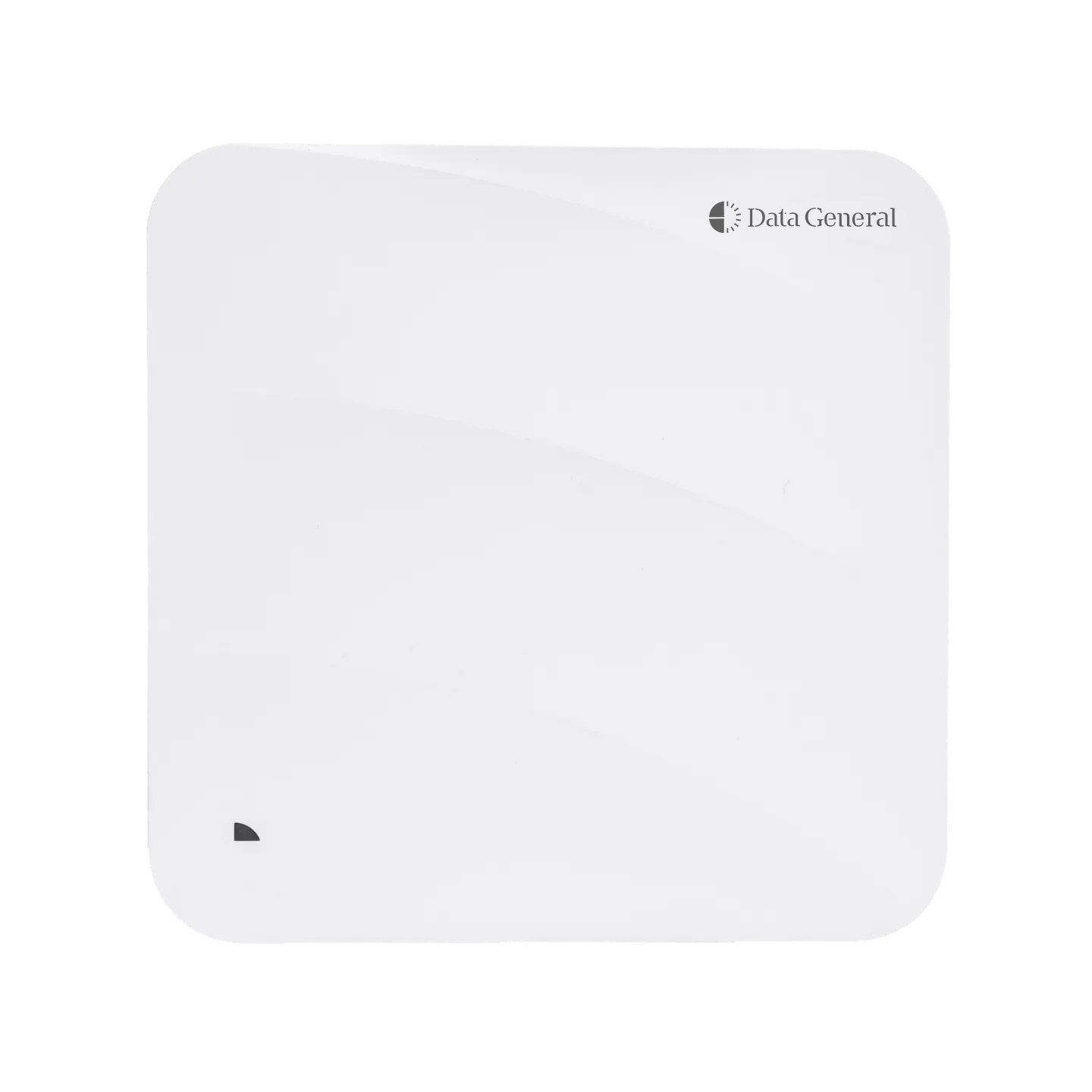

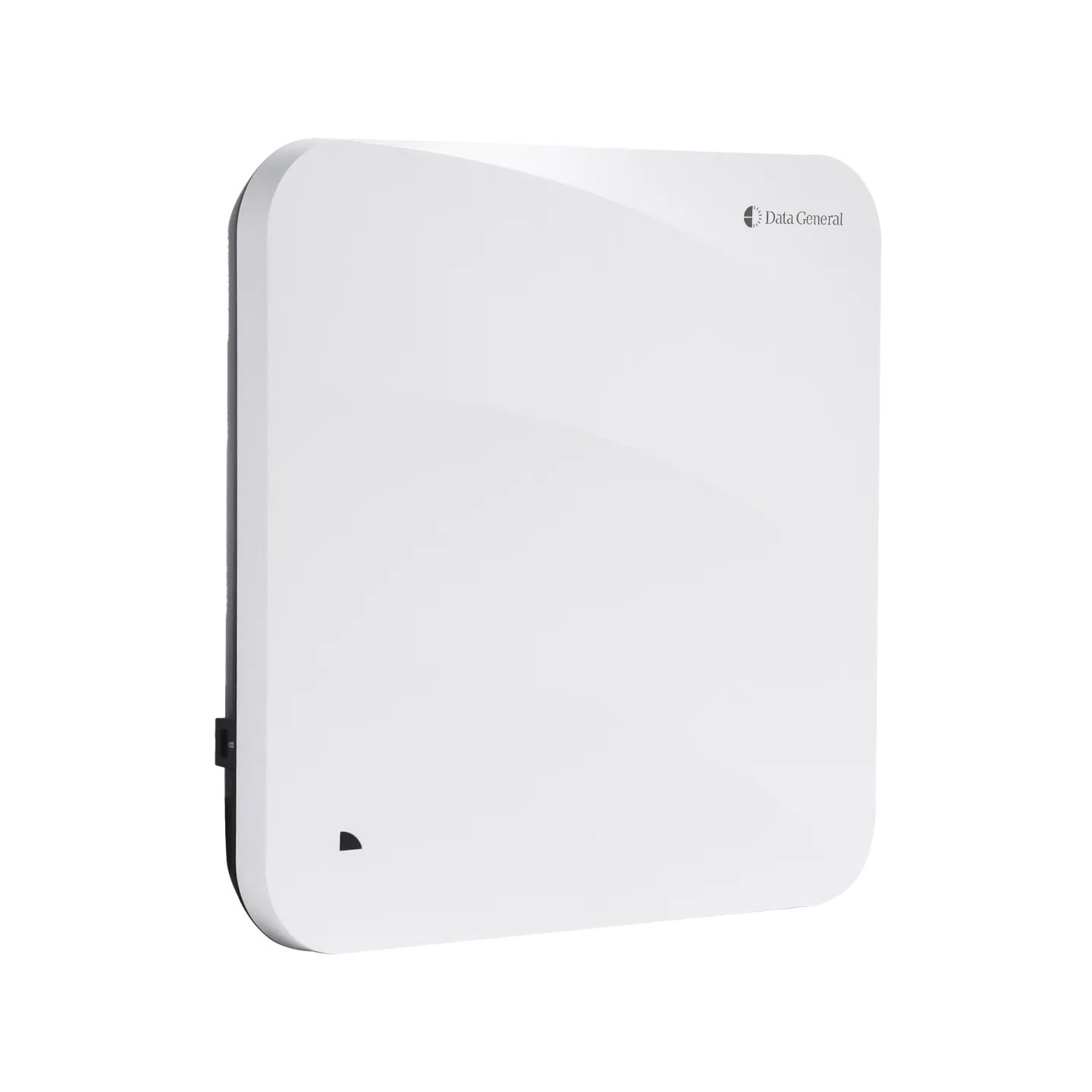

Data General DG-AP820-AX3000 – Wi-Fi 6 Dual-Radio Wireless Access Point AX 3000 Mbps

The Data General DG-AP820-AX3000 Wi-Fi 6 Dual-Radio Wireless Access Point is an enterprise-grade indoor AP built to deliver high-speed, secure, and efficient wireless networking. With 802.11ax (Wi-Fi 6) technology, OFDMA, and MU-MIMO, it offers superior performance in high-density environments such as universities, conference centers, corporate offices, and retail spaces.

Supporting up to 2.976 Gbps combined throughput, the DG-AP820-AX3000 optimizes network efficiency with 1024-QAM modulation, seamless Layer 2/3 roaming, and AI-driven RF optimization. It features a hybrid management mode, allowing deployment in cloud, controller-managed, or standalone configurations, making it an ideal solution for scalable and flexible enterprise networks.

With advanced security features including WPA3 encryption, 802.1X authentication, and rogue AP detection, and intelligent traffic management, the DG-AP820-AX3000 ensures unparalleled reliability, performance, and security.

Technical Specifications:

Wireless & Performance:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax), backward-compatible with 802.11a/b/g/n/ac
• Dual-Radio Configuration:
  • 2.4 GHz (Radio 1): 2×2 MU-MIMO, peak data rate 574 Mbps
  • 5 GHz (Radio 2): 2×2 MU-MIMO, peak data rate 2.402 Gbps
• Combined Peak Data Rate: 2.976 Gbps
• Security Protocols: WPA3, WPA2, 802.1X, PPSK, MAC authentication, rogue AP detection
• Advanced Features:
  • OFDMA (Orthogonal Frequency-Division Multiple Access)
  • MU-MIMO for high-density deployments
  • Transmit Beamforming (TxBF) for improved signal reliability
  • Dynamic Frequency Selection (DFS) for interference mitigation
  • AI-powered network optimization & seamless roaming

Hardware & Interfaces:

• Ethernet Ports:
  • 1 × 10/100/1000Base-T Ethernet port (PoE input support)
  • 1 × 2.5GE SFP/RJ45 combo port (compatible with 1GE modules)
  • 1 × RJ45 console port
• Antennas:
  • 2.4 GHz: 2 built-in omnidirectional antennas, 5 dBi gain
  • 5 GHz: 2 built-in omnidirectional antennas, 5 dBi gain
  • Bluetooth: Integrated omnidirectional antenna, 2.4 dBi gain
• Power Supply Options:
  • 48V DC input (0.6A, adapter not included)
  • PoE input (IEEE 802.3af/at)
• Max Power Consumption: 12.95W
• Bluetooth: 5.1 (BLE) for IoT applications & location services

Environmental & Compliance:

• Operating Temperature: -10°C to +50°C (14°F to +122°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Humidity: 0% to 95% RH (non-condensing)
• IP Rating: IP41 (dust and moisture resistance)
• Compliance Certifications: EN 62368-1, EN 55032, EN 55035, EN 301 489, EN 300 328, FCC Part 15

Mounting & Dimensions:

• Mounting: Wall or Ceiling-mount (mounting bracket included)
• Dimensions: 220 mm × 220 mm × 49 mm (8.66 in. × 8.66 in. × 1.93 in.)
• Weight: 0.6 kg (1.32 lbs) (Main Unit)

Key Features & Benefits:

• Wi-Fi 6 dual-radio architecture for high-speed, low-latency networking
• Supports up to 256 associated clients and 120 active devices per AP
• Hybrid cloud/local management for flexible deployment
• OFDMA, MU-MIMO & 1024-QAM for high-efficiency networking
• WPA3 security, 802.1X authentication, and AI-powered optimization
• PoE & DC power options for easy installation
• Advanced QoS with multicast-to-unicast technology for video streaming
• Seamless roaming & intelligent traffic steering for better user experience

The Data General DG-AP820-AX3000 Wi-Fi 6 Access Point is a future-ready solution for enterprises and institutions looking for a high-performance, secure, and scalable wireless network.
