Data General AP850-AX6800

Description

Data General DG-AP850-AX6800 – Wi-Fi 6 Triple Radio High Density Indoor Access Point AX 6800 Mbps

The Data General DG-AP850-AX6800 Wi-Fi 6 Indoor Access Point is a next-generation wireless solution designed for ultra-high-performance networking in enterprise and high-density environments. Featuring 802.11ax technology, OFDMA, MU-MIMO, and BSS Color Spatial Reuse, it minimizes interference, enhances efficiency, and supports up to 1,536 concurrent client connections.

With three Ethernet ports, including two Gigabit uplinks and one LAN port with passive PoE output for IoT devices, the Data General DG-AP850-AX6800 ensures scalable and flexible deployments. It supports hybrid management modes, allowing standalone (Fat mode) or centralized management (Fit mode) with Ruijie Cloud or MACC software controllers.

Ideal for campuses, enterprises, retail, healthcare, and government sectors, the DG-AP850-AX6800 offers seamless roaming, AI-powered optimization, and enterprise-grade security with PPSK, 802.1X, WPA3, and rogue AP detection.

Technical Specifications:

Wireless & Performance:

• Wi-Fi Standard: Wi-Fi 6 (802.11ax) with backward compatibility (802.11a/b/g/n/ac)
• Tri-Radio Dual-Band Configuration:
  • 2.4 GHz: 4×4 MIMO, peak data rate 1.15 Gbps
  • 5 GHz (Radio 1): 2×2 MIMO, peak data rate 867 Mbps
  • 5 GHz (Radio 2): 4×4 MIMO, peak data rate 4.8 Gbps
• Combined Peak Data Rate: 6.817 Gbps
• Security Protocols: WPA3, WPA2, 802.1X, PPSK, MAC authentication, rogue AP detection
• Advanced Features:
  • OFDMA (Orthogonal Frequency-Division Multiple Access)
  • MU-MIMO for high-density environments
  • BSS Color Spatial Reuse to minimize interference
  • Target Wake Time (TWT) for power efficiency
  • AI-driven Wi-Fi optimization via Ruijie Cloud

Hardware & Interfaces:

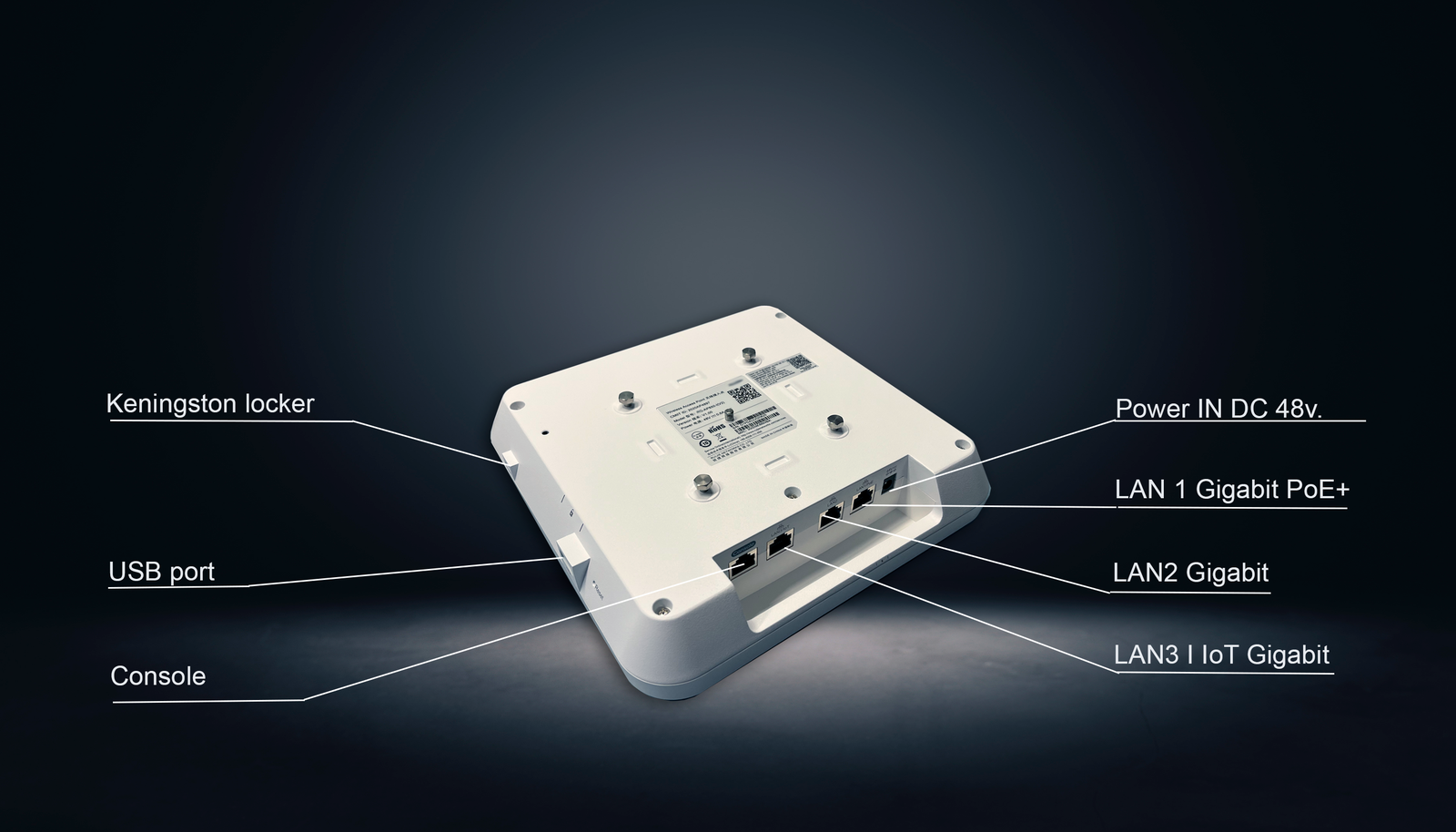

• Ethernet Ports:
  • 2 × Gigabit Ethernet uplink ports (PoE/PoE+ capable)
  • 1 × Gigabit LAN port with passive PoE output for IoT devices
  • 1 × USB 2.0 port
  • 1 × RJ45 console port
• Antennas:
  • Built-in smart antennas for optimized signal performance
• Power Supply Options:
  • 48V DC adapter (optional)
  • PoE Input (IEEE 802.3af/at)
• Max Power Consumption: <25.5W
• Bluetooth: 5.0 (BLE), Apple iBeacon support

Environmental & Compliance:

• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Humidity: 5% to 95% RH (non-condensing)
• IP Rating: IP41 (protection against solid objects & moisture)

Mounting & Dimensions:

• Mounting: Wall or Ceiling
• Dimensions: 220 mm × 220 mm × 48.85 mm (8.7 in. × 8.7 in. × 1.9 in.)
• Weight: 1.3 kg (2.87 lbs)

Key Features & Benefits:

• Wi-Fi 6 with 10 spatial streams for maximum speed & efficiency
• Supports up to 1,536 client connections
• Tri-Radio dual-band for optimized performance & low interference
• AI-driven optimization via Ruijie Cloud for seamless performance
• Enterprise security with PPSK, WPA3, 802.1X, and rogue AP detection
• Integrated IoT support with BLE & passive PoE output
• Hybrid cloud/local management for flexible deployment

The Data General DG-AP850-AX6800 Wi-Fi 6 Access Point is the perfect solution for businesses seeking next-generation wireless performance, security, and scalability.
