Data General PA1000I-P-F

Description

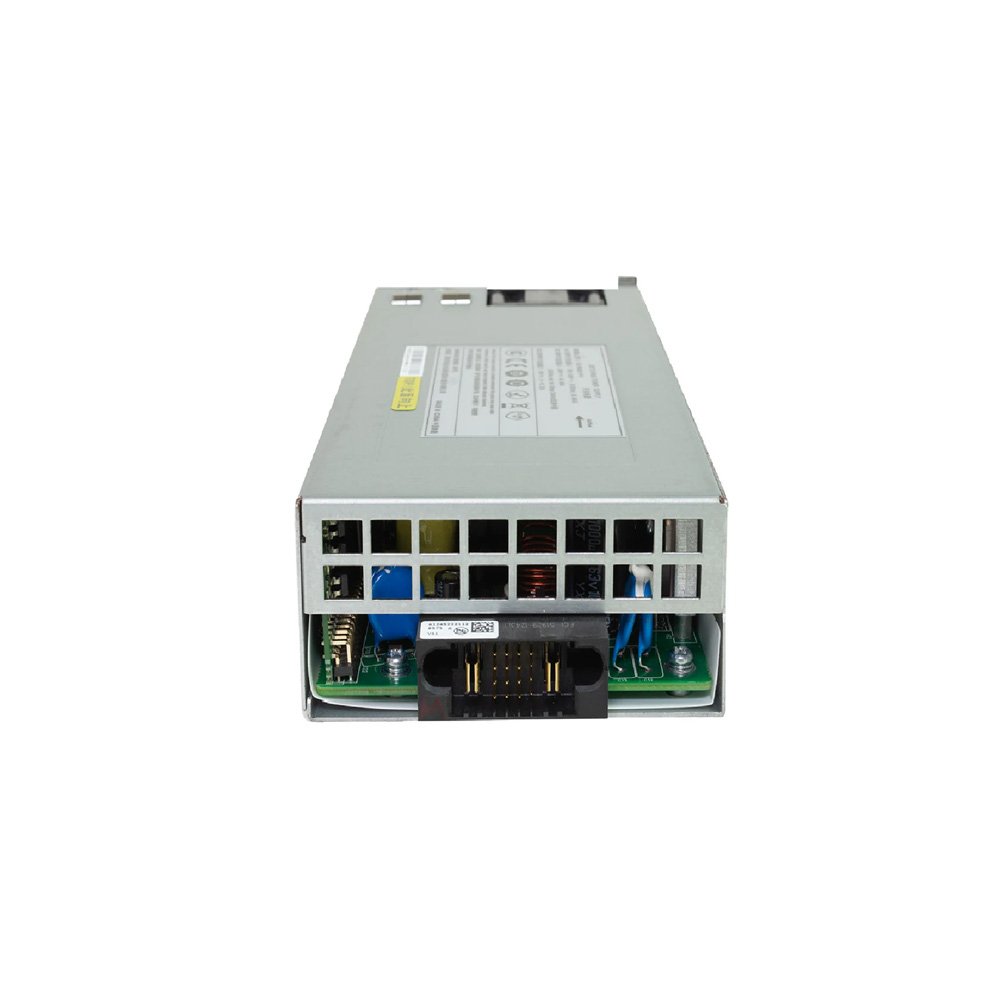

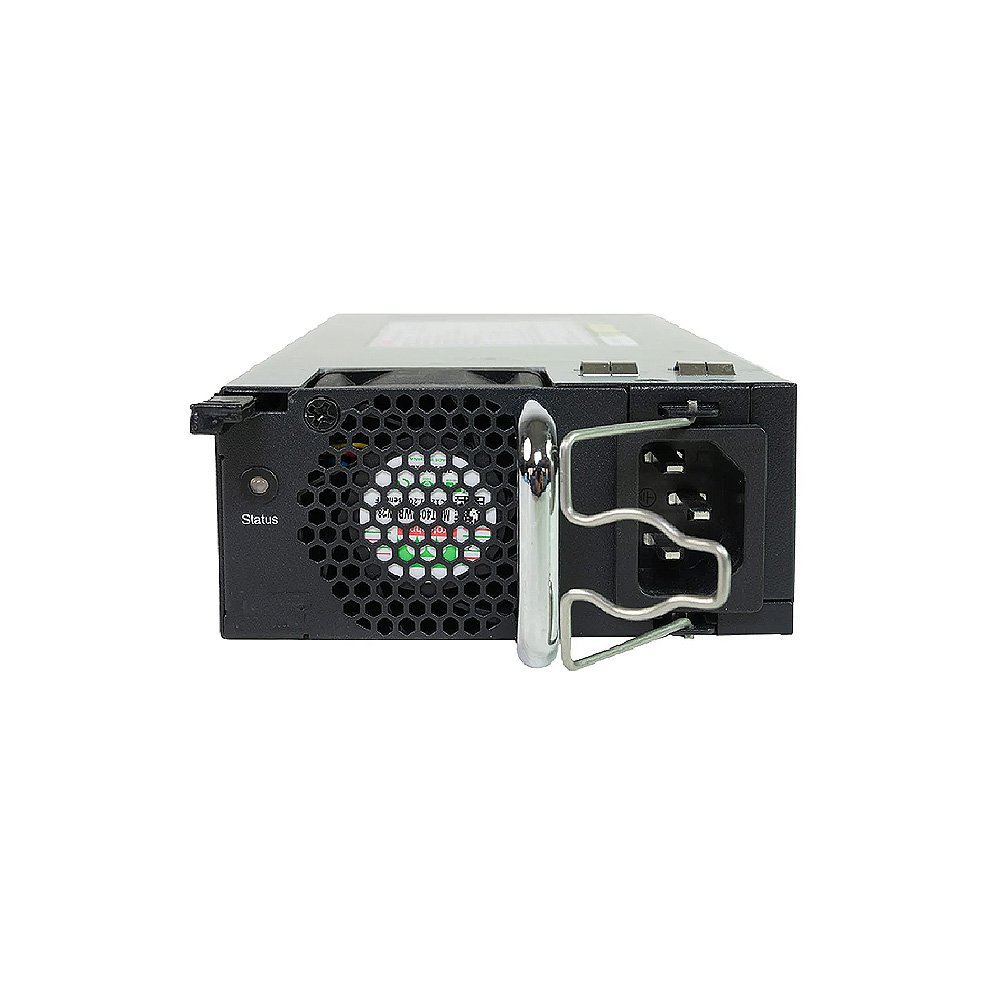

Data General DG-PA1000I-P-F – 1000W AC/HVDC Power Supply Module delivers 720w PoE for DG-S5310-xx PoE switches

The RG-PA1000I-P-F is an advanced AC/HVDC power module, engineered to deliver 56V DC output with up to 1000W of power. Designed for high-performance PoE network switches, it ensures efficient and stable power distribution, making it ideal for enterprise networking, cloud infrastructure, and industrial environments.

This power supply module supports power redundancy, allowing dual units to operate in parallel for load sharingwhen PoE consumption is below 740W, improving reliability and reducing failure risks. Additionally, hot-swappable functionality enables the safe removal and replacement of modules without powering down the system, minimizing operational disruptions.

To enhance equipment protection, the RG-PA1000I-P-F includes undervoltage, overcurrent, overvoltage, and short-circuit protection, safeguarding networking devices from electrical issues. Its conformal coating technologyfurther extends its durability by protecting internal circuits from moisture, dust, and electrical shocks.

With I2C communication support, the module allows the host system to monitor power supply status in real time. It also features an LED alarm system, which provides instant alerts for power failures, ensuring quick diagnostics and troubleshooting.

Technical Specifications:

Input Specifications:

• Rated Input Voltage:
  • AC: 100V–240V AC, 50Hz–60Hz
  • HVDC: 240V DC
• Maximum Input Voltage:
  • AC: 90V–264V AC, 47Hz–63Hz
  • HVDC: 192V–290V DC
• Maximum Input Current:
  • 90V AC Input: 12A
  • 176V AC Input: 8A
• Input Leakage Current: ≤1.75mA

Output Specifications:

• Output Voltage: 56V DC
• Maximum Output Current:
  • 90V–176V AC Input: 16.61A
  • 176V–290V AC Input: 17.86A
• Maximum Output Power:
  • 90V–176V AC Input: 930W
  • 176V–290V AC Input: 1000W
• PoE Output Power:
  • 90V–176V AC Input: <930W
  • 176V–290V AC Input: <1000W

Dimensions & Weight:

• Dimensions (W × D × H): 196mm × 90mm × 40mm (7.72 in. × 3.54 in. × 1.57 in.)
• Weight: 1.0 kg (2.20 lbs.)

Environmental Specifications:

• Primary Airflow: Rear-to-front (Air intake from connector, air outlet from front panel)
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Operating Humidity: 5% to 95% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)
• Operating Altitude: -500m to 5,000m (-1,640ft to 16,404ft)

Key Features:

• Power Redundancy Support: Enables parallel operation for load sharing when PoE usage is below 740W.
• Hot-Swappable: Allows safe removal and replacement of power modules while the system remains operational.
• Advanced Security Protection: Includes undervoltage, overcurrent, overvoltage, and short circuit protection.
• Conformal Coating: Protects internal circuits from moisture, dust, and electrical hazards.
• I2C Communication: Provides real-time power monitoring and diagnostics.
• Power Alarm System: LED indicators notify users of power failures for quick troubleshooting.

LED Indicators:

• Output Status LED:
  • Off: The power module is not connected.
  • Solid Red: Power output error detected (fan failure, short circuit, overcurrent, overvoltage, overheating, or general power failure).
  • Solid Green: Power supply module is operating normally.

Certifications & Compliance:

• RoHS & WEEE Compliant
• CE, FCC, UL Certified

Applications:

• Enterprise Network Switches & Routers
• Data Center High-Power PoE Deployments
• Redundant Power Systems for Mission-Critical Networks
• Industrial & Commercial Networking Equipment

Compatible Switch Models:

• Data General DG-S5310 PoE Series:
  • DG-S5310-24GP4X-370w
  • DG-S5310-24GP4X-740w
  • DG-S5310-48GP4X-740w
  • DG-S5310-48GP4X-1440w

• Ruijie RG-S5310-E Series:
  • RG-S5310-24GT4XS-P-E
  • RG-S5310-48GT4XS-P-E
• Ruijie RG-S5760C-X Series:
  • RG-S5760C-48GT4XS-HP-X
• Ruijie RG-S6100 Multi-GE Series:
  • RG-S6110-48MG4VS2QXS-UP
  • RG-S6120-24XMG4XS4VS-UP-H
  • RG-S6120-48XMG4VS2QXS-UP-H

The DG-PA1000I-P-F 1000W Power Supply Module is the perfect solution for high-power networking applications, ensuring efficient and uninterrupted power delivery in enterprise and data center environments.
