Data General PA150IB-F

Description

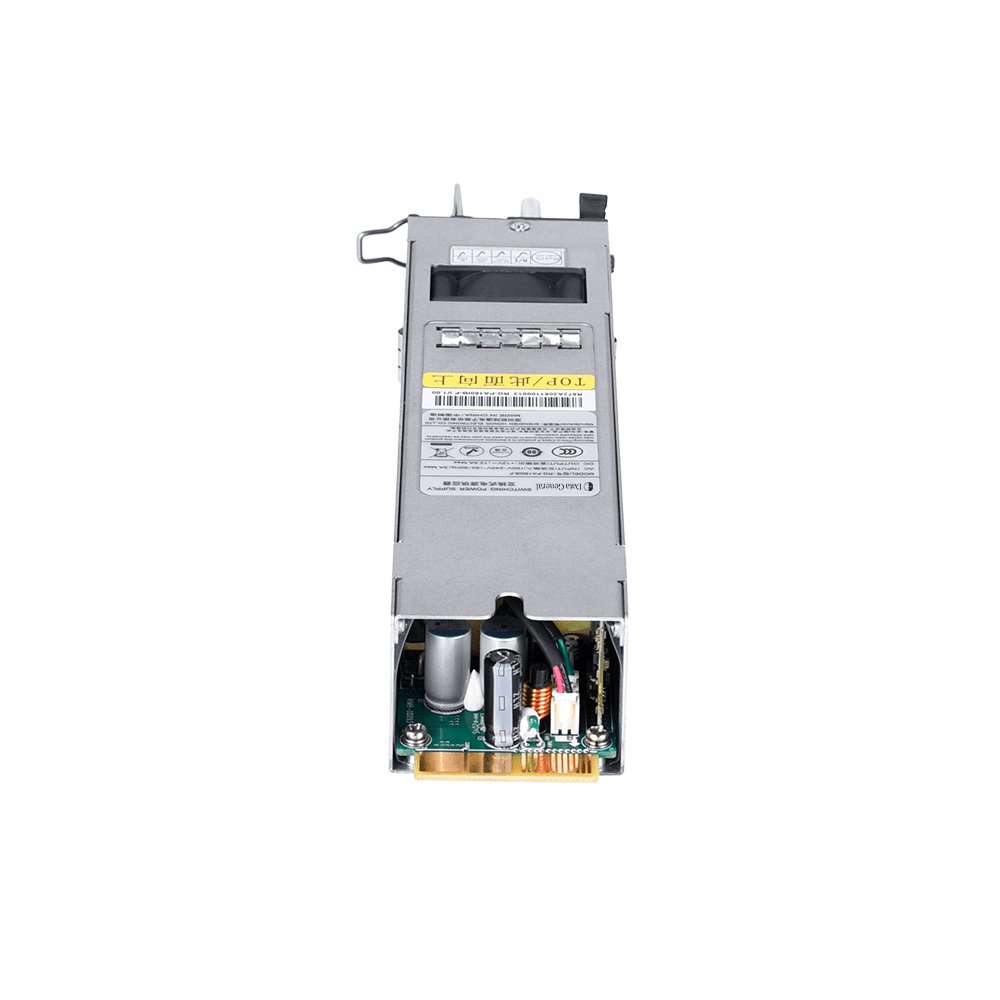

Data General DG-PA150IB-F – 150W AC/HVDC Power Supply Module for Data General DG-S5310 non-PoE switches

The DG-PA150IB-F is a high-performance AC/HVDC power module, designed to provide a stable 12V DC output with up to 150W of power. This module is ideal for enterprise networking equipment, including Ruijie switches, offering high reliability, scalability, and energy efficiency.

The DG-PA150 Series supports power redundancy, allowing dual power modules to work in parallel for current sharing, significantly improving system reliability and reducing the risk of power failures. Additionally, it features hot-swappable support, enabling safe replacement of power modules without powering down the system.

To enhance system protection, the DG-PA150IB-F includes undervoltage, overcurrent, overvoltage, and short-circuit protection, ensuring stable power output even under fluctuating electrical conditions. The conformal coating technology shields internal circuits from moisture, mold, electrical shocks, and leakage, making it more durable in various environmental conditions.

The DG-PA150IB-F also supports I2C communication, enabling real-time power monitoring and control. Additionally, its integrated power supply alarm system notifies users of power failures through LED indicators, ensuring quick detection and troubleshooting of power faults.

Technical Specifications:

Input Specifications:

• Rated Input Voltage:
  • AC: 100V–240V AC, 50Hz–60Hz
  • HVDC: 240V DC
• Maximum Input Voltage:
  • AC: 90V–290V AC, 47Hz–63Hz
  • HVDC: 192V–288V DC
• Maximum Input Current: 3A
• Input Leakage Current: ≤3.5mA

Output Specifications:

• Output Voltage: 12V DC
• Maximum Output Current: 12.5A
• Maximum Output Power: 150W

Dimensions & Weight:

• Dimensions (W × D × H): 196mm × 50.5mm × 40mm (7.72 in. × 1.99 in. × 1.57 in.)
• Weight: 0.55 kg (1.21 lbs.)

Environmental Specifications:

• Primary Airflow: Rear-to-front (Air intake from connecting finger, air outlet from front panel)
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)
• Operating Altitude: 0m to 5,000m (0ft to 16,404ft)

Key Features:

• Power Redundancy Support: Enables parallel operation of dual power supply modules for load sharing.
• Hot-Swappable: Allows replacement of power modules without shutting down the system.
• Advanced Security Protection: Includes undervoltage, overcurrent, overvoltage, and short circuit protection.
• Conformal Coating: Protects circuits from moisture, mold, electrical shocks, and leakage.
• I2C Communication: Provides real-time power monitoring and system control.
• Power Alarm System: LED indicators notify users of power failures.

LED Indicators:

• Output Status LED:
  • Off: No power output or fault detected.
  • On: Power output is normal.

Certifications & Compliance:

• RoHS & WEEE Compliant
• CE, FCC, UL Certified

Applications:

• Enterprise Network Switches & Routers
• High-Density Data Center Power Supply
• Redundant Power Systems for Mission-Critical Networks
• Industrial & Commercial Networking Equipment

The DG-PA150IB-F 150W Power Supply Module is an efficient and reliable power solution designed to ensure uninterrupted network operation, making it an ideal choice for data centers, enterprise networks, and mission-critical applications.
