Data General POE-AT

Description

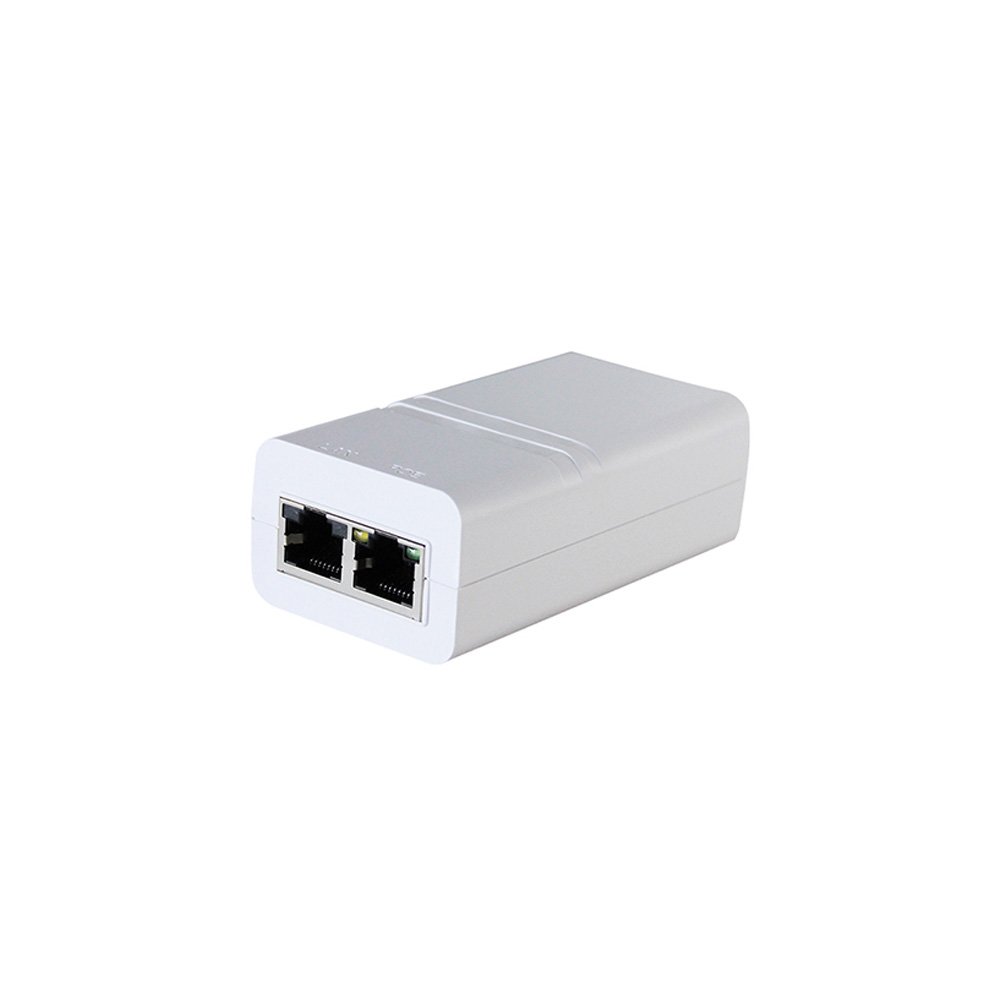

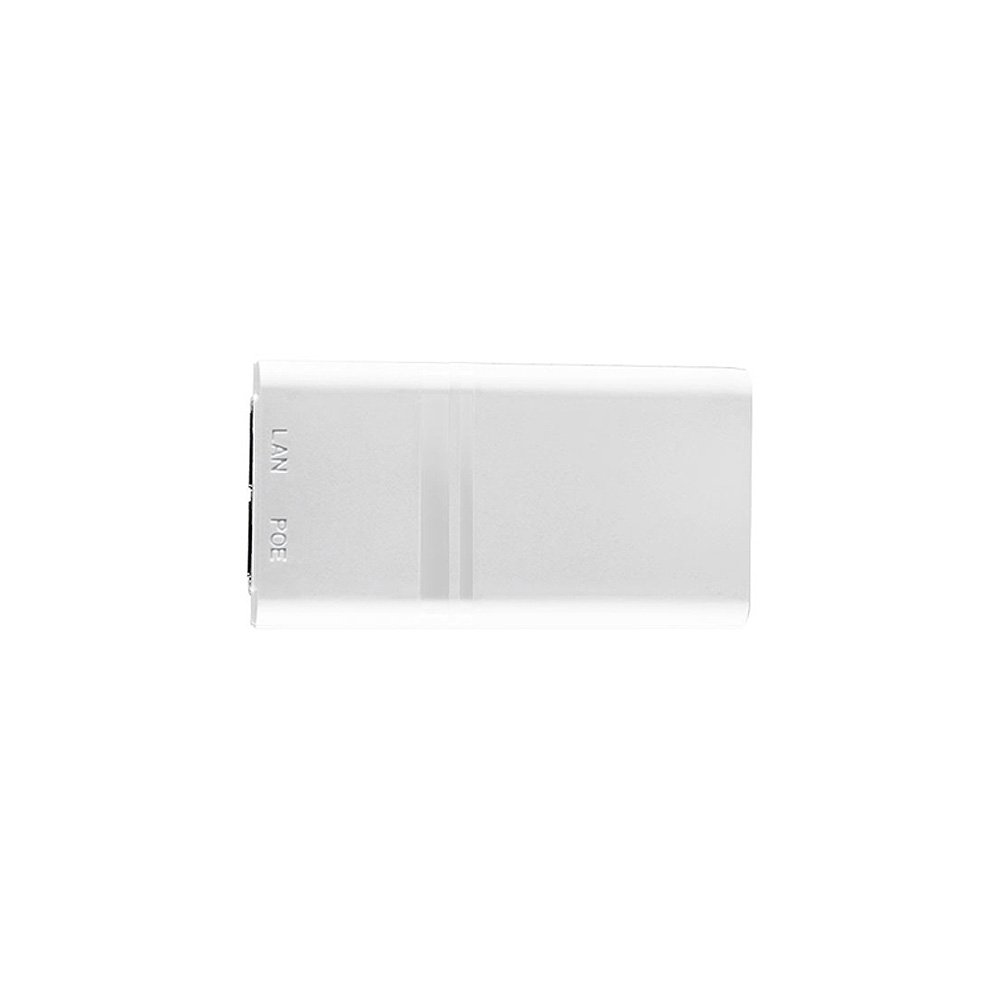

Data General DG-POE-AT – 30W Gigabit PoE Injector, IEEE 802.3at Compliant

The DG-POE-AT 30W PoE Injector is a compact and efficient midspan injector that provides Gigabit data rates and high-performance PoE for a wide range of powered devices (PDs). Supporting 10/100/1000Mbps network speeds, it delivers up to 30.16W of power with IEEE 802.3at compatibility, ensuring reliable connectivity and performance for IP cameras, access points, and industrial IoT devices.

With built-in intelligent detection technology, the EN30GT can automatically detect and classify connected devices before supplying power, preventing damage to non-PoE equipment. Its fire-retardant IP40 plastic case ensures durability for indoor installations, while its compact design allows for easy placement on desks or network cabinets.

The DG-POE-AT operates on a wide input voltage range (100-240VAC, 50/60Hz) and includes built-in AC surge protection, enhancing reliability in demanding environments. It supports Cat5e/Cat6 cable transmission up to 100 meters.

Technical Specifications:

Key Features:

• Gigabit data rates (10/100/1000 Mbps)
• Compact design with high performance
• Intelligent PD detection and protection
• AC power cord with optional US, EU, or other standard plugs
• Diagnostic LED indicators
• Cost-effective PoE power delivery

Ports & Interfaces:

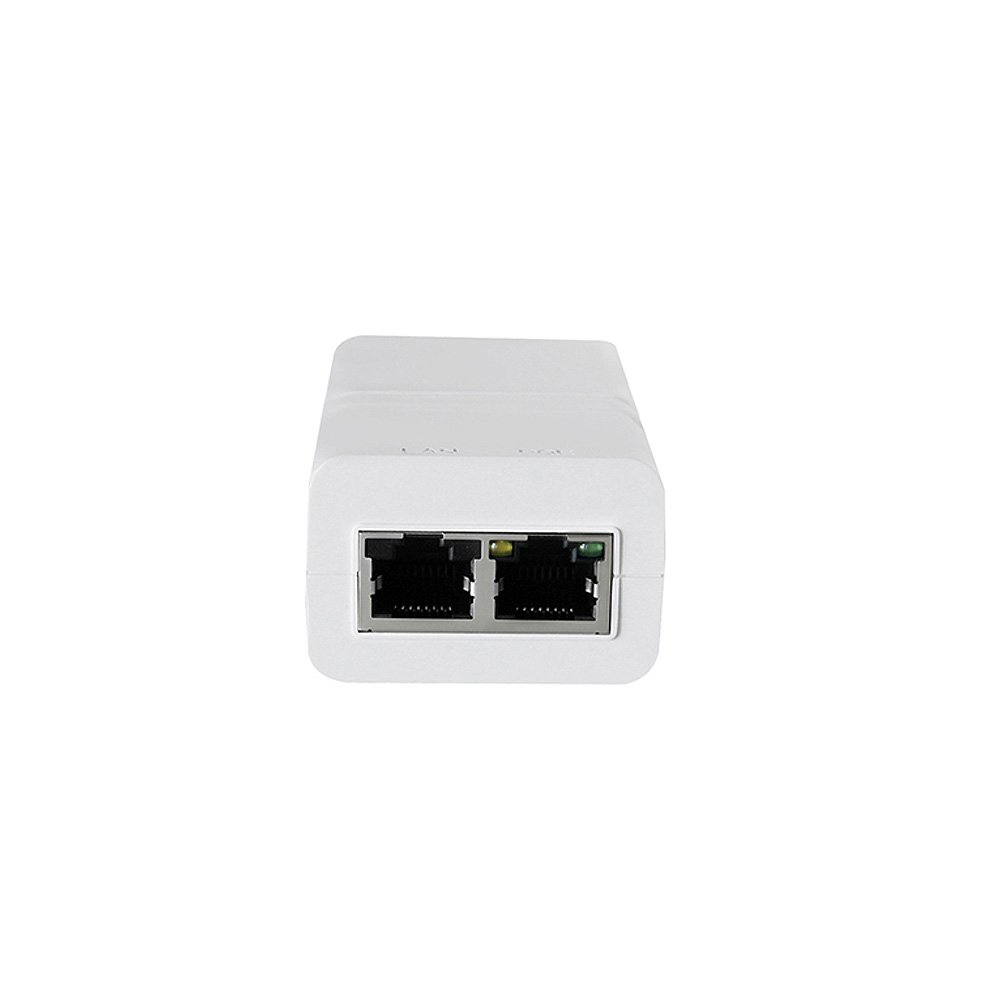

• LAN Port: 1x Shielded RJ-45

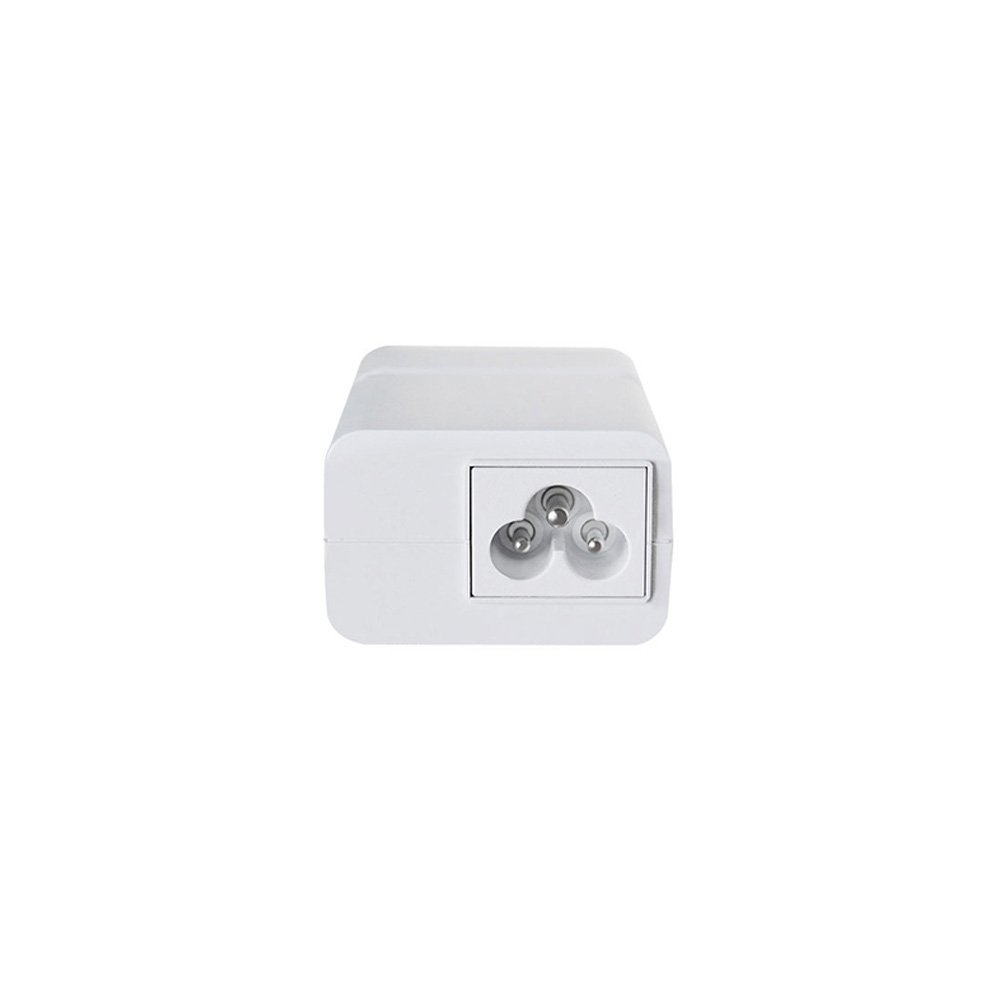

• AC Input Port: 1x IEC power connector
• PoE Output Port: 1x Shielded RJ-45

Power & Compliance:

• Standards Compliance: IEEE 802.3at
