Data General POE-BT-5G

Description

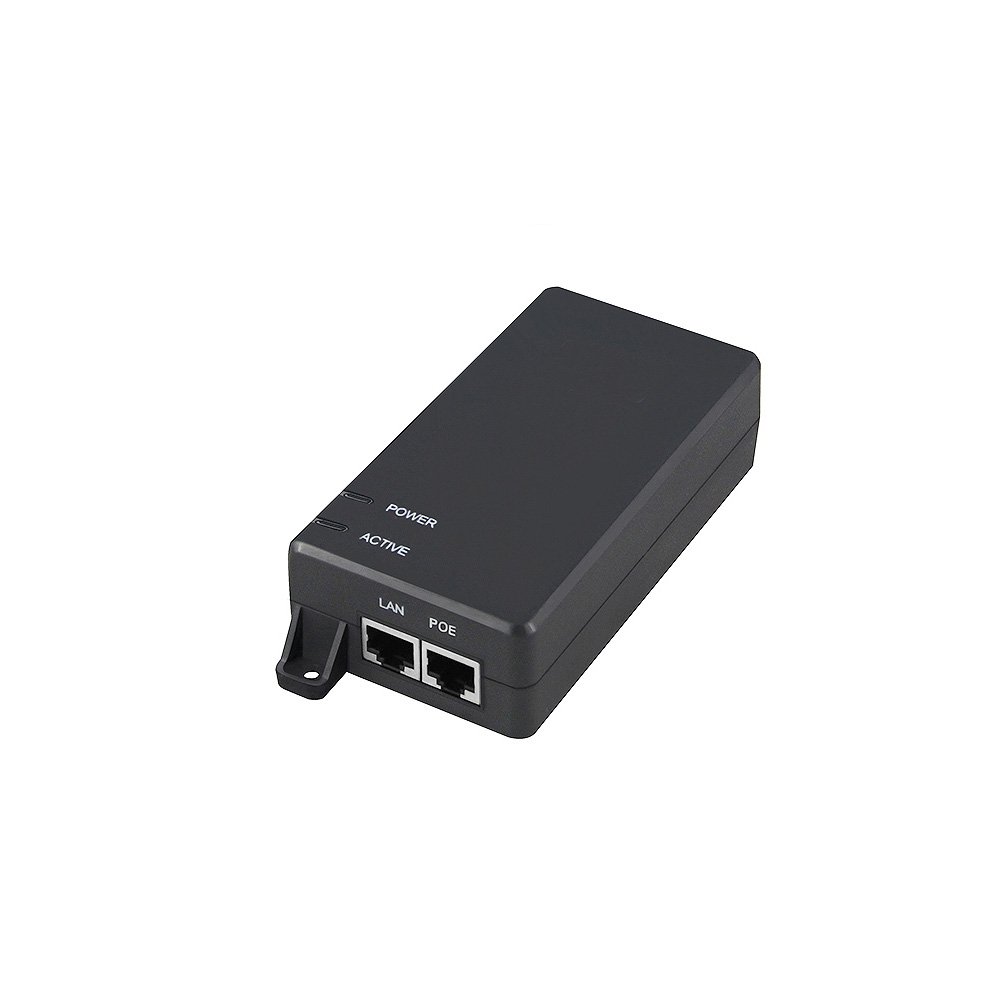

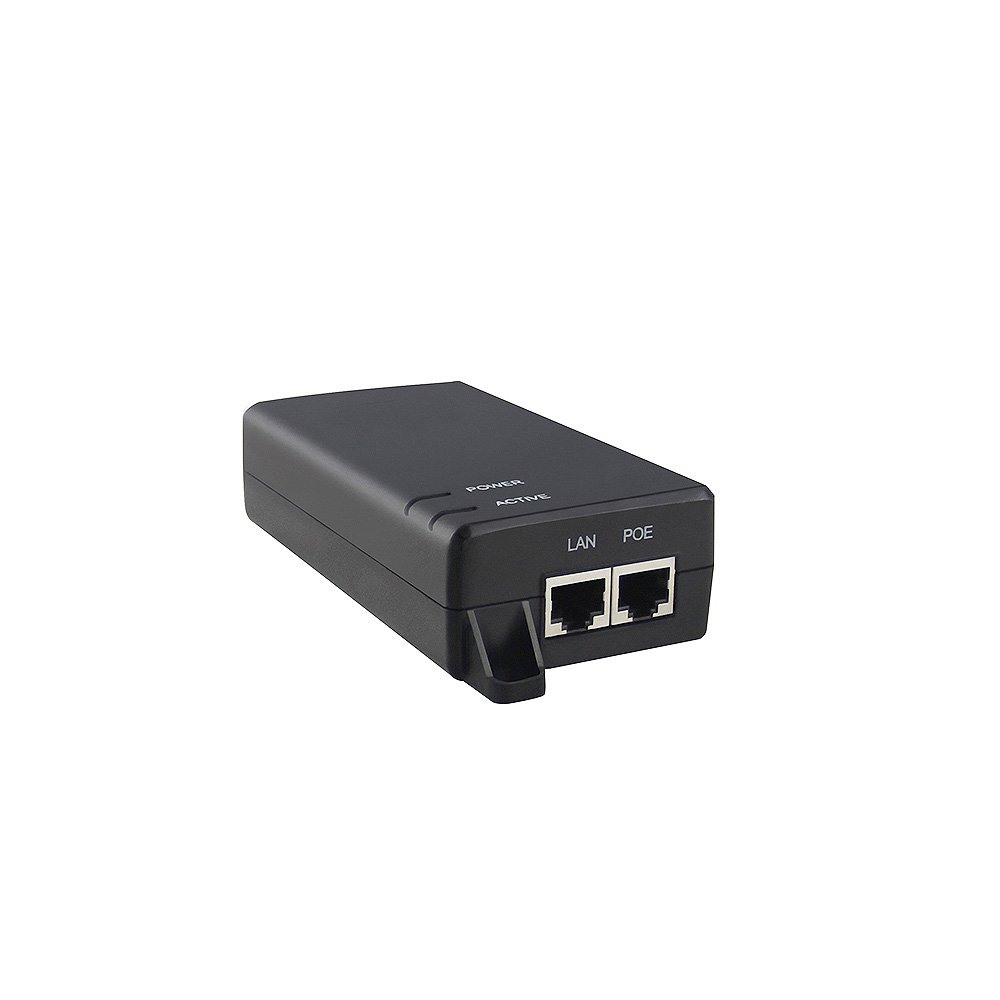

Data General DG-POE-BT-5G – 2.5G/5G 60W PoE Injector, IEEE 802.3bt Compliant

The DG-POE-BT-5G PoE Injector is a powerful midspan injector designed to provide up to 60W of power over 4-Pair PoE at 55V DC. With IEEE 802.3bt compliance, it supports high-performance networking applications, ensuring fast and stable data transmission with 2.5G and 5G pass-through rates.

Equipped with intelligent PD detection, this injector automatically detects and classifies PoE devices (PDs) before powering them, ensuring protection for non-PoE equipment. It is fully backward compatible with IEEE 802.3af/at devices, making it an ideal solution for enterprise networking, IoT, and smart security systems.

Designed with a durable IP40-rated plastic enclosure, the PT-PSE104GB-60-5 is wall-mountable, making it perfect for indoor installations in offices, retail spaces, and smart home environments. It operates with a wide AC input voltage range of 100-240V and features built-in surge protection, ensuring stable performance even in challenging electrical conditions.

Technical Specifications:

Key Features:

• Supports 2.5G & 5G pass-through data rates
• 60W PoE++ power output (IEEE 802.3bt)
• Auto PD detection & classification
• Wall-mounted compact design
• AC surge protection for enhanced safety
• Backward compatible with IEEE 802.3af/at

Ports & Interfaces:

• LAN Port: 1x Shielded RJ-45
• AC Input Port: 1x IEC power connector
• PoE Output Port: 1x Shielded RJ-45

Power & Compliance:

• Standards Compliance: IEEE 802.3bt (PoE++), backward compatible with IEEE 802.3af/at
• Pass-Through Data Rates: 2.5Gbps, 5Gbps
• Output Pin Assignment & Polarity:
  • 4/5 (+), 7/8 (-)
  • 3/6 (+), 1/2 (-)
• Output Voltage: 55V DC
• Maximum Power Output: 60W
• Input Voltage: 100-240V AC
• Frequency: 47-63Hz (Typ. 50/60Hz)
• AC Input Current: 1.5A

Environmental & Mechanical Characteristics:

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Humidity (Operating): 20% to 80%, non-condensing
• Humidity (Storage): 10% to 90%, non-condensing
• Operating Altitude: Up to 5000 meters
• Surge Protection:
  • Line-Earth: 2KV (1.2/50us, 8/20us)
  • Line-Line: 1KV (1.2/50us, 8/20us)
• Case Material: Plastic, IP40-rated
• Mounting: Wall-mounted
• Size: 145.51mm × 65.8mm × 33.5mm
• Weight: 255g (8.99oz)

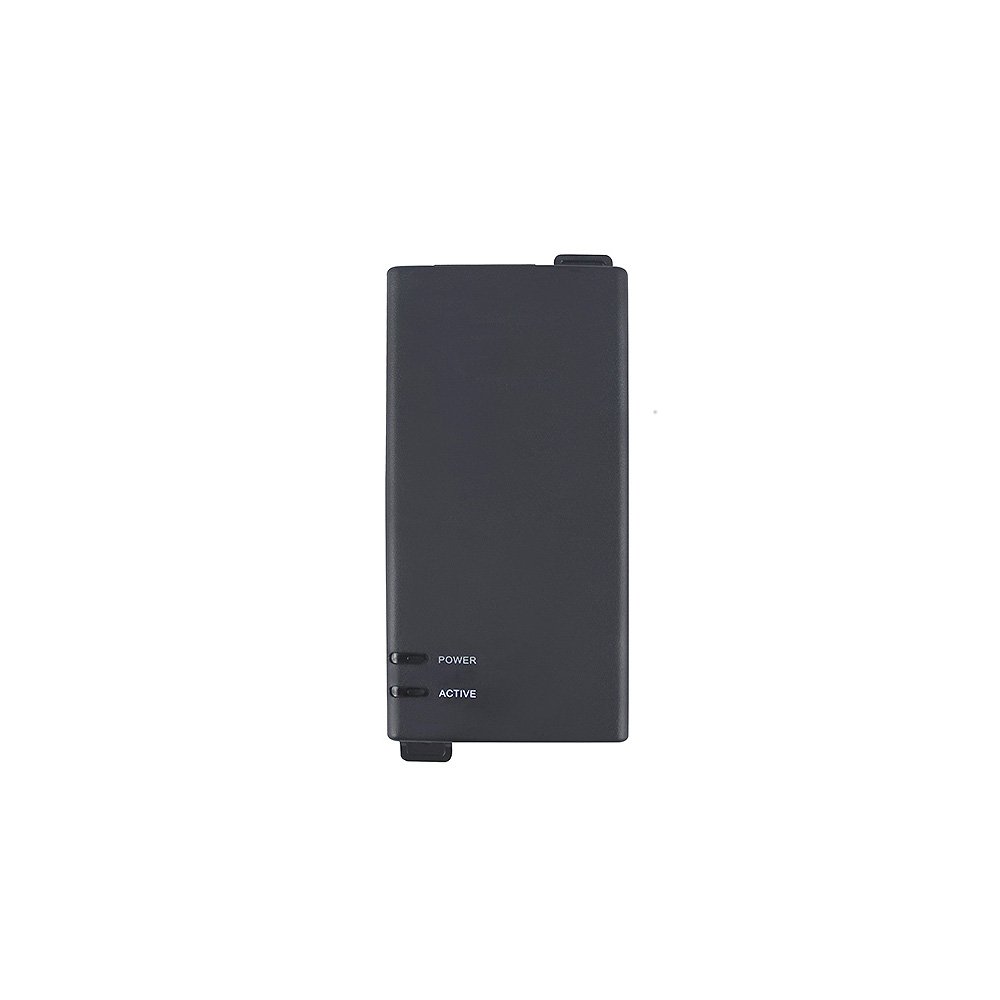

LED Indicators:

• Power Indicator: Green
• PoE Load Indicator:
  • Green (≤30W)
  • Blue (>30W ≤60W)

Certifications & Safety Approvals:

• cUL, UL, FCC, CE certified
• RoHS & WEEE compliant

Applications:

• Powering High-Performance Wireless APs & IP Cameras
• Microwave Radio & IoT Applications
• Enterprise Networking & POS Systems
• Door Locks, Digital Displays & Information Kiosks
• Smart Home & Industrial PoE Deployments

The DG-POE-BT-5G PoE Injector is an efficient, high-power solution for modern networking infrastructures, ensuring stable power delivery and seamless data transmission in high-speed PoE applications.
