Data General S1930K-16GP2S-200W

Description

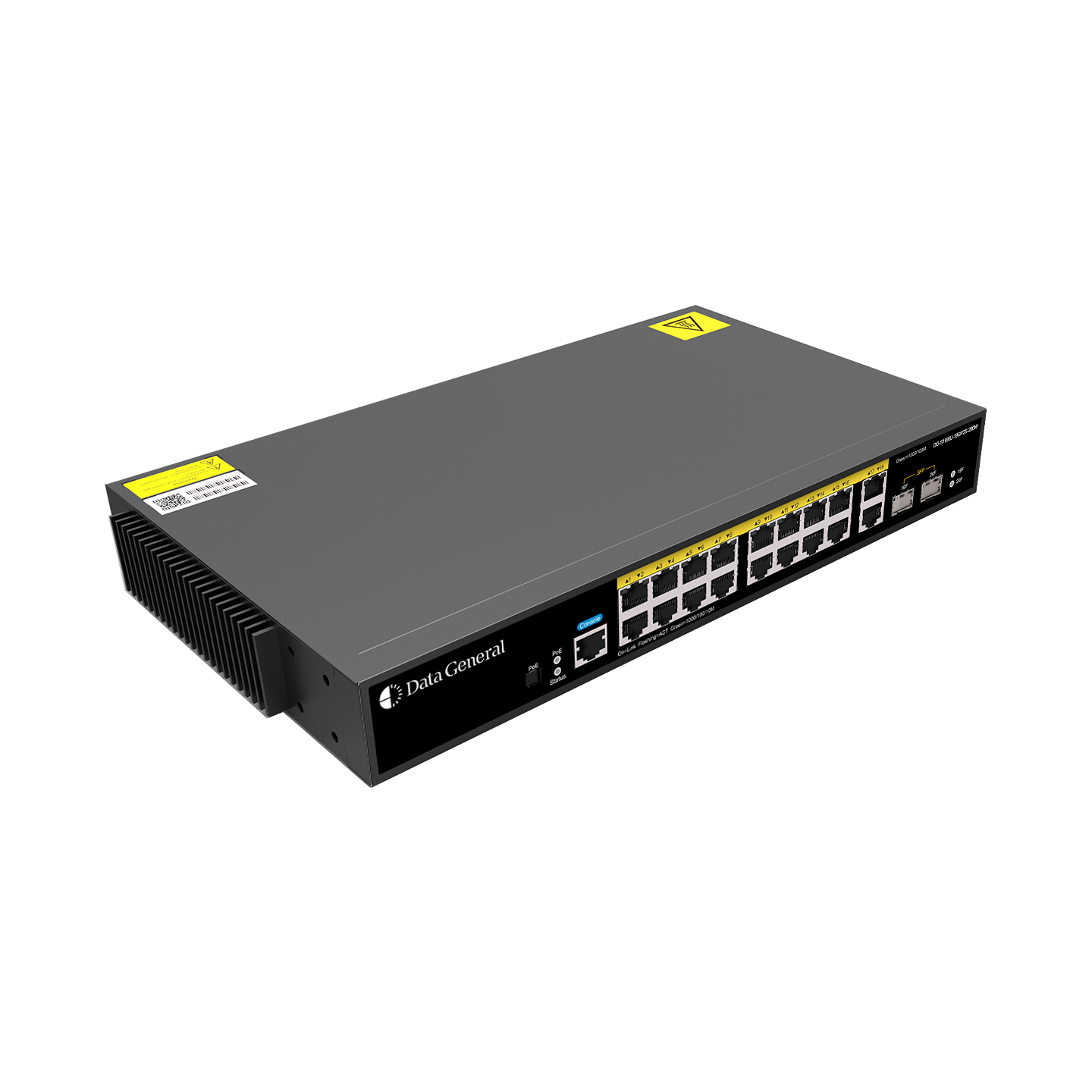

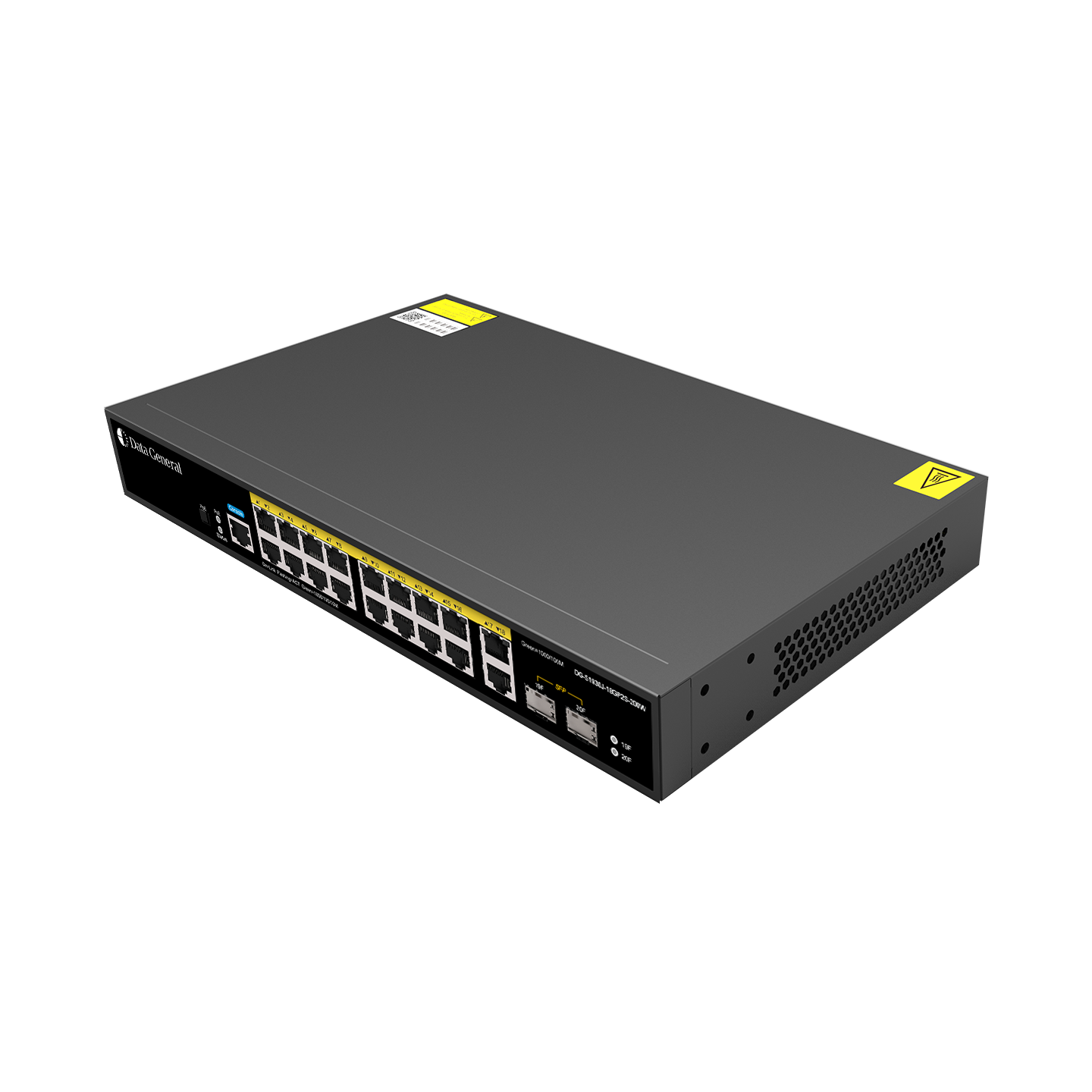

DG-S1930K-16GP2S-200W – Fanless 16 Port Gigabit PoE+ Layer 2+ Cloud Managed Switch with 2 SFP Uplink Ports

The DG-S1930K-16GP2S-200W is part of Data General’s S1930K series, offering cost-effective, high-density access networking with PoE+ capabilities. It features 16 Gigabit Ethernet ports with PoE+ support, providing power to connected devices such as IP cameras, access points, and VoIP phones. Additionally, its 2 SFP uplink ports ensure stable high-speed network connectivity.

Designed for cloud-based management, the switch integrates seamlessly with Data General Cloud, allowing remote monitoring, configuration, and updates. Fanless operation ensures silent performance, while robust Layer 2 switching capabilities, VLAN support, and security enhancements make it a reliable solution for small to medium-sized enterprises.

With a 200W PoE budget, this switch can power multiple PoE devices while maintaining energy efficiency, and its compact form factor allows easy deployment in various networking environments.

Key Features:

• 16 × Gigabit Ethernet PoE+ Ports – Supports up to 30W per port, ideal for IP cameras, wireless access points, and VoIP phones.
• 2 × Gigabit SFP Uplink Ports – Provides high-speed fiber connectivity for uplink aggregation.
• 200W PoE Budget – Ensures efficient power distribution for multiple PoE-enabled devices.
• Cloud Management & Zero-Touch Deployment – Supports remote monitoring, configuration, and diagnosticsvia Data General Cloud.
• Compact & Fanless Design – Ideal for low-noise environments, such as hotels, apartments, and small offices.
• Advanced Network Security – Includes MAC address filtering, DHCP snooping, IP source guard, and port security.
• Energy Efficient – Supports IEEE 802.3az Energy-Efficient Ethernet (EEE) to reduce power consumption.
• L2+ Features – Supports VLAN, IGMP snooping, QoS, and static routing for optimized network traffic.

Technical Specifications:

Ports & Interfaces:

• Fixed Ports:
  • 16 × 10/100/1000BASE-T PoE+ Ethernet ports
  • 2 × 1G SFP uplink ports
• Management Ports:
  • 1 × RJ45 Console Port
  • 1 × RJ45 MGMT Port
  • 1 × USB 2.0 Port

Performance & Switching Capacity:

• Switching Capacity: 40 Gbps
• Packet Forwarding Rate: 30 Mpps
• MAC Address Table: 8,192 entries
• ARP Table Size: 256 entries

PoE+ Features:

• IEEE 802.3af/at PoE+ support
• Total PoE Budget: 200W
• Per-Port PoE Budget:
  • Up to 15.4W per port (802.3af)
  • Up to 30W per port (802.3at)

Layer 2+ Features:

• VLAN Support: 802.1Q VLAN, Voice VLAN, MAC VLAN, VLAN Mapping
• Spanning Tree Protocols: STP, RSTP, MSTP
• IGMP Snooping v1/v2 – Optimized multicast traffic delivery

Security Features:

• CPU Protection Policy (CPP) – Prevents network congestion and attacks
• Network Foundation Protection Policy (NFPP) – Protects against unauthorized access
• Port Security & DHCP Snooping – Blocks rogue devices and prevents spoofing
• 802.1X Authentication & RADIUS/TACACS+ Support – Ensures secure user authentication

Network Virtualization & High Availability:

• Loop Detection & RLDP (Rapid Link Detection Protocol) – Detects link failures and loops
• Quality of Service (QoS): 8 Queues, Rate-Limiting, DSCP-Based Prioritization

Management & Monitoring:

• Web-Based GUI, CLI (Console/Telnet/SSH), SNMP v1/v2c/v3
• Syslog & Event Logging
• Cloud-Based Remote Management via Data General WIS Cloud
• Firmware Upgrades via Web, CLI, or Cloud

Physical & Power Specifications:

• Dimensions (W × D × H): 280 mm × 126 mm × 44 mm
• Weight: ≤2.5 kg

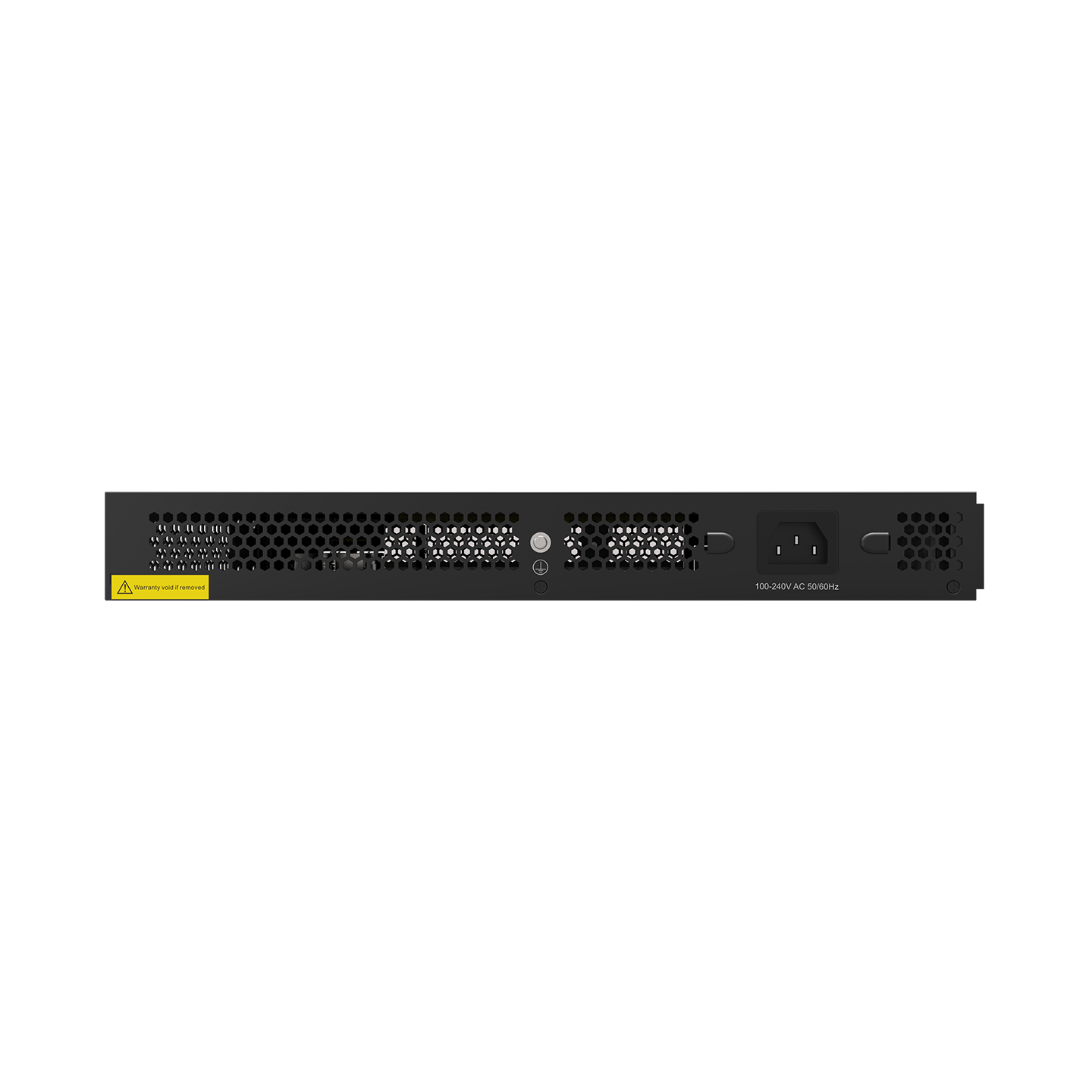

• Power Supply: Internal AC power module (100V – 240V, 50/60Hz)
• Power Consumption:
  • Without PoE Load: <15W
  • With Full PoE Load: <250W

Environmental Specifications:

• Operating Temperature: -5°C to 50°C (23°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% RH (Non-condensing)
• Storage Humidity: 5% to 95% RH (Non-condensing)

Applications:

• Hotels & Apartments: Perfect for hospitality networks requiring PoE-powered security cameras and Wi-Fi APs.
• Small & Medium Enterprises: Reliable backbone for business networks with secure data transmission.
• VoIP & Video Conferencing: Delivers seamless PoE power for IP phones and conference systems.
• Smart Surveillance: Powers and connects security cameras efficiently with a 370W PoE budget.
• Cloud-Managed Networks: Supports Data General Cloud for remote configuration and monitoring.

Ordering Information:

• DG-S1930K-16GP2S-200W: 18 × Gigabit PoE+ ports, 2 × 1G SFP uplinks, 200W PoE budget

The Data General DG-S1930K-16GP2S-200W is a compact yet powerful managed switch, perfect for enterprise, campus, and hospitality deployments. Its high-power PoE support, advanced Layer 2+ features, and remote cloud management make it an ideal choice for modern networking environments.
