Data General S2300-24G4S

Description

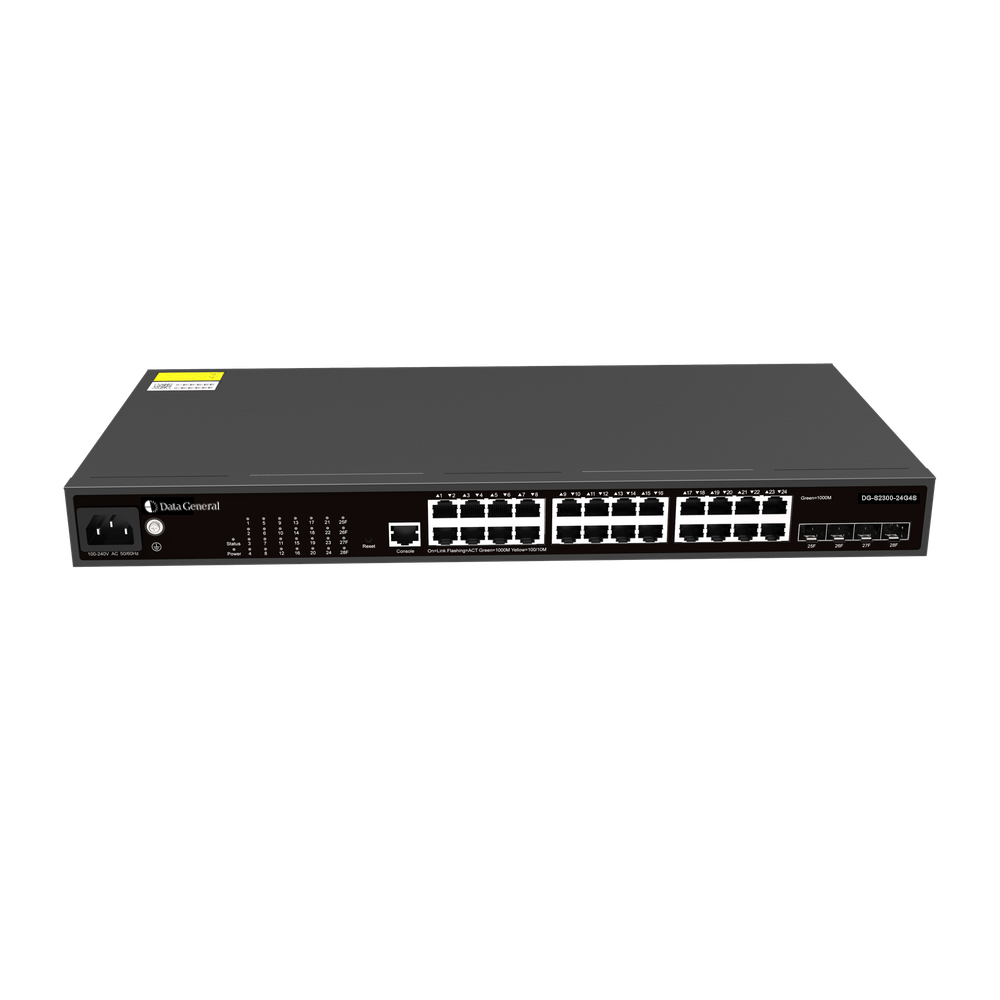

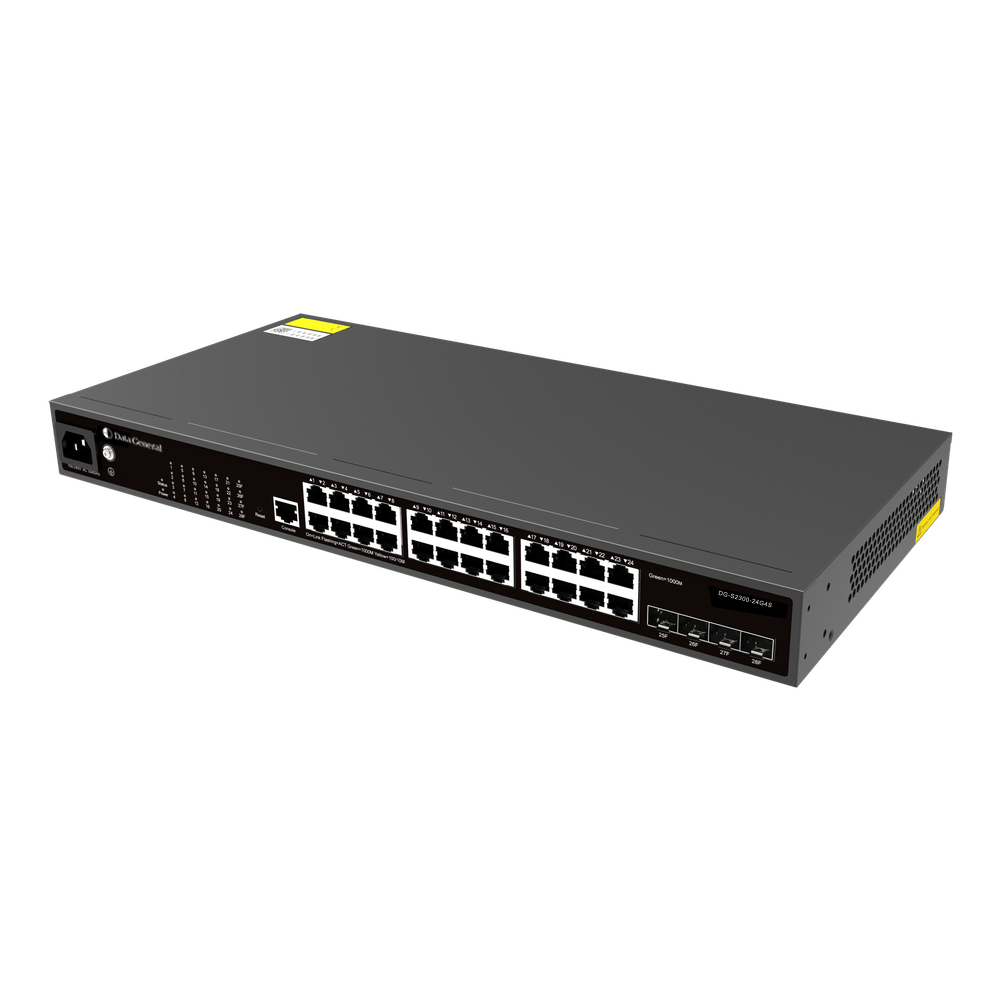

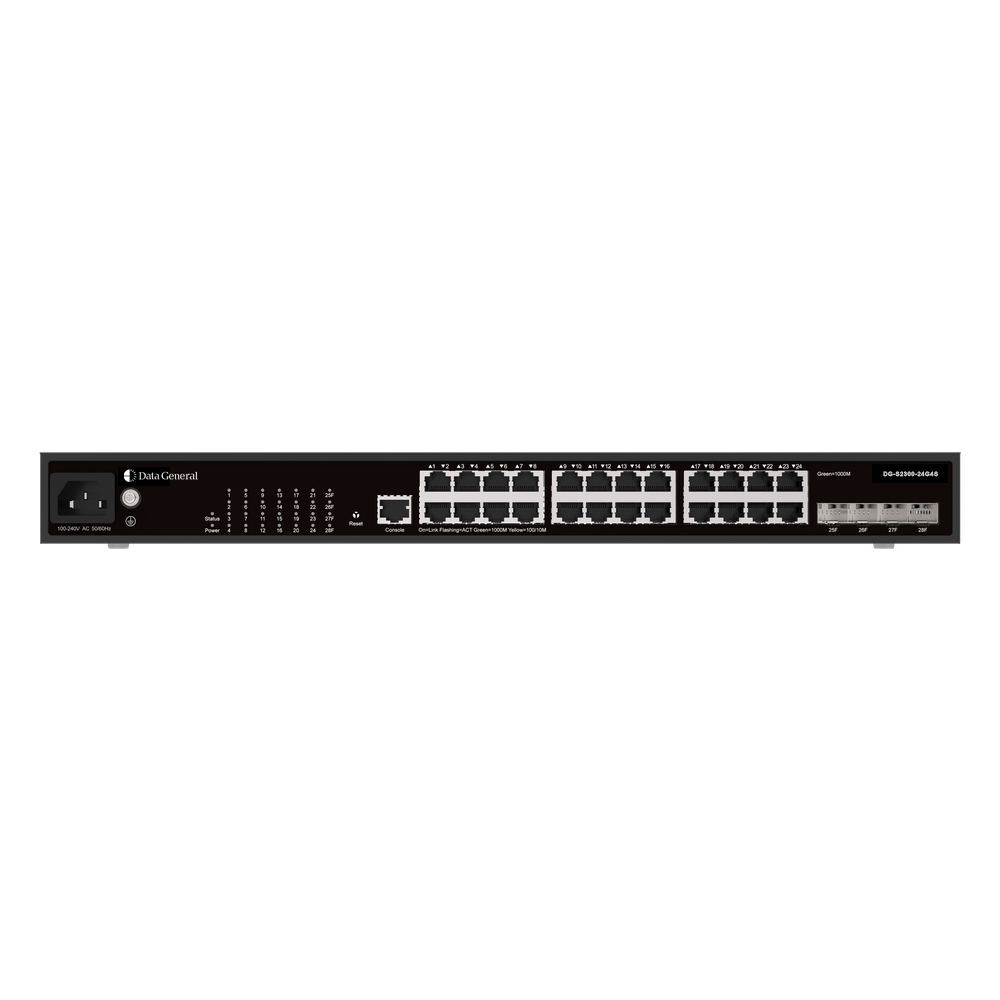

Data General DG-S2300-24G4S – 24-Port fanless Gigabit Cloud Managed Switch with 4 SFP Ports

The Data General DG-S2300-24G4S is a cost-effective, Layer 2 managed switch, ideal for SMEs, enterprise networks, and industrial environments. It features 24 adaptive 10/100/1000M RJ-45 ports and 4 Gigabit SFP fiber ports, offering versatile and high-speed connectivity for diverse networking needs.

This fanless switch operates silently while maintaining high energy efficiency, supporting IEEE 802.3az Energy-Efficient Ethernet (EEE) technology to optimize power consumption. The wide operating temperature range (0°C to 50°C) ensures stable performance in various environments.

With advanced Layer 2 network management capabilities, the DG-S2300-24G4S supports VLANs, QoS, multicast management, redundant ring networking, and security mechanisms like MAC address filtering, ARP check, DHCP Snooping, and RADIUS authentication. Additionally, Spanning Tree Protocol (STP, RSTP, MSTP) and Rapid Link Detection Protocol (RLDP) enhance network reliability, fault tolerance, and fast recovery in case of link failures.

For seamless remote management, the switch supports SNMP, Web GUI, CLI (SSH/Telnet/Console), and system logs, making it an ideal solution for organizations looking to simplify network administration. It can be also managed from Data General WIS cloud.

Technical Specifications:

Ports & Interfaces:

• 24 × 10/100/1000M Gigabit Ethernet ports (RJ-45)
• 4 × 1GbE SFP fiber uplink ports
• 1 × Console port
• 1 × Power slot

Performance & Switching Capacity:

• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• MAC Address Table: 16K entries
• Packet Buffer Memory: 1.5MB

Network Features:

• VLAN Support:
  • 802.1Q VLAN (4K VLANs)
  • Port-based VLAN
  • Protocol-based VLAN
  • Private VLAN
• Spanning Tree Protocols: STP, RSTP, MSTP
• Link Aggregation: LACP (Selective Load Balancing)
• Multicast Support: IGMP Snooping v1/v2/v3
• Routing Capabilities: IPv4/IPv6 static routing, RIP, RIPng
• QoS Support:
  • 802.1p/DSCP/TOS/TCP/UDP forwarding classification
  • Multiple queue scheduling (SP, WRP, SP+WRP)
• ACLs: L2-L4 ACL, IPv6 ACL, Port Security

Security Features:

• MAC Address Filtering & Blacklisting
• Unknown Unicast/Multicast/Broadcast Suppression
• ARP Check & IP/MAC Binding
• RADIUS & TACACS+ Authentication
• AAA Security Support
• CPU Protect Policy (CPP) for Network Protection

Management & Monitoring:

• Remote Management: Data General, WIS Cloud, Web GUI, SNMP, CLI (SSH/Telnet/Console)
• Logging & Alerts: Syslog, Debug, Event Logs
• NTP (Network Time Protocol) Support
• TFTP for Firmware Updates
• Dying Gasp – Power Failure Alerts via Syslog & SNMP Traps
• Dual Operating Systems for Enhanced Reliability

Physical & Power Specifications:

• Form Factor: Rack-mountable (1U)
• Power Supply:
  • AC Input: 100V–240V AC, 50Hz–60Hz
• Power Consumption: 25W
• Fanless Design: Silent operation with passive cooling

Environmental Specifications:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Storage Humidity: 5% to 90% (Non-condensing)

Key Features:

• Fanless, energy-efficient design for silent operation
• Layer 2 management with VLAN, QoS, and advanced security features
• Dying Gasp function for instant power outage notifications
• 56Gbps switching capacity for high-speed network performance
• Remote management via SNMP, Web GUI, CLI, and system logs
• Supports IPv4 & IPv6 static routing for scalable network design

Applications:

• Enterprise & SMB Network Access Layer
• Industrial & Manufacturing Networks
• Retail & Government Agencies
• Data Centers & Campus Networks
• IP Surveillance & IoT Deployments

Ordering Information:

• RG-S2300-24GT4SFP (AC Power Model):
  • 24 × Gigabit Ethernet ports + 4 × 1GbE SFP fiber ports
  • 1 × Console port
  • 1 × AC power slot
  • Fanless design for silent operation

The Data General DG-S2300-24G4 is an optimal solution for growing enterprise networks, offering high-performance connectivity, security, and manageability to ensure a reliable and scalable network infrastructure.
