Data General S2300-24G4X

Description

Data General DG-S2300-24G4X – 24-Port Gigabit Managed Switch with 4 SFP+ 10 Gbps Ports and Data General WIS cloud managed

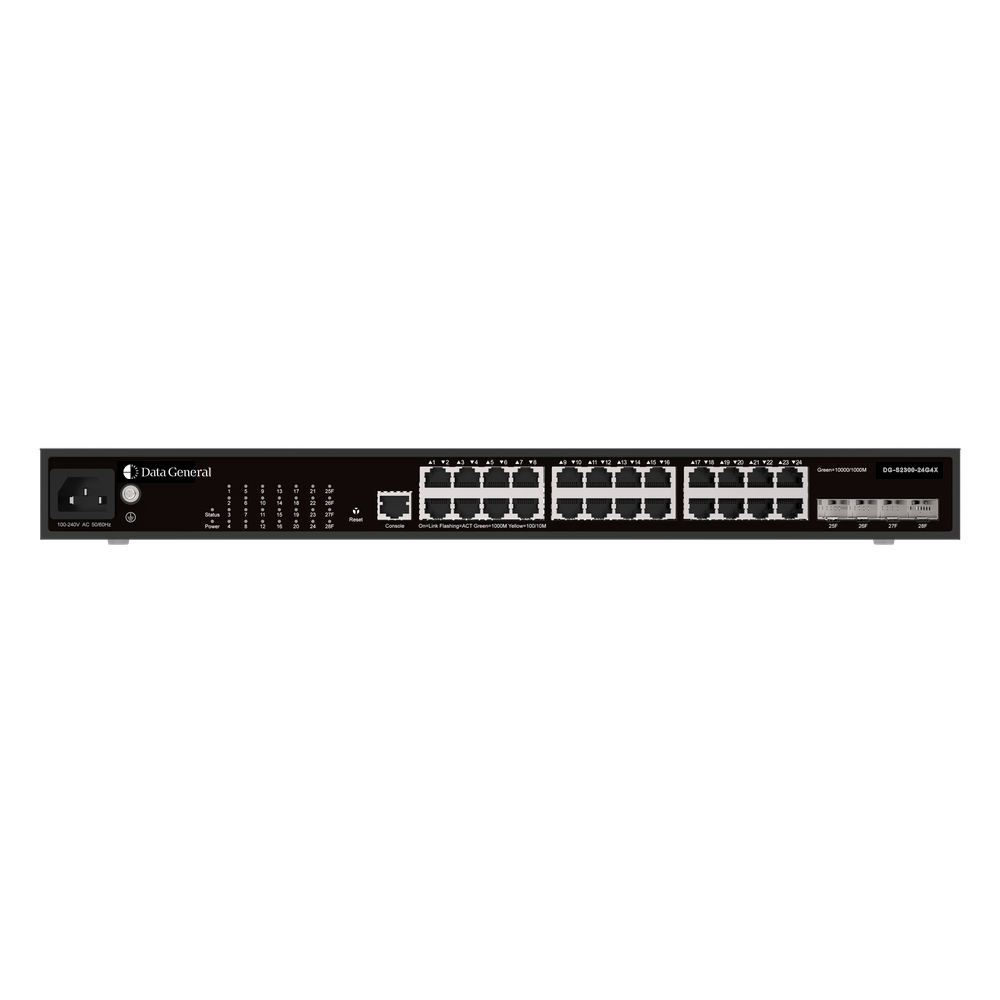

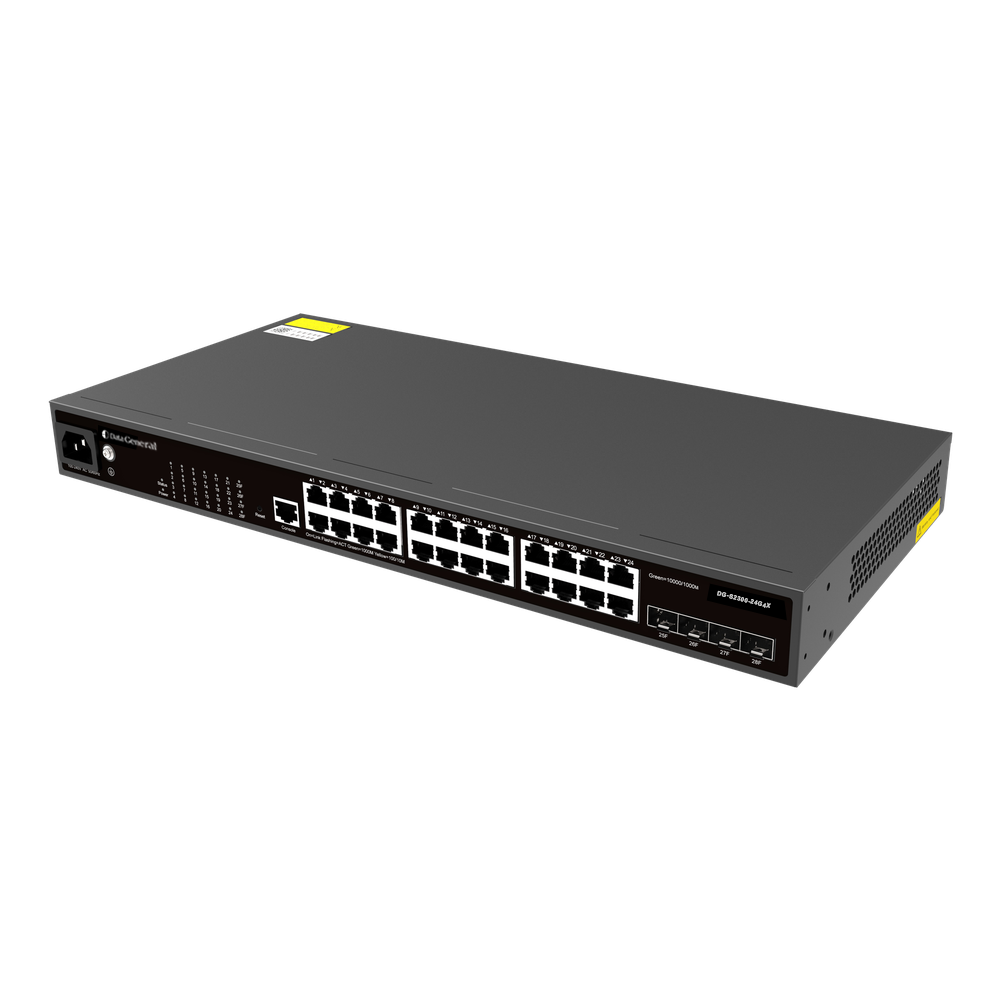

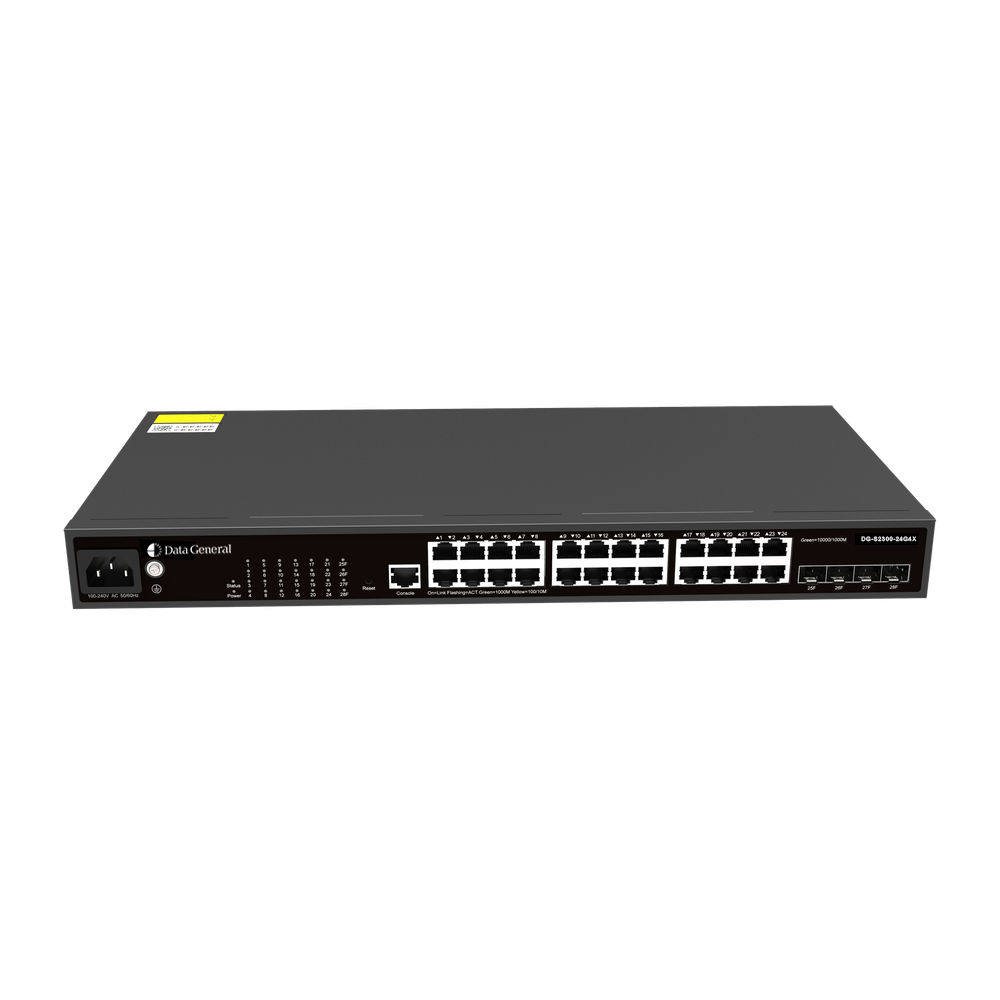

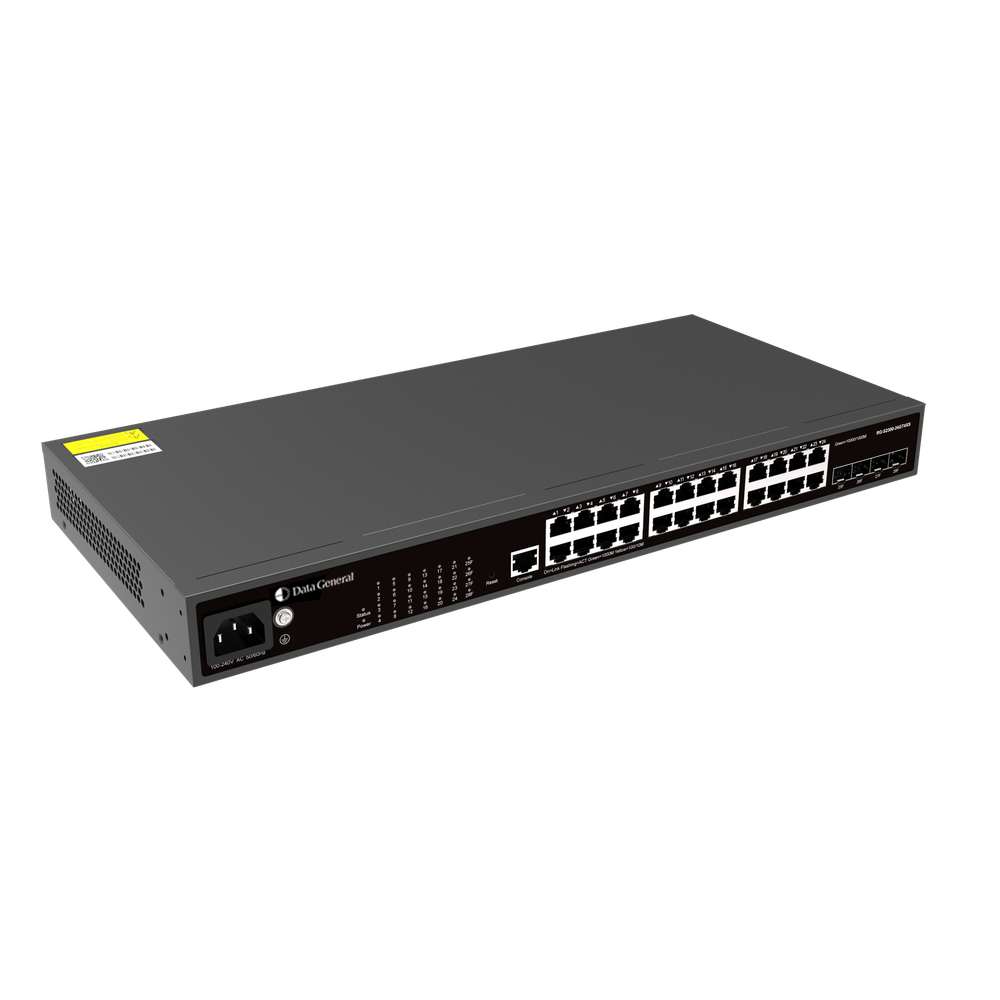

The Data General DG-S2300-24G4X is a cost-effective Layer 2+ managed switch, ideal for SMEs, industrial networking, and large-scale enterprise applications. It features 24 adaptive 10/100/1000M RJ-45 ports and 4 SFP+ 10GbE fiber uplink ports, providing high-speed connectivity for demanding networking environments.

The fanless design ensures silent and energy-efficient operation, making it suitable for noise-sensitive environments. It supports IEEE 802.3az Energy-Efficient Ethernet (EEE) technology, reducing power consumption without compromising performance.

With advanced Layer 2 and Layer 3 network management capabilities, the DG-S2300-24G4X supports VLAN segmentation, QoS traffic prioritization, IGMP Snooping for multicast optimization, redundant ring networking, and robust security features such as MAC address filtering, DHCP Snooping, ARP inspection, and RADIUS authentication. The integration of Spanning Tree Protocols (STP, RSTP, MSTP) and Rapid Link Detection Protocol (RLDP) enhances network reliability and link recovery.

For remote management, the switch is compatible with Data General WIS cloud, SNMP, Web GUI, CLI (SSH/Telnet/Console), and system logs, making network administration simple and efficient.

Technical Specifications:

Ports & Interfaces:

• 24 × 10/100/1000M Gigabit Ethernet ports (RJ-45)
• 4 × 10GbE SFP+ fiber uplink ports
• 1 × Console port
• 1 × Power slot

Performance & Switching Capacity:

• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16K entries
• Packet Buffer Memory: 1.5MB

Network Features:

• VLAN Support:
  • 802.1Q VLAN (4K VLANs)
  • Port-based VLAN
  • Protocol-based VLAN
  • Private VLAN
• Spanning Tree Protocols: STP, RSTP, MSTP
• Link Aggregation: LACP (Selective Load Balancing)
• Multicast Support: IGMP Snooping v1/v2/v3
• Routing Capabilities: IPv4/IPv6 static routing, RIP, RIPng
• QoS Support:
  • 802.1p/DSCP/TOS/TCP/UDP forwarding classification
  • Multiple queue scheduling (SP, WRP, SP+WRP)
• ACLs: L2-L4 ACL, IPv6 ACL, Port Security

Security Features:

• MAC Address Filtering & Blacklisting
• Unknown Unicast/Multicast/Broadcast Suppression
• ARP Check & IP/MAC Binding
• RADIUS & TACACS+ Authentication
• AAA Security Support
• CPU Protect Policy (CPP) for Network Protection

Management & Monitoring:

• Remote Management: Web GUI, SNMP, CLI (SSH/Telnet/Console)
• Logging & Alerts: Syslog, Debug, Event Logs
• NTP (Network Time Protocol) Support
• TFTP for Firmware Updates
• Dying Gasp – Power Failure Alerts via Syslog & SNMP Traps
• Dual Operating Systems for Enhanced Reliability

Physical & Power Specifications:

• Form Factor: Rack-mountable (1U)
• Power Supply:
  • AC Input: 100V–240V AC, 50Hz–60Hz
  • DC Input (optional model RG-S2300-24GT4XS-D): -36V to -72V
• Power Consumption: 25W

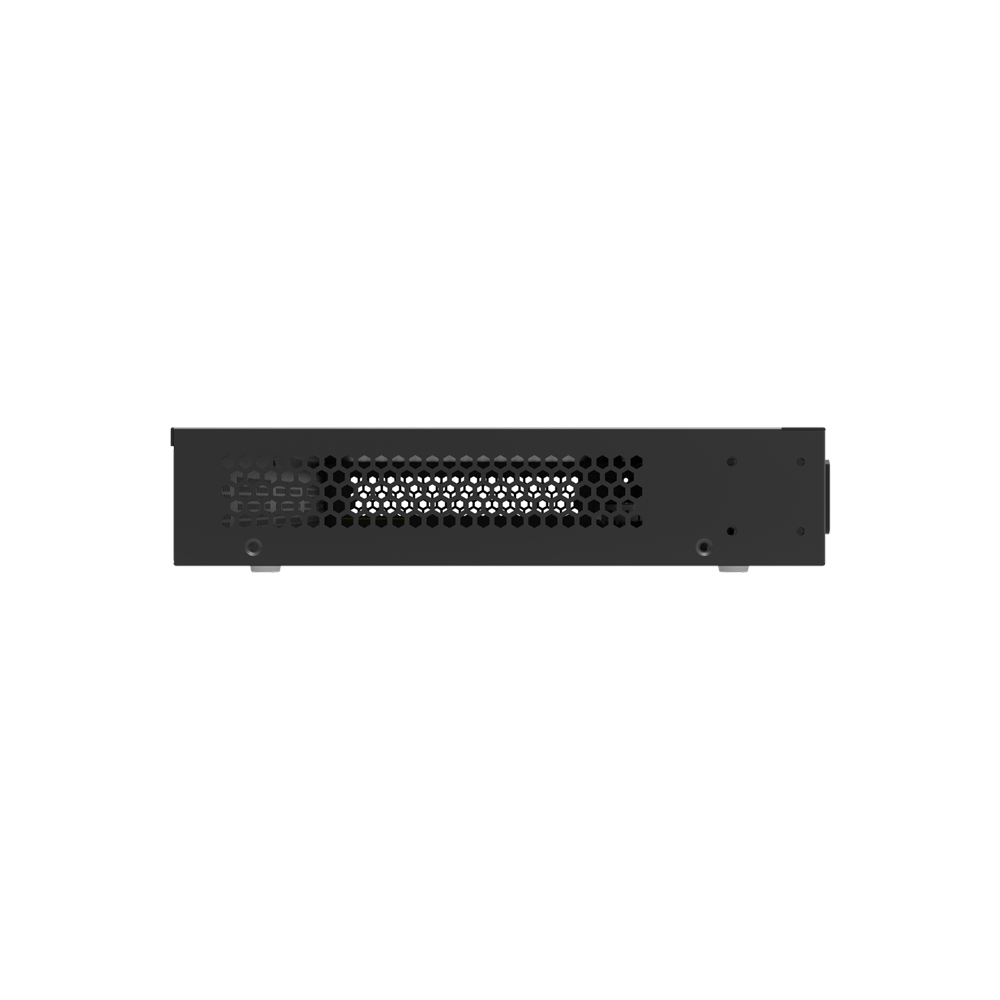

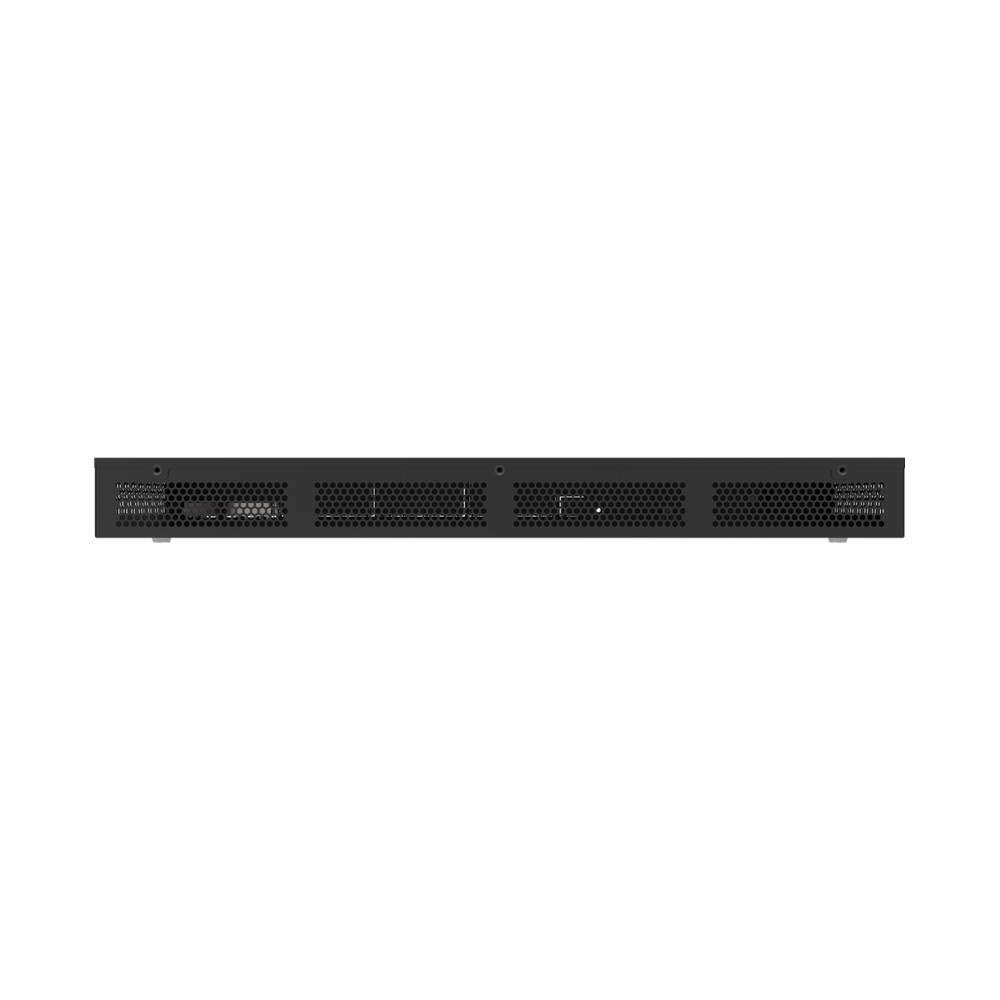

• Fanless Design: Silent operation with passive cooling

Environmental Specifications:

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Storage Humidity: 5% to 90% (Non-condensing)

Key Features:

• High-speed 10GbE SFP+ uplink ports for fast data transfer
• Layer 2+ management with VLAN, QoS, and advanced security features
• Dying Gasp function for instant power outage notifications
• 128Gbps switching capacity for high-speed networking
• Remote management via SNMP, Web GUI, CLI, and system logs
• Supports IPv4 & IPv6 static routing for scalable network design

Applications:

• Enterprise & SMB Network Access Layer
• Industrial & Manufacturing Networks
• Retail & Government Agencies
• Data Centers & Campus Networks
• IP Surveillance & IoT Deployments

Ordering Information:

• DG-S2300-24G4X (AC Power Model):
  • 24 × Gigabit Ethernet ports + 4 × 10GbE SFP+ fiber ports
  • 1 × Console port
  • 1 × AC power slot
  • Fanless design for silent operation

The Data General DG-S2300-24G4X is an optimal solution for enterprise and industrial networks, providing high-speed connectivity, security, and manageability to ensure a scalable and future-proof network infrastructure.
