Data General S5310-24G4X

Description

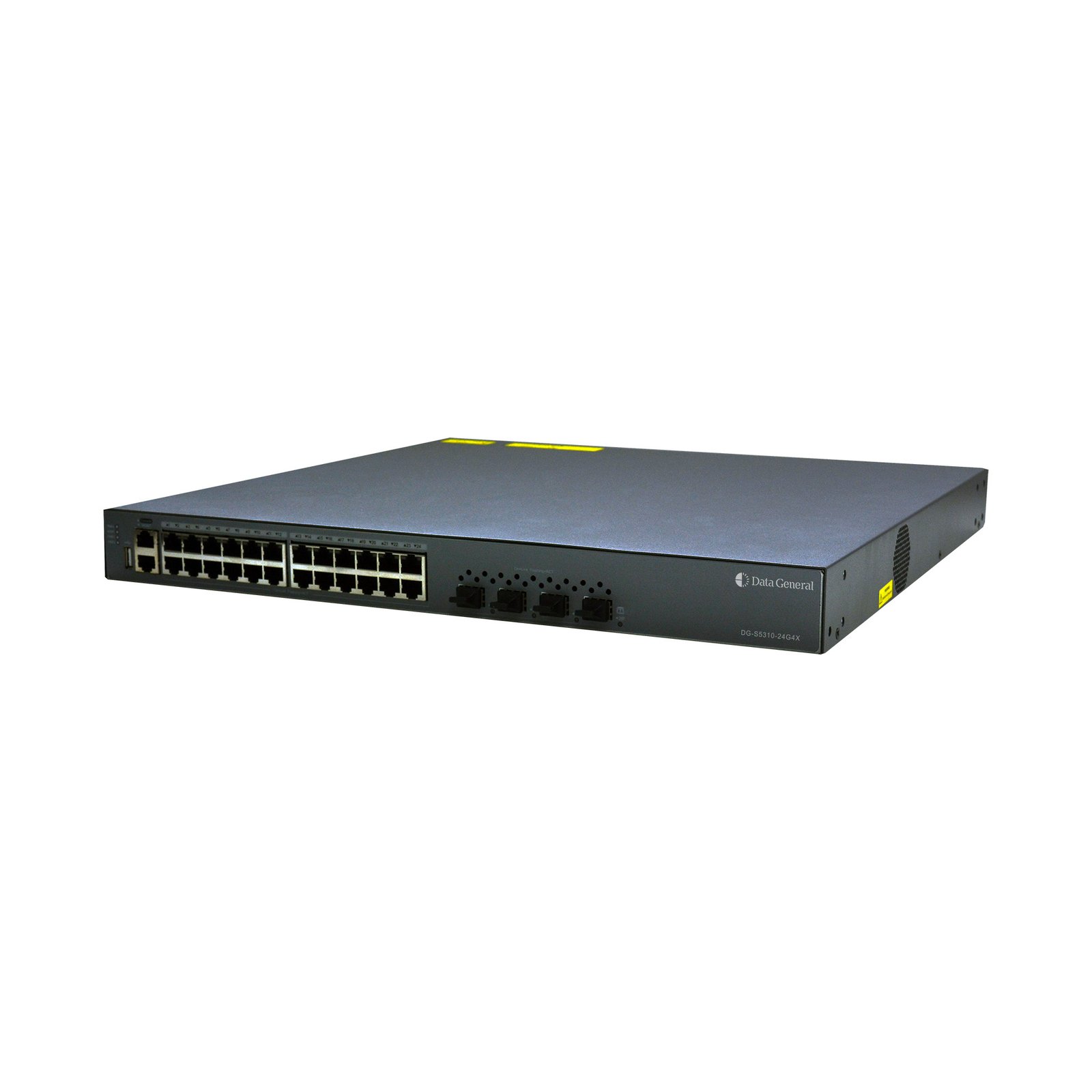

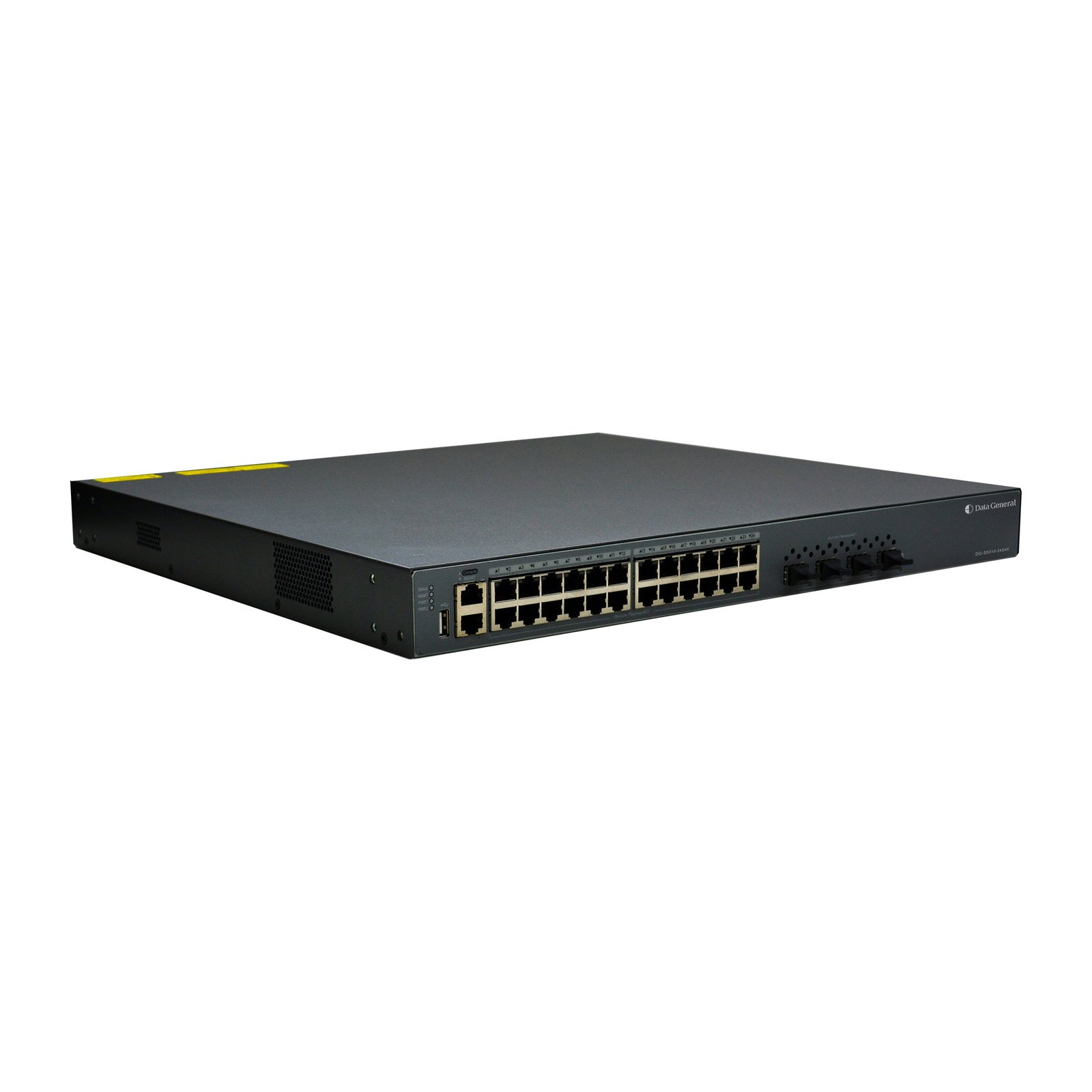

Data General DG-S5310-24G4X – 24-Port Gigabit Layer 3 Cloud Managed Switch with 4 10G Uplink Ports

The Data General DG-S5310-24G4X is a full-gigabit Layer 3 managed switch, designed for high-performance enterprise networking, data centers, and large-scale campus deployments. Featuring 24 auto-negotiation 10/100/1000BASE-T ports and 4 1GE/10GE SFP+ uplink ports, this switch supports high-speed data transmissionand scalable networking architectures.

It integrates Virtual Switch Unit (VSU) virtualization technology, enabling multiple physical switches to be managed as a single logical unit. This enhances network resilience, eliminates loops, and improves high availability and maintenance efficiency.

With advanced Layer 3 routing capabilities, the DG-S5310-24G4X supports IPv4/IPv6 static routing, RIP, OSPFv2, BGP, and IS-IS, ensuring efficient network traffic management and seamless interconnectivity.

Security is a top priority, and this switch includes CPU Protection Policy (CPP) to regulate network traffic and Network Foundation Protection Policy (NFPP) to prevent network threats and isolate malicious devices. These security mechanisms ensure network stability and protect against cyber threats.

For network management, the switch supports multiple management interfaces, including Data General WIS cloud, CLI, web-based management, and SNMP, providing efficient network monitoring and troubleshooting.

Technical Specifications:

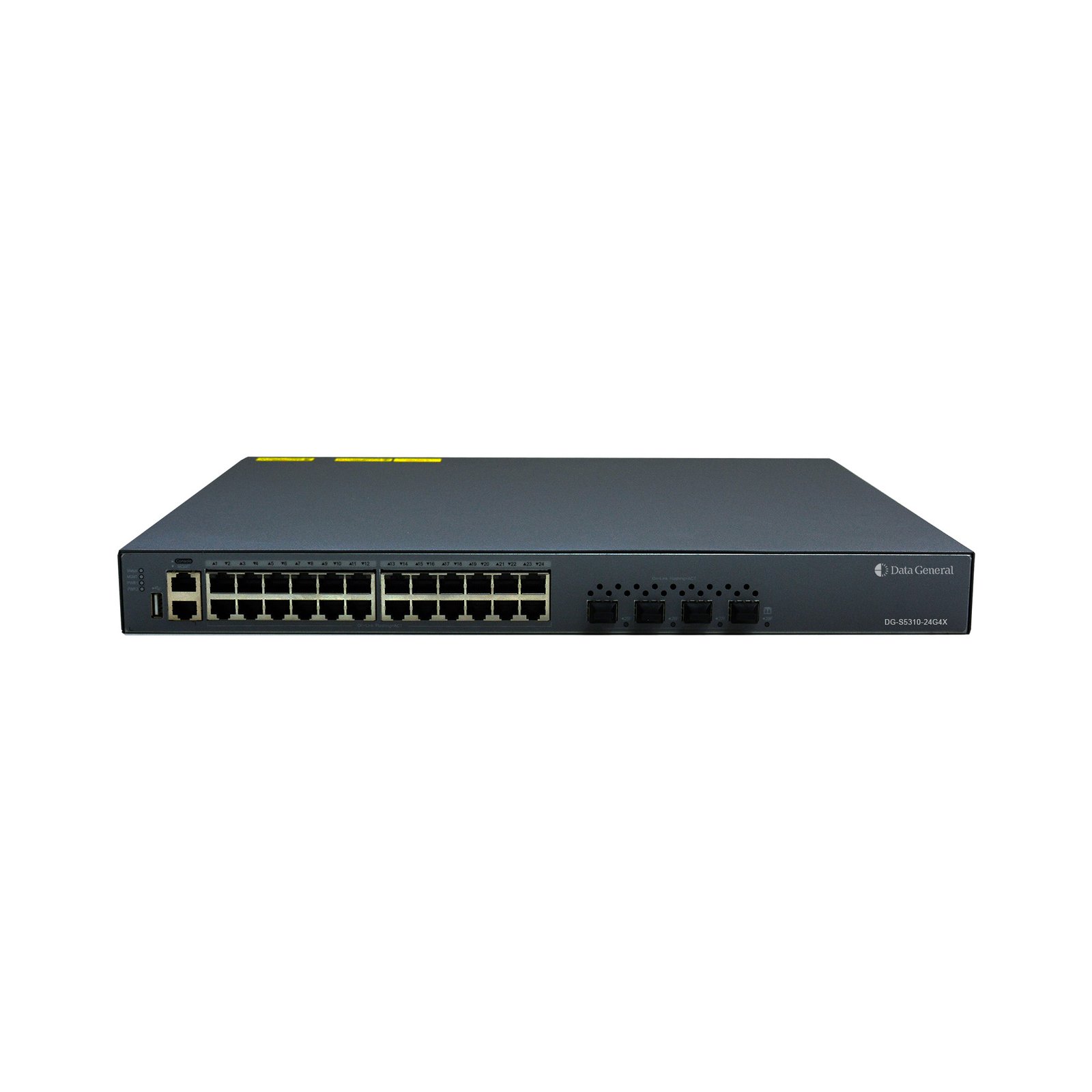

• Ports & Interfaces:

  • Fixed Service Ports:​
    • 24 × 10/100/1000BASE-T ports
    • 4 × 1GE/10GE SFP+ uplink ports
  • Management Ports:​
    • 1 × RJ45 console port
    • 1 × RJ45 MGMT port
  • USB:
    • 1 × USB 2.0 port

• Performance:

  • Switching Capacity:​
    • 154 Gbps
  • Packet Forwarding Rate:​
    • 115 Mpps

• Layer 3 Features:

  • Supports IPv4/IPv6 static routing, RIP, OSPFv2, BGP, and IS-IS.​

• Security Features:

  • CPU Protection:​
    • CPU Protect Policy (CPP) to control packet types and traffic volume sent to the CPU.
  • Network Protection:​
    • Network Foundation Protection Policy (NFPP) to isolate users with attacker behaviors, ensuring network security and stability.

• Management & Monitoring:

  • Supports multiple management modes, including CLI, web-based management, and SNMP, simplifying network maintenance.​

• Physical & Power Specifications:

  • Dimensions (W × D × H):​
    • 442 mm × 420 mm × 43.6 mm (17.40 in. × 16.54 in. × 1.72 in.)
  • Weight:​
    • Approximately 4.0 kg (8.82 lbs)

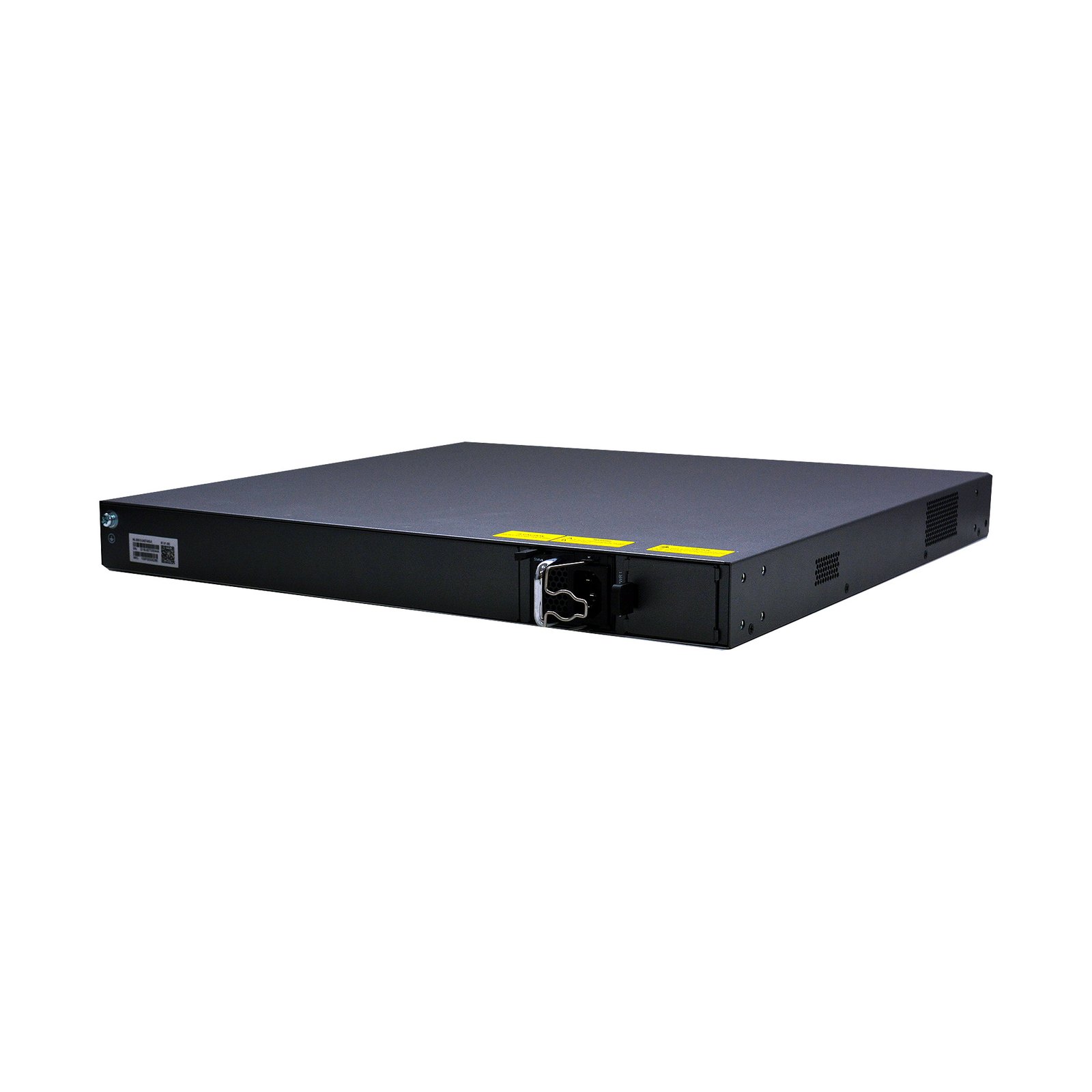

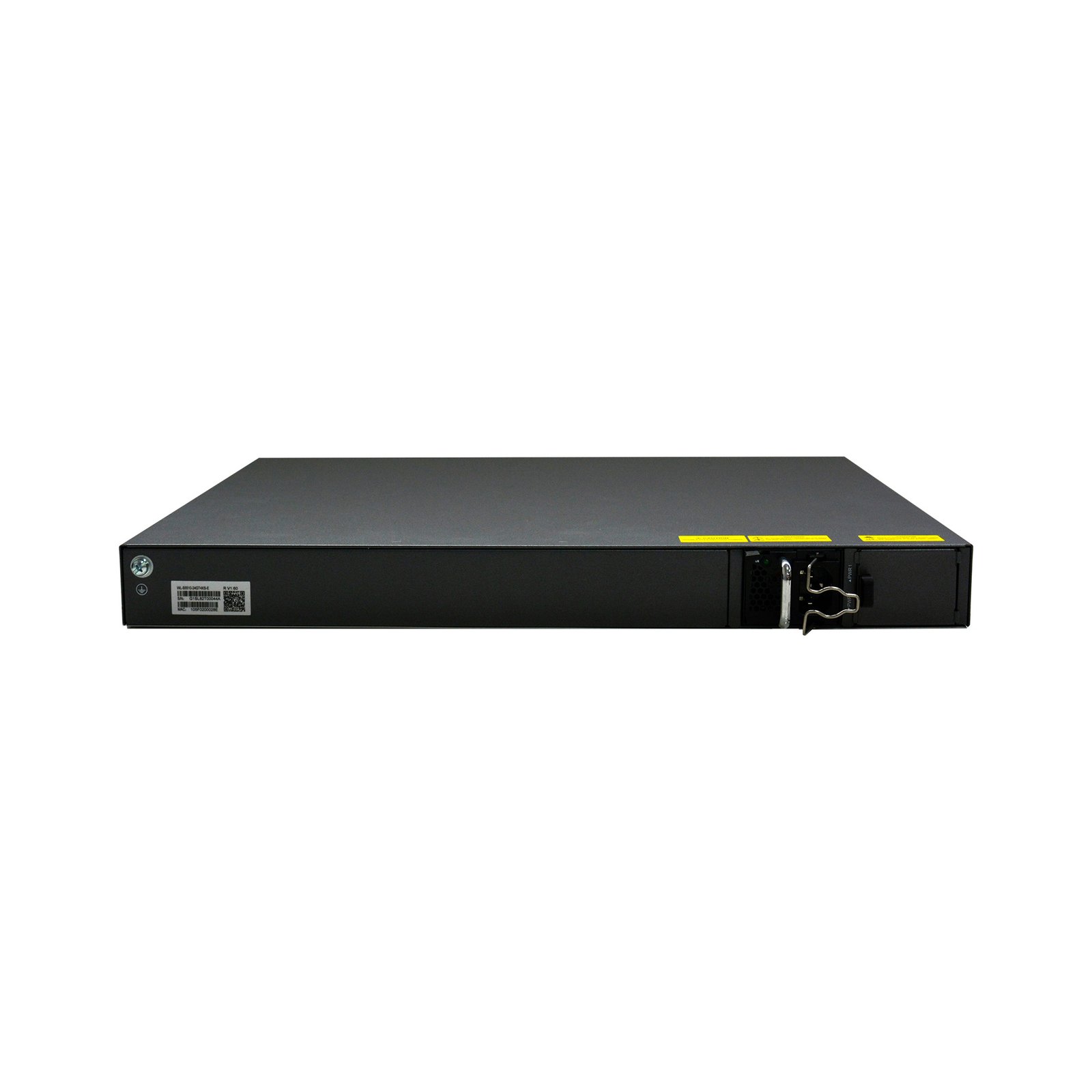

  • Power Supply:​
    • Supports 2 pluggable power modules, compatible with DG-PA150IB-F (AC input). 1 power supply is included.

• Environmental Specifications:

  • Operating Temperature:​
    • 0°C to 45°C (32°F to 113°F)
  • Storage Temperature:​
    • -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity:​
    • 10% to 90% RH
  • Storage Humidity:
    • 5% to 95% RH

Key Features:

• Full-Gigabit Access: Provides 24 10/100/1000BASE-T ports for high-speed network experience in short-distance services.​
• 10G Uplink: Equipped with 4 1GE/10GE SFP+ uplink ports for high-speed data transmission.​
• VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to be virtualized into one logical unit, simplifying network configuration and improving reliability.​
• Advanced Security: Offers comprehensive security features, including CPU Protect Policy (CPP) and Network Foundation Protection Policy (NFPP), enhancing network robustness.​
• Flexible Management: Supports multiple management modes, including CLI, web-based management, and SNMP, simplifying network maintenance.​
• SDN compatible: Supports OpenFlow Special 1.3.

Applications:

• Enterprise Networks: Ideal for large-sized enterprise LANs requiring high-speed data transmission and advanced security features.​
• Campus Networks: Suitable for campus LANs needing full-gigabit access and flexible networking capabilities.​

Ordering Information:

• DG-S5310-24G4X: 24 × 10/100/1000BASE-T ports, 4 × 1GE/10GE SFP+ ports.​ 1 DG-PA150IB-F power supply included.

The Data General DG-S5310-24G4X is an optimal solution for large-sized enterprise and campus networks, providing high-speed connectivity, advanced security features, and flexible management options to ensure a scalable and future-proof network infrastructure.​
