Description

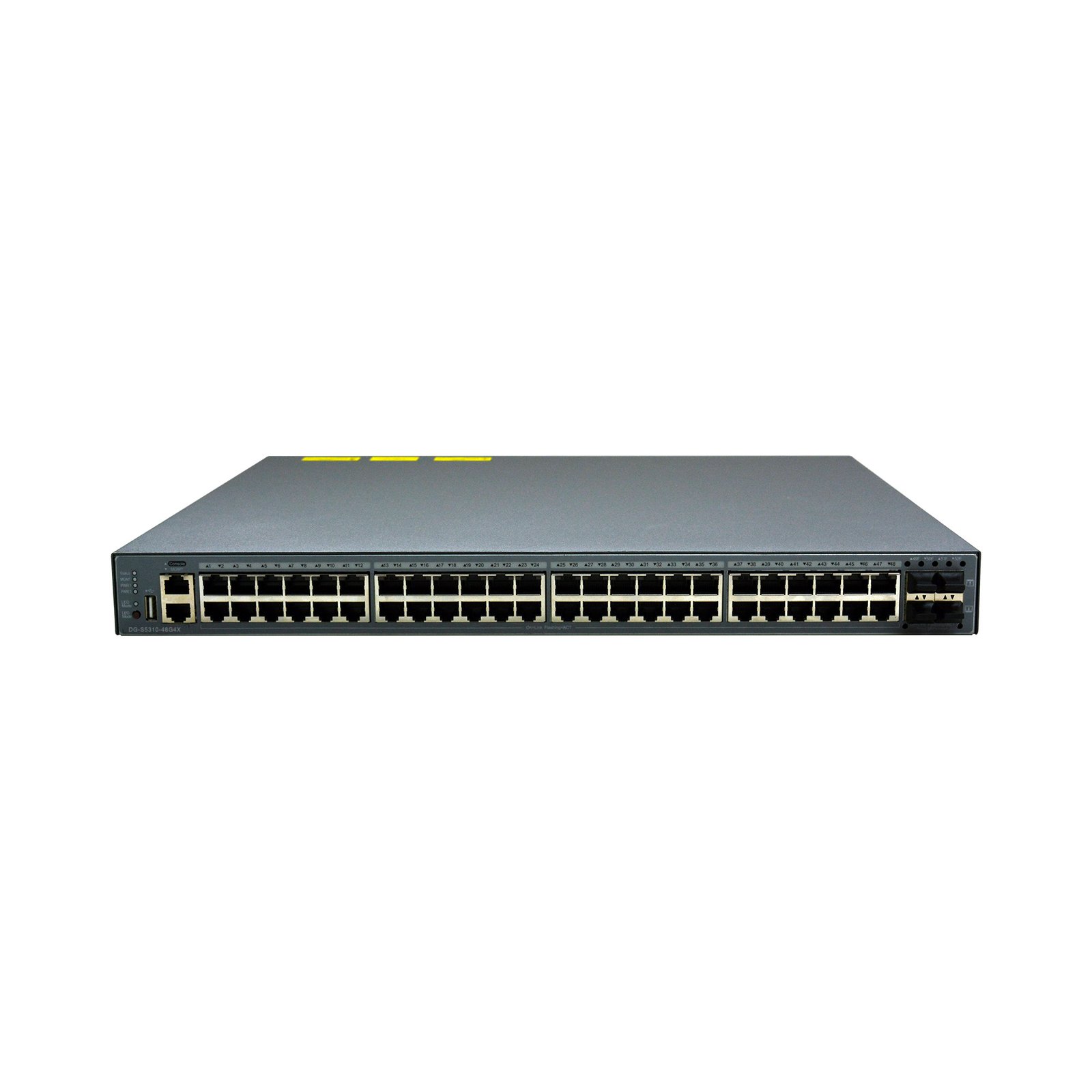

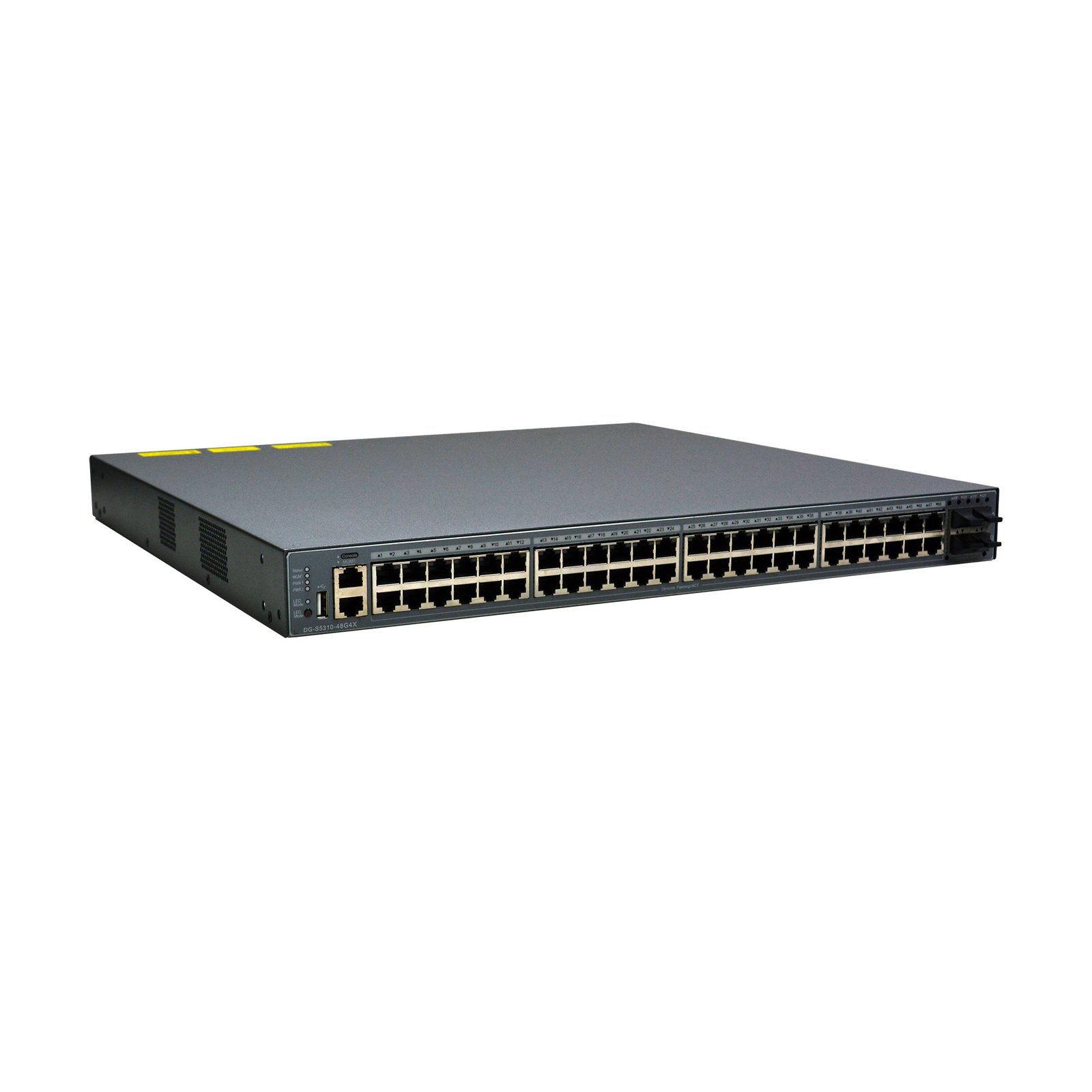

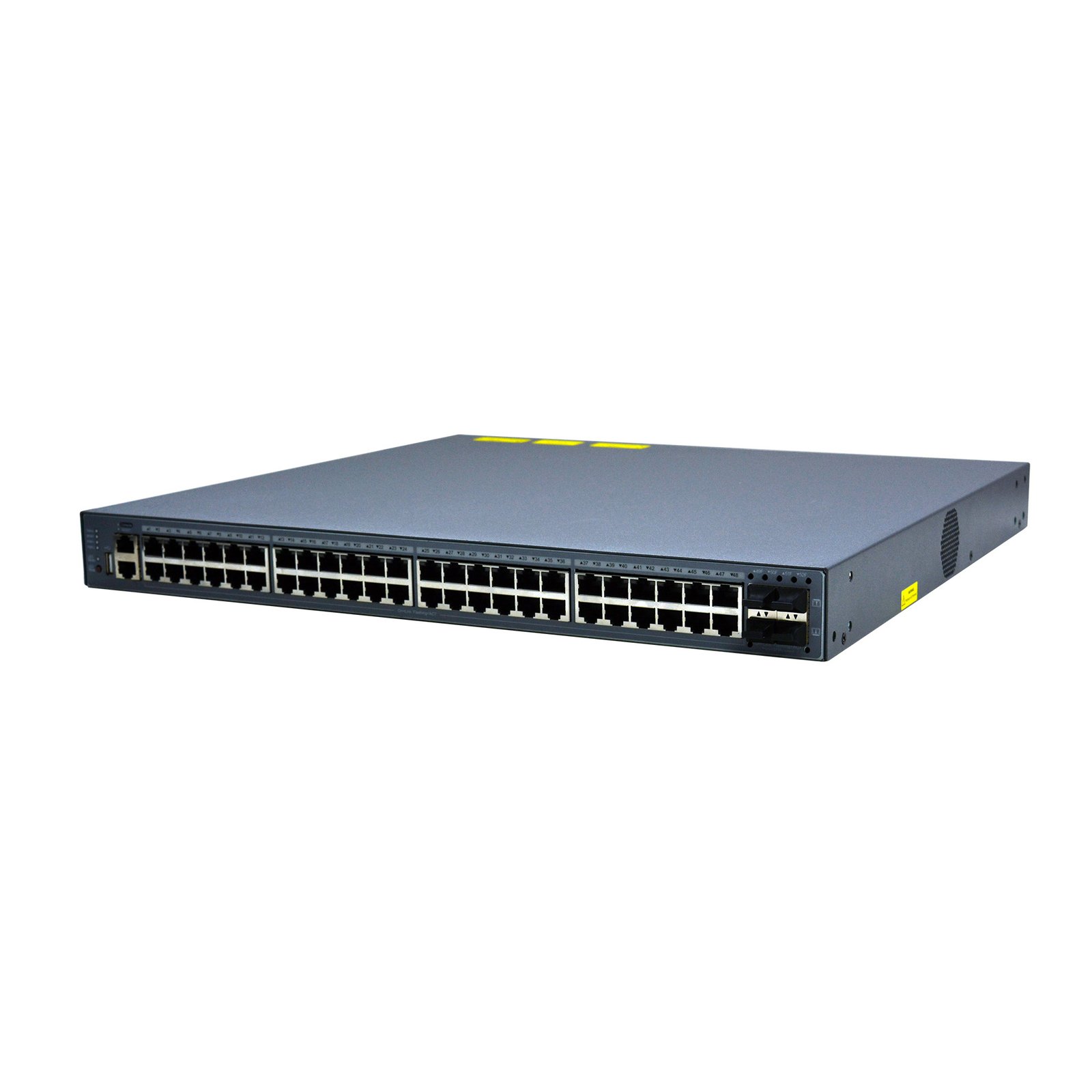

Data General DG-S5310-48G4X – 48-Port Gigabit Ethernet Layer 3 cloud Managed Access Switch with 4 10G Uplink Ports
The Data General DG-S5310-48G4X is a full-gigabit access switch tailored for large enterprises and campus LANs. It offers 48 auto-negotiation 10/100/1000BASE-T ports, providing high-speed network access for short-distance services, and 4 1GE/10GE SFP+ uplink ports for high-speed data transmission.
The switch supports Virtual Switch Unit (VSU) virtualization technology, allowing multiple physical switches to be virtualized into one logical unit. This feature enhances flexible networking, high performance, and simplifies network maintenance by eliminating loops and improving reliability.
With advanced Layer 3 features, the DG-S5310-48G4X supports IPv4/IPv6 static routing, RIP, OSPFv2, BGP, and IS-IS, ensuring efficient routing and network performance.
The switch also offers comprehensive security features, including CPU Protection Policy (CPP) to control the packet type and traffic volume sent to the CPU, and Network Foundation Protection Policy (NFPP) to isolate users with attacker behaviors, ensuring network security and stability.
Technical Specifications:
Ports & Interfaces:
- Fixed Service Ports:
- 48 × 10/100/1000BASE-T ports
- 4 × 1GE/10GE SFP+ uplink ports
- Management Ports:
- 1 × RJ45 console port
- 1 × RJ45 MGMT port
- USB:
Performance & Switching Capacity:
Layer 3 Features:
- Routing Protocols Supported: IPv4/IPv6 static routing, RIP, RIPng, OSPFv2, OSPFv3, BGP, IS-IS
- Routing Policy: Supports routing policies for optimized network performance
Security Features:
- CPU Protection: CPU Protect Policy (CPP) to control packet types and traffic volume sent to the CPU
- Network Protection: Network Foundation Protection Policy (NFPP) to isolate users with attacker behaviors, ensuring network security and stability
Management & Monitoring:
- Management Modes: Supports multiple management modes, including Data General WIS cloud, CLI, web-based management, and SNMP, simplifying network maintenance
- SDN compatible: Supports OpenFlow Special 1.3.
Physical & Power Specifications:
- Dimensions (W × D × H): 442 mm × 420 mm × 43.6 mm (17.40 in. × 16.54 in. × 1.72 in.)
- Weight: Approximately 4.5 kg (9.92 lbs)

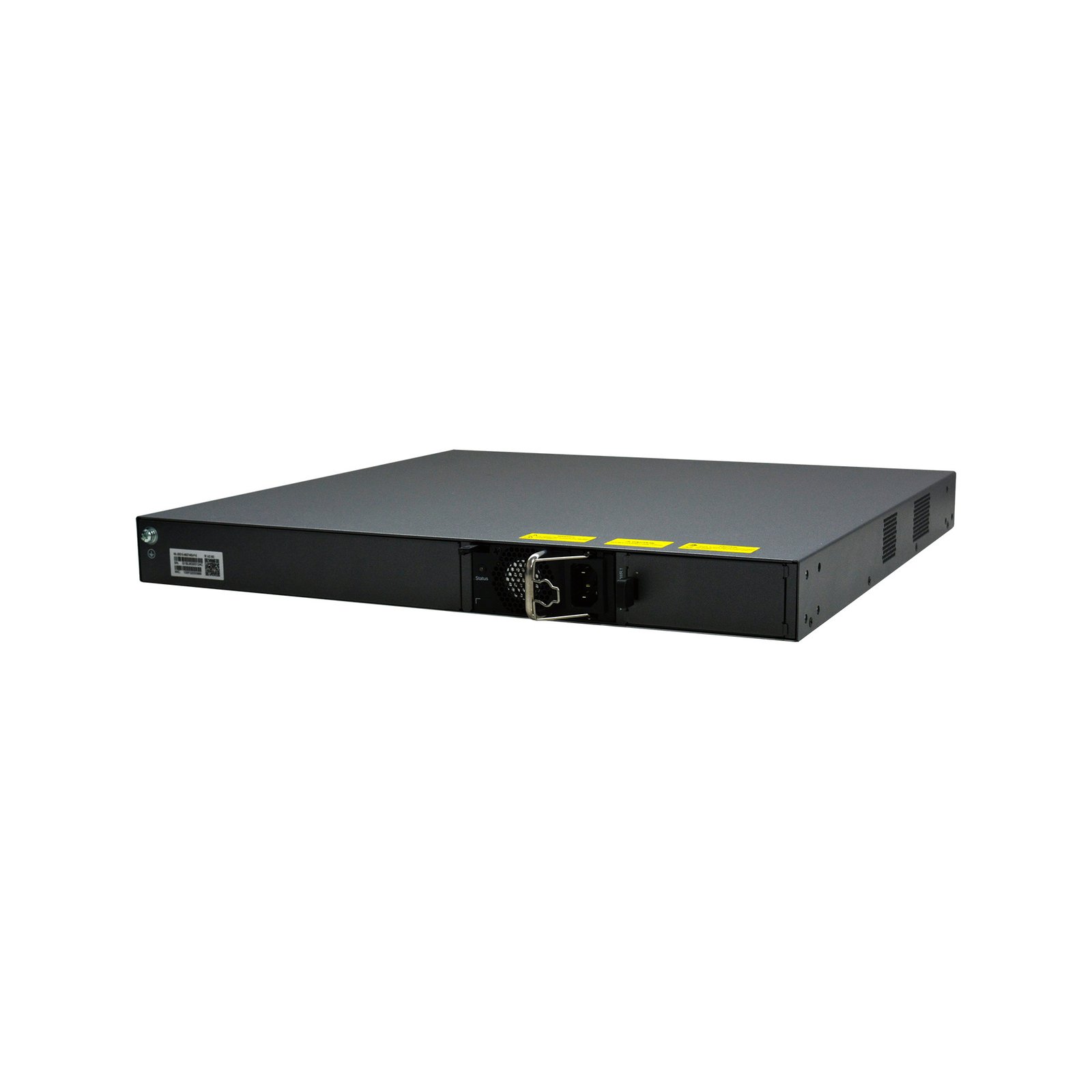

- Power Supply: Supports 2 pluggable power modules, compatible with RG-PA70I (AC input) and RG-PD70I (DC input)
Environmental Specifications:
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90% RH
- Storage Humidity: 5% to 95% RH
Key Features:
- Full-Gigabit Access: Provides 48 10/100/1000BASE-T ports for high-speed network experience in short-distance services
- 10G Uplink: Equipped with 4 1GE/10GE SFP+ uplink ports for high-speed data transmission
- VSU Virtualization: Supports VSU technology, allowing multiple physical switches to be virtualized into one logical unit, simplifying network configuration and improving reliability
- Advanced Security: Offers comprehensive security features, including CPU Protect Policy (CPP) and Network Foundation Protection Policy (NFPP), enhancing network robustness
- Flexible Management: Supports multiple management modes, including CLI, web-based management, and SNMP, simplifying network maintenance
Applications:
- Enterprise Networks: Ideal for large-sized enterprise LANs requiring high-speed data transmission and advanced security features
- Campus Networks: Suitable for campus LANs needing full-gigabit access and flexible networking capabilities
Ordering Information:
- DG-S5310-48G4X: 48 × 10/100/1000BASE-T ports, 4 × 1GE/10GE SFP+ ports switch, 1 DG-PA150IB-F power supply
- DG-PA150IB-F: Optional 150W power supply for redundancy or spare.
The Data General DG-S5310-48G4X is an optimal solution for large-sized enterprise and campus networks, providing high-speed connectivity, advanced security features, and flexible management options to ensure a scalable and future-proof network infrastructure.
