Data General S5310-48GP4X-1440W

Description

Data General DG-S5310-48GP4X-1440W – 48-Port Gigabit Ethernet Layer 3 Cloud Managed Access Switch with PoE+ and 4 10G Uplink Ports

The Data General RG-S5310-48GP4X-1440W is a full-gigabit access switch tailored for large enterprises and campus LANs. It offers 48 auto-negotiation 10/100/1000BASE-T ports with PoE/PoE+ support, providing up to 15.4W per port for IEEE 802.3af-compliant devices and up to 30W per port for IEEE 802.3at-compliant devices, making it ideal for applications like security surveillance, teleconferencing, and wireless coverage. Additionally, the switch includes 4 1GE/10GE SFP+ uplink ports for high-speed data transmission.

The switch supports Virtual Switch Unit (VSU) virtualization technology, allowing multiple physical switches to be virtualized into a single logical unit. This feature enhances flexible networking, high performance, and simplifies network maintenance by eliminating loops and improving reliability.

With advanced Layer 3 features, the DG-S5310-48GP4X-1440W supports IPv4/IPv6 static routing, RIP, OSPFv2, BGP, and IS-IS, ensuring efficient routing and network performance.

The switch also offers comprehensive security features, including RADIUS and TACACS+ AAA for device login management, SSH and SSH V2.0 for secure remote access, and BPDU guard, IP source guard, CPU Protection Policy (CPP), and Network Foundation Protection Policy (NFPP) to enhance network robustness.

Technical Specifications:

Ports & Interfaces:

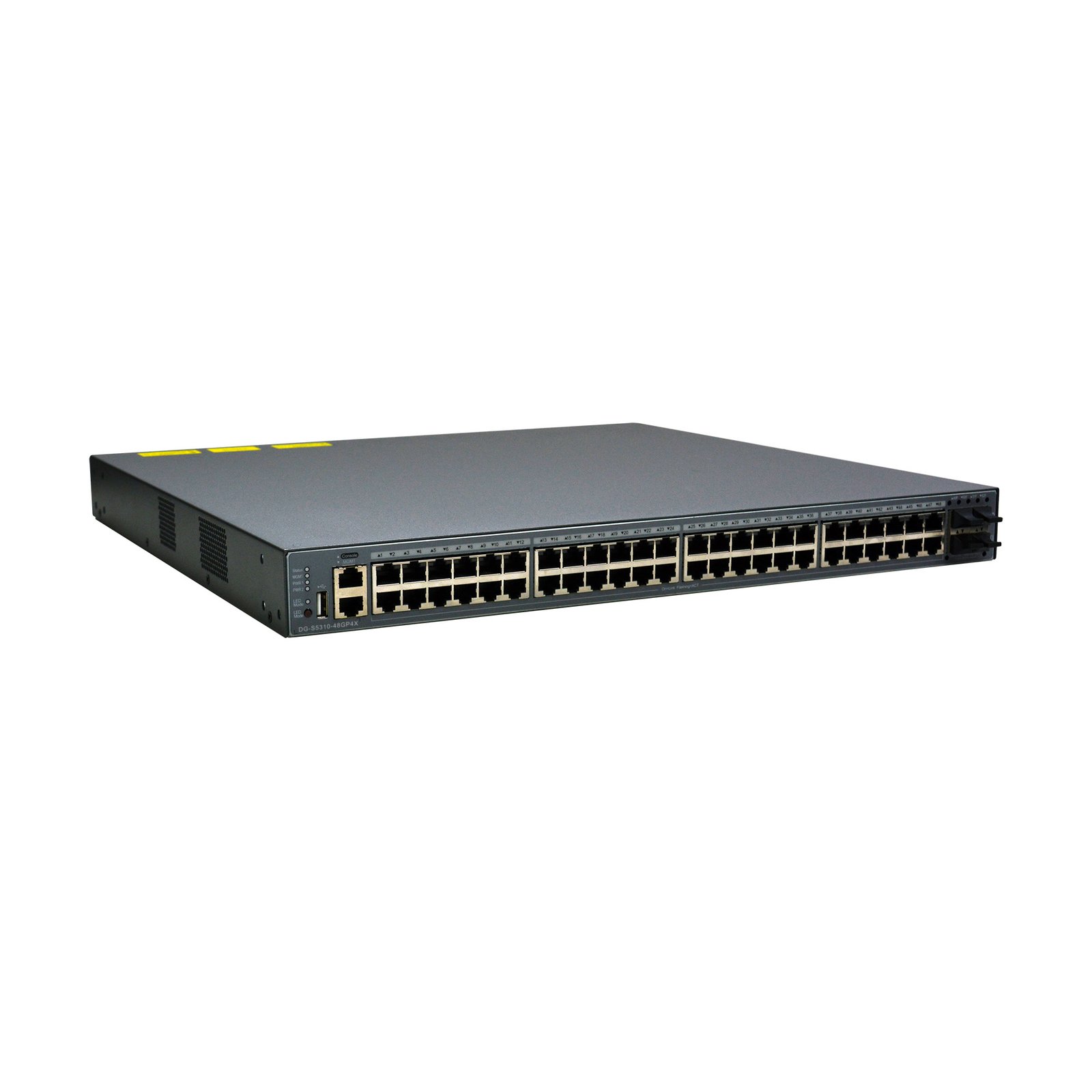

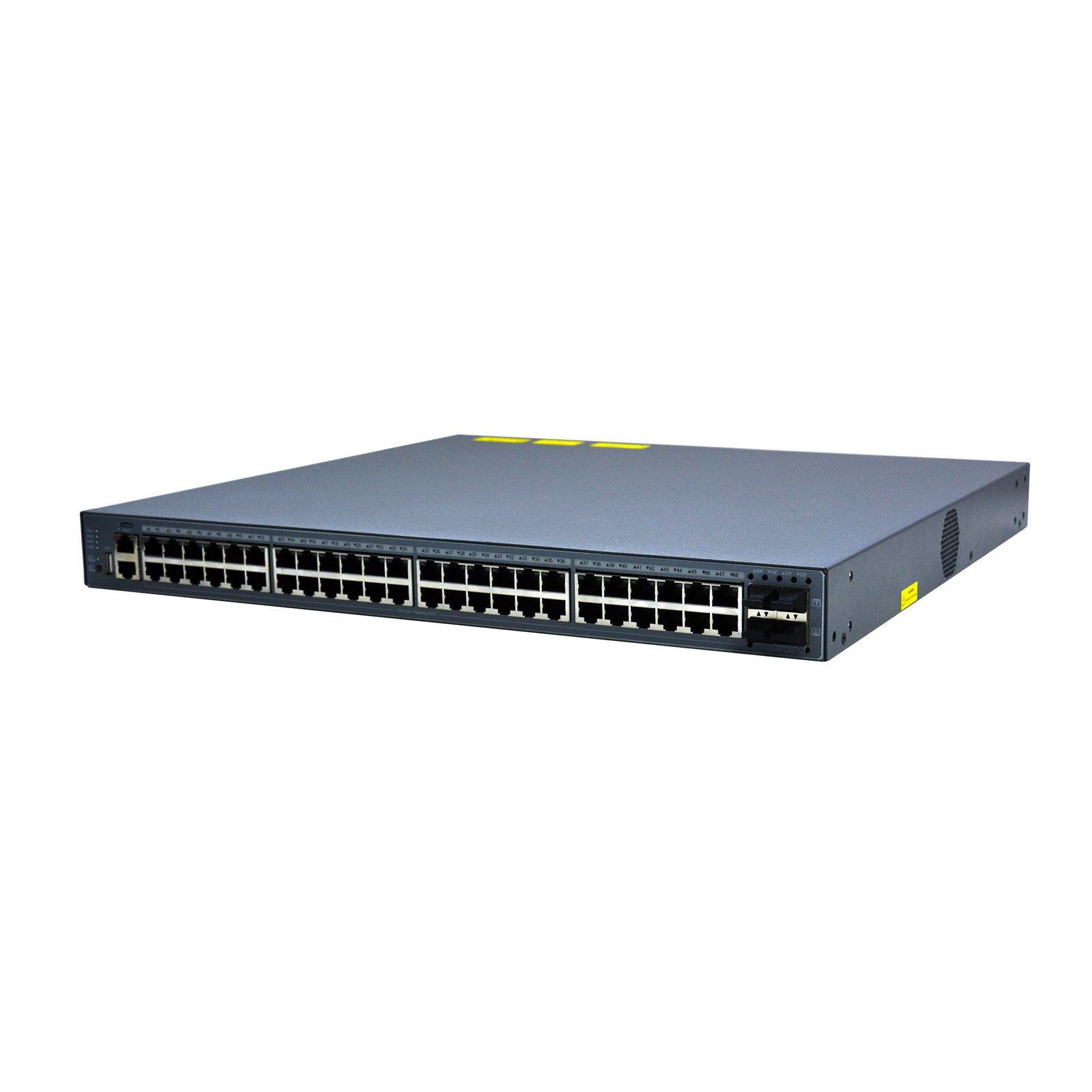

• Fixed Service Ports:
  • 48 × 10/100/1000BASE-T ports with PoE/PoE+ support​
  • 4 × 1GE/10GE SFP+ uplink ports
  • 1 × MGMT port​
  • 1 × Console port​
  • 1 × USB 2.0 port​

Performance & Switching Capacity:

• Switching Capacity: 176 Gbps
• Packet Forwarding Rate: 132 Mpps

PoE Specifications:

• PoE Standards Supported: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Maximum PoE Power Budget: Up to 1440W (with appropriate power modules)
• PoE Management Features: Automatic and energy-saving power supply management, uninterrupted power supply in hot start mode, scheduled powering on/off PoE ports based on time policy, port priority.

Layer 3 Features:

• Routing Protocols Supported: IPv4/IPv6 static routing, RIP, RIPng, OSPFv2, OSPFv3, BGP, IS-IS
• Routing Policy: Supports routing policies for optimized network performance.

Security Features:

• Access Control: Hierarchical management of administrators and password protection
• Authentication: RADIUS and TACACS+ AAA (IPv4/IPv6) for device login management
• Secure Access: SSH and SSH V2.0 for secure remote access
• Protection Mechanisms: BPDU guard, IP source guard, CPU Protection Policy (CPP), Network Foundation Protection Policy (NFPP).

Management & Monitoring:

• Management Modes: Data General WIS Cloud, SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog, NTP/SNTP, Web, sFlow
• Zero Configuration: Supports CPE WAN Management Protocol (CWMP/TR069) for zero configuration.
• SDN compatible: Supports OpenFlow Special 1.3

Physical & Power Specifications:

• Dimensions (W × D × H): 442 mm × 420 mm × 43.6 mm

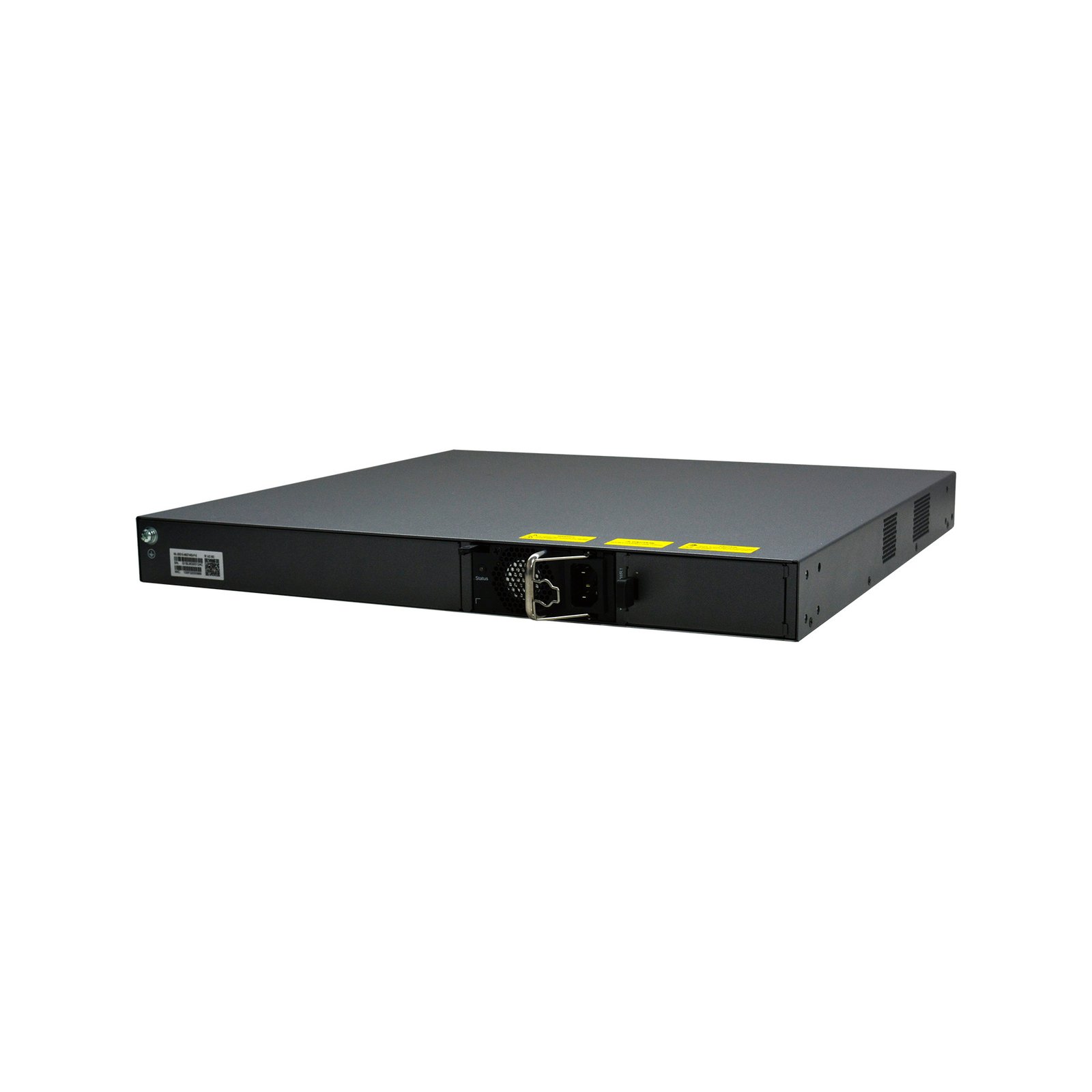

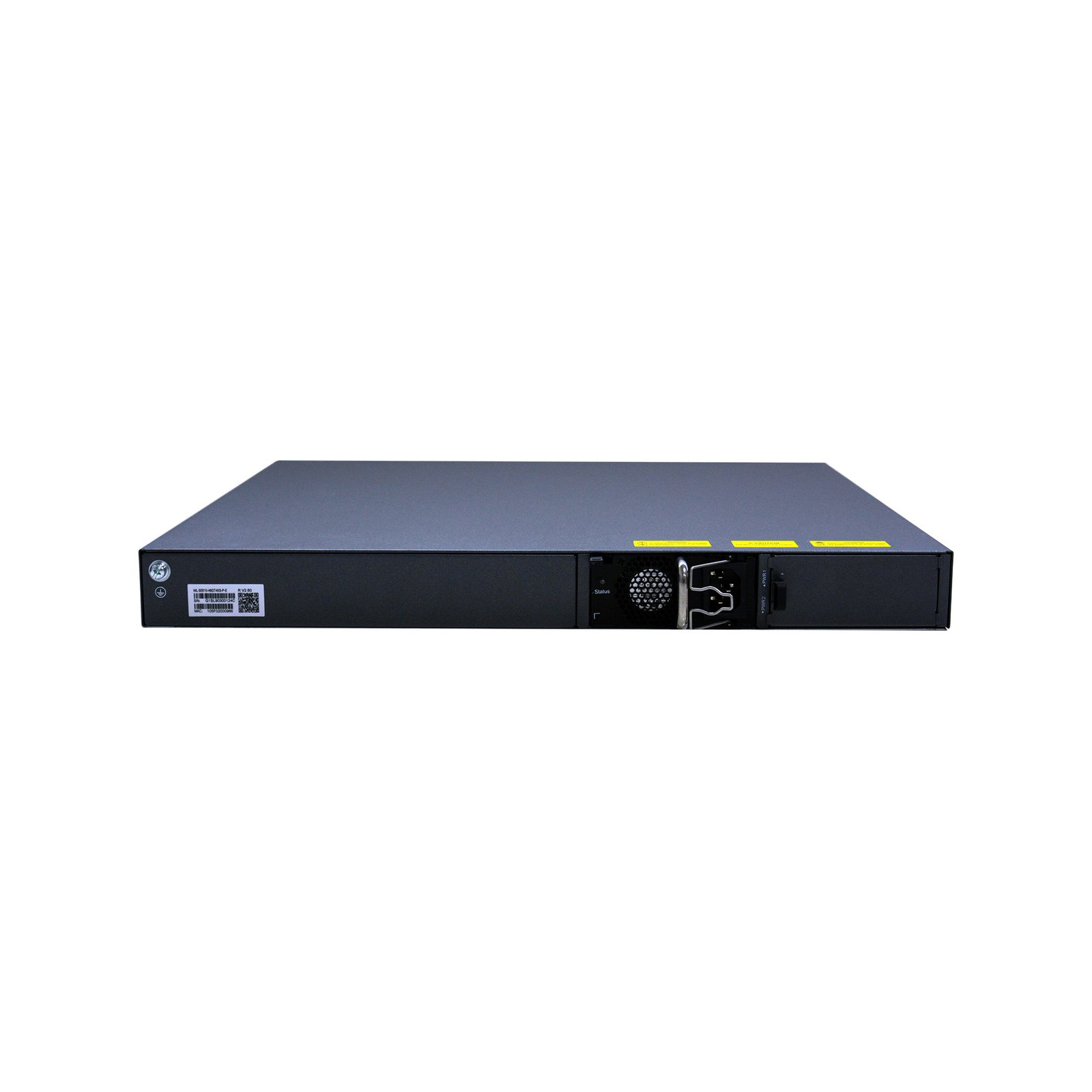

• Power Supply: Supports 1+1 modular power supplies. 2 x DG-PA1000I-P-F (1000W PoE power budget) included.
• Power Consumption:
  • <85W (non-PoE)
  • <810W (PoE full load)

Environmental Specifications:

• Operating Temperature: 0°C to 45°C​
• Storage Temperature: -40°C to 70°C​
• Operating Humidity: 10% to 90% RH​
• Storage Humidity: 5% to 95
