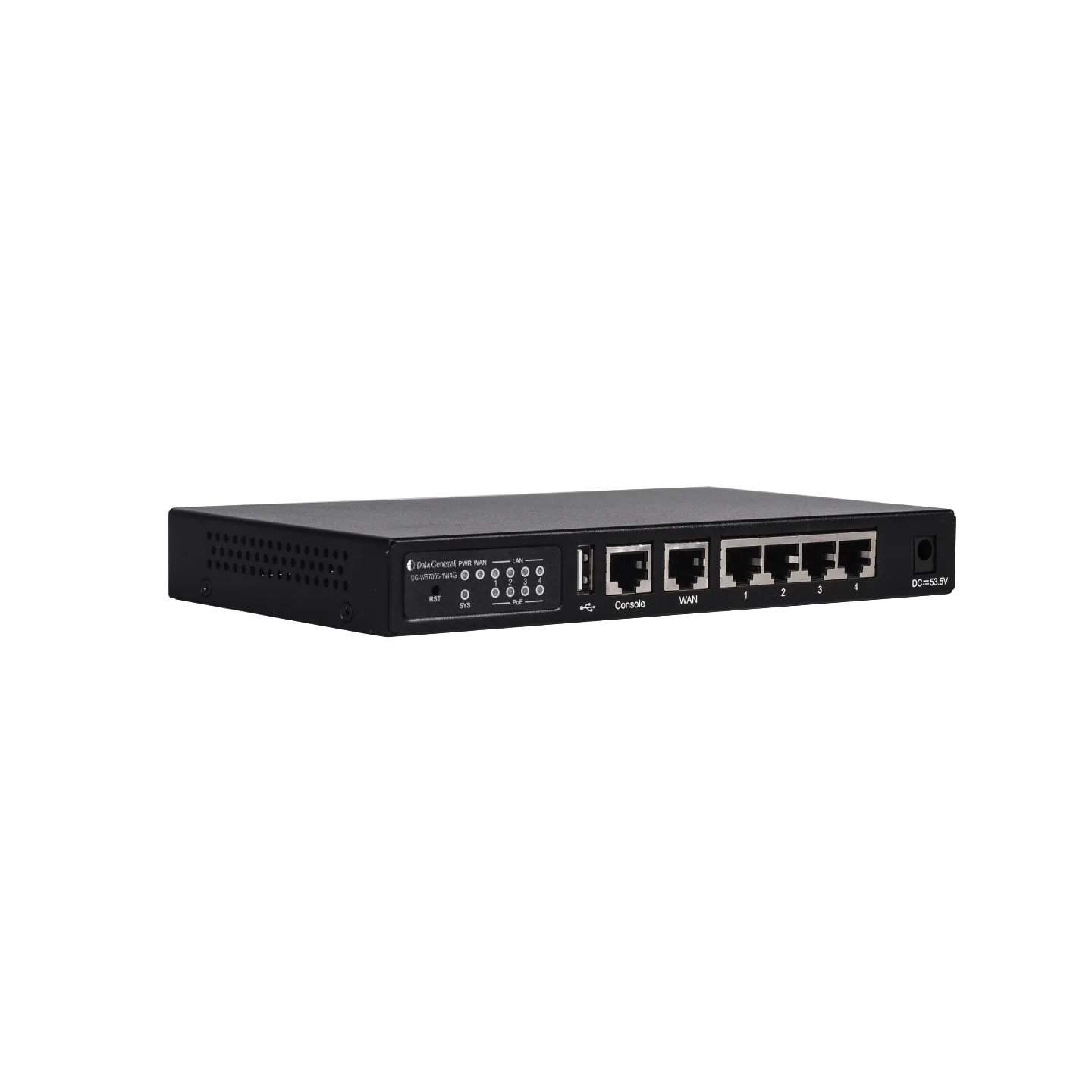

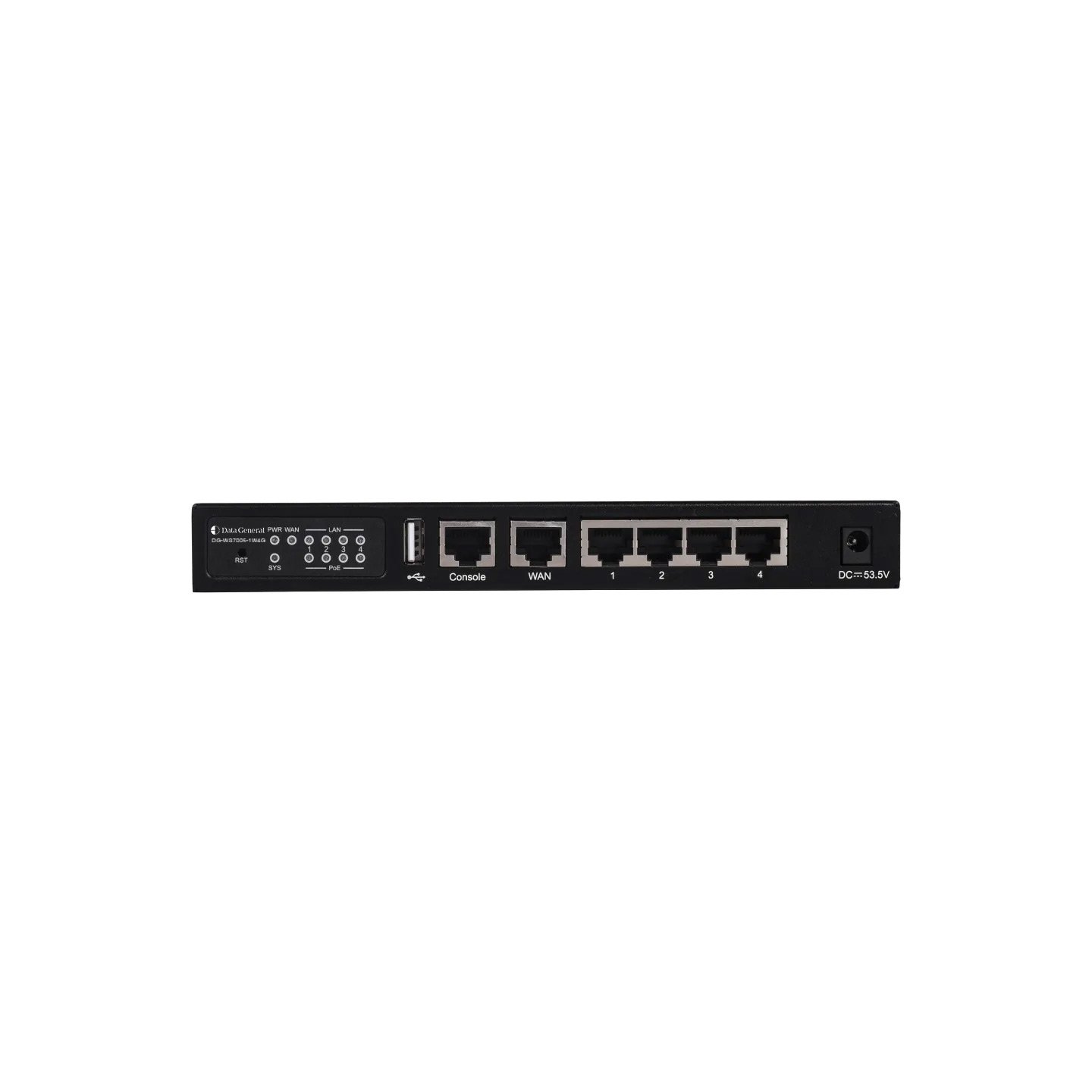

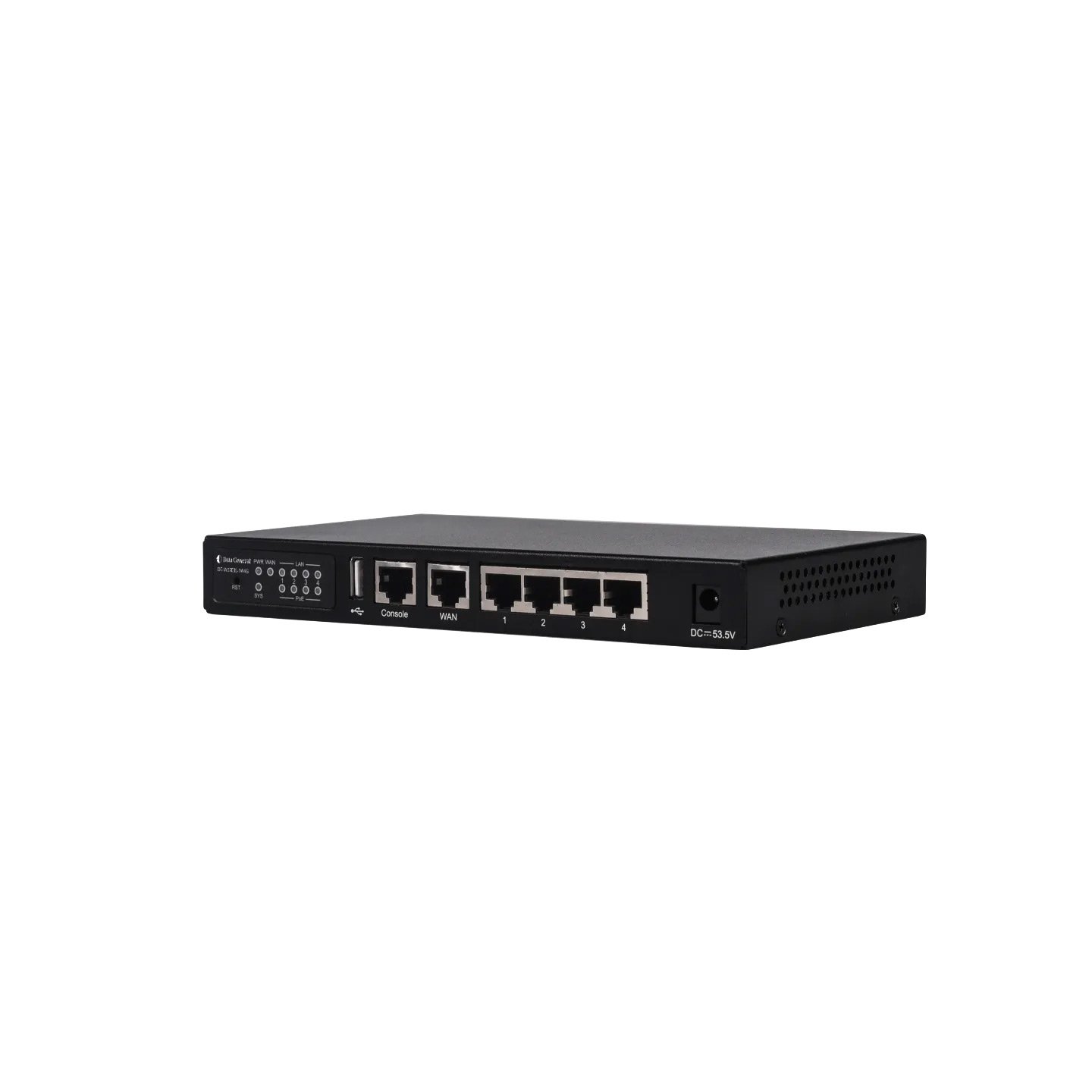

Data General WS7005-1W4G

Description

Data General DG-WS7005-1W4G – Wireless Access Controller up to 64 APs – Unlicensed

The Data General DG-WS7005-1W4G Wireless Access Controller is an enterprise-grade wireless network managementsolution designed to simplify access point (AP) deployment and control in small to medium-sized networks. This high-performance AC can manage up to 64 APs, ensuring seamless roaming, intelligent RF management, and efficient traffic distribution across connected devices.

Equipped with one Gigabit WAN port and four PoE-enabled LAN ports, the DG-WS7005-1W4G can power and manage APs directly, reducing cabling complexity and improving deployment efficiency. The built-in 4G LTE expansion slot allows integration with mobile networks, enhancing network redundancy and flexibility.

Its intelligent security features include WPA3 encryption, MAC authentication, rogue AP detection, and IEEE 802.1X authentication, ensuring secure user access and protection against unauthorized devices. The compact, wall-mountable design makes it an ideal solution for offices, retail spaces, and hospitality environments.

With advanced AC virtualization, intelligent load balancing, and seamless Layer 2/3 roaming, the Data General DG-WS7005-1W4G offers scalability, reliability, and superior performance for modern wireless networks.

Technical Specifications:

Hardware & Performance:

• Managed APs: Supports up to 64 standard APs or 128 In-Wall APs (no license required)
• Network Ports:
  • 1 × 10/100/1000Base-T WAN port
  • 4 × 10/100/1000Base-T LAN ports with IEEE 802.3af/at PoE (Max PoE power: 56W)
  • 1 × RJ45 console port
  • 1 × USB 2.0 port
  • 1 × 4G LTE module slot
• Maximum PoE Power Output: 56W (shared across PoE ports)
• Power Supply: 54V DC (1.48A input), supports PoE output
• Dimensions: 200 mm × 110 mm × 25 mm (7.87 in. × 4.33 in. × 0.98 in.)
• Weight: 1.1 kg (2.43 lbs)
• Mounting: Wall-mount or desk placement

Security & Networking:

• Security Protocols: WPA3, WPA2, IEEE 802.1X, MAC authentication, rogue AP detection
• Wireless Management: Intelligent RF tuning, load balancing, fast roaming
• Network Virtualization: Supports AC virtualization for high availability
• IPv6 Support: Yes
• Reliability Features: Automatic failover, hot standby, redundancy

Environmental & Compliance:

• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Regulatory Compliance: EN 5503, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, ETSI EN 300 386, IEC 62368-1

The Data General DG-WS7005-1W4G Wireless Access Controller is the perfect cost-effective, scalable, and high-performance solution for businesses seeking a secure and efficient wireless network.
