Mikrotik CCR2004-16G-2S+

Description

The MikroTik CCR2004-16G-2S+ is designed to deliver robust networking solutions for businesses requiring high performance and reliability. Powered by an Amazon Annapurna Labs Alpine v2 CPU with 4× 64-bit ARMv8-A Cortex-A57 cores running at 1.7 GHz, this router surpasses previous CCR models in single-core performance, which is crucial for operations based on per-connection processing, such as queues.

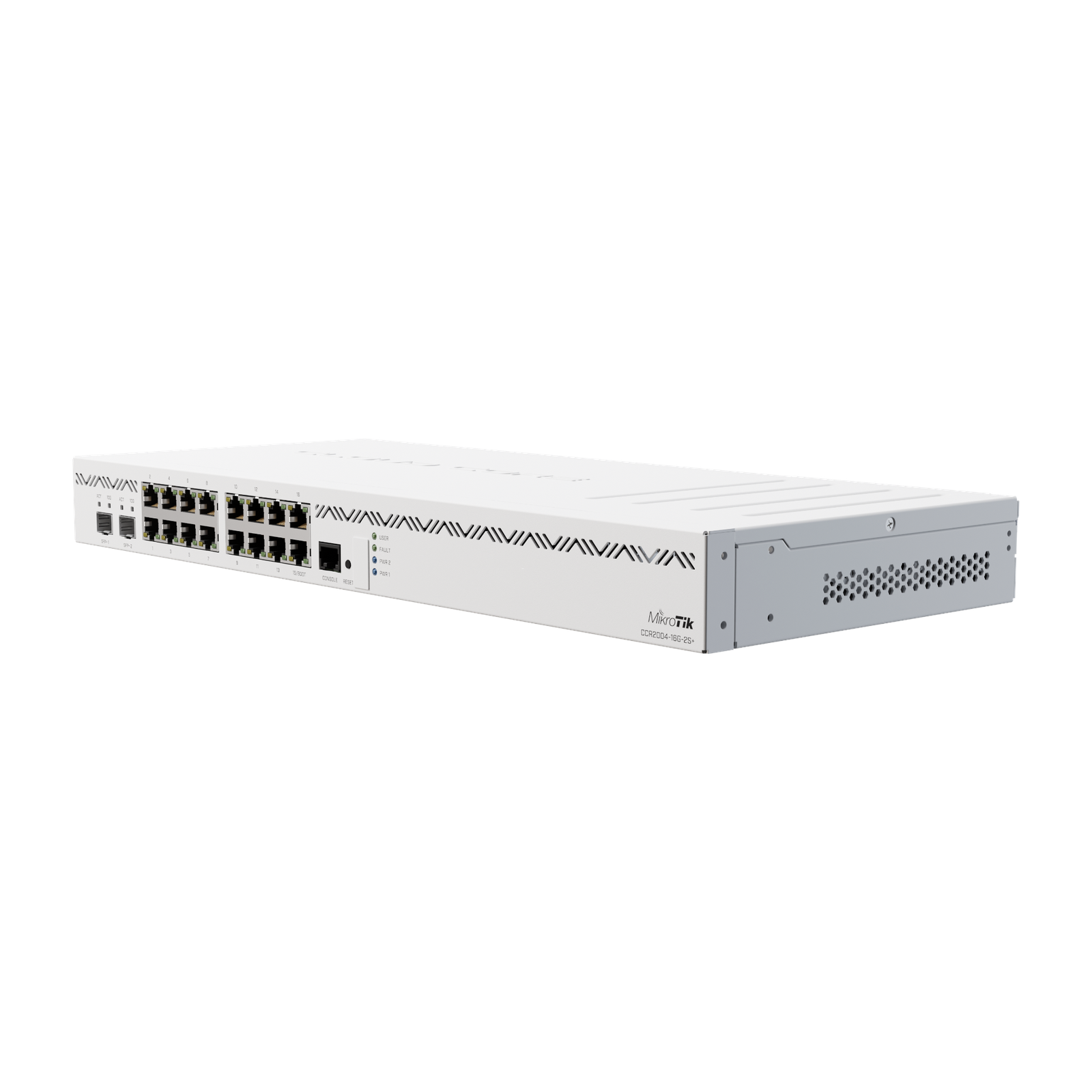

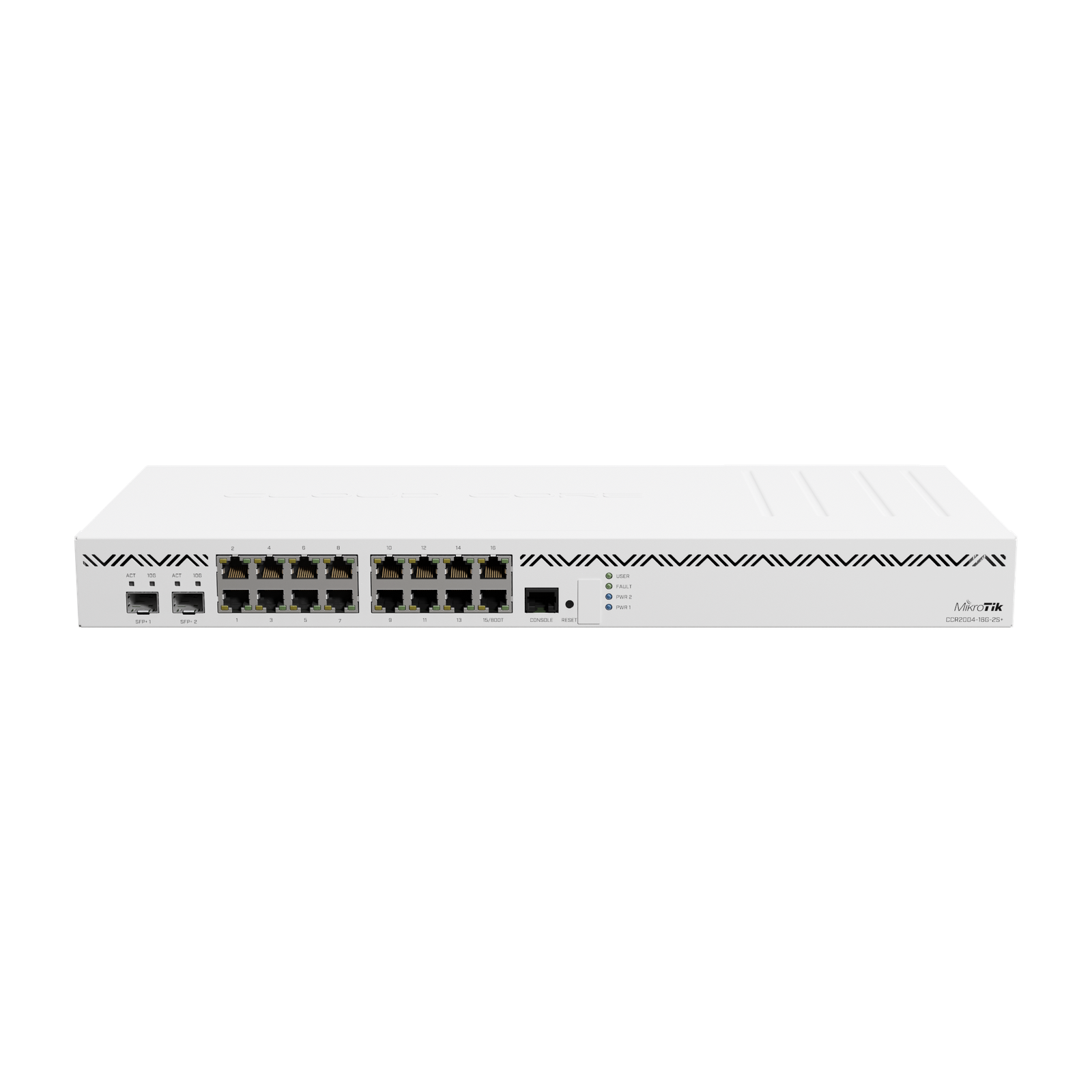

The device features 16 Gigabit Ethernet ports and 2 SFP+ cages, providing versatile connectivity options for various network configurations. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip, each with a 10 Gbps full-duplex line to the CPU, ensuring no bottlenecks and allowing all ports to reach wire speed, provided the CPU can handle the processing.

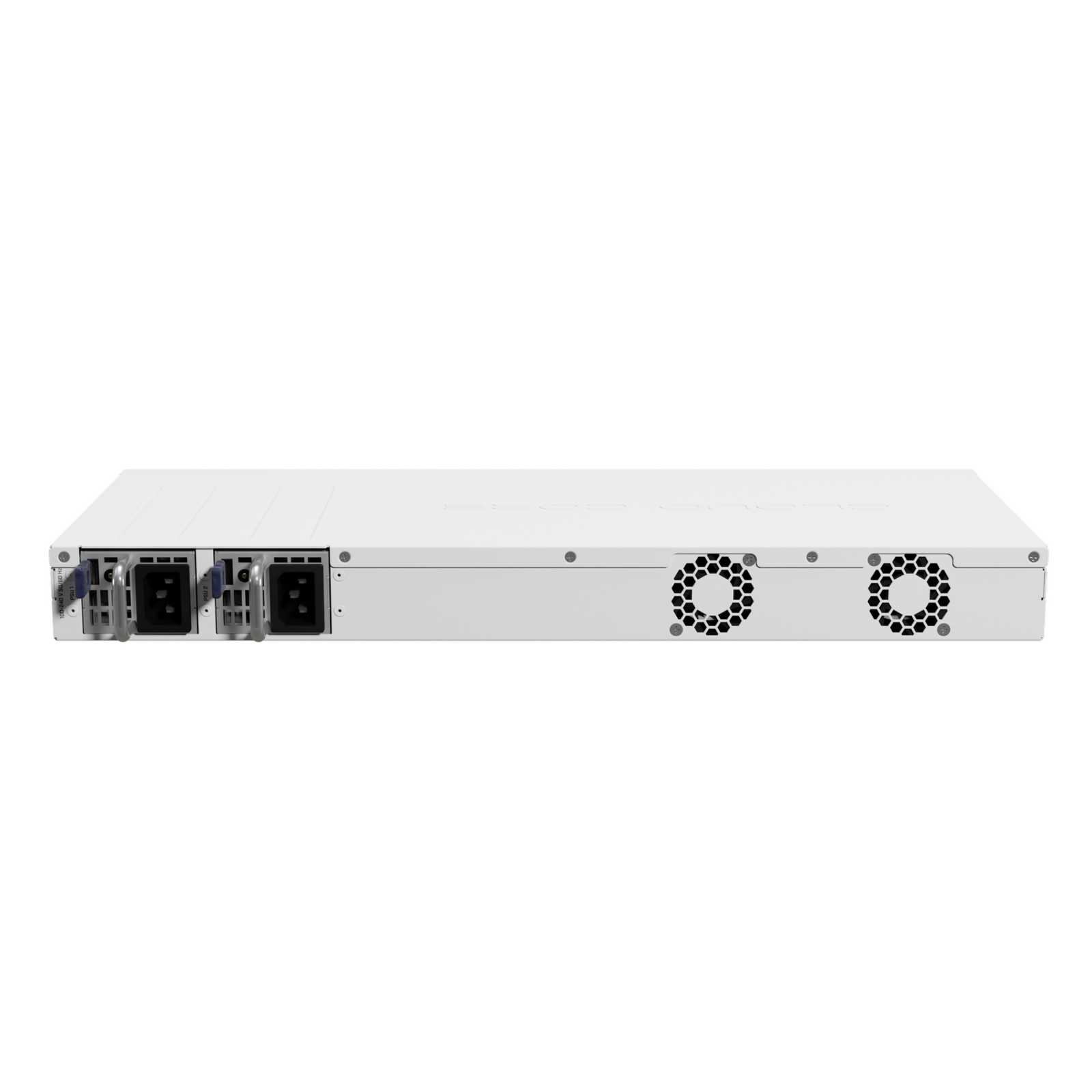

Housed in a classic white 1U rackmount case, the CCR2004-16G-2S+ includes built-in dual redundant power supplies for enhanced reliability and active cooling to maintain optimal operating temperatures. The router comes with 4 GB of DDR4 RAM and 128 MB of NAND storage, providing sufficient memory and storage capacity for demanding tasks.

Technical Specifications:

• CPU: Amazon Annapurna Labs Alpine v2 AL32400, 1.7 GHz, 4-core ARM 64-bit
• Memory: 4 GB DDR4 RAM
• Storage: 128 MB NAND
• Operating System: RouterOS v7 (License Level 6)
• Ethernet Ports: 16× 10/100/1000 Mbps Gigabit Ethernet
• SFP+ Ports: 2× 10G SFP+ cages
• Power Supply: Dual-redundant, 100–240V AC input
• Max Power Consumption: 48 W
• Cooling: Active cooling with fans
• Operating Temperature: -20°C to 60°C
• Dimensions: 443 × 210 × 44 mm
• Certifications: CE, EAC, ROHS

Key Features:

• High-Speed Connectivity: 16 Gigabit Ethernet ports and 2 SFP+ cages provide versatile networking options.
• Enhanced Performance: Quad-core ARM 64-bit CPU delivers superior single-core performance, essential for per-connection processing tasks.
• Redundant Power Supplies: Built-in dual redundant power supplies enhance reliability and uptime.
• Active Cooling: Equipped with fans to maintain optimal operating temperatures.
• Energy Efficient: Offers the best single-core performance per watt and overall performance per watt among all CCR devices.

Applications:

• Small to Medium-Sized Business Networks: Ideal for businesses requiring reliable and high-performance network solutions.
• Office Environments: Suitable for deployment in business settings, ensuring efficient network operations.
• Enterprise Edge Networks: Perfect for managing intensive networking tasks at the edge of enterprise networks.

The MikroTik CCR2004-16G-2S+ combines high performance with reliability, making it an excellent choice for businesses seeking robust networking solutions to support their critical operations.

More information: MikroTik
