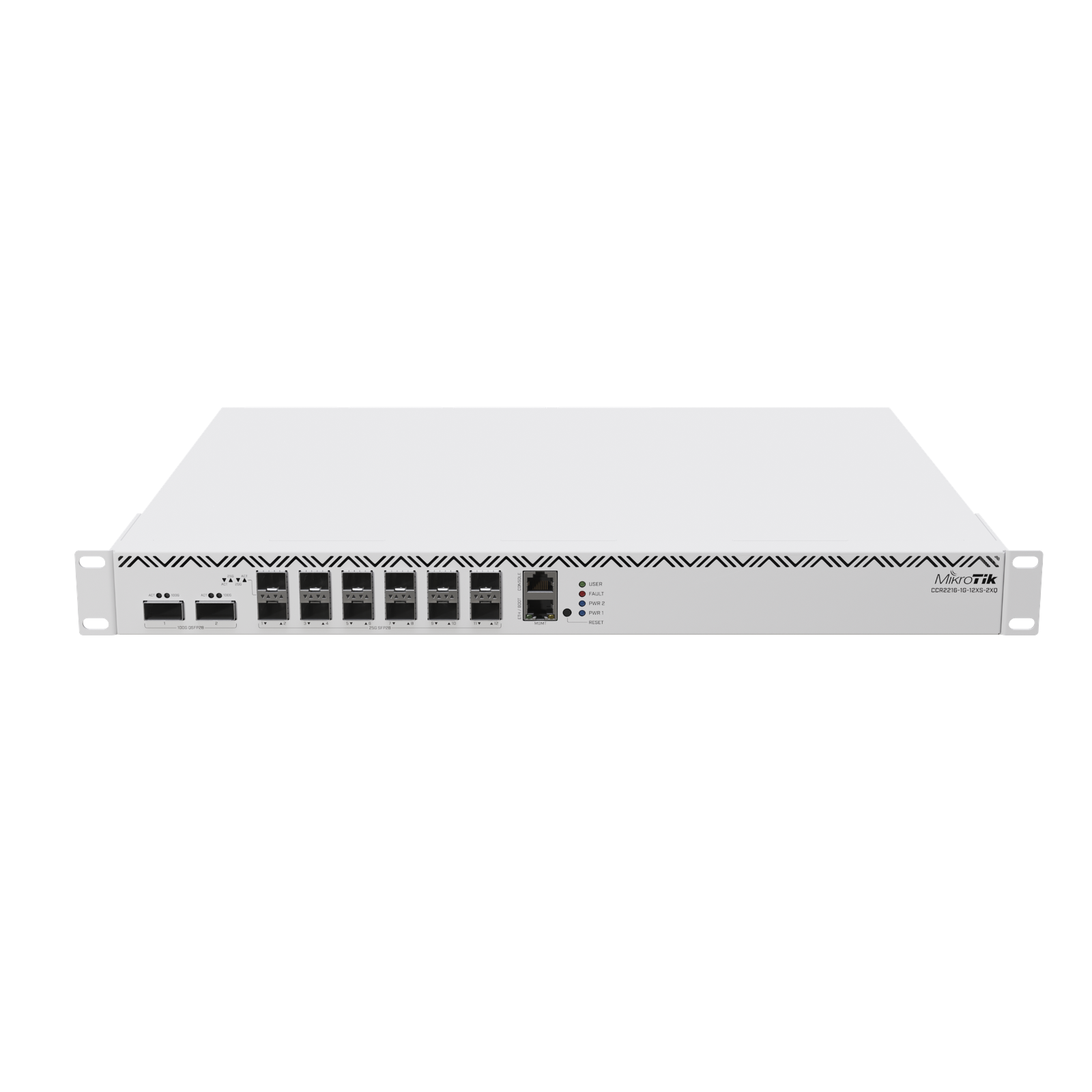

Mikrotik CCR2216-1G-12XS-2XQ

Description

The MikroTik CCR2216-1G-12XS-2XQ represents a significant advancement in networking technology, providing unparalleled performance for complex and data-intensive operations. Equipped with a powerful 16-core ARM 64-bit AL73400 CPU operating at 2 GHz and 16 GB of DDR4 RAM, this router is engineered to handle substantial network traffic with ease.

The device features 2× QSFP28 ports supporting 100 Gigabit connectivity and 12× SFP28 ports for 25 Gigabit networking, facilitating high-speed data transfer across extensive network infrastructures. The inclusion of advanced L3 hardware offloading, powered by the Marvell Prestera Aldrin2 switch-chip, ensures efficient routing and switching capabilities, significantly enhancing network performance.

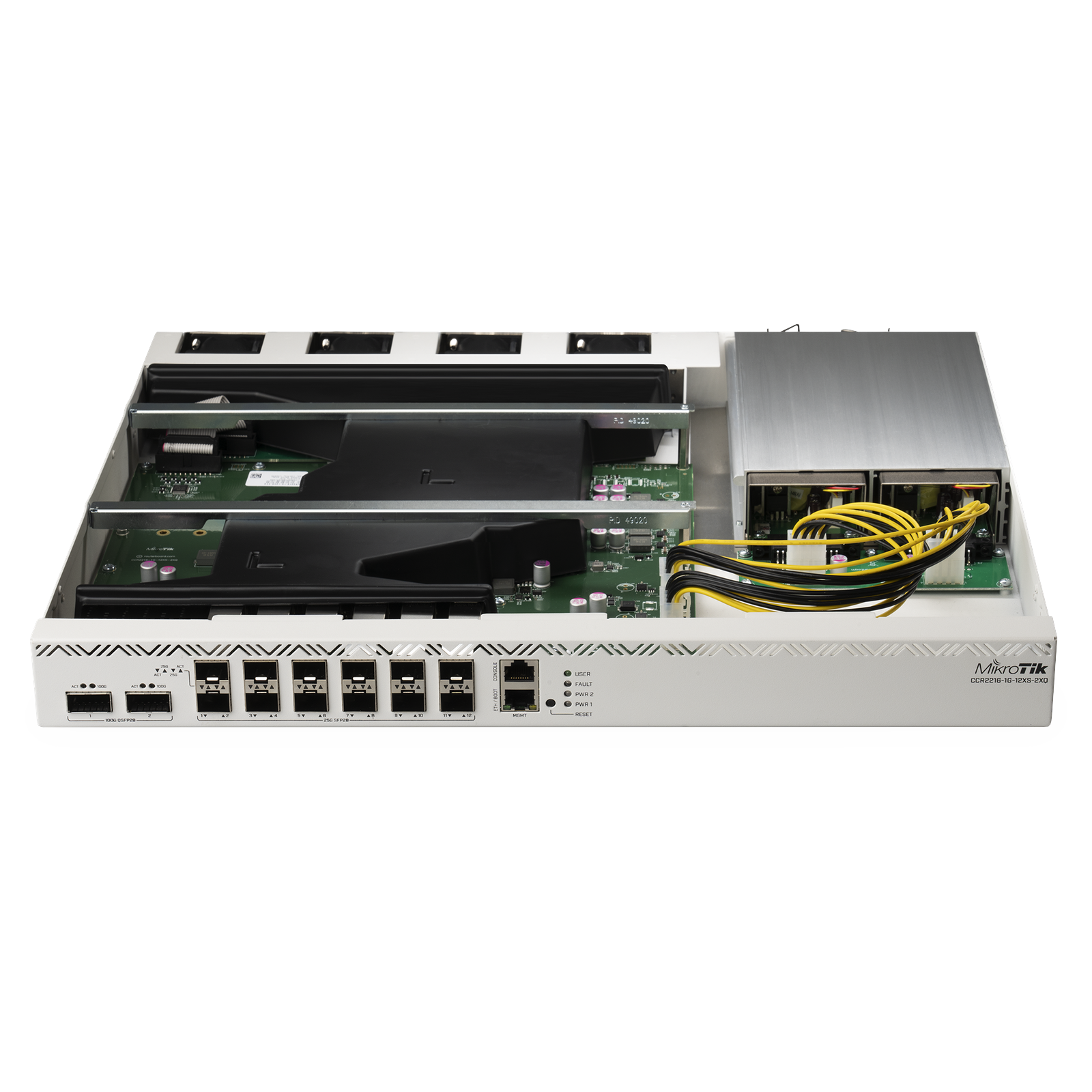

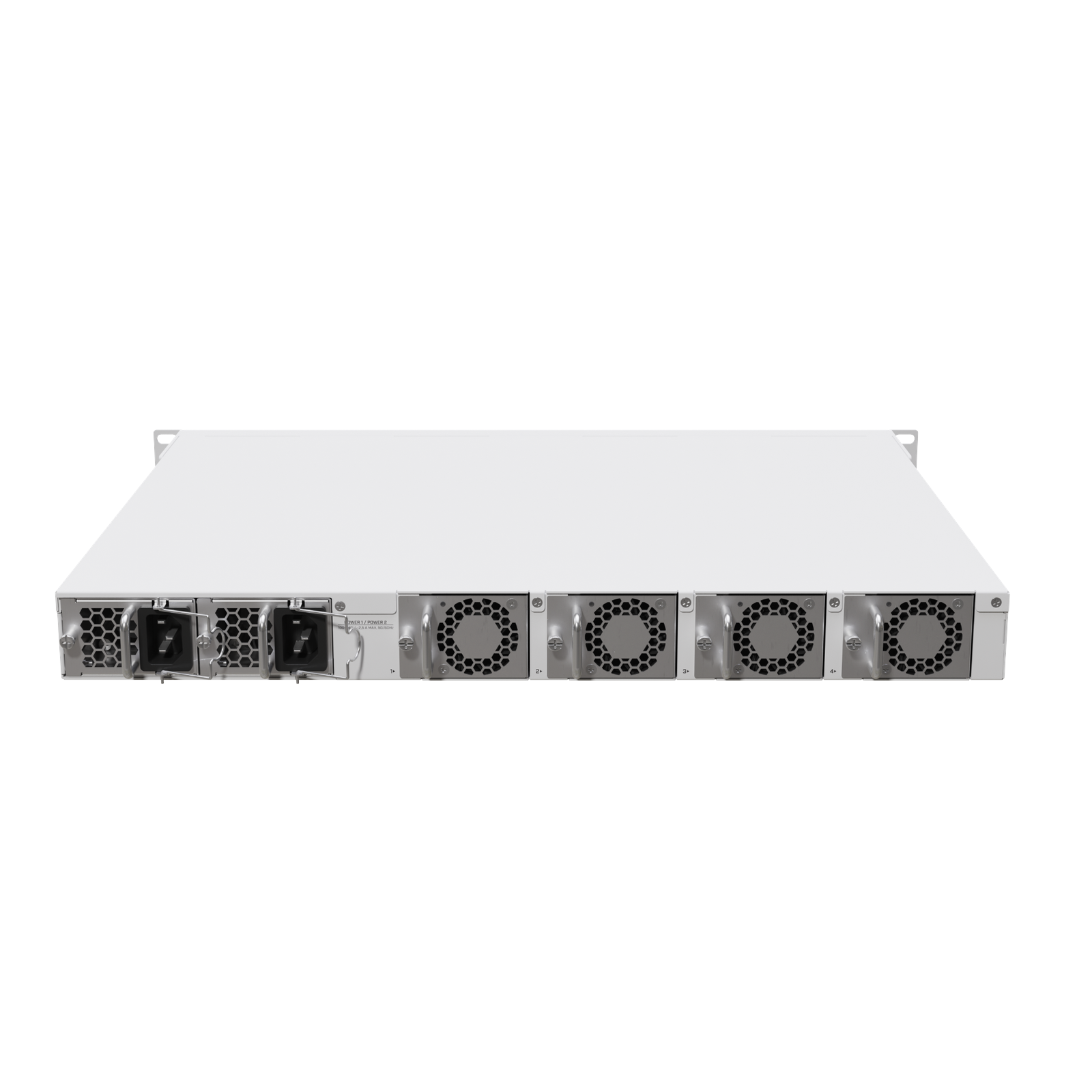

Designed with reliability in mind, the CCR2216-1G-12XS-2XQ includes dual-redundant hot-swappable power supplies and four hot-swappable fans, ensuring continuous operation and minimal downtime. The device also offers two M.2 SATA slots for additional storage, providing flexibility for various networking applications.

This router is an ideal upgrade for existing CCR1072 setups, offering improved performance with lower power consumption, while maintaining compatibility with previous hot-swap power supplies and SFP modules.

Technical Specifications:

• CPU: AL73400, 2 GHz, 16-core ARM 64-bit
• Memory: 16 GB DDR4 RAM
• Storage: 128 MB NAND, 2× M.2 SATA slots
• Operating System: RouterOS v7 (License Level 6)
• Ethernet Ports: 1× 10/100/1000 Mbps Gigabit Ethernet
• SFP28 Ports: 12× 25G SFP28
• QSFP28 Ports: 2× 100G QSFP28
• Power Supply: Dual-redundant hot-swappable, 100–240V AC input
• Max Power Consumption: 128 W
• Cooling: 4 hot-swappable fans
• Operating Temperature: -20°C to 60°C
• Dimensions: 443 × 367 × 44 mm
• Certifications: CE, EAC, ROHS

Key Features:

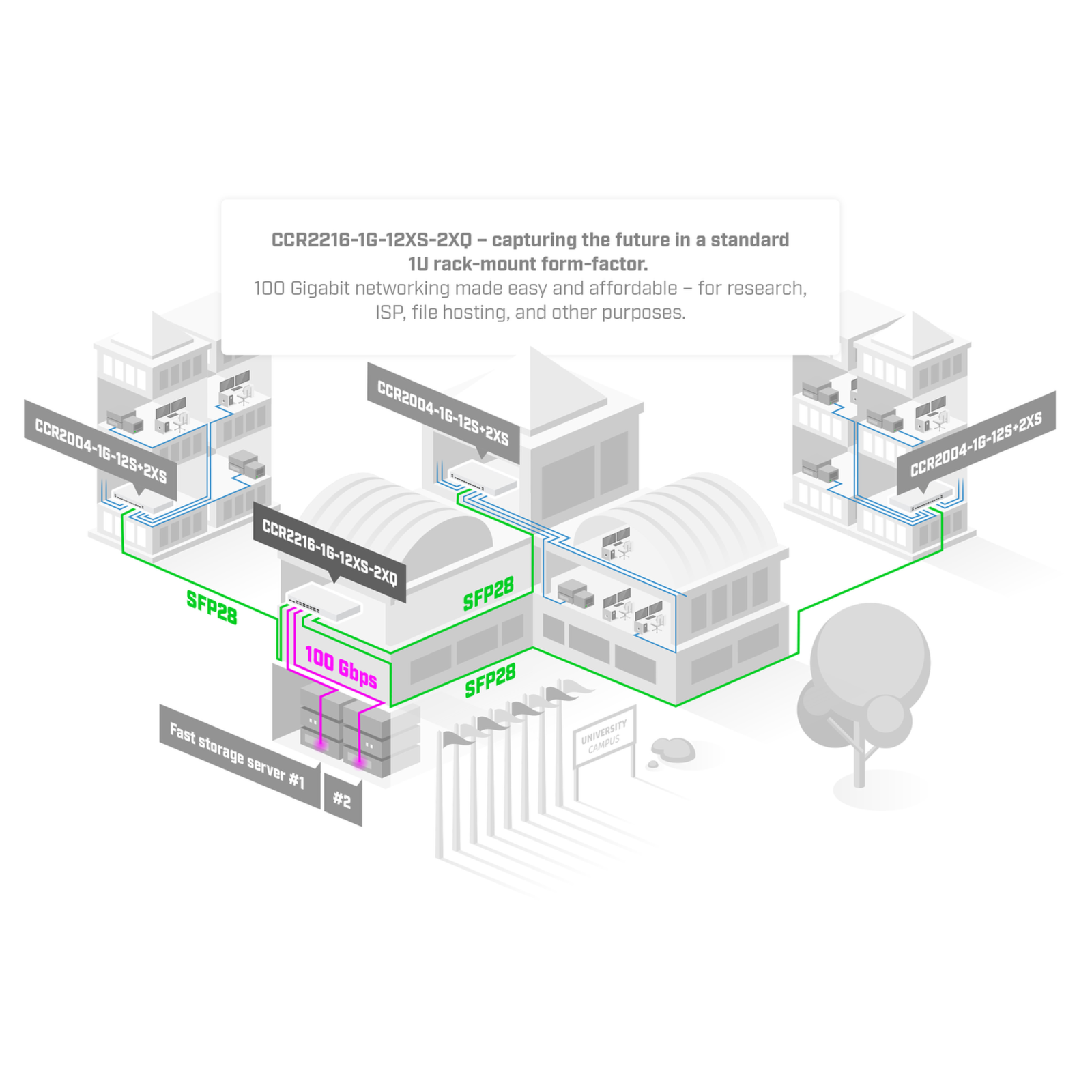

• High-Speed Connectivity: 2× 100G QSFP28 and 12× 25G SFP28 ports provide extensive high-speed networking options.

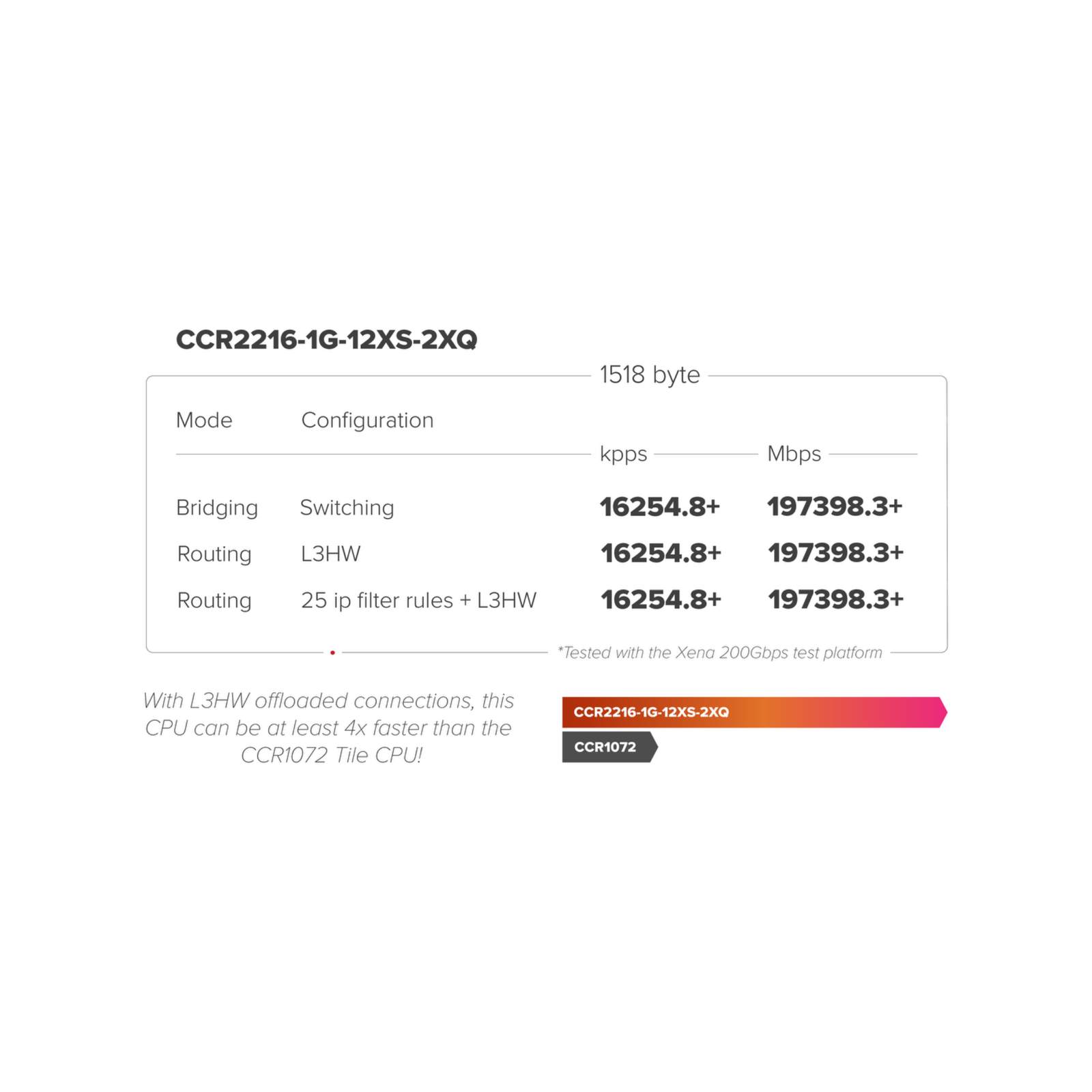

• Advanced L3 Hardware Offloading: Enhances routing and switching efficiency, reducing CPU load and improving overall performance.
• Robust Performance: 16-core ARM 64-bit CPU and 16 GB RAM ensure seamless handling of intensive networking tasks.
• Redundant Power and Cooling: Dual hot-swappable power supplies and fans guarantee high availability and reliability.
• Flexible Storage Options: Two M.2 SATA slots allow for additional storage, accommodating various network applications.

Applications:

• Internet Service Providers (ISPs): Ideal for managing large-scale subscriber networks with high data throughput requirements.
• Data Centers: Suitable for handling substantial data traffic and ensuring efficient network operations.
• Enterprise Networks: Perfect for large organizations requiring robust and reliable networking solutions to support critical business operations.

The MikroTik CCR2216-1G-12XS-2XQ sets a new standard in high-performance routing, offering unparalleled speed, reliability, and flexibility for modern networking environments.
