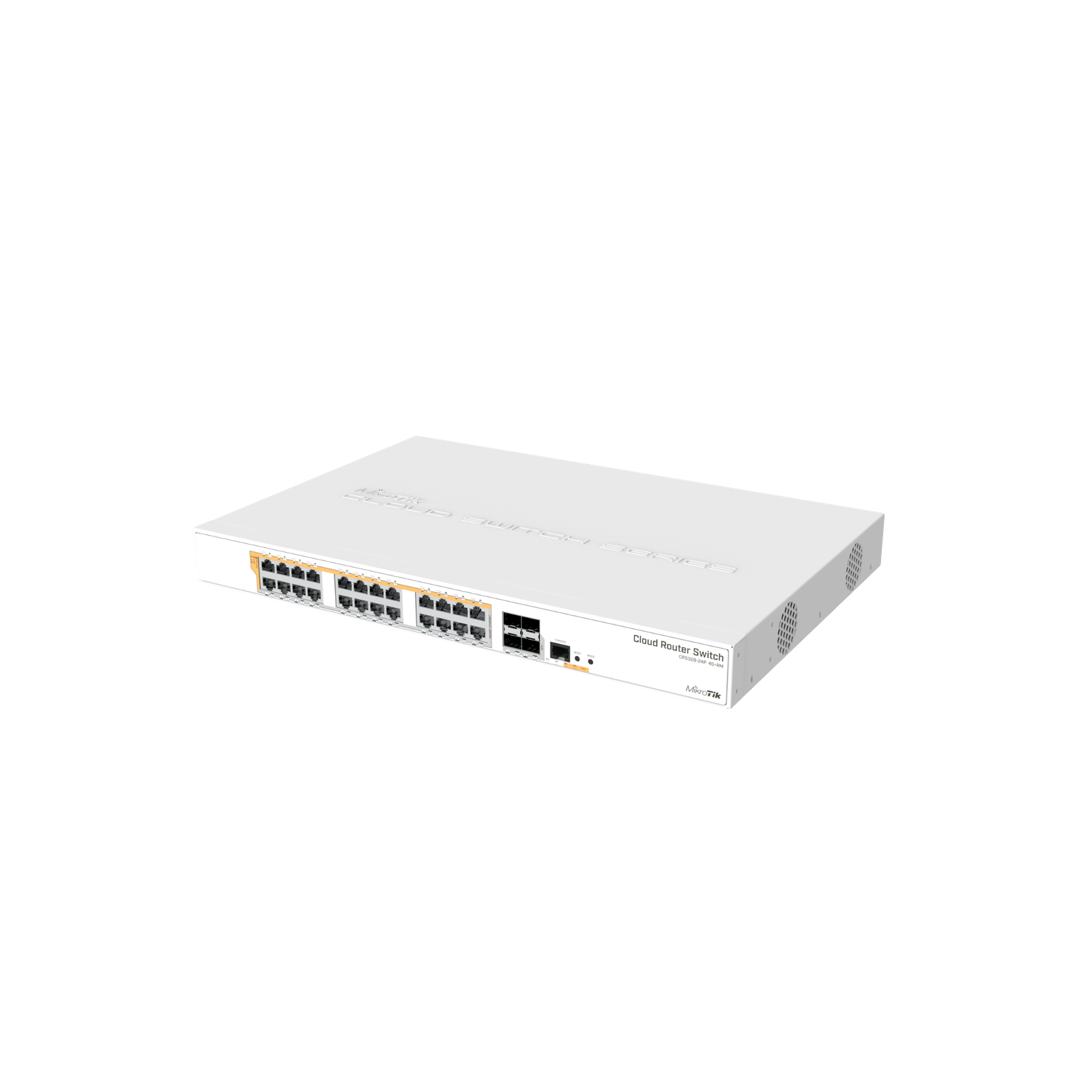

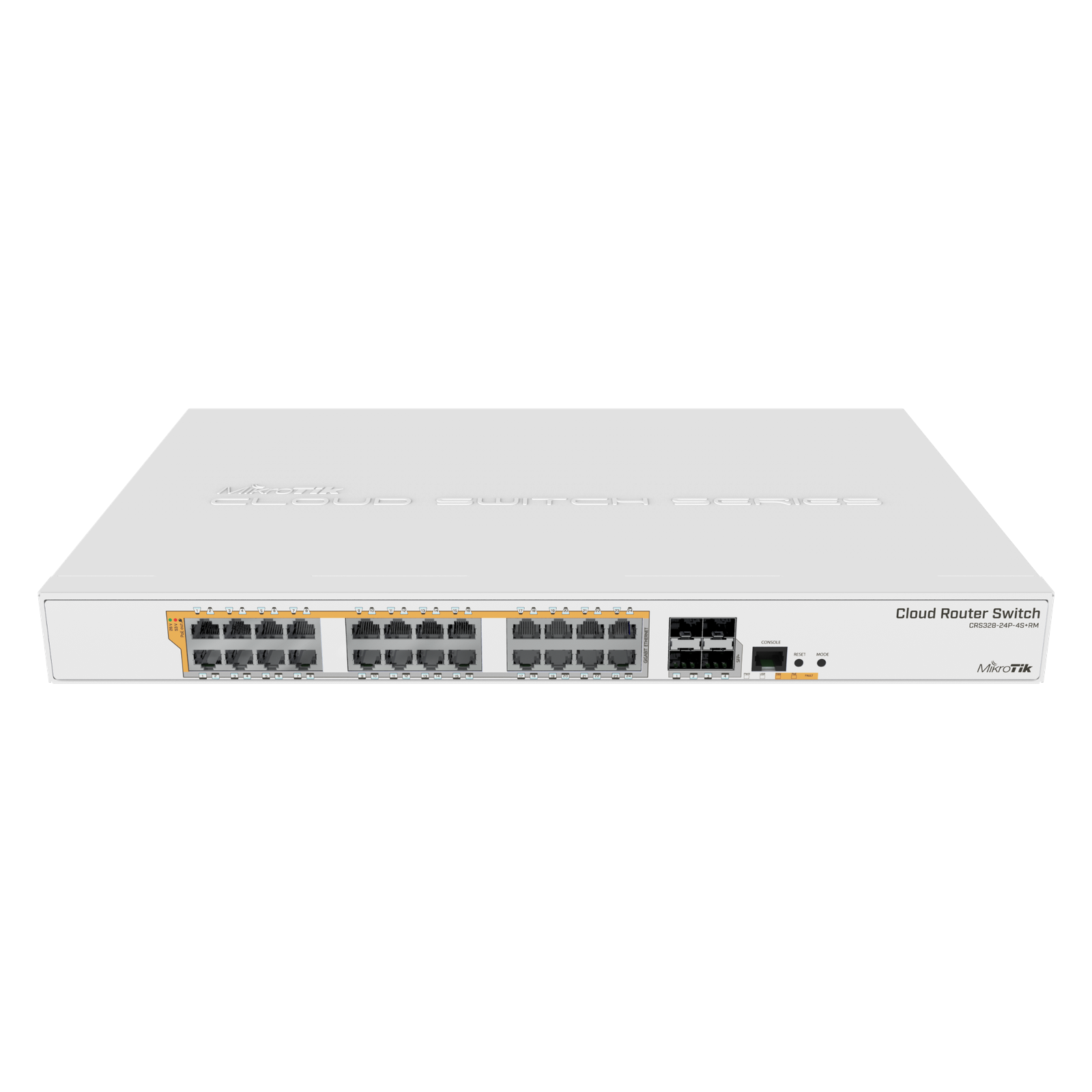

Mikrotik CRS328-24P-4S+RM

Description

The MikroTik CRS328-24P-4S+RM is engineered to meet the demands of modern network infrastructures, providing a comprehensive solution for managing multiple devices. Equipped with 24 Gigabit Ethernet ports, each supporting PoE-out with options for Passive PoE, low voltage PoE, and 802.3af/at with auto-sensing, it simplifies the deployment of PoE-enabled devices across the network. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included), facilitating high-speed uplinks to other network devices. The CRS328-24P-4S+RM delivers a total non-blocking throughput of 64 Gbps, a switching capacity of 128 Gbps, and a forwarding rate of 95.2 Mpps, ensuring efficient data handling even in high-traffic scenarios. Powered by an 800 MHz 98DX3236 CPU and 512 MB of RAM, it operates on RouterOS with a Level 5 license, offering advanced Layer 2 and Layer 3 features for sophisticated network management. The device also features a “Dual boot” option, allowing you to choose between RouterOS and SwOS, providing flexibility based on your network requirements. Housed in a 1U rackmount case with a built-in 100-240 V AC 500 W power supply, the device consumes up to 44 W, leaving a guaranteed 450 W (3×150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose. With a tested ambient temperature range of -20°C to 60°C, it is designed to perform reliably in various environmental conditions.

Technical Specifications:

• CPU: 98DX3236, 800 MHz
• Memory: 512 MB RAM
• Storage: 16 MB Flash
• Operating System: RouterOS / SwitchOS, License Level 5
• Ethernet Ports: 24× 10/100/1000 Mbps Gigabit Ethernet
• SFP+ Ports: 4× 10G SFP+
• PoE-Out: Supported on all 24 Ethernet ports (Passive PoE, low voltage PoE, 802.3af/at with auto-sensing)
• Max PoE-Out per Port:
  • Input 18-30V: 1000 mA
  • Input 30-57V: 450 mA
• Total PoE-Out Power Budget: 450W (3×150 W per every 8 Ethernet ports)
• Power Supply: 500W
• Max Power Consumption: 494W
• Cooling: 2 fans
• Operating Temperature: -20°C to 60°C
• Dimensions: 443 × 300 × 44 mm
• Certifications: CE, EAC, ROHS

Key Features:

• High Port Density: 24 Gigabit Ethernet ports accommodate extensive device connectivity in medium to large network setups.
• PoE-Out Flexibility: Supports multiple PoE standards (Passive PoE, low voltage PoE, 802.3af/at) with auto-sensing, simplifying the deployment of PoE-enabled devices.
• High-Speed Uplinks: Four 10G SFP+ ports provide robust uplink options for seamless integration into high-performance network backbones.
• Robust Performance: Delivers a non-blocking throughput of 64 Gbps and a switching capacity of 128 Gbps, ensuring efficient data handling.
• Advanced Management: Operates on RouterOS with a Level 5 license, offering comprehensive Layer 2 and Layer 3 features for sophisticated network management.
• Dual Boot Option: Allows selection between RouterOS and SwOS, providing flexibility based on network requirements.
• Rackmount Design: 1U rackmount form factor with included accessories facilitates organized and space-efficient installation.

Applications:

• Enterprise Networking: Ideal for businesses requiring a reliable and high-performance switch to manage extensive device connectivity and power PoE-enabled devices.
• Data Centers: Suitable for data centers needing high-density port availability and high-speed uplinks to support large-scale operations.
• Service Providers: Perfect for ISPs seeking a cost-effective solution for managing client connections and ensuring network stability.

Purchasing Information:

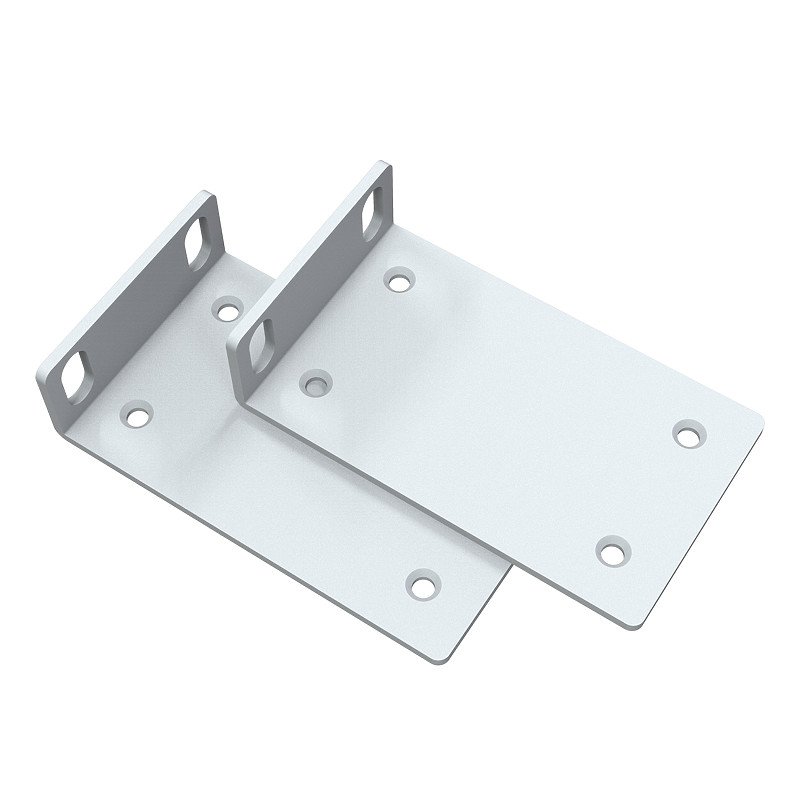

The package includes the switch, rack ears, and necessary:

MikroTik
