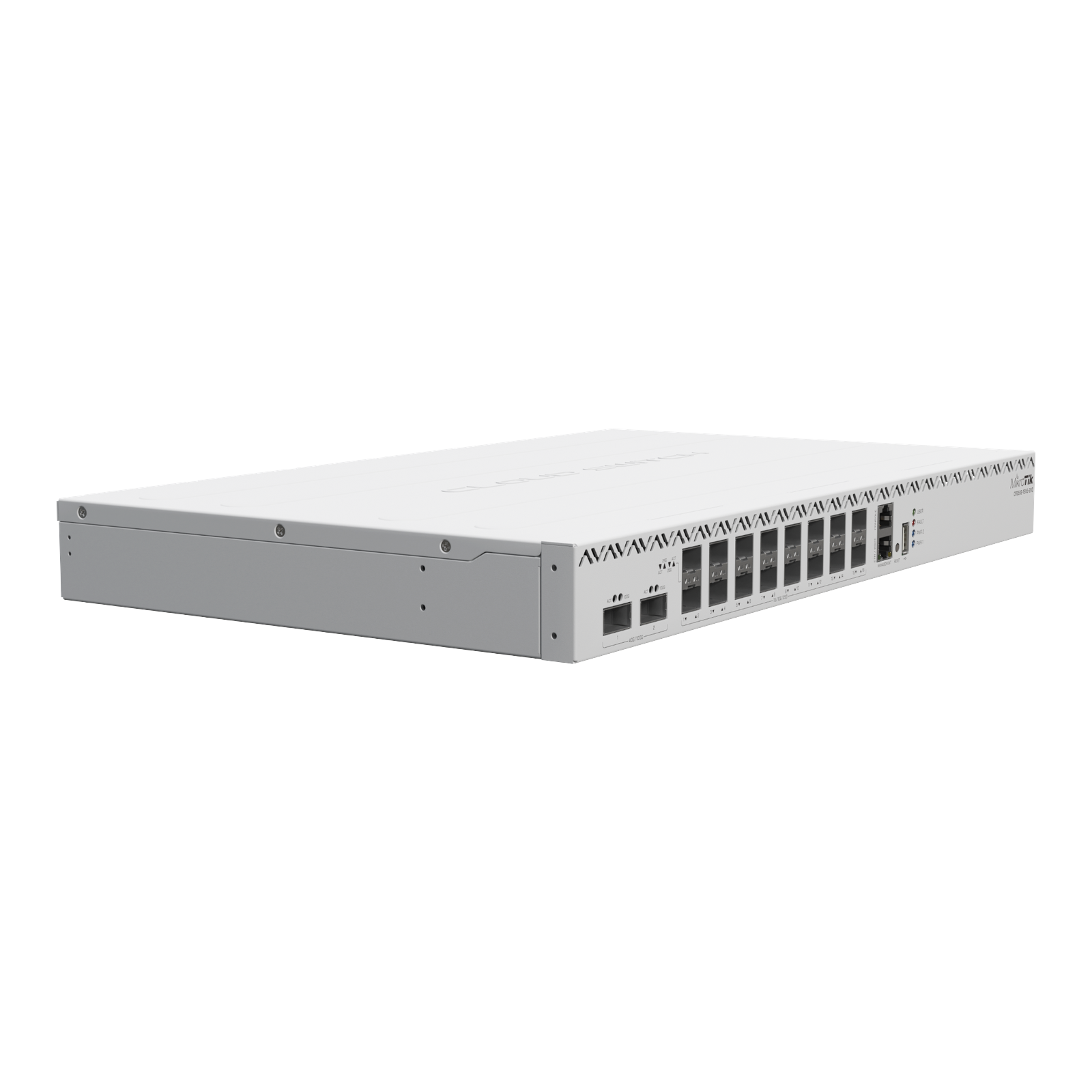

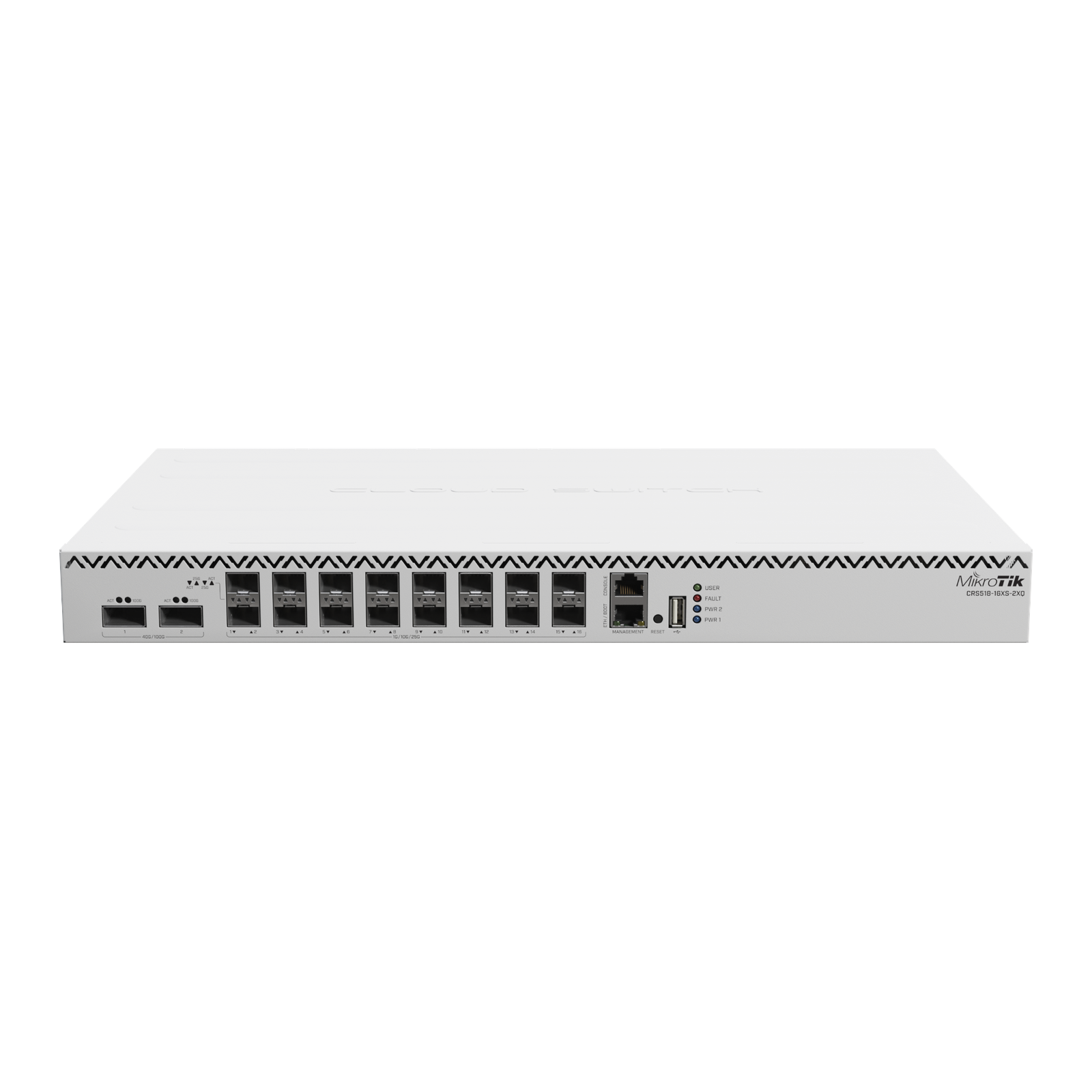

Mikrotik CRS518-16XS-2XQ-RM

Description

The MikroTik CRS518-16XS-2XQ-RM is engineered to meet the demands of modern enterprise networks and data centers, providing exceptional performance and flexibility. Equipped with 16× 25 Gigabit SFP28 ports and 2× 100 Gigabit QSFP28 ports, it ensures high-speed connectivity for a variety of networking devices. The switch boasts a non-blocking throughput of 1.2 Tbps, facilitating seamless data transfer across the network. Powered by a 650 MHz QCA9531 CPU and 64 MB of RAM, it runs on RouterOS v7 with a Level 6 license, offering comprehensive Layer 2 and Layer 3 features for sophisticated network management. The CRS518-16XS-2XQ-RM is designed with dual-redundant hot-swappable power supplies and fans, ensuring continuous operation and minimizing downtime. Its robust construction allows it to operate within a temperature range of -40°C to 70°C, making it suitable for various environmental conditions.

Technical Specifications:

• CPU: QCA9531, 650 MHz
• Memory: 64 MB RAM
• Storage: 16 MB Flash
• Operating System: RouterOS v7, License Level 6
• Switch Chip Model: 98DX8525
• Ethernet Ports: 1× 10/100 Mbps Ethernet port
• SFP28 Ports: 16× 25 Gigabit SFP28
• QSFP28 Ports: 2× 100 Gigabit QSFP28
• Power Inputs:
  • Dual hot-swappable AC inputs: 100-240V
• Max Power Consumption: 95W
• Cooling: 4 fans
• Operating Temperature: -40°C to 70°C
• Dimensions: [Dimensions not specified]
• Certifications: CE, EAC, ROHS

Key Features:

• High-Density Port Configuration: Offers 16× 25G SFP28 and 2× 100G QSFP28 ports, accommodating various high-speed networking requirements.
• Exceptional Switching Capacity: Delivers a non-blocking throughput of 1.2 Tbps, ensuring efficient data handling across the network.
• Advanced Networking Capabilities: Operates on RouterOS v7 with a Level 6 license, providing comprehensive Layer 2 and Layer 3 features for sophisticated network management.

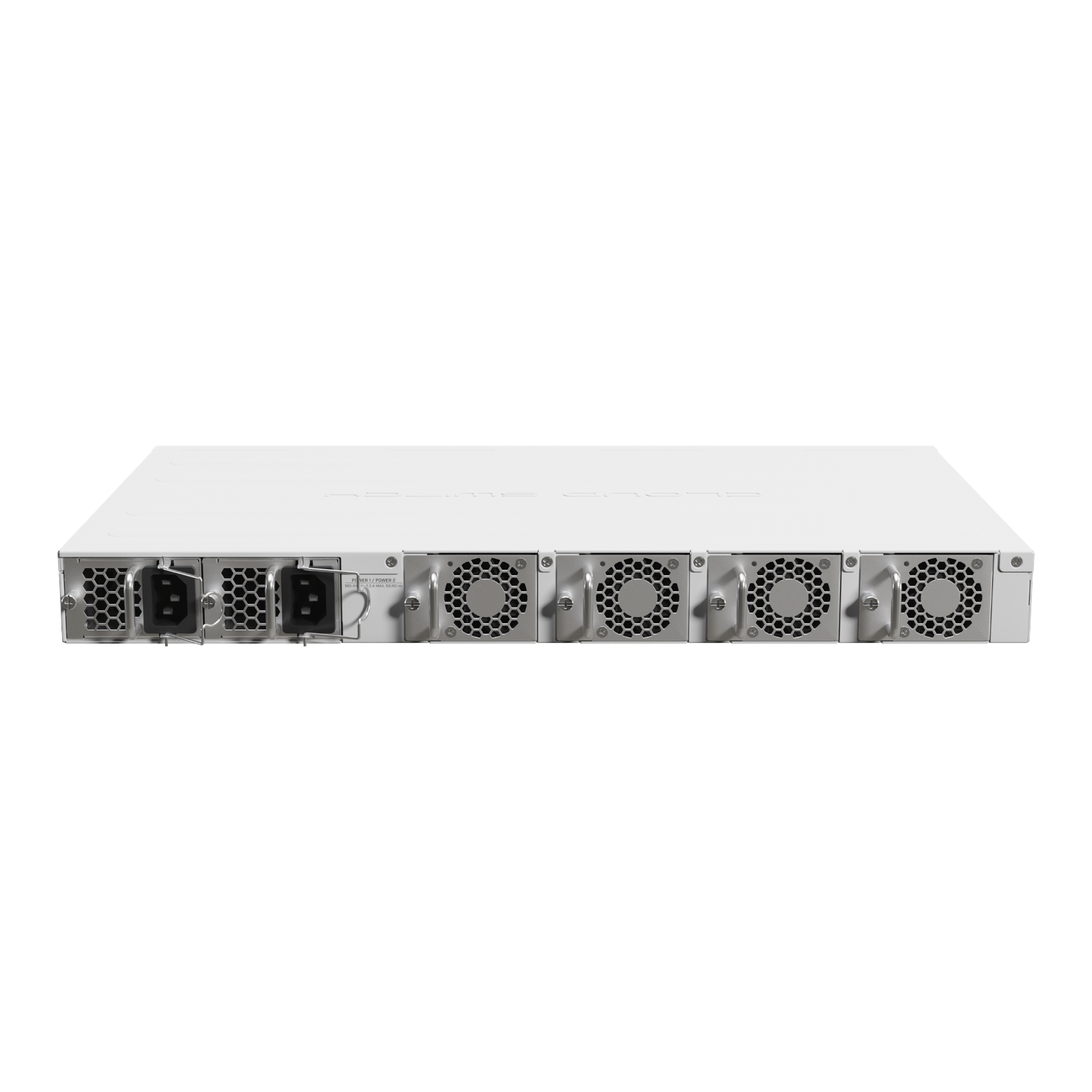

• Redundant Power and Cooling: Features dual hot-swappable power supplies and fans, enhancing reliability and minimizing downtime.
• Robust Design: Capable of operating in a wide temperature range, suitable for diverse environmental conditions.

Applications:

• Enterprise Networking: Ideal for businesses requiring a reliable and high-performance switch for connecting multiple devices and managing network traffic.
• Data Centers: Suitable for data centers needing high-density port availability and high-speed connections to support large-scale operations.
• Service Providers: Perfect for ISPs seeking a cost-effective solution for managing client connections and ensuring network stability.

Purchasing Information:

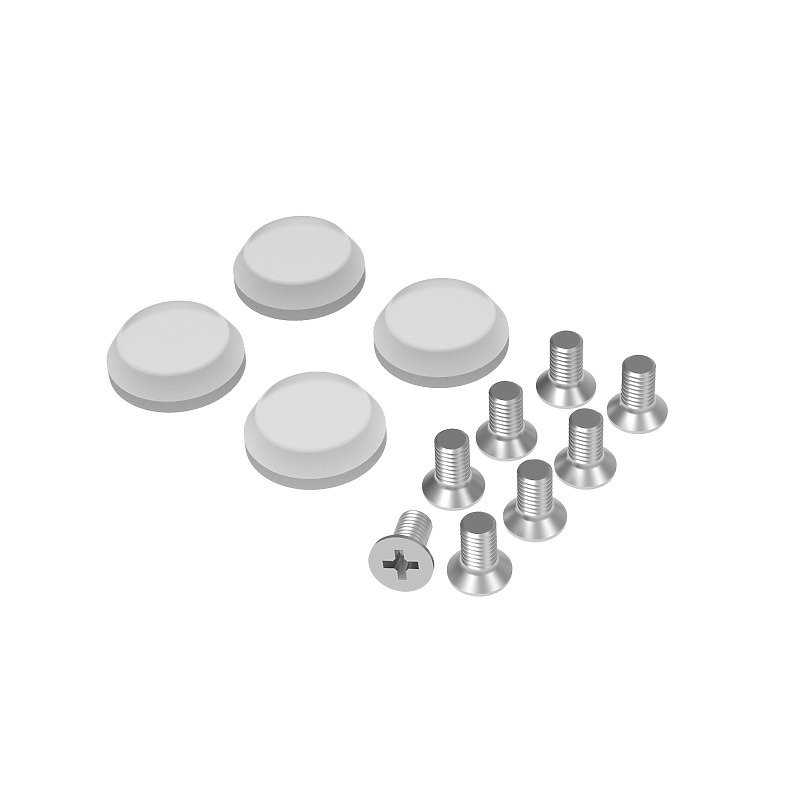

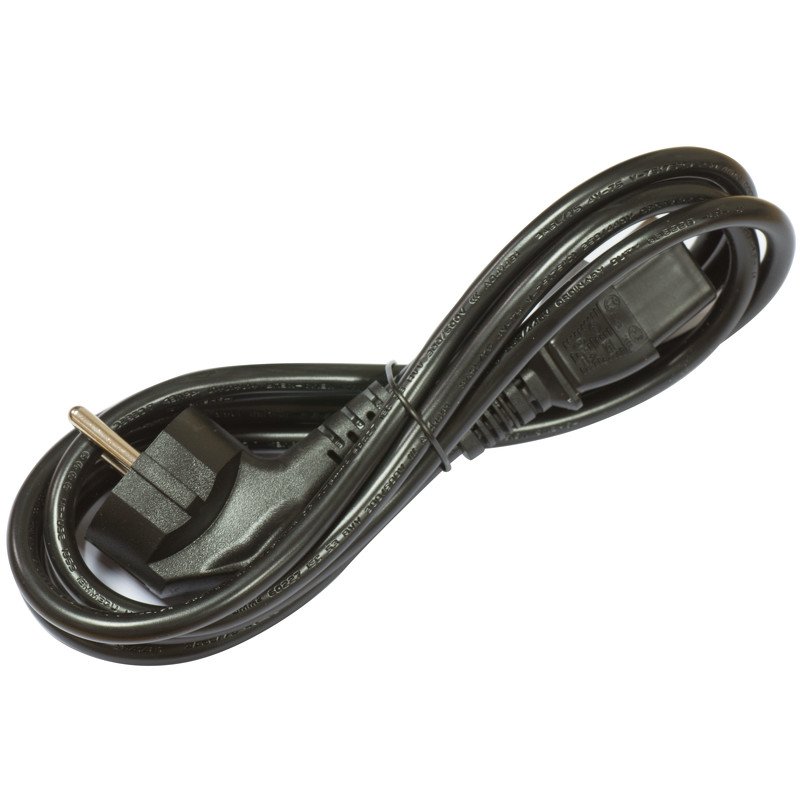

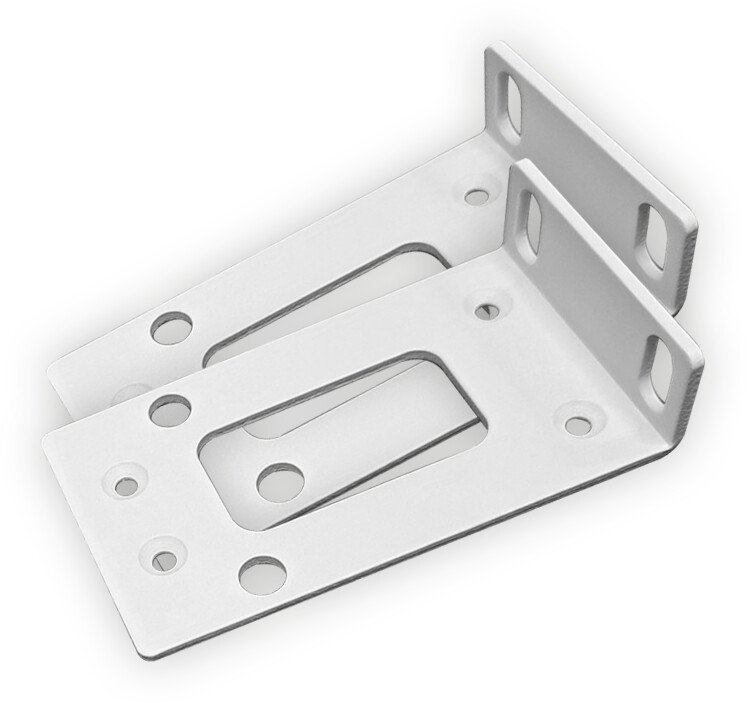

The package includes the switch, rack ears, IEC cords, and a K-54 kit for easy installation.

For more detailed specifications and user guides, please refer to the official MikroTik documentation:

• CRS518-16XS-2XQ-RM Product Page
• CRS518-16XS-2XQ-RM User Manual

The MikroTik CRS518-16XS-2XQ-RM offers a comprehensive solution for high-performance networking, combining versatile connectivity options, advanced features, and robust design to meet the demands of modern network infrastructures.
