Mikrotik CSS326-24G-2S+RM

Description

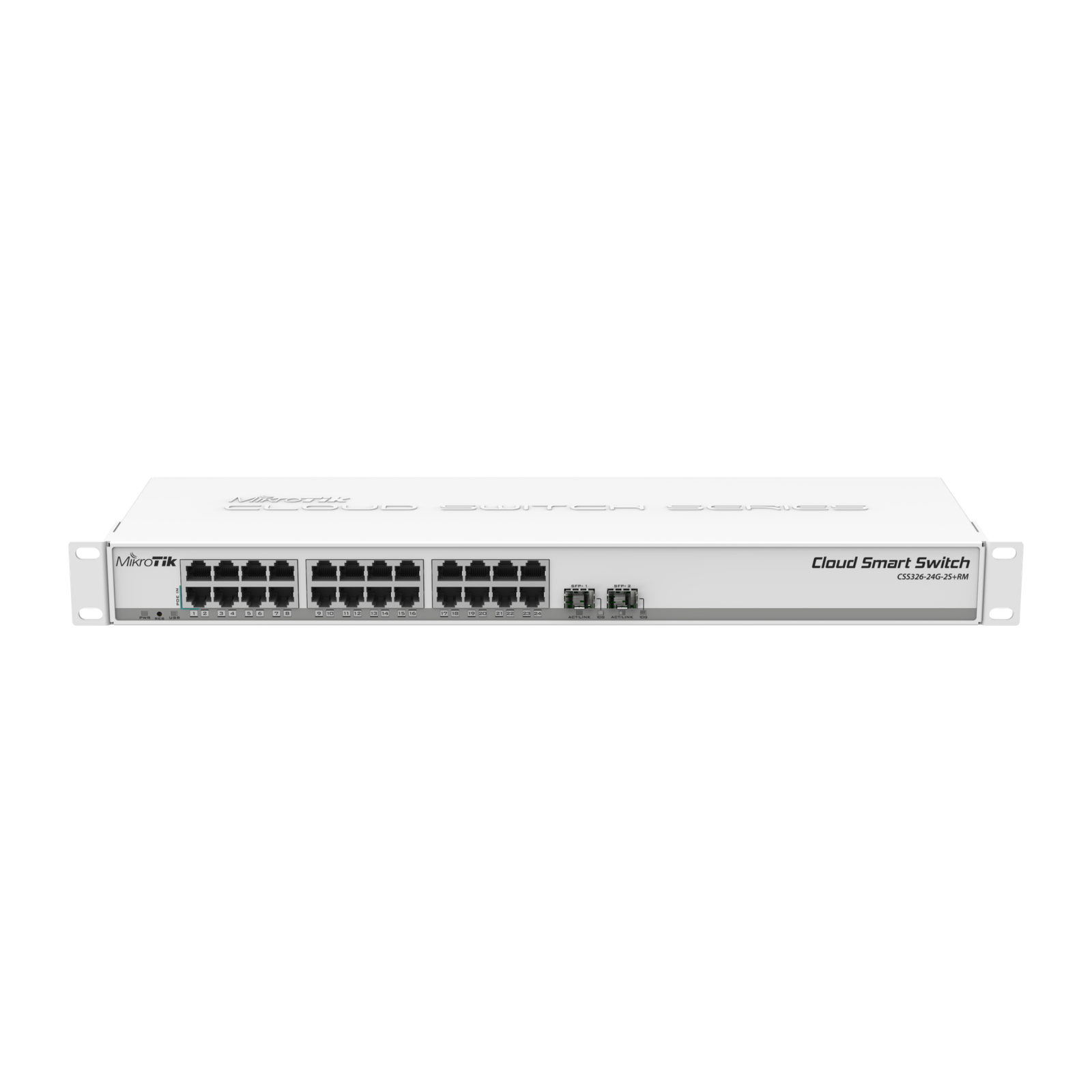

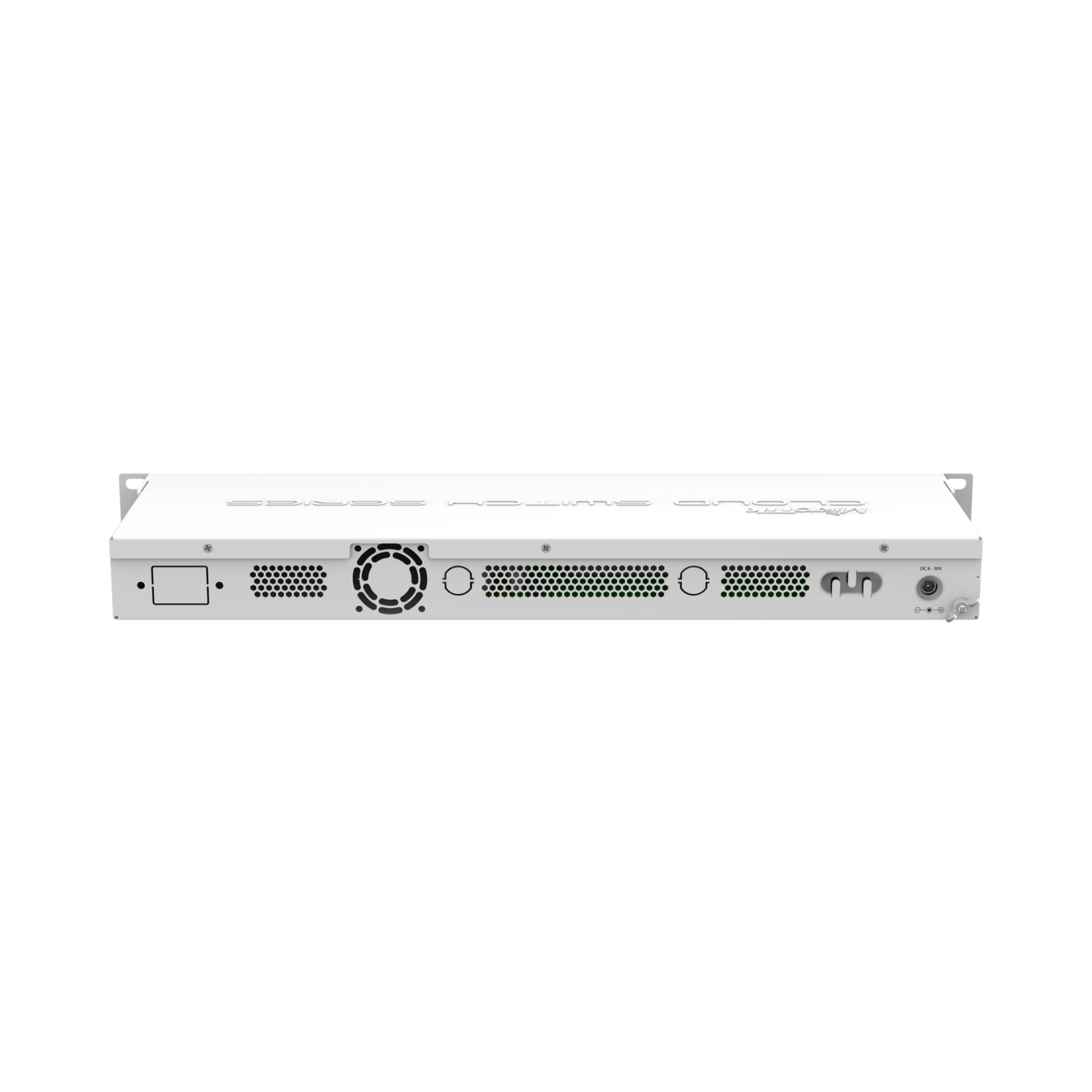

The MikroTik CSS326-24G-2S+RM, part of the Cloud Smart Switch series, is designed to provide robust and efficient network switching capabilities. Housed in a 1U rackmount case, it includes 24 Gigabit Ethernet ports and two SFP+ cages, supporting both 1.25 Gb SFP and 10 Gb SFP+ modules, ensuring versatile connectivity options. Operating on MikroTik’s SwOS, a specialized switch operating system, it allows for intuitive web-based management. Administrators can manage port-to-port forwarding, apply MAC filters, configure VLANs, mirror traffic, and set bandwidth limitations. Additional features include port isolation, broadcast storm control, and support for Rapid Spanning Tree Protocol, enhancing network reliability and security. The switch supports dual power inputs via passive PoE and a DC jack, with an input voltage range of 10-30V, and operates passively cooled within a temperature range of -20°C to 70°C, ensuring reliable performance in various environments.

Technical Specifications:

• Switch Chip Model: 98DX3216
• Dimensions: 443 x 144 x 44 mm
• Operating System: SwOS
• Storage: 2 MB Flash
• Ethernet Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet
• SFP+ Ports: 2 x SFP+ cages (supports 1.25 Gb SFP and 10 Gb SFP+ modules)
• Powering Options:
  • Passive PoE Input: 10-30V
  • DC Jack Input: 10-30V
• Max Power Consumption: 19W
• Cooling: Passive
• Operating Temperature: -20°C to 70°C
• Certifications: CE, EAC, ROHS

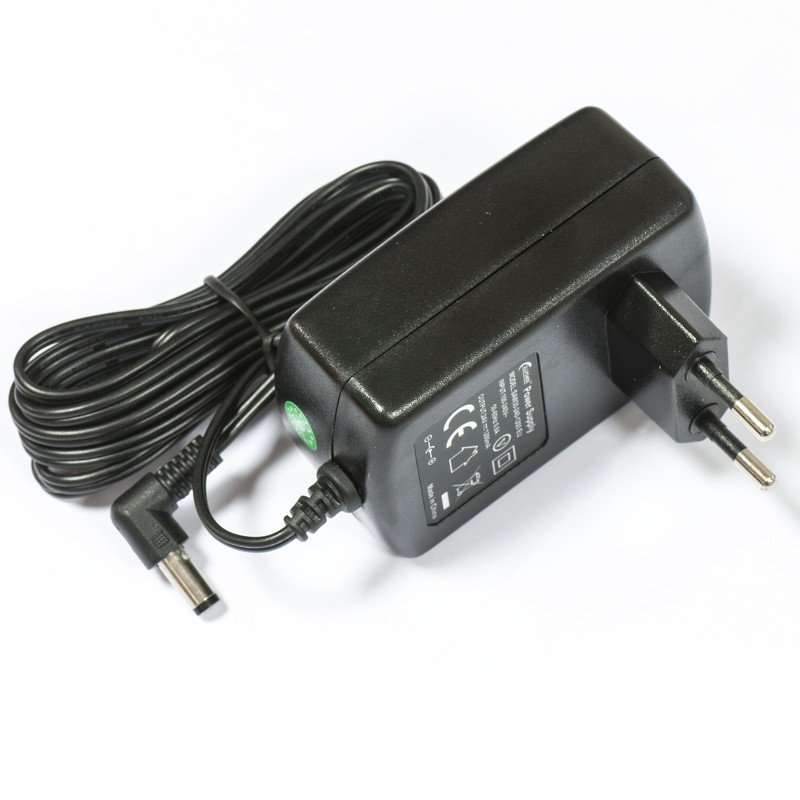

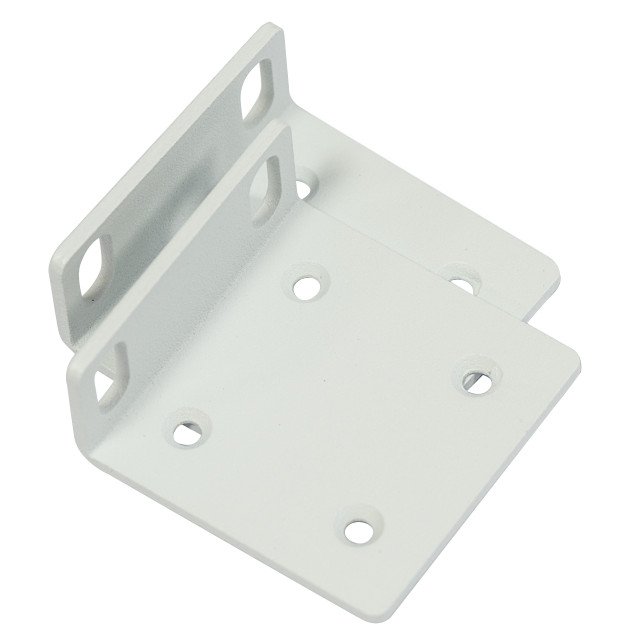

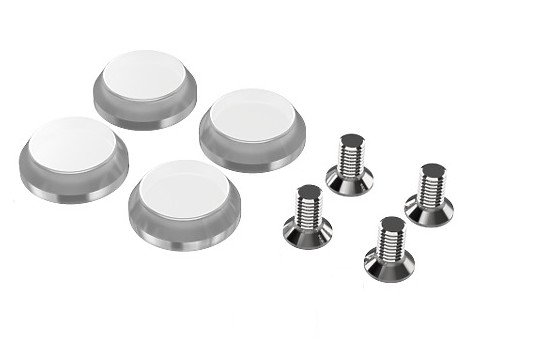

• Included Accessories: 24V 1.2A power adapter, rack ears, screw set

Key Features:

• Comprehensive Layer 2 Management: Offers port-to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, and bandwidth control for efficient network management.
• Advanced Security and Control: Features port isolation, broadcast storm control, and Access Control Lists (ACL) to enhance network security.
• High-Speed Fiber Connectivity: Equipped with two SFP+ ports supporting up to 10 Gbps, facilitating high-speed uplinks and fiber connections.
• Energy-Efficient Design: Passive cooling and low power consumption (maximum 19W) contribute to energy efficiency and silent operation.
• Flexible Power Options: Supports both passive PoE and DC jack inputs, providing versatility in deployment scenarios.

Applications:

• Enterprise Networking: Ideal for businesses requiring a reliable and manageable switch for connecting multiple devices and managing network traffic.
• Data Centers: Suitable for data centers needing high-density port availability and high-speed fiber connections.
• Service Providers: Perfect for ISPs seeking a cost-effective solution for managing client connections and ensuring network stability.

Purchasing Information:

The package includes the switch, a 24V 1.2A power adapter, rack ears, and a screw set for easy installation.

For more detailed specifications and user guides, please refer to the official MikroTik documentation:

• CSS326-24G-2S+RM Product Page
• CSS326-24G-2S+RM User Manual

The MikroTik CSS326-24G-2S+RM combines extensive Layer 2 management features, high port density, and energy-efficient design, making it a versatile choice for various networking applications.
