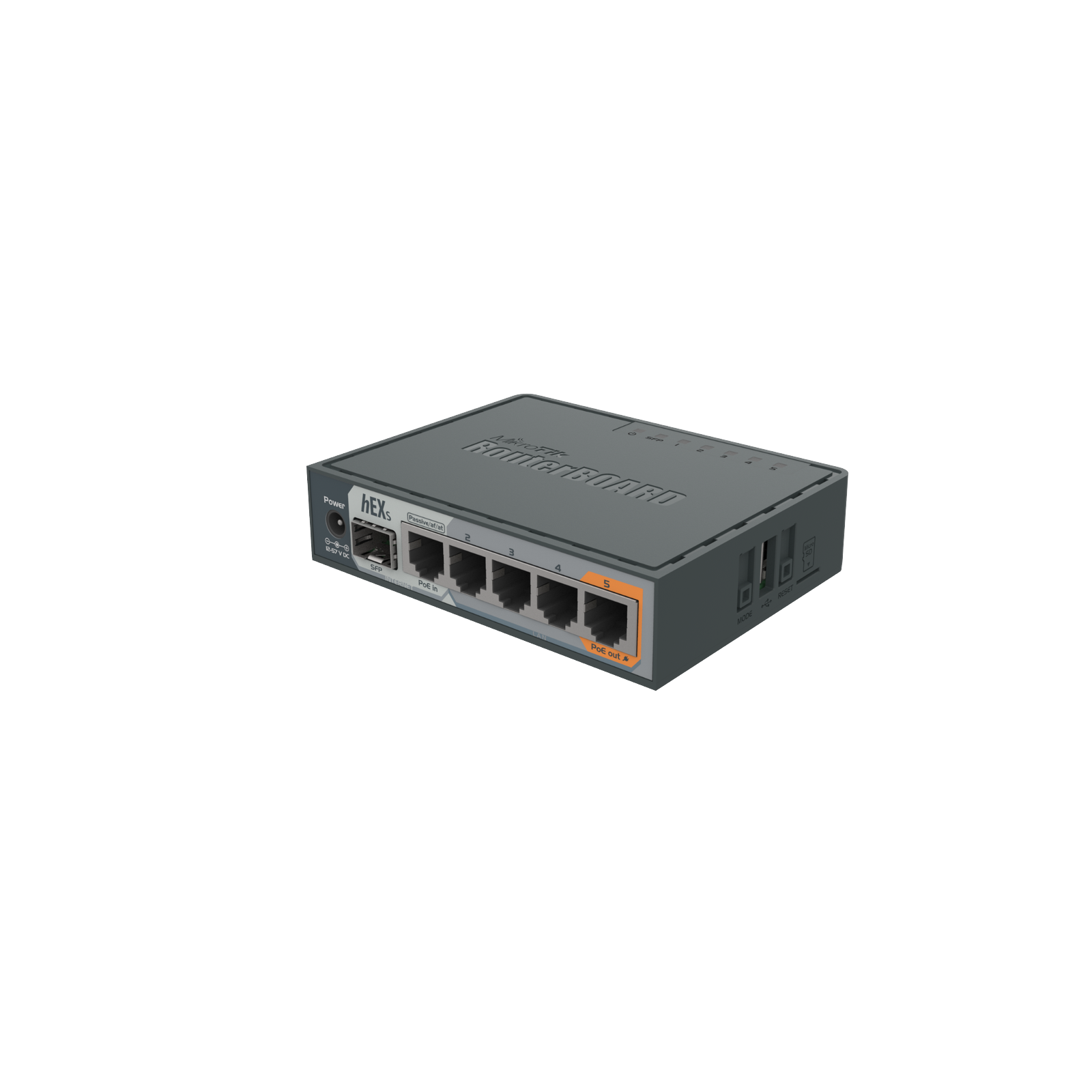

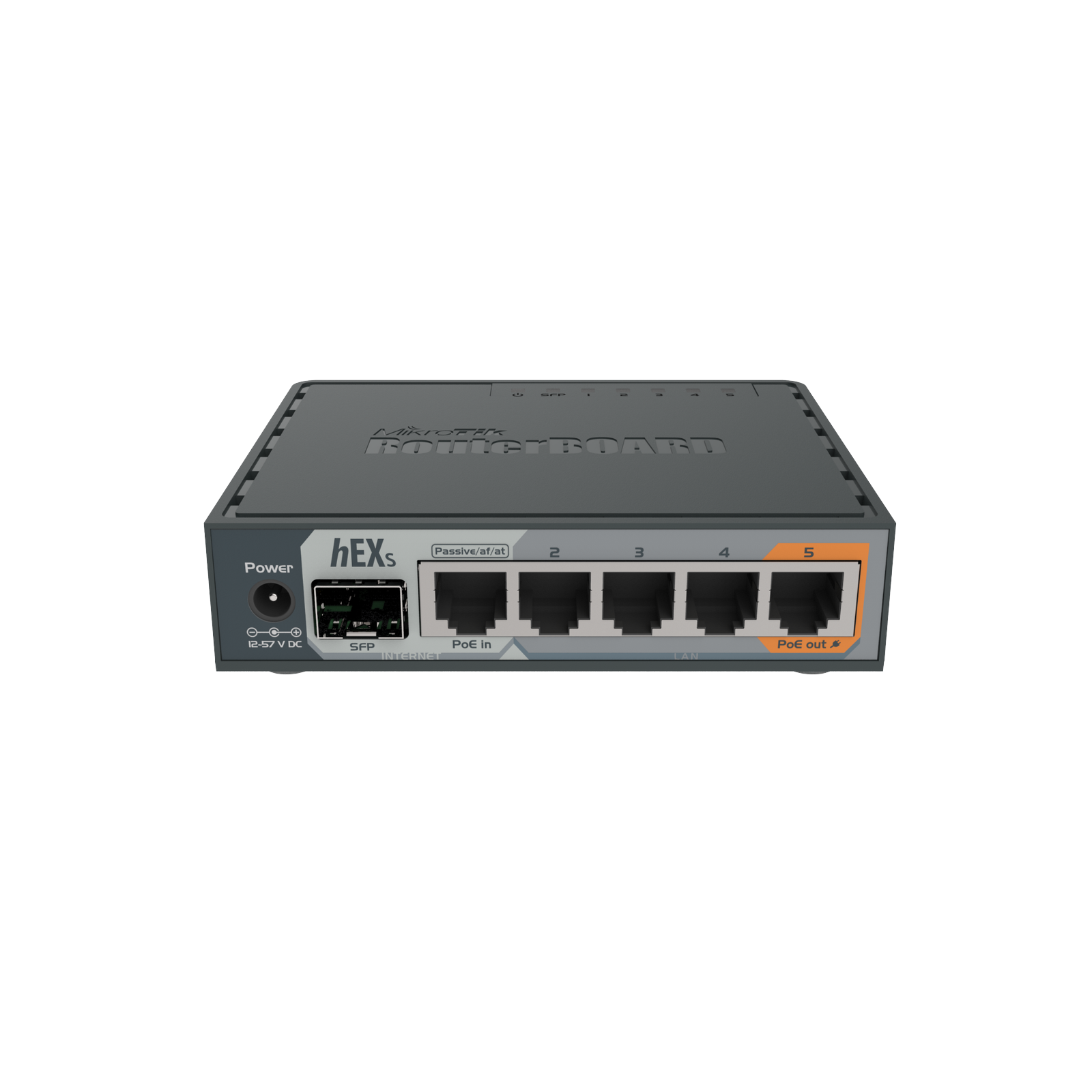

MikroTik hEX S (RB760iGS)

Description

The MikroTik hEX S (RB760iGS) is a five-port Gigabit Ethernet router designed for environments where wireless connectivity is not required. It features an SFP port for fiber optic connections and PoE output on the fifth Ethernet port, allowing it to power other passive PoE-capable devices with the same voltage applied to the unit. Equipped with a dual-core 880 MHz CPU and 256 MB RAM, the hEX S is capable of handling advanced configurations supported by MikroTik’s RouterOS operating system. The device also includes a USB 2.0 port and a microSD slot, providing improved read/write speed for file storage and supporting The Dude server package.

Technical Specifications:

• CPU: MT7621A, 880 MHz, Dual-Core
• Memory: 256 MB RAM
• Storage: 16 MB FLASH
• Ethernet Ports: 5× 10/100/1000 Mbps Gigabit Ethernet ports
• SFP Port: 1× 1.25 Gbps SFP cage
• USB Port: 1× USB 2.0 Type A
• microSD Slot: Yes
• PoE Input: Passive PoE, 802.3af/at, 12–57 V
• PoE Output: Passive PoE up to 57 V on Ether5
  • Max output per port: 500 mA
• Operating System: RouterOS, License level 4
• Operating Temperature: -40°C to 70°C
• Dimensions: 113 × 89 × 28 mm
• Max Power Consumption: 24 W (with attachments), 6 W (without attachments)

Key Features:

• SFP Port: Provides the option for fiber optic connectivity, enhancing network flexibility and extending reach.
• PoE Output: The fifth Ethernet port can power other passive PoE-capable devices, simplifying network setups by reducing the need for additional power sources.
• Powerful Performance: The dual-core 880 MHz CPU and 256 MB RAM ensure the router can handle complex configurations and heavy network traffic.
• Advanced Security: Supports IPsec hardware encryption (~470 Mbps), providing secure data transmission for sensitive applications.
• Expandable Storage: Includes a microSD slot for improved read/write speed, suitable for file storage and The Dude server package.

Applications:

• Small to Medium-Sized Businesses: Ideal for businesses requiring a reliable wired network without wireless capabilities.
• Fiber Connectivity: Suitable for networks needing fiber optic connections via the SFP port.
• Powering Devices: Can power other passive PoE-capable devices, such as IP phones or access points, through the PoE output on Ether5.

Purchasing Information:

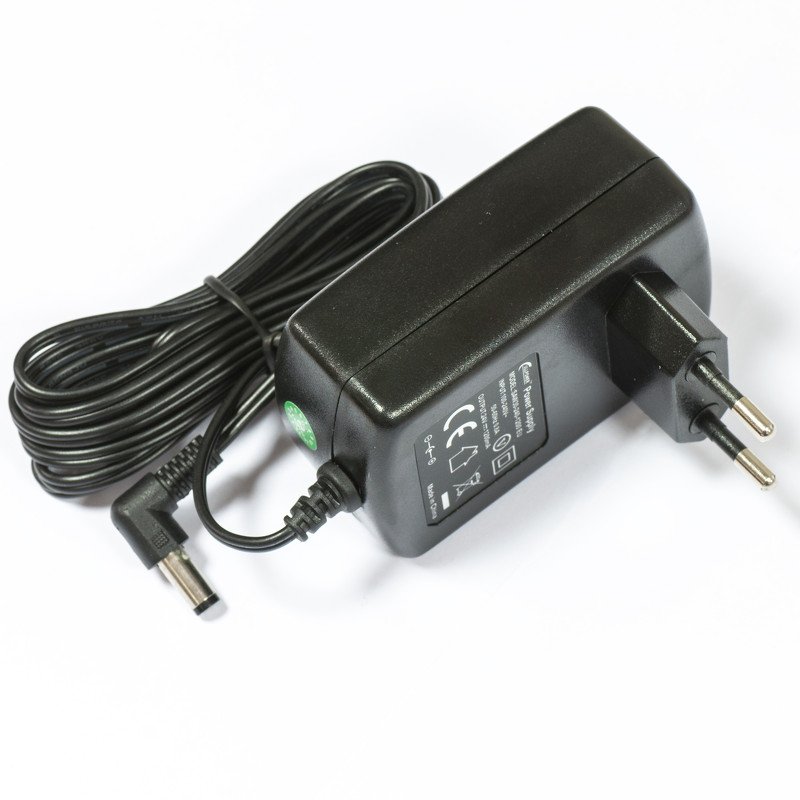

The MikroTik hEX S (RB760iGS) is available through authorized MikroTik distributors and retailers. The package includes a 24V 1.2A power adapter.

For more detailed specifications and user guides, please refer to the official MikroTik documentation:

• hEX S Product Page
• hEX S User Manual

The MikroTik hEX S (RB760iGS) offers a versatile and efficient solution for wired networking needs, making it a popular choice among network professionals and small to medium-sized enterprises.
