Mikrotik LtAP mini LTE kit (2024)

Description

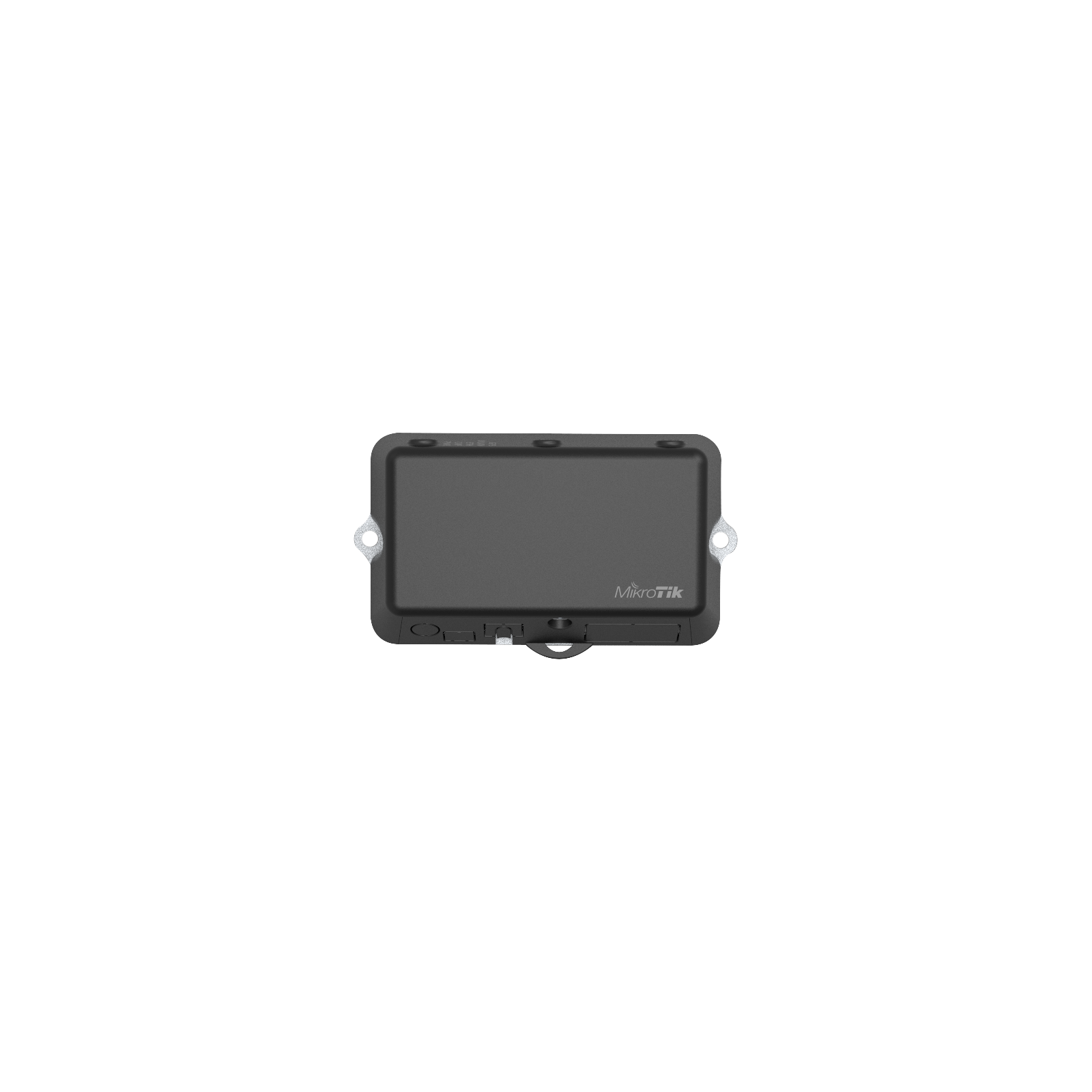

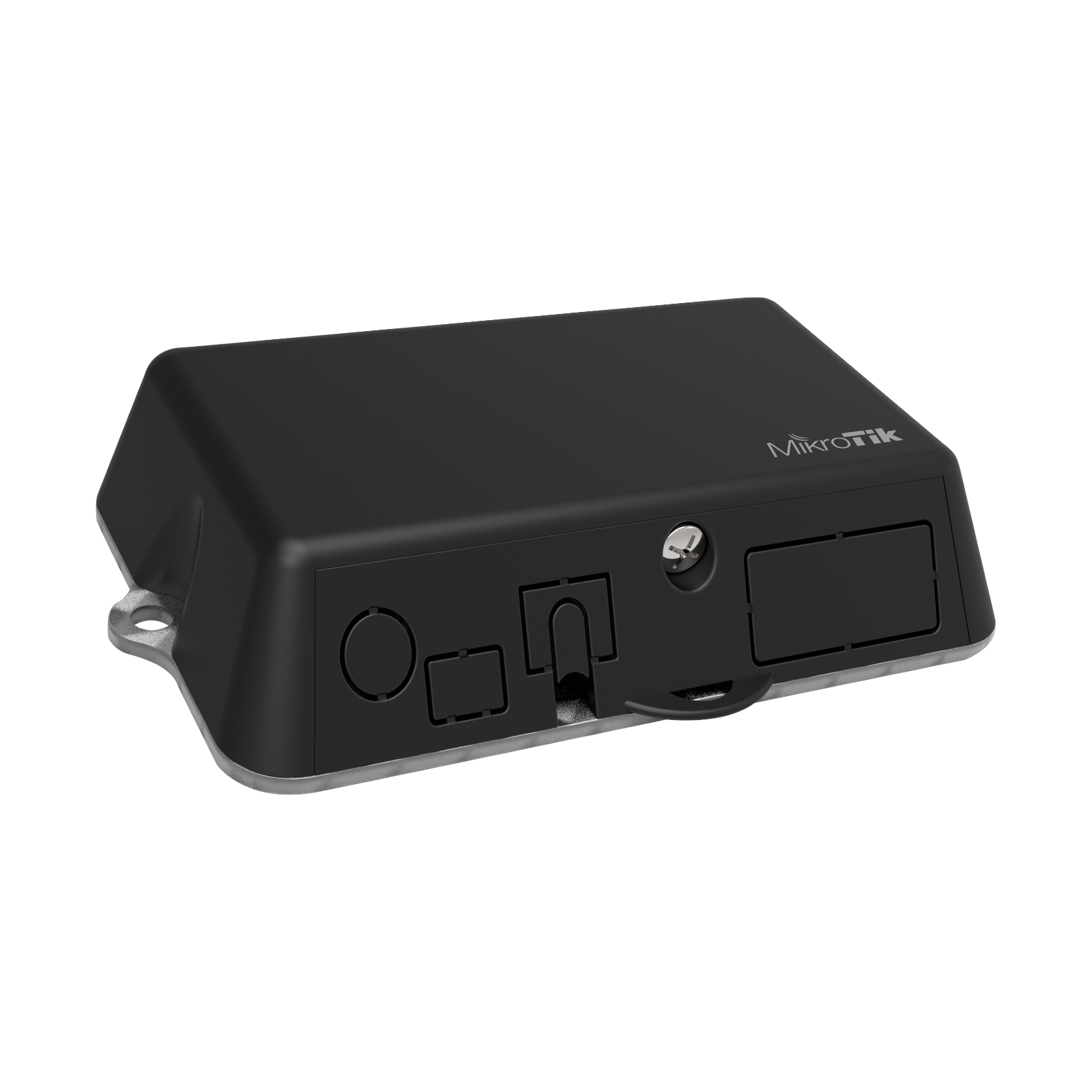

The MikroTik RB912R-2nD-LTm&EC200A-EU, also known as the LtAP mini LTE kit (2024), is engineered to provide reliable mobile connectivity in various environments. Housed in a durable, IP54-rated weatherproof enclosure, this access point is well-suited for installation in vehicles such as cars, buses, or trains, ensuring continuous internet access on the move.

Equipped with a built-in LTE modem that supports a wide range of LTE bands, including the B28 band, it ensures extensive cellular coverage. The device features two mini SIM slots, allowing seamless switching between cellular providers for optimal signal strength and redundancy.

The integrated GPS module enables real-time tracking of vehicle locations, making it an excellent choice for fleet management and logistics applications. Additionally, the 2.4 GHz 802.11b/g/n wireless interface provides connectivity for nearby devices, while the 10/100 Ethernet port supports wired connections.

Flexible power options include 12-57 V PoE-in via the Ethernet port, 8-30 V via the DC jack, and 5 V via the microUSB port, offering versatility for various installation scenarios. The device also includes an RS232 serial port for console access and debugging.

Technical Specifications:

• CPU: QCA9531, 650 MHz
• Memory: 64 MB RAM
• Storage: 16 MB FLASH
• Wireless: 2.4 GHz 802.11b/g/n, dual-chain
• Ethernet: 1× 10/100 Mbps Fast Ethernet port
• SIM Slots: 2× Mini SIM
• LTE Modem: EC200A-EU
  • LTE FDD Bands: 1, 3, 5, 7, 8, 20, 28
  • LTE TDD Bands: 38, 40, 41
  • 3G Bands: 1, 5, 8
  • 2G Bands: 3, 8
• GPS: Integrated GPS module
• Power Inputs:
  • PoE-in: 12-57 V
  • DC jack: 8-30 V
  • MicroUSB: 5 V
• Max Power Consumption: 9 W
• Operating Temperature: -40°C to 70°C
• Dimensions: 139 × 77 × 28.5 mm
• Operating System: RouterOS, License level 4
• Certifications: CE, FCC, IC, E-MARK, EAC, ROHS

Key Features:

• Robust Mobile Connectivity: Supports a wide range of LTE bands, ensuring reliable internet access across various regions.
• Integrated GPS: Enables real-time tracking, ideal for fleet management and vehicle monitoring.
• Dual SIM Slots: Allows seamless switching between cellular providers for improved coverage and redundancy.
• Flexible Power Options: Multiple power inputs accommodate diverse installation environments.
• Weatherproof Design: Durable IP54-rated enclosure suitable for outdoor and vehicular installations.

Applications:

• Vehicle Tracking: Ideal for real-time monitoring of fleet locations and movements.
• Mobile Internet Access: Provides reliable connectivity for vehicles in transit.
• Remote Monitoring: Suitable for deployment in remote locations requiring robust internet access.

Purchasing Information:

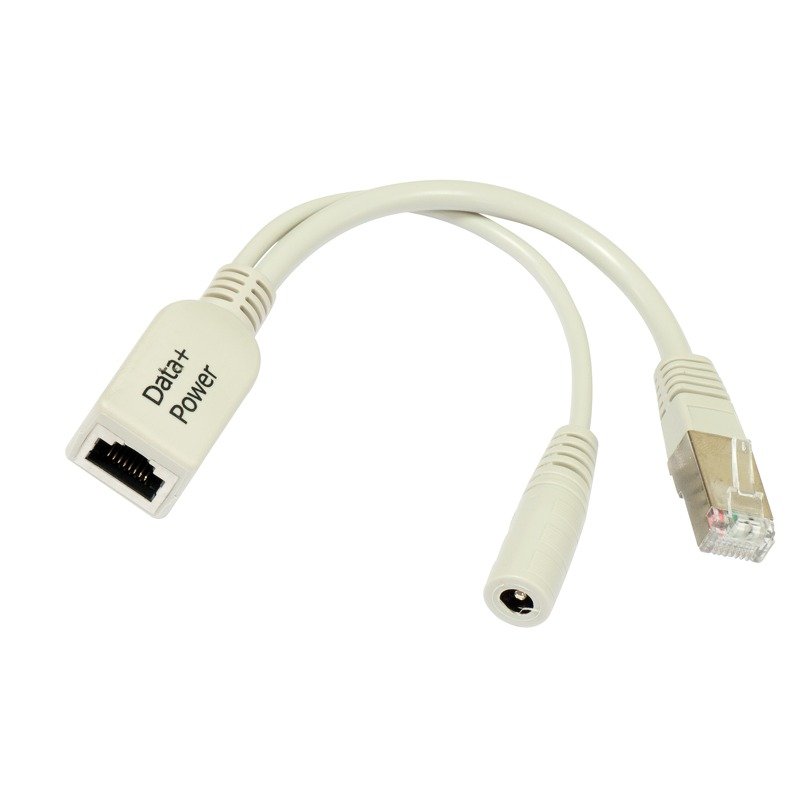

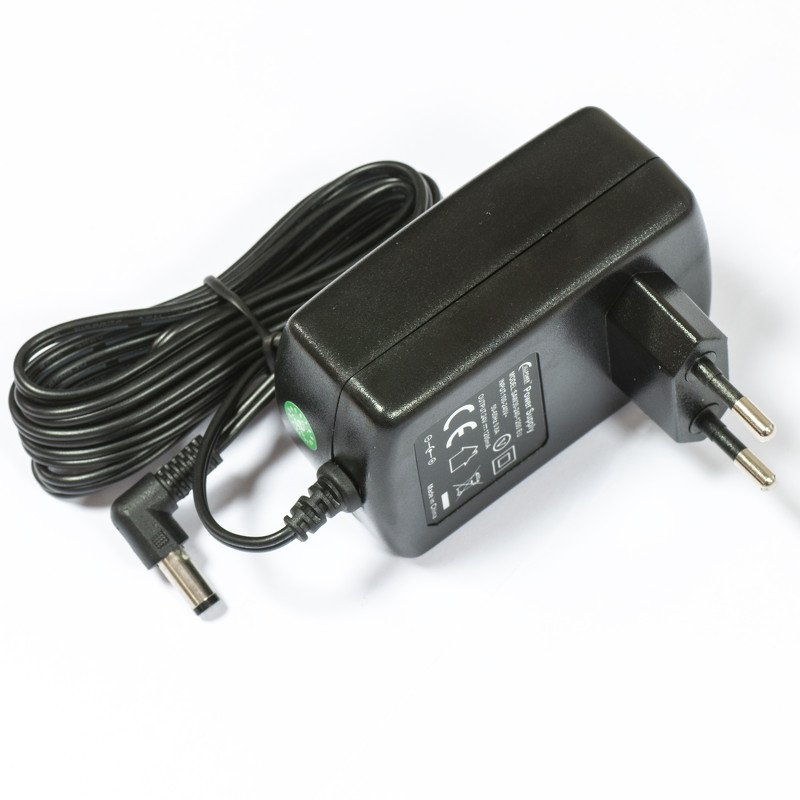

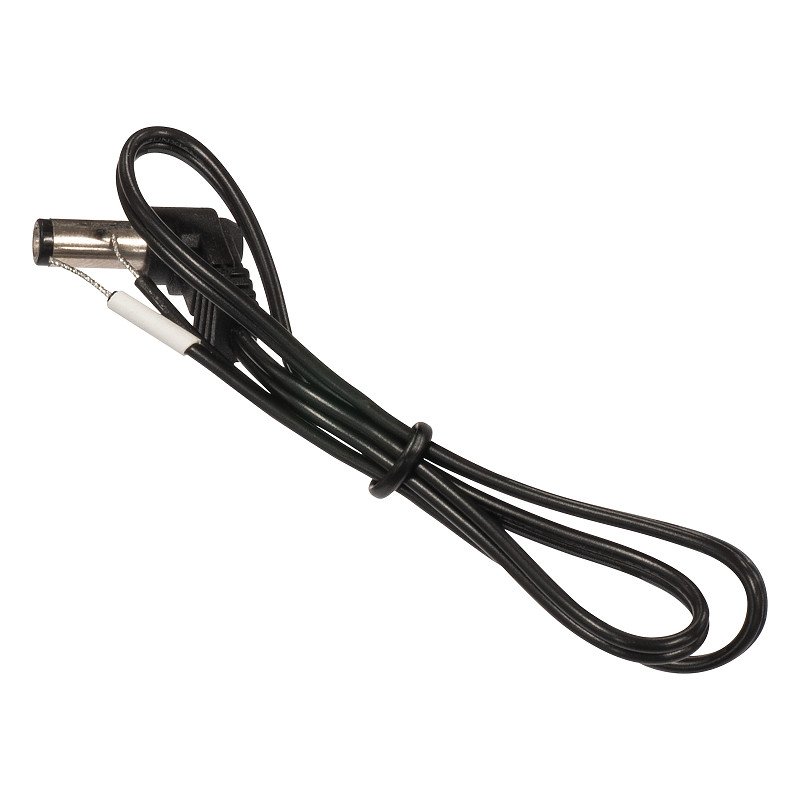

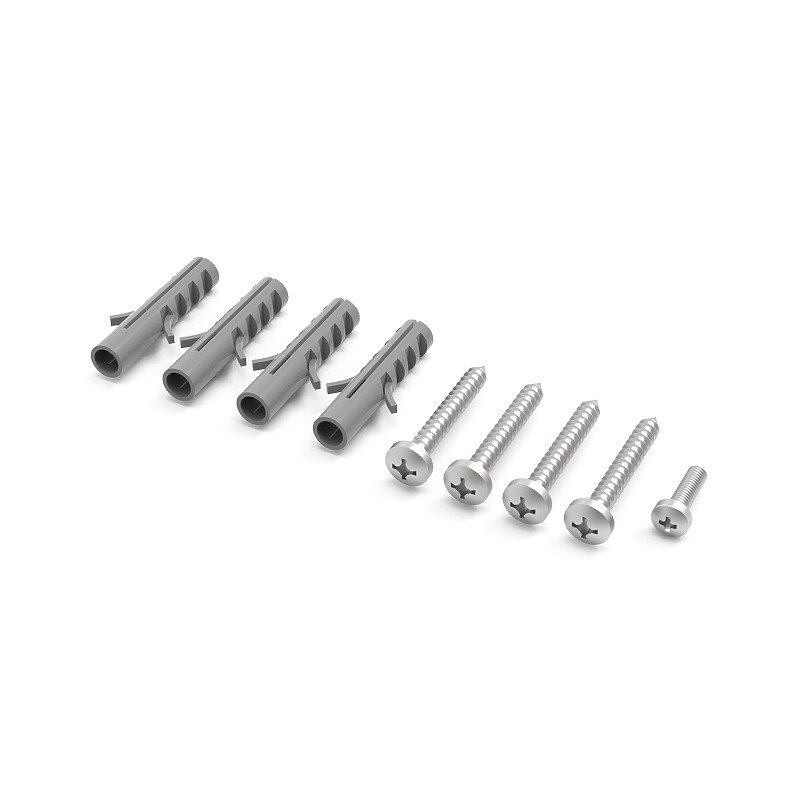

The MikroTik RB912R-2nD-LTm&EC200A-EU is available through authorized MikroTik distributors and retailers. The package includes the LtAP mini LTE kit, a 24V 1.2A power adapter, a PoE injector, an external DC cable, and a wall mounting kit.

For more detailed specifications and user guides, please refer to the official MikroTik documentation:

• LtAP mini LTE kit (2024) Product Page
• LtAP mini User Manual

The MikroTik RB912R-2nD-LTm&EC200A-EU offers a comprehensive solution for mobile and remote networking needs, combining LTE connectivity, GPS tracking, and robust design in a compact form factor.
