MikroTik hEX PoE (RB960PGS)

Description

The MikroTik hEX PoE (RB960PGS) is a cost-effective, five-port Gigabit Ethernet router designed for environments where wireless connectivity is not needed. Equipped with a USB 2.0 port and an SFP port, it offers flexible options for fiber optic connections. Ports 2 through 5 are capable of powering other PoE-enabled devices with the same voltage applied to the unit, simplifying network setups by reducing the need for multiple power adapters and cables.

Despite its compact size, the hEX PoE boasts a powerful 800 MHz CPU and 128 MB of RAM, enabling it to handle advanced configurations supported by MikroTik’s RouterOS operating system. This makes it suitable for a variety of applications, including complex routing, firewall management, and bandwidth control.

Technical Specifications:

• CPU: QCA9557, 800 MHz
• Memory: 128 MB RAM
• Storage: 16 MB FLASH

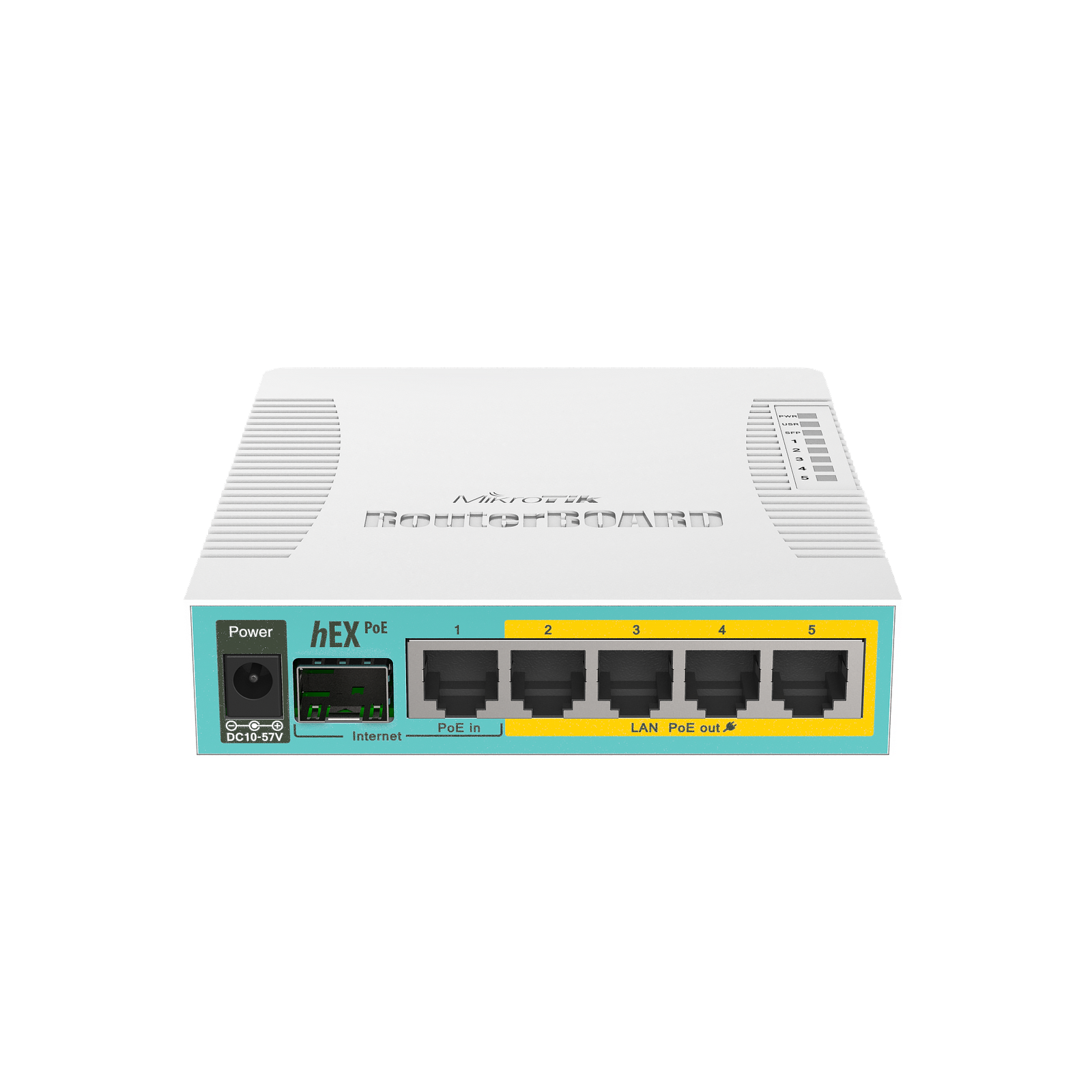

• Ethernet Ports: 5x 10/100/1000 Mbps Gigabit Ethernet ports
• SFP Port: 1x SFP port for fiber connectivity
• USB Port: 1x USB 2.0 Type A
• PoE Input: Passive PoE, 12-57V
• PoE Output: 802.3af/at on ports 2-5
  • Max output per port: 1A (input voltage 18-30V), 450mA (input voltage 30-57V)
  • Max total output: 2A
• Operating System: RouterOS, License level 4
• Operating Temperature: -40°C to 60°C
• Dimensions: 114 x 137 x 29 mm
• Max Power Consumption: 54W (with attachments), 6W (without attachments)

Key Features:

• PoE Out Functionality: Simplifies network setups by powering up to four PoE-capable devices directly from the router, reducing the need for additional power sources.
• SFP Port: Provides the option for fiber optic connectivity, enhancing network flexibility and extending reach.
• Powerful Performance: The 800 MHz CPU and 128 MB RAM ensure the router can handle complex configurations and heavy network traffic.
• Compact and Durable Design: Its small form factor and passive cooling make it suitable for various installations, while its robust build ensures reliability.

Applications:

• Small to Medium-Sized Businesses: Ideal for businesses requiring a reliable wired network without wireless capabilities.
• IP Camera Systems: Powers IP cameras via PoE, simplifying surveillance system installations.
• Remote Offices: Provides a dependable routing solution with fiber connectivity options for remote or branch offices.

Purchasing Information:

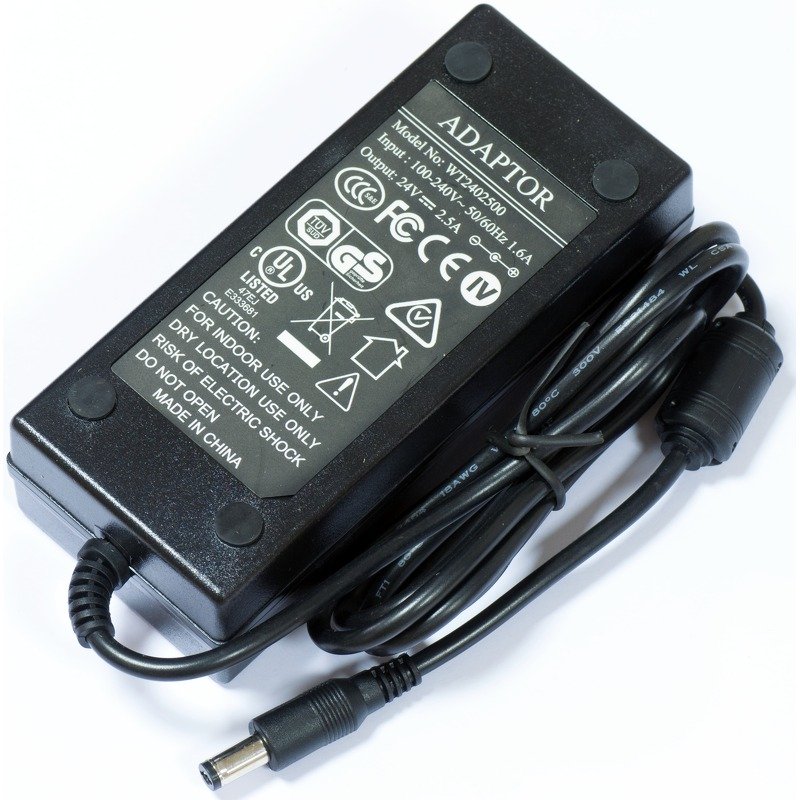

The MikroTik hEX PoE (RB960PGS) is available through authorized MikroTik distributors and retailers. The package includes a 24V 2.5A power adapter.

For more detailed specifications and user guides, please refer to the official MikroTik documentation:

• hEX PoE Product Page
• hEX PoE User Manual

The MikroTik hEX PoE (RB960PGS) offers a versatile and efficient solution for wired networking needs, making it a popular choice among network professionals and small to medium-sized enterprises.
