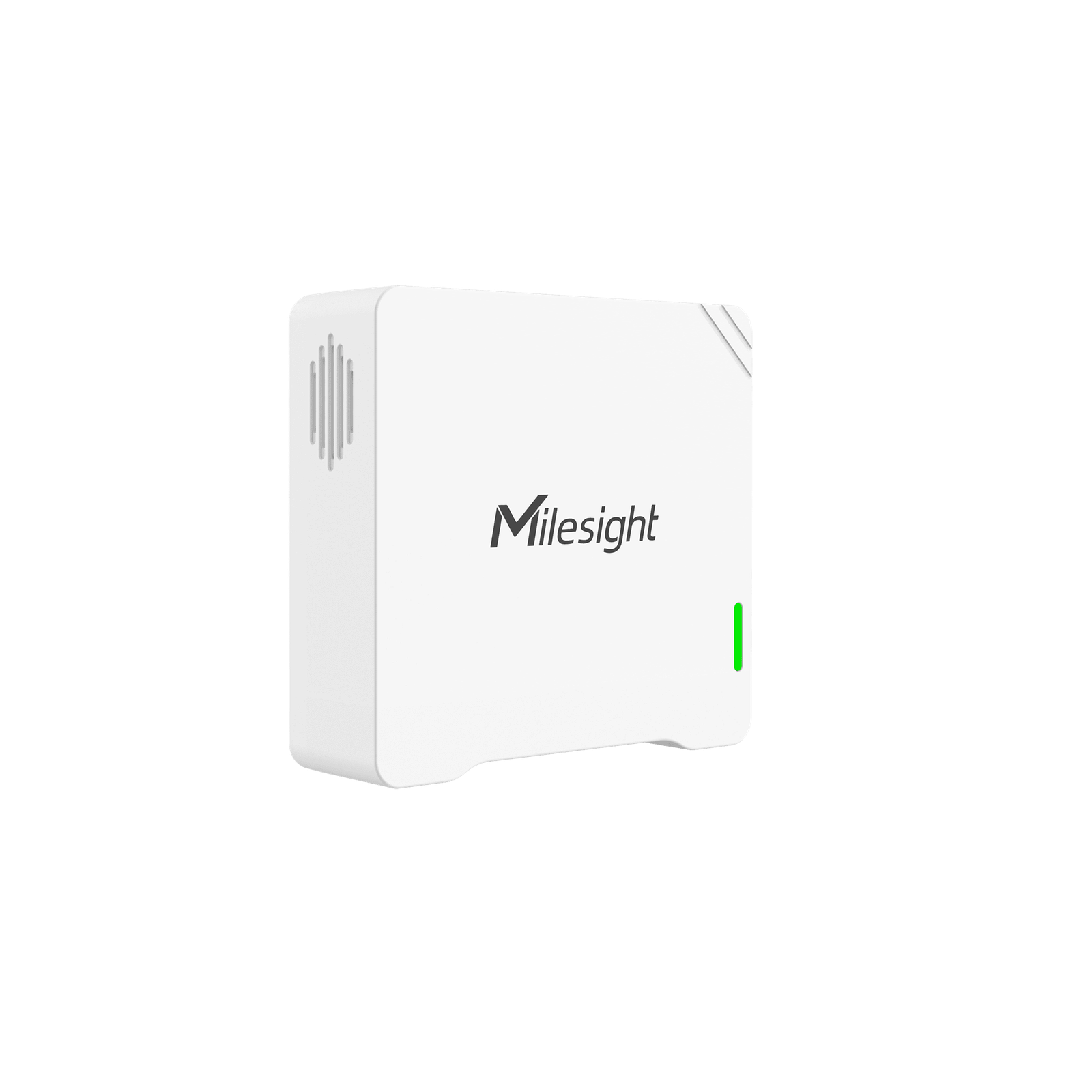

Milesight AM103L-868M

Description

The Milesight AM103L LoRaWAN® Indoor Air Quality Sensor is a compact and efficient solution for monitoring key indoor environmental conditions. Designed to measure temperature, humidity, and CO₂ levels, this sensor helps optimize indoor air quality to enhance comfort and productivity in offices, schools, hospitals, and other indoor spaces.

Using LoRaWAN® connectivity, the AM103L offers long-range, low-power communication, allowing seamless integration with IoT platforms for real-time monitoring and data-driven decision-making. The display-free design ensures discreet deployment, making it ideal for environments where minimal visual distraction is preferred.

Technical Specifications

• Model: AM103L LoRaWAN® Indoor Air Quality Sensor
• LoRaWAN® Frequency: 868 MHz (EU868)
• Measured Parameters:
  • Temperature: -10°C to +60°C (±0.3°C accuracy)
  • Humidity: 0% to 100% RH (±3% accuracy)
  • CO₂ Concentration: 400 to 5000 ppm (±50 ppm or ±3% accuracy)
• Connectivity: LoRaWAN® Class A and Class C compatible
• Communication Distance: Up to 10 km (line-of-sight)
• Power Supply: 2 × 3000 mAh Li-SOCL2 batteries
• Battery Life: Up to 5 years (depending on reporting intervals)
• Protection Rating: IP30 (indoor use)
• Material: Industrial-grade plastic housing

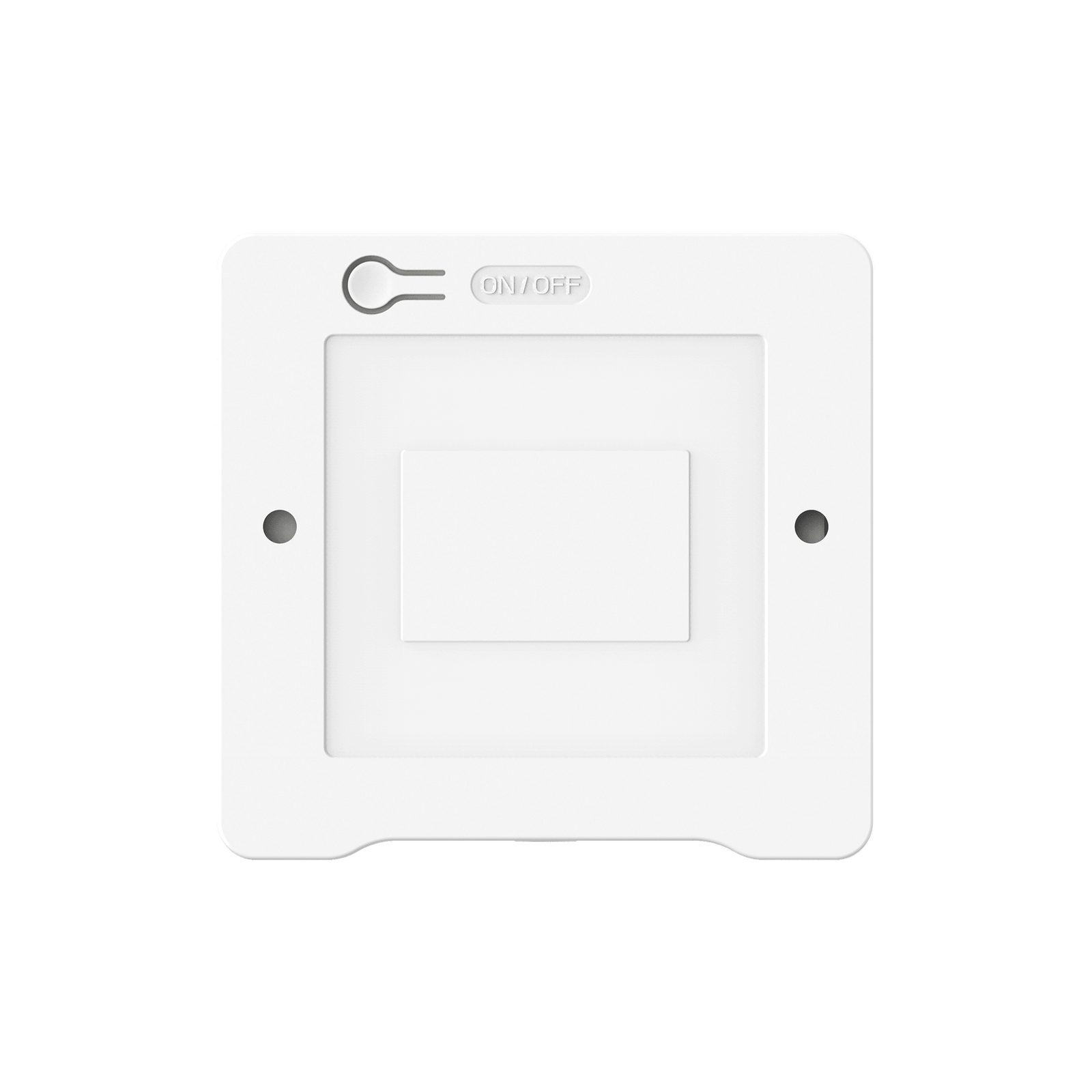

• Mounting Options: Wall-mount or desktop placement
• Operating Temperature: -10°C to +60°C
• Humidity: 0–95% RH (non-condensing)
• Dimensions: 118 mm × 85 mm × 27 mm
• Weight: Approx. 180 g

Key Features

• 3-in-1 Environmental Monitoring: Tracks temperature, humidity, and CO₂ levels for improved indoor air quality.
• LoRaWAN® Connectivity: Enables long-range, low-power wireless data transmission for real-time monitoring.
• Discreet and Compact Design: Display-free model for unobtrusive monitoring in sensitive environments.
• Smart Alerts: Configurable notification thresholds to maintain healthy air quality conditions.
• Energy-Efficient: Long-lasting battery life of up to 5 years for low-maintenance operation.
• Versatile Applications: Ideal for offices, classrooms, healthcare facilities, and residential spaces.
• Easy Installation: Wall or desktop mounting options for flexible placement.
• Reliable Performance: High-accuracy sensors ensure consistent and precise data collection.
