Milesight EM300-MCS-868M

Description

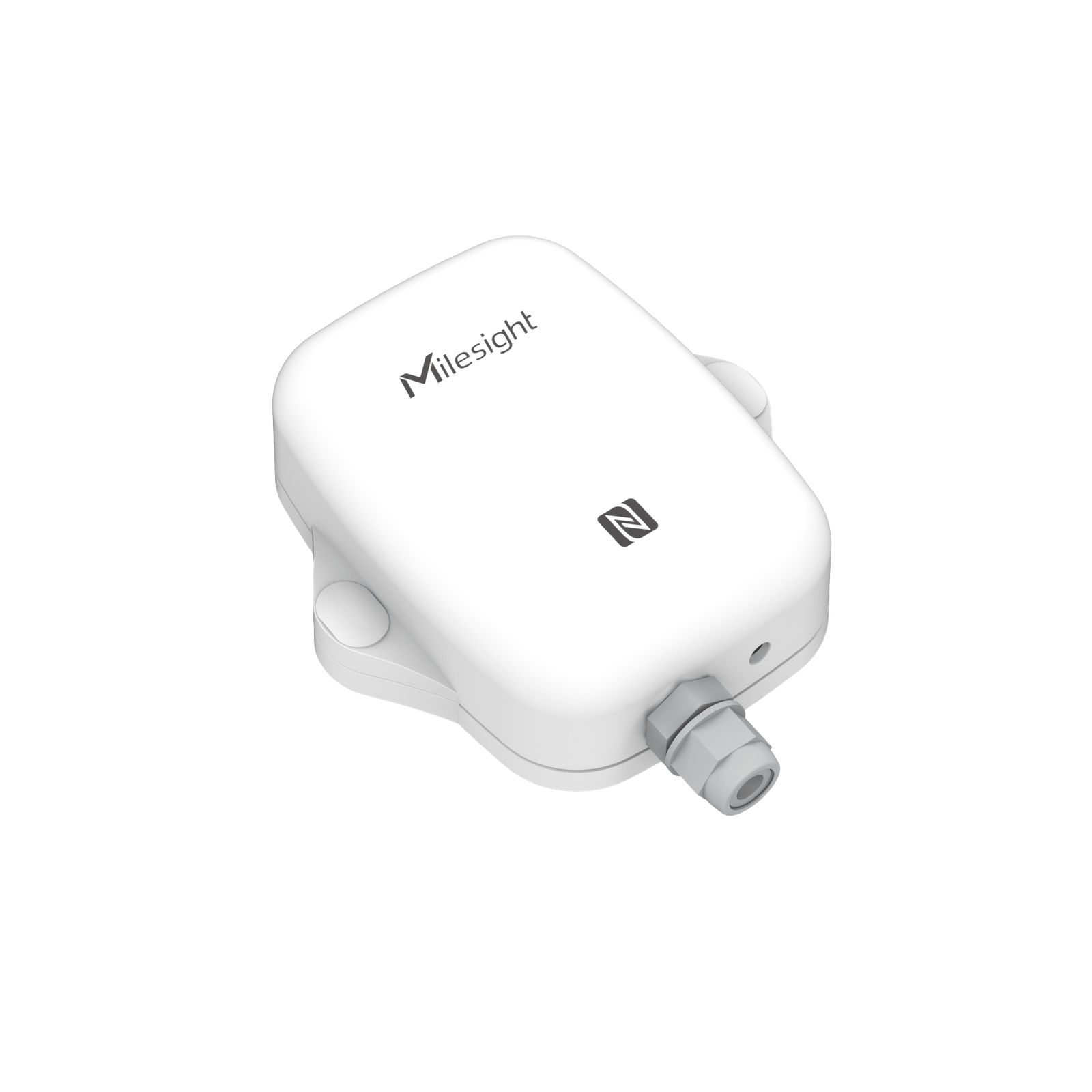

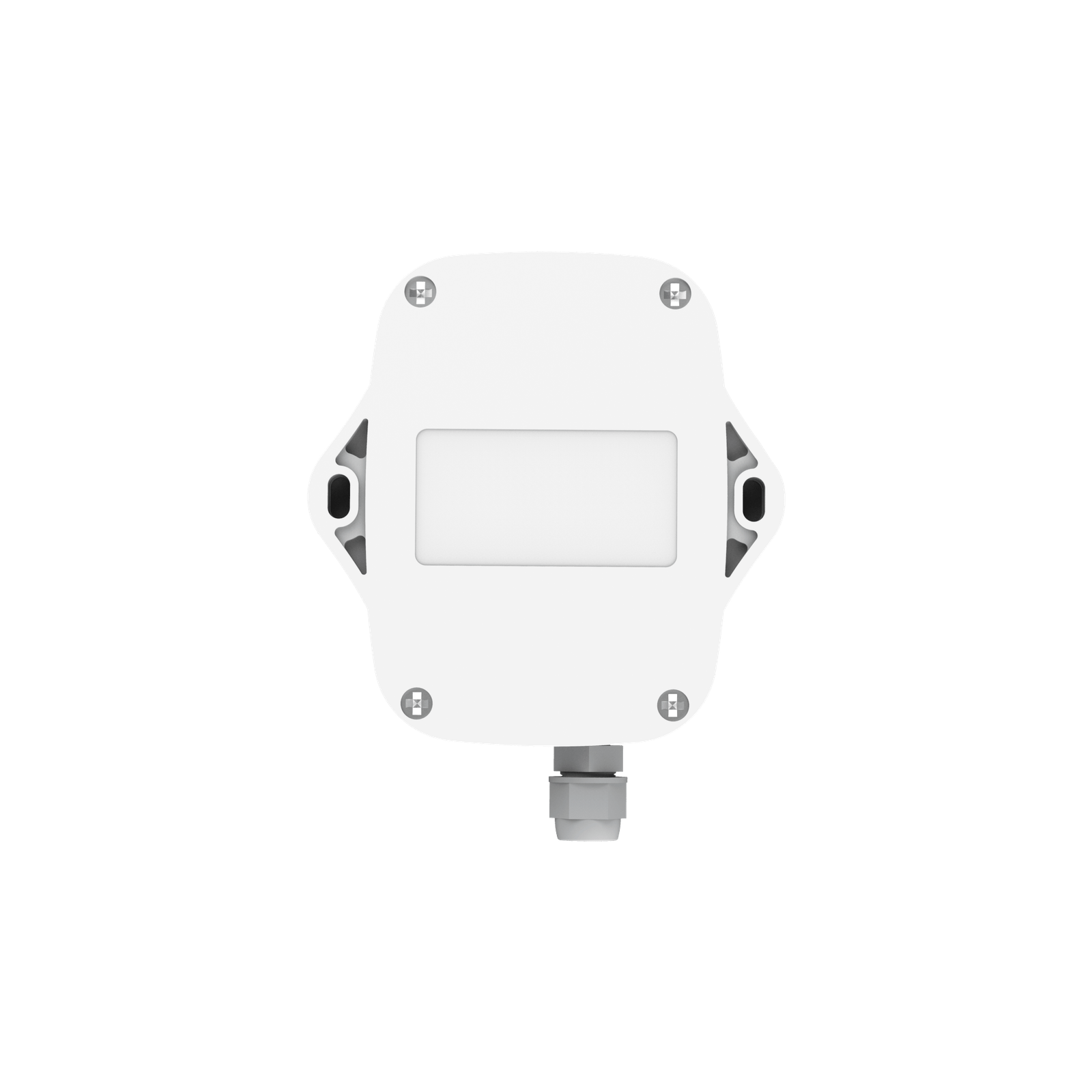

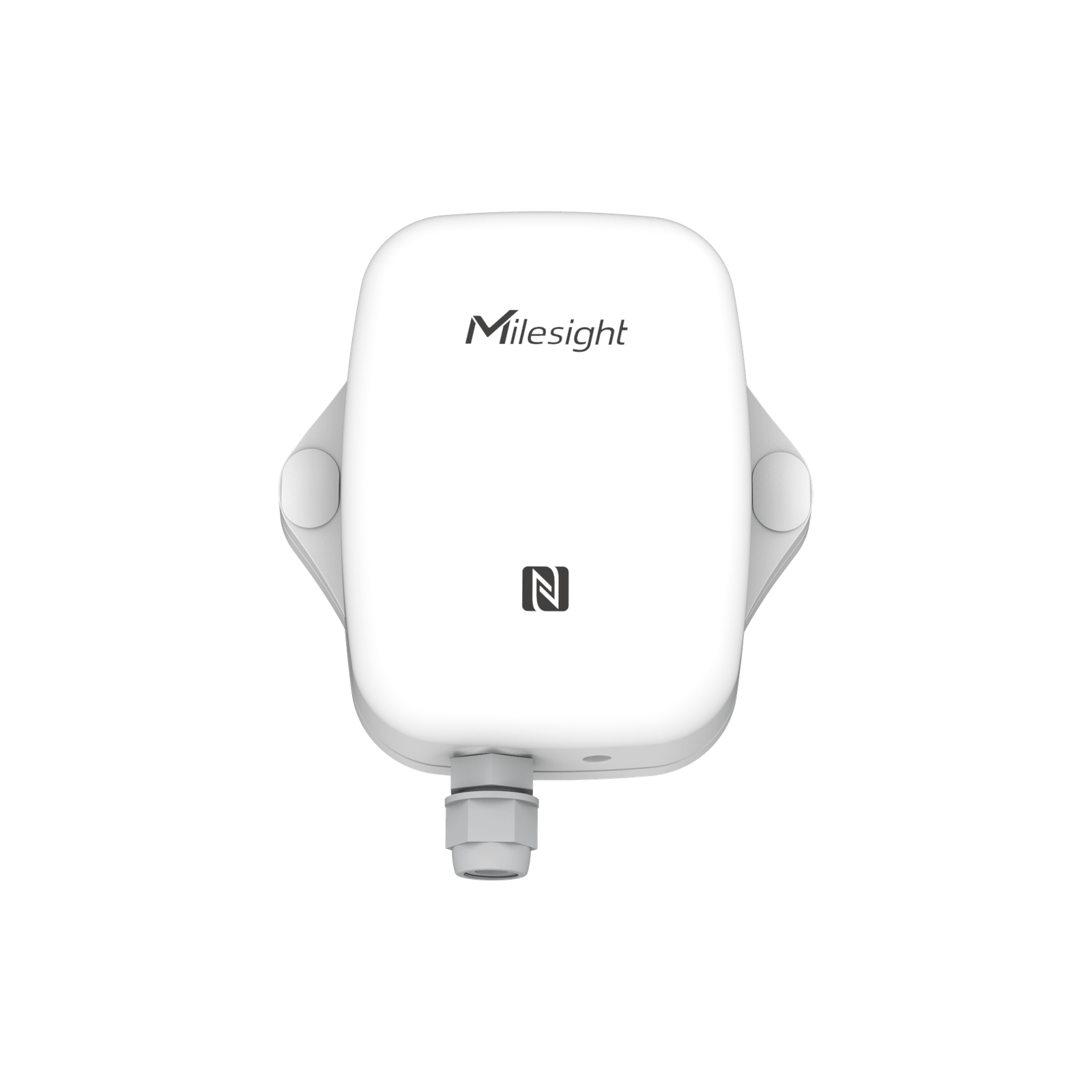

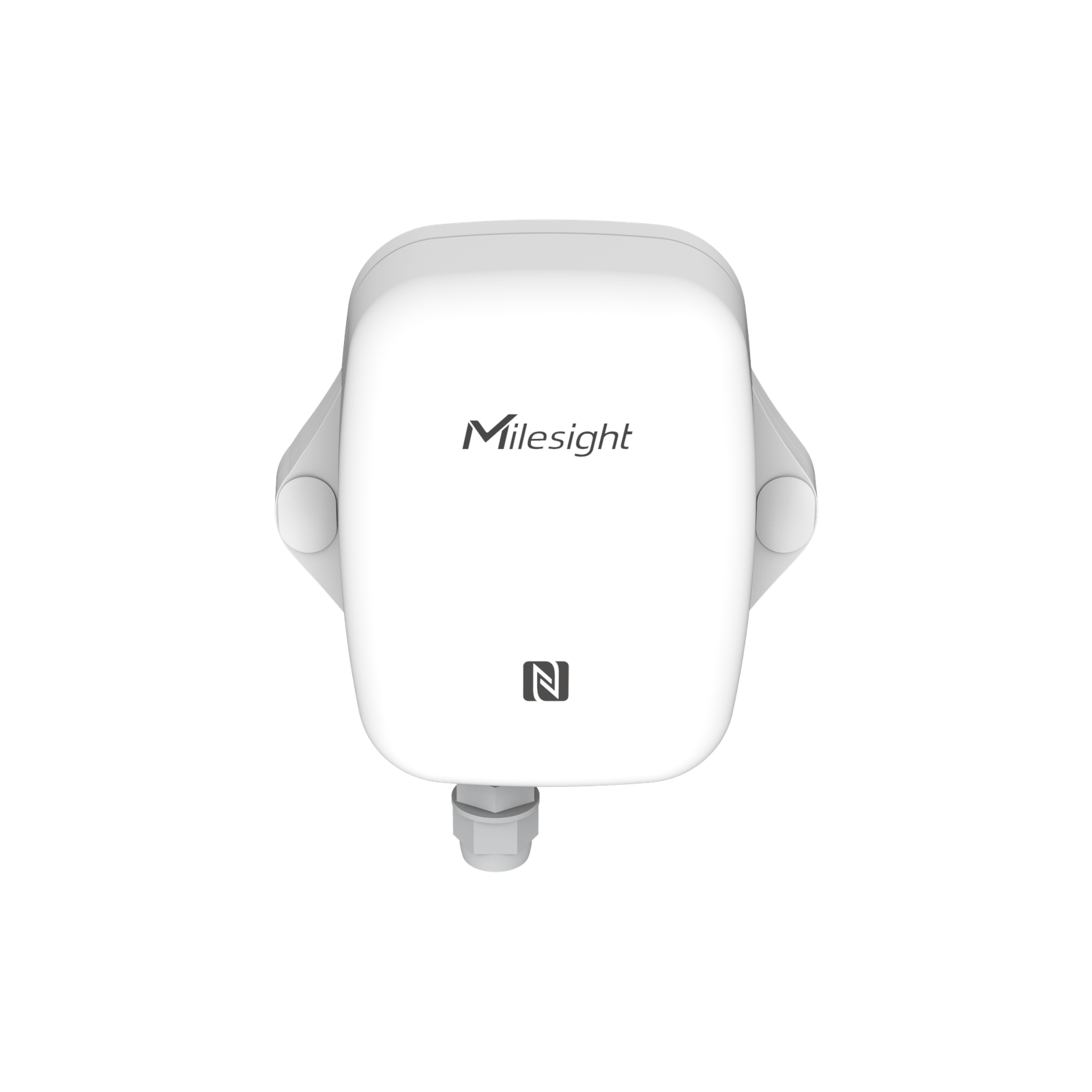

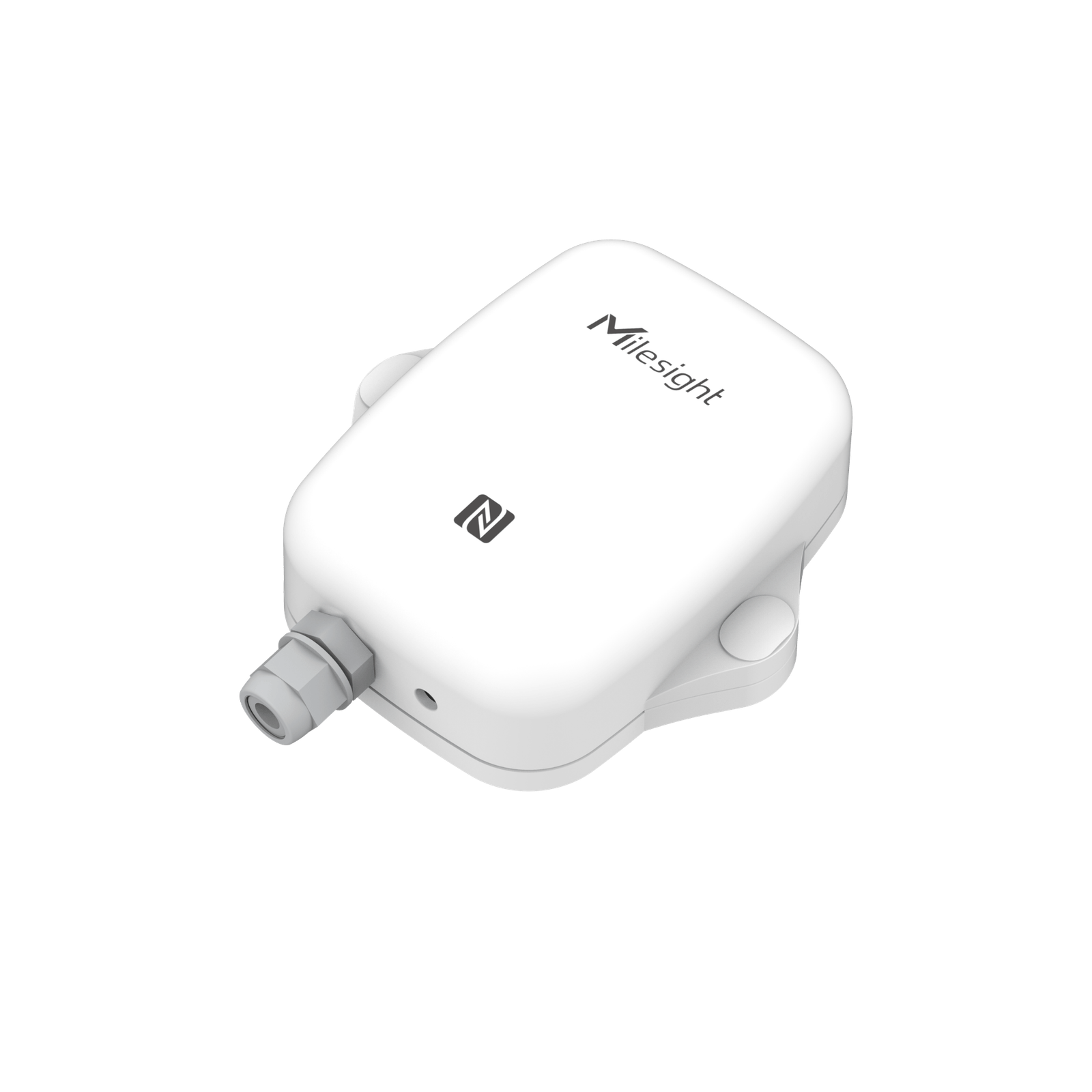

The Milesight EM300-MCS LoRaWAN® External Magnetic Contact Sensor is a compact and efficient solution for monitoring the status of doors, windows, and other access points. Designed for smart buildings, warehouses, and industrial applications, this sensor provides real-time alerts when contact status changes, enhancing security and operational efficiency.

With LoRaWAN® technology, the EM300-MCS offers long-range, low-power wireless communication, ensuring seamless integration with IoT platforms. Its robust IP67-rated enclosure makes it suitable for both indoor and outdoor installations, delivering reliable performance in harsh environments.

Technical Specifications

• Model: EM300-MCS LoRaWAN® External Magnetic Contact Sensor
• LoRaWAN® Frequency: 868 MHz (EU868)
• Detection Range: Up to 15 mm (magnetic contact gap)
• Connectivity: LoRaWAN® Class A compatible
• Communication Distance: Up to 10 km (line-of-sight)
• Power Supply: Built-in 4000 mAh Li-SOCL2 battery
• Battery Life: Up to 10 years (depending on reporting intervals)
• Protection Rating: IP67 (dustproof and waterproof)
• Material: Industrial-grade plastic housing
• Installation: Surface mount with adhesive or screws
• Operating Temperature: -30°C to +70°C
• Humidity: 0–95% RH (non-condensing)
• Dimensions: 88 mm × 87 mm × 27 mm
• Weight: Approx. 150 g

Key Features

• Accurate Contact Monitoring: Detects open/close status of doors, windows, and cabinets.
• LoRaWAN® Connectivity: Provides long-range, low-power data transmission for remote monitoring.
• Weatherproof Design: IP67-rated enclosure ensures reliable performance in challenging conditions.
• Extended Battery Life: Up to 10 years of operation with minimal maintenance.
• Flexible Installation: Easy mounting with adhesive tape or screws for various surfaces.
• Versatile Applications: Ideal for smart buildings, security systems, and industrial monitoring.
