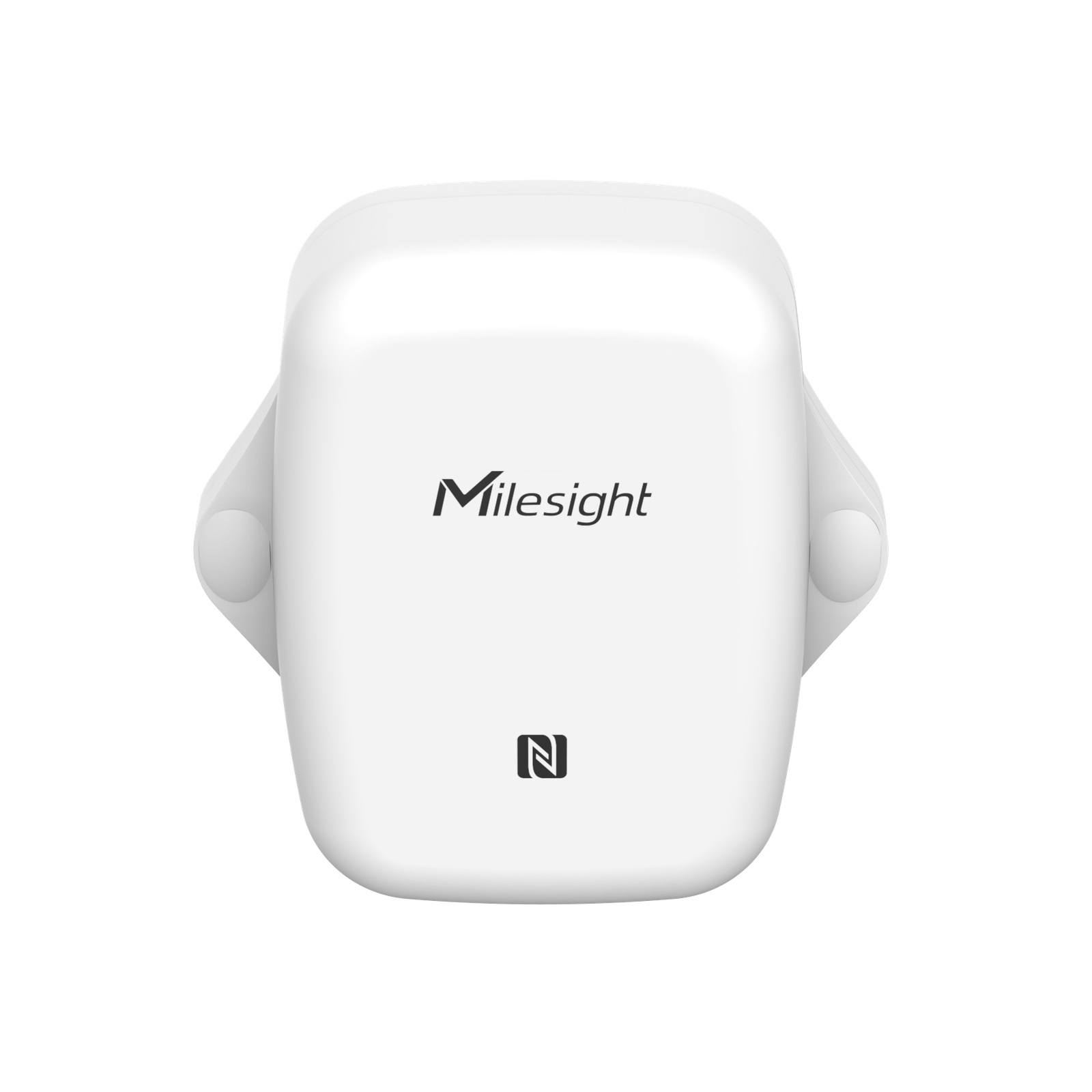

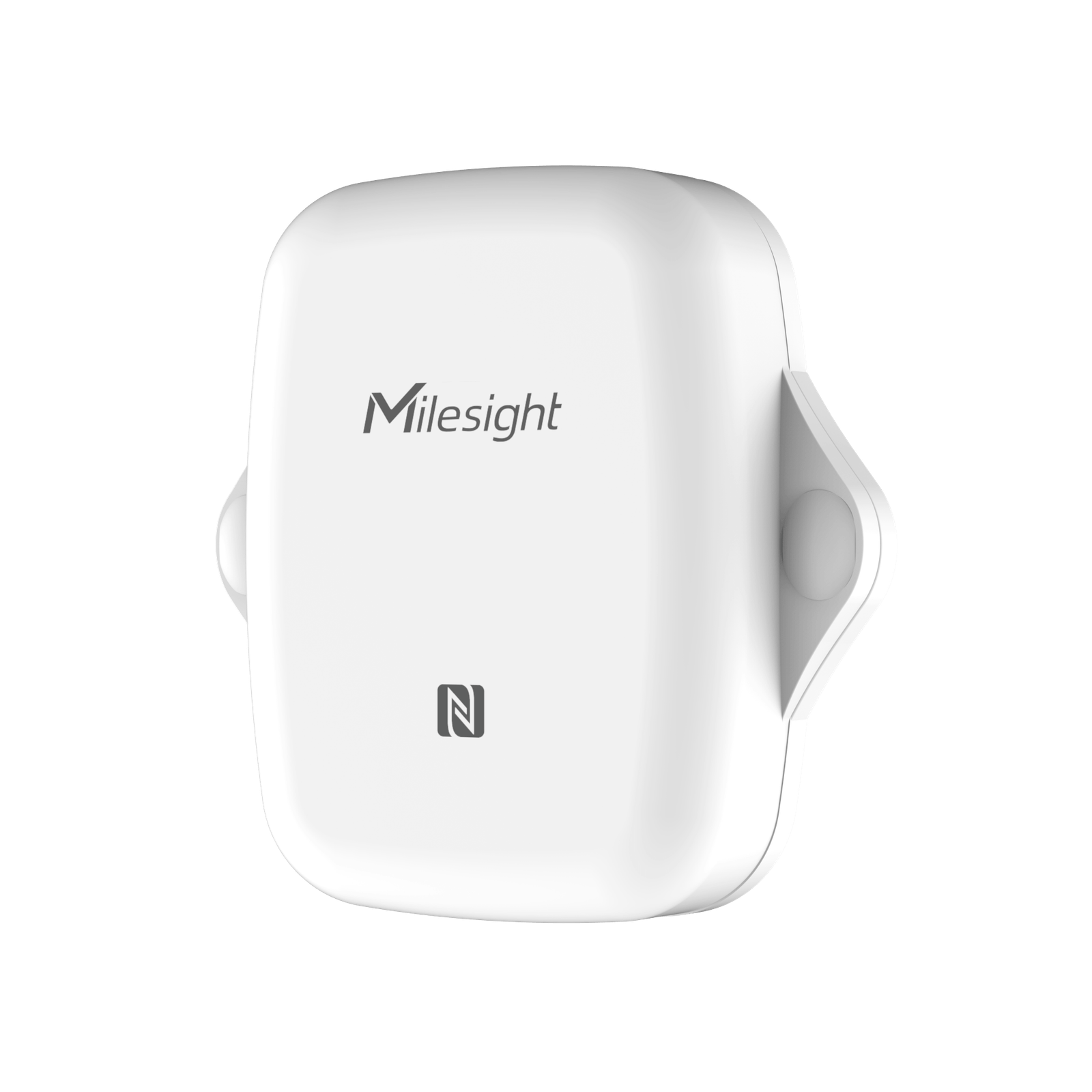

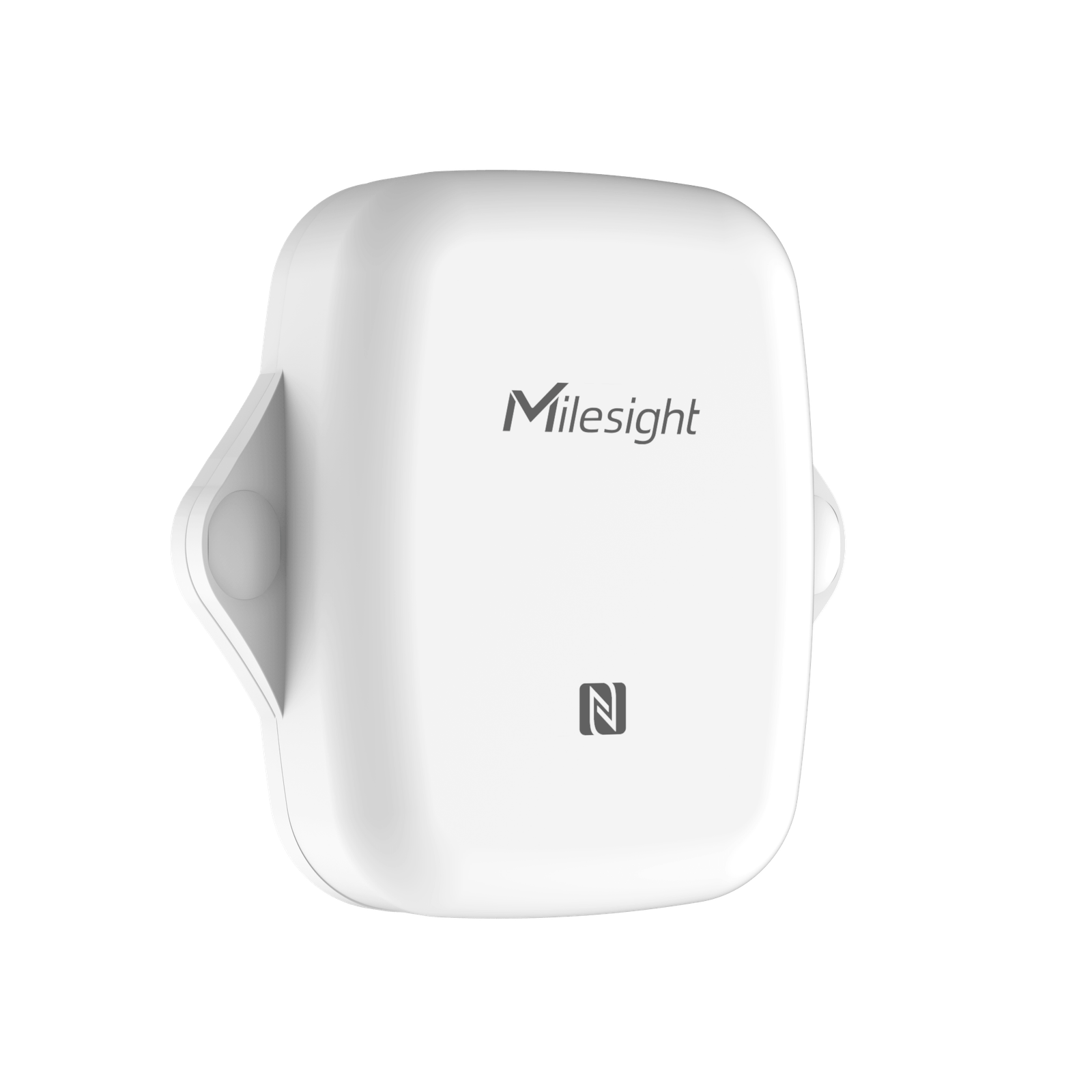

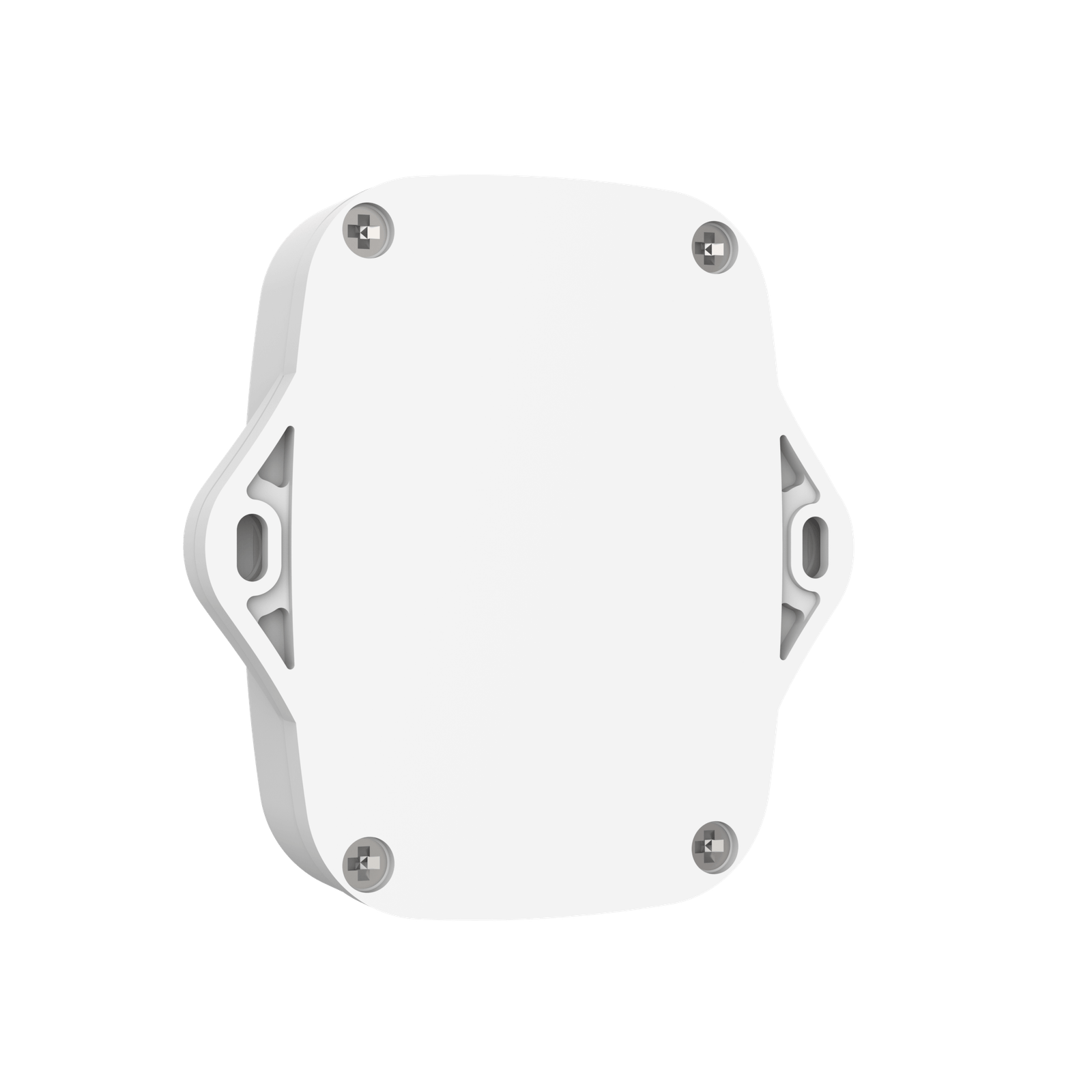

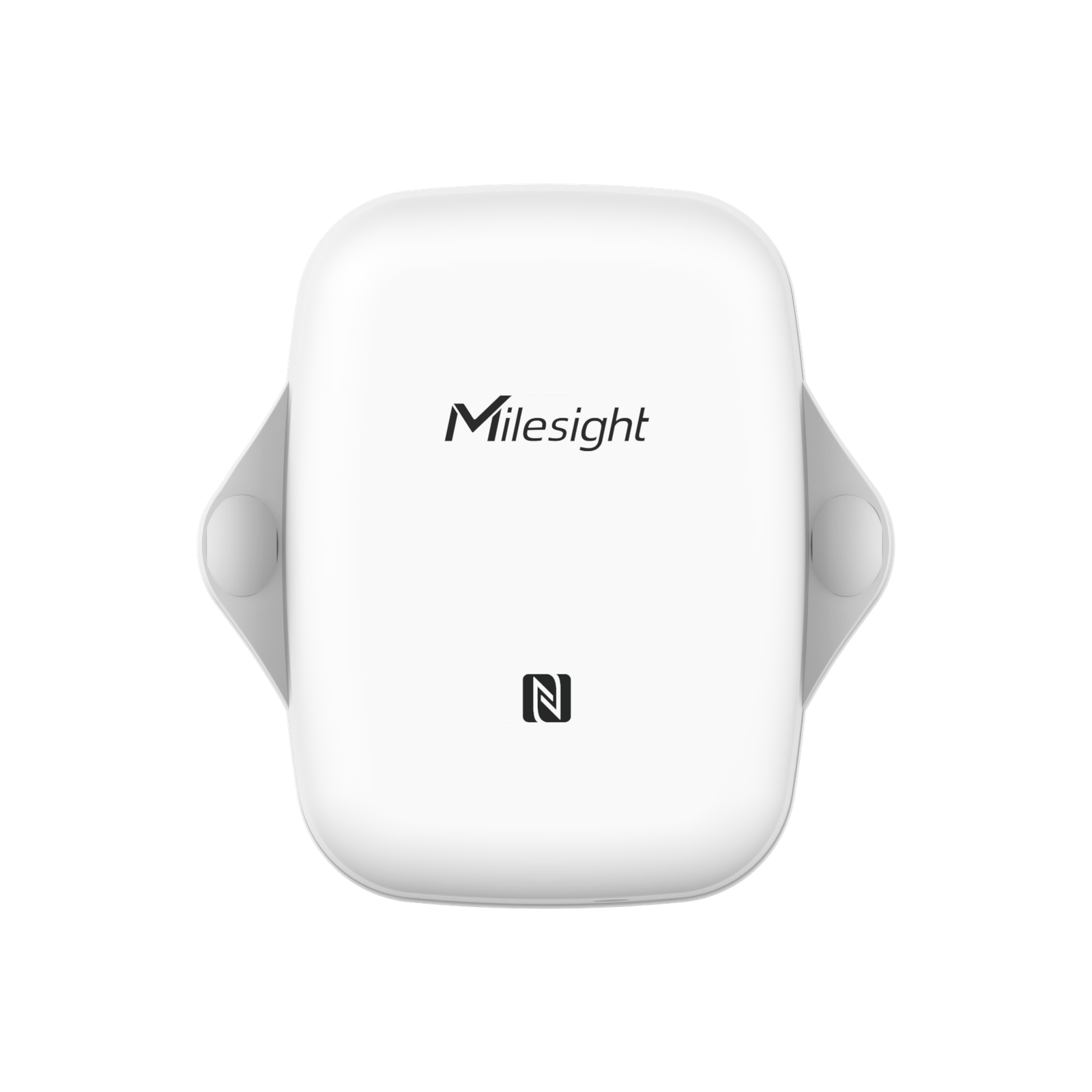

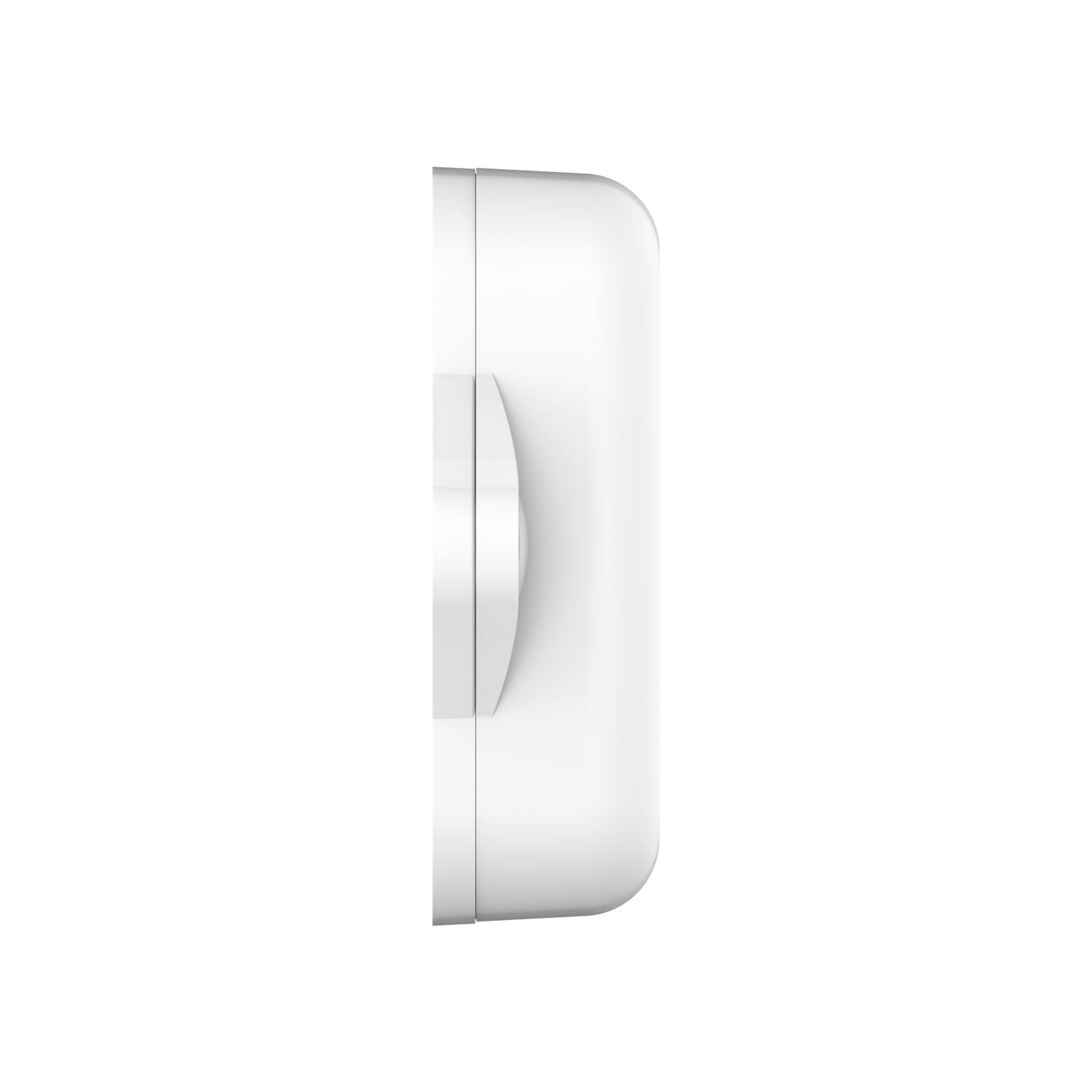

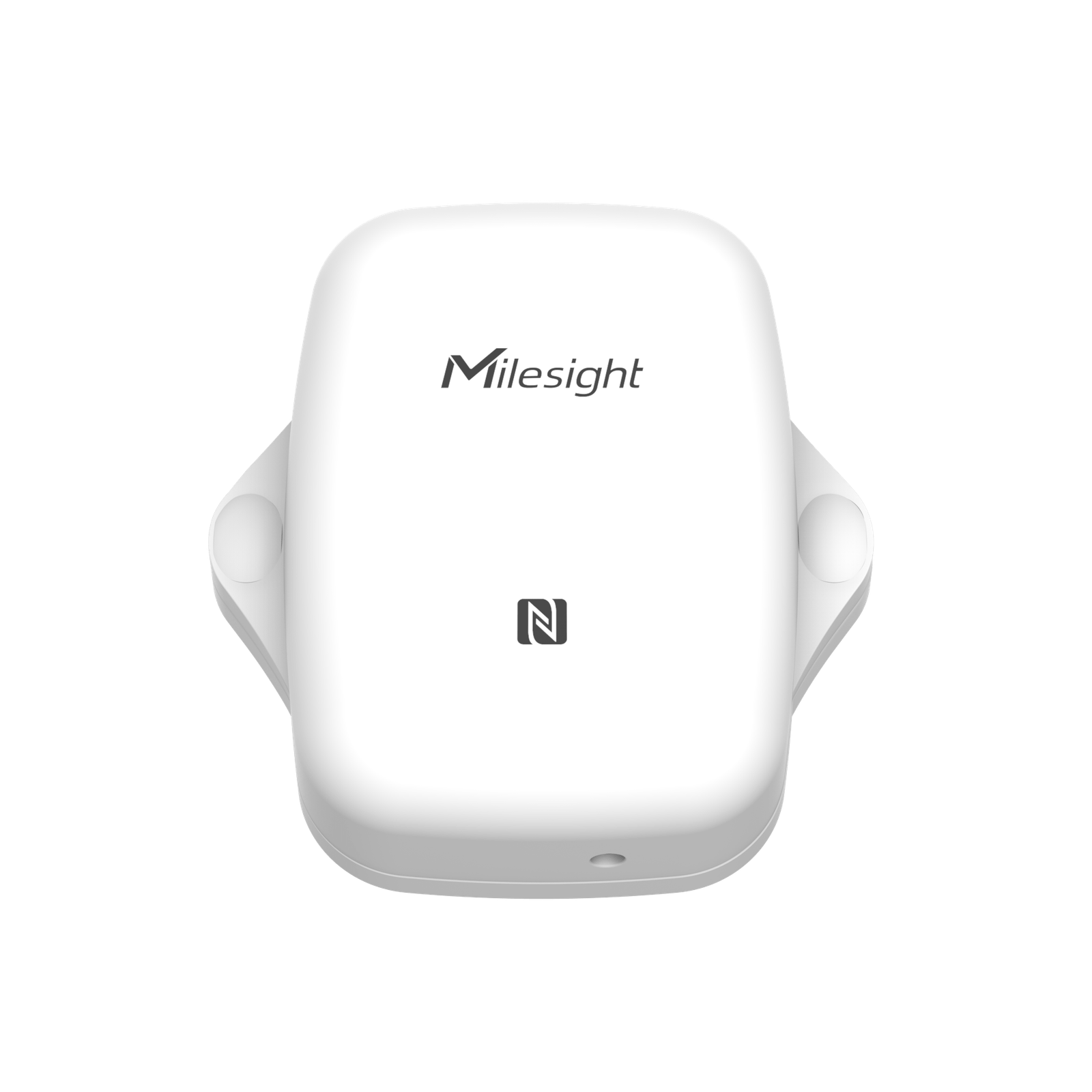

Milesight EM300-TH-868M

Description

The Milesight EM300-TH LoRaWAN® Outdoor Temperature and Humidity Sensor is a highly reliable and compact solution for real-time environmental monitoring in outdoor and industrial applications. Designed to measure temperature and humidity levels with high accuracy, this sensor helps ensure optimal conditions for agriculture, storage facilities, and smart city initiatives.

Equipped with LoRaWAN® technology, the EM300-TH offers long-range, low-power communication for seamless integration into IoT platforms. Its rugged IP67-rated enclosure provides resistance to dust and water, making it suitable for harsh environmental conditions. With an extended battery life, this sensor is a cost-effective and maintenance-free solution for long-term deployments.

Technical Specifications

• Model: EM300-TH LoRaWAN® Outdoor Temperature and Humidity Sensor
• LoRaWAN® Frequency: 868 MHz (EU868)
• Temperature Range: -30°C to +70°C (±0.3°C accuracy)
• Humidity Range: 0% to 100% RH (±3% RH accuracy)
• Resolution: 0.1°C (temperature), 0.5% RH (humidity)
• Connectivity: LoRaWAN® Class A compatible
• Communication Distance: Up to 10 km (line-of-sight)
• Power Supply: Built-in 4000 mAh Li-SOCL2 battery
• Battery Life: Up to 10 years (depending on reporting intervals)
• Protection Rating: IP67 (dustproof and waterproof)
• Material: Industrial-grade plastic housing

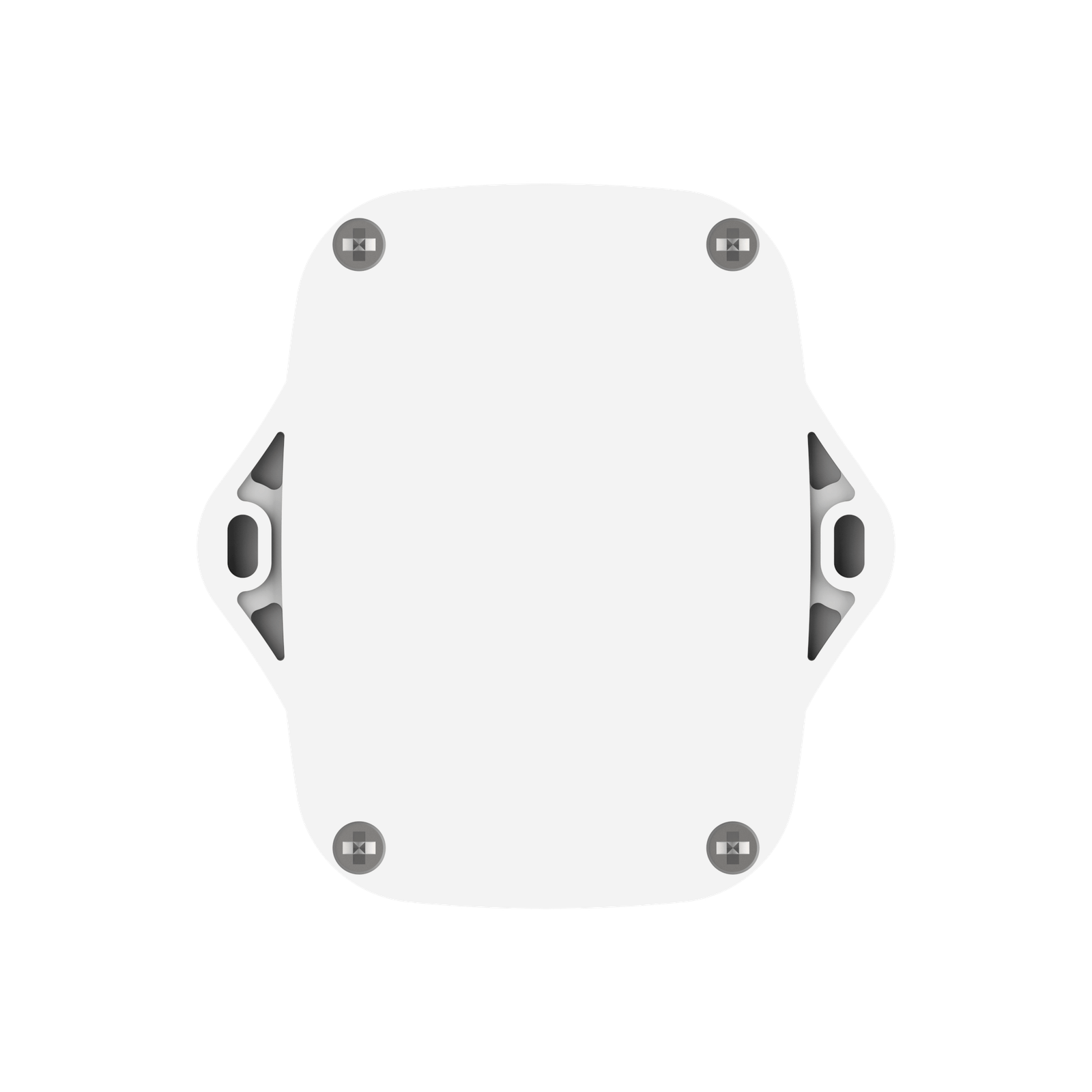

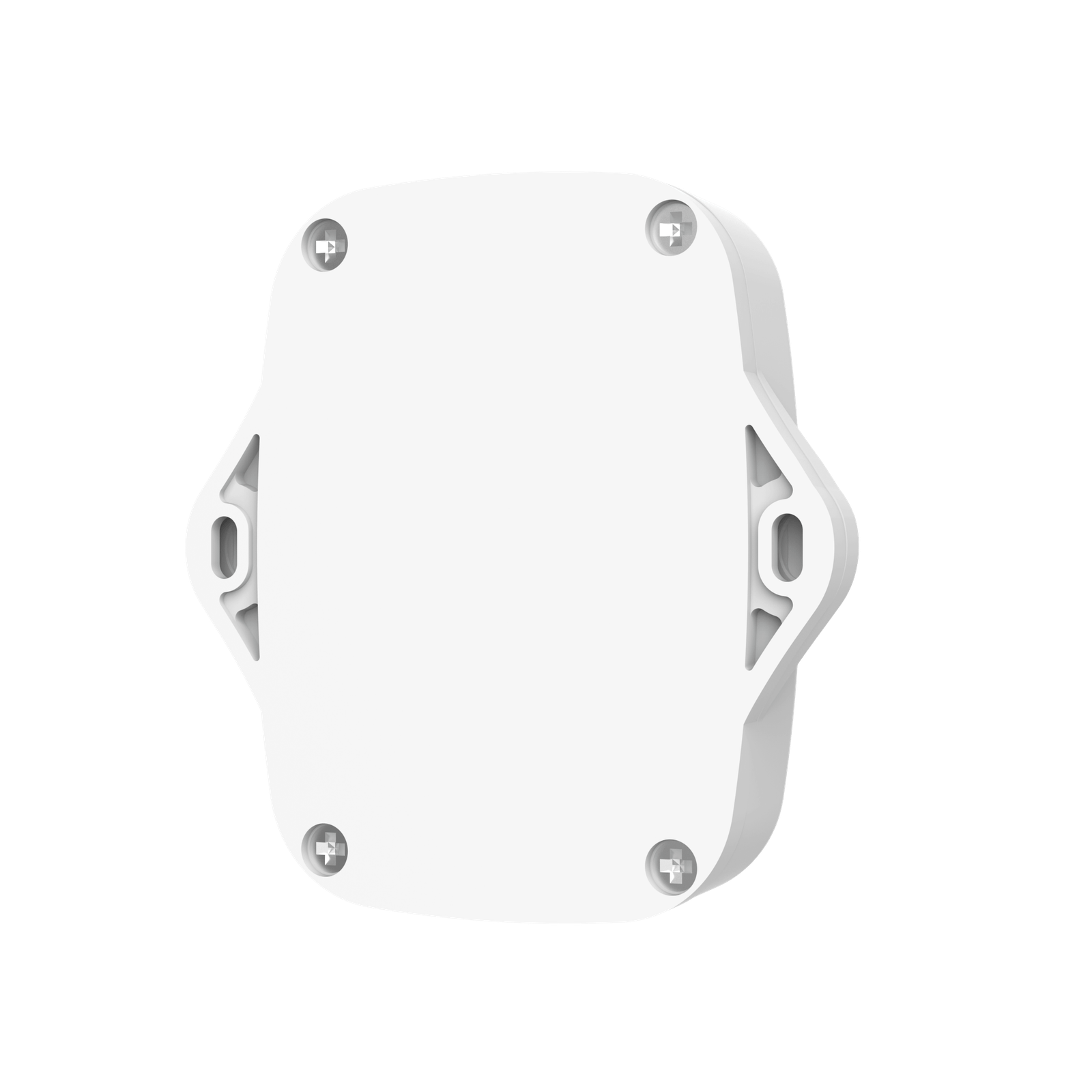

• Installation: Wall-mount and surface-mount options
• Operating Environment: -30°C to +70°C, 0–95% RH (non-condensing)
• Dimensions: 88 mm × 87 mm × 27 mm
• Weight: Approx. 150 g

Key Features

• Accurate Environmental Monitoring: Provides real-time temperature and humidity readings for various applications.
• LoRaWAN® Connectivity: Ensures long-range, low-power communication for remote monitoring.
• Weatherproof Design: IP67-rated enclosure offers protection against harsh outdoor conditions.
• Extended Battery Life: Up to 10 years of operation with minimal maintenance.
• Flexible Deployment: Ideal for agricultural monitoring, industrial automation, and environmental tracking.
• Compact and Lightweight: Easy installation in diverse environments with flexible mounting options.
