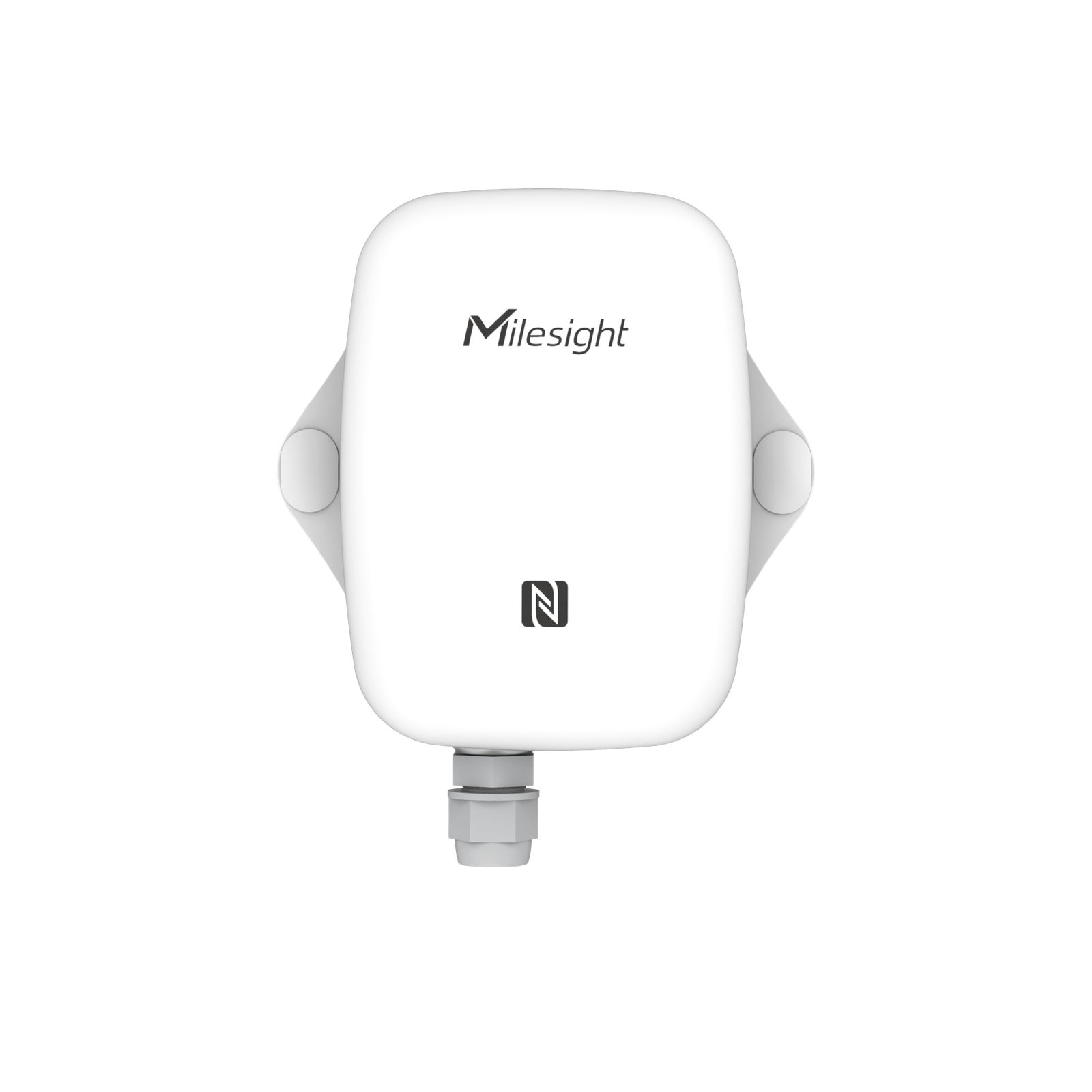

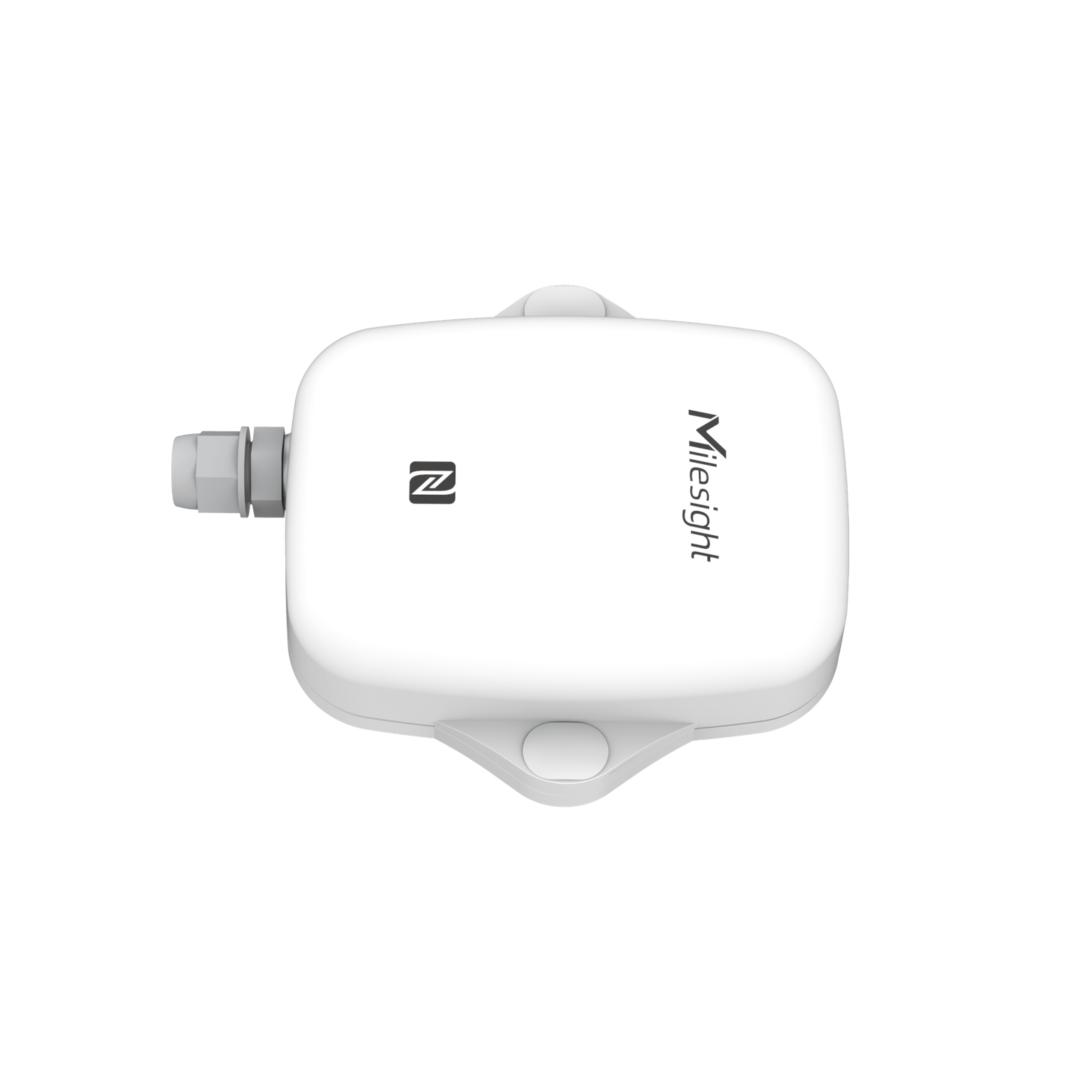

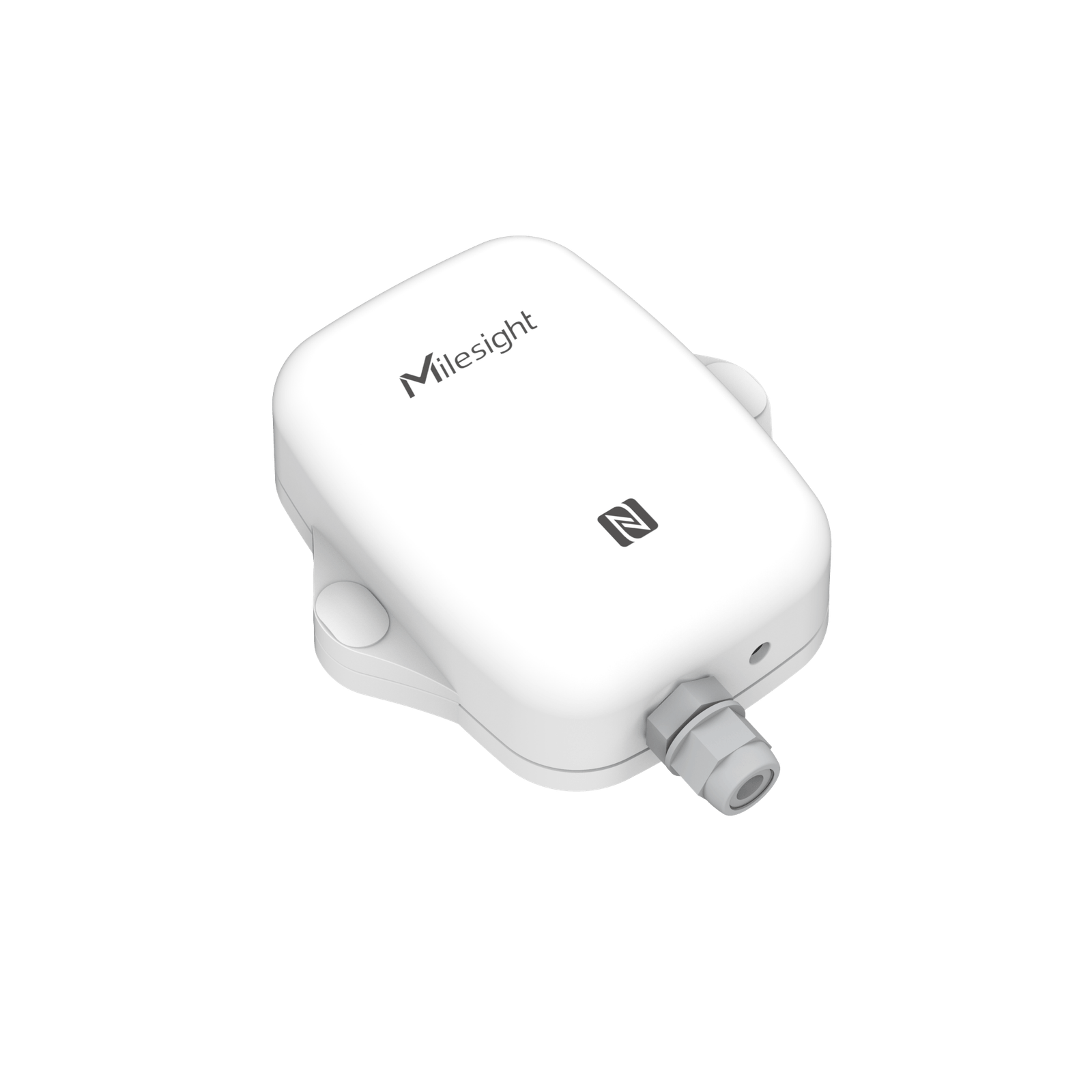

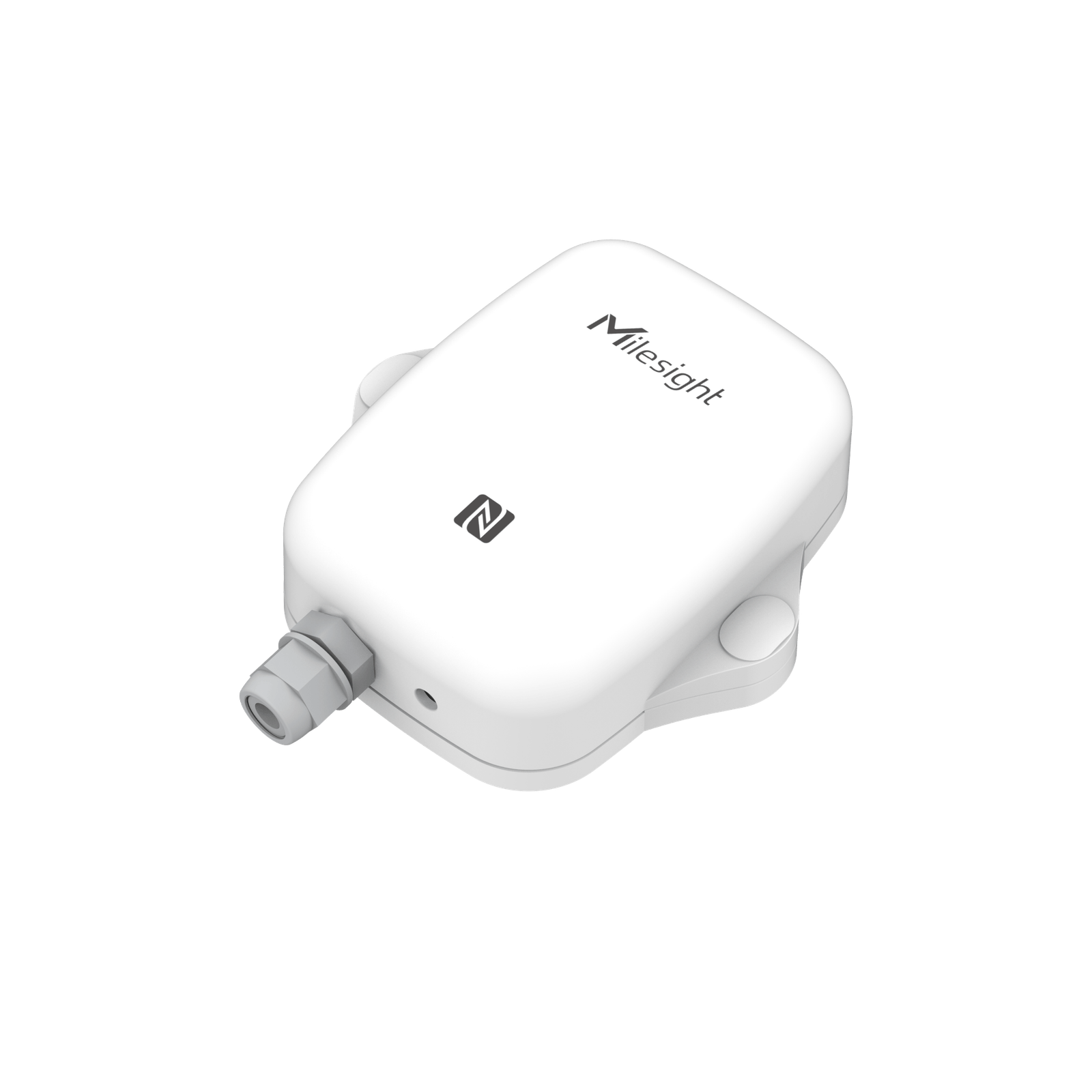

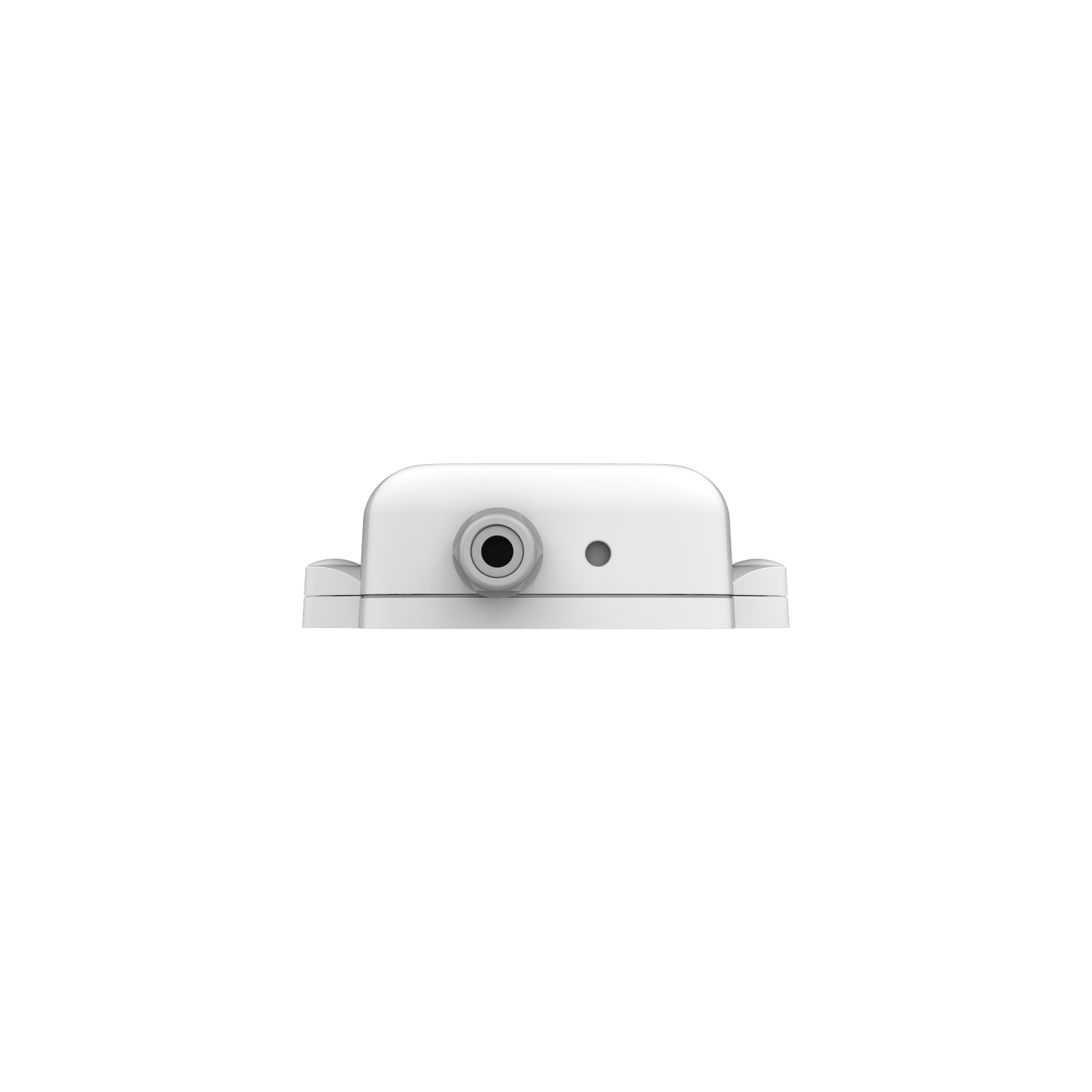

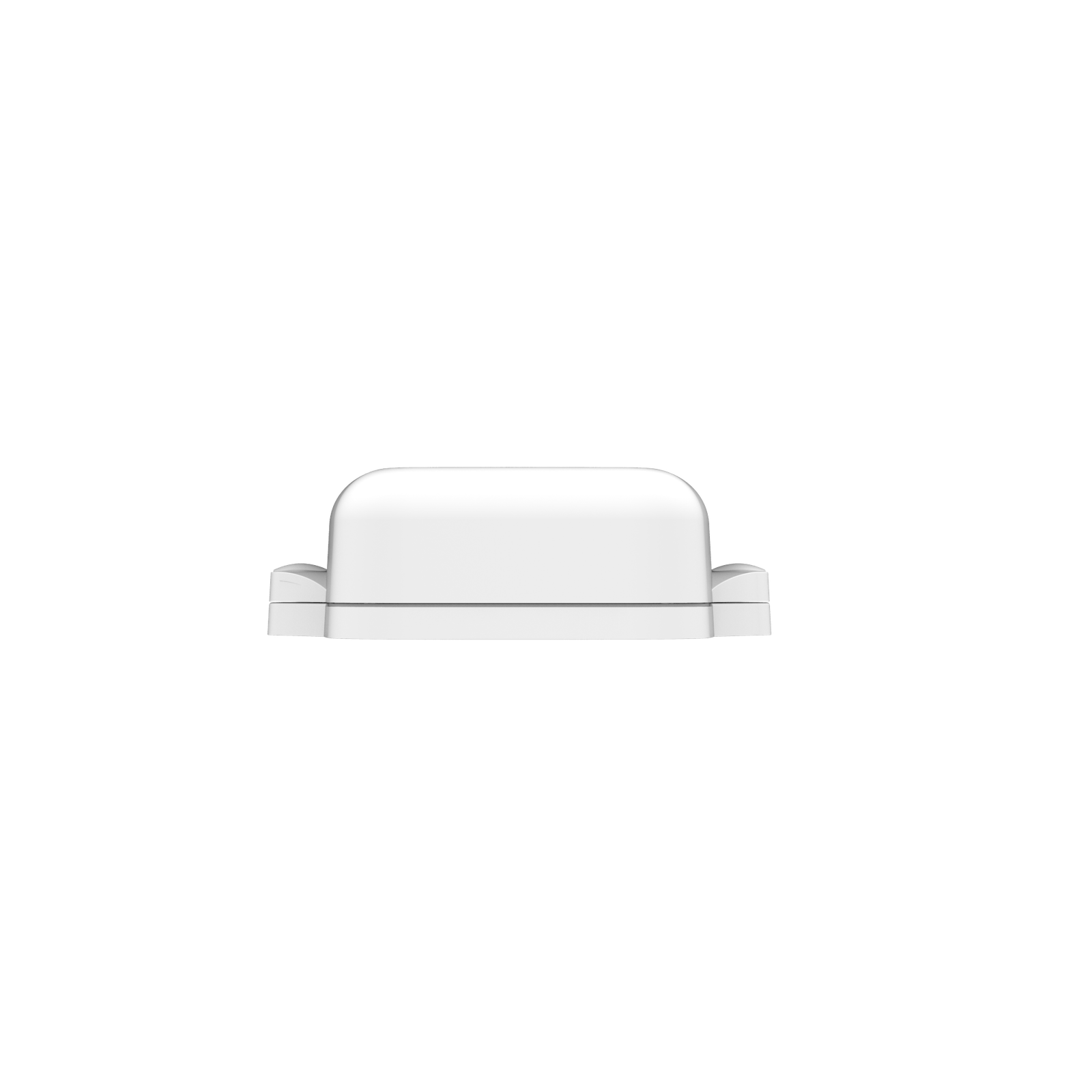

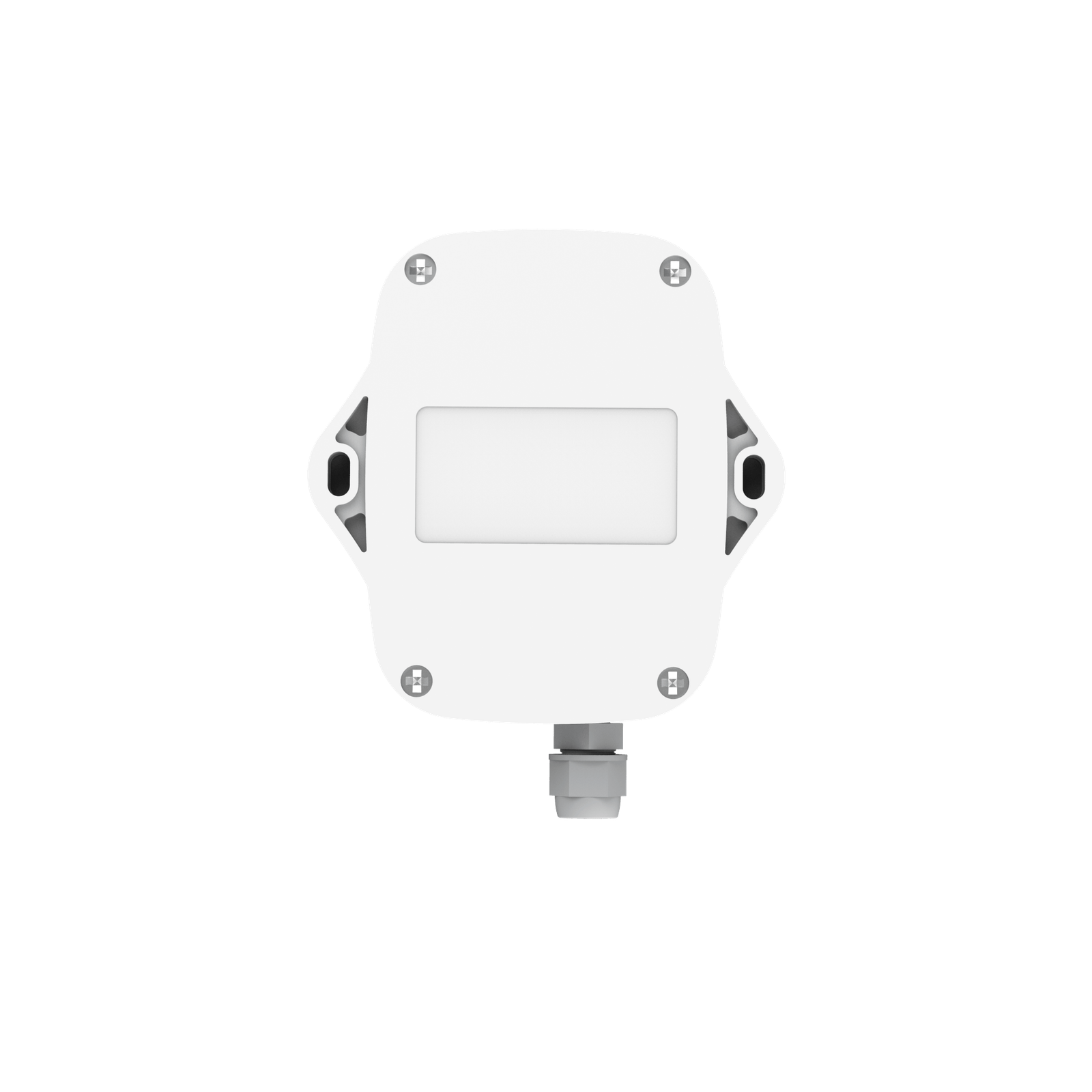

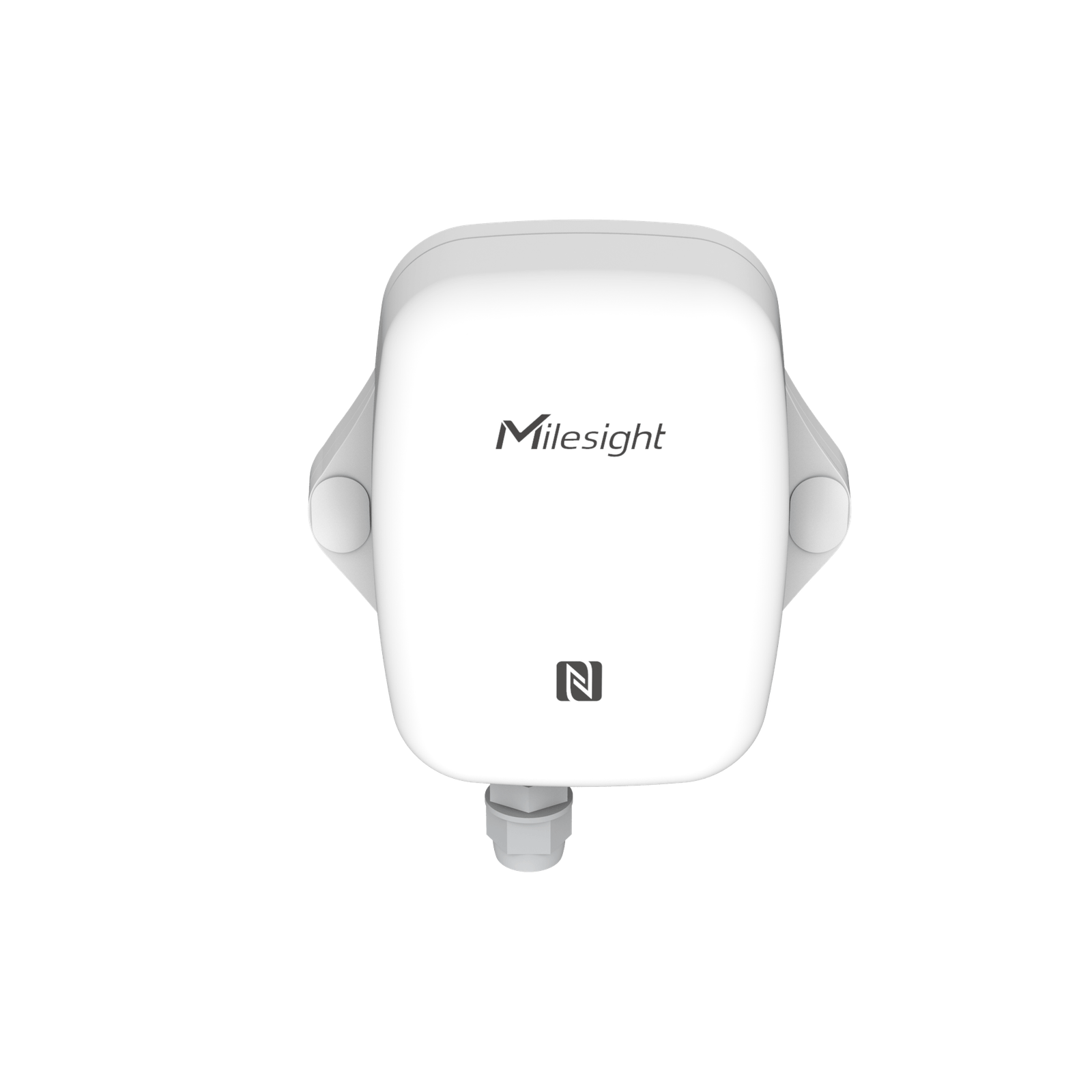

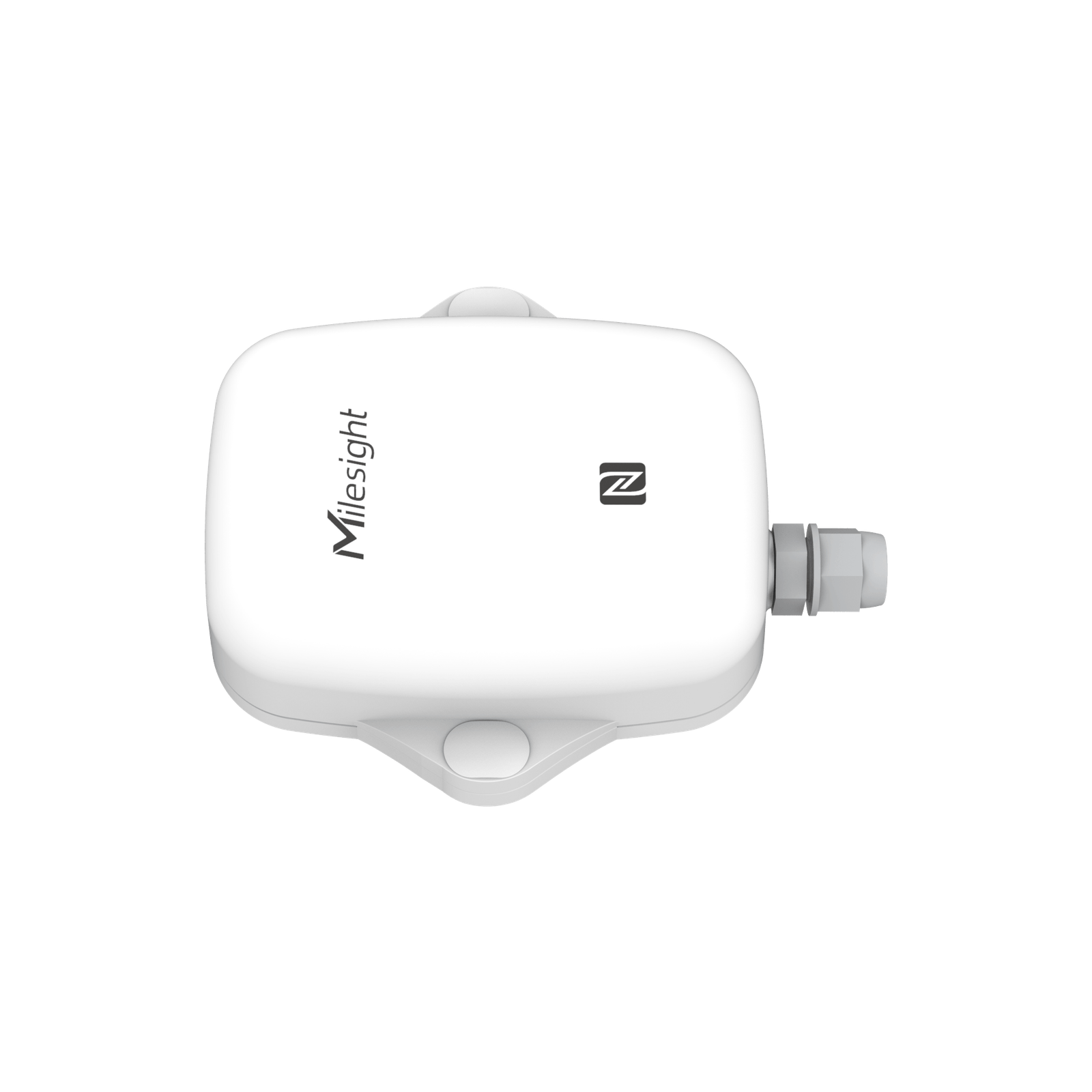

Milesight EM300-ZLD-868M

Description

The Milesight EM300-ZLD LoRaWAN® Outdoor Zone Liquid Leakage Sensor is a highly sensitive and reliable device designed to detect liquid leaks in critical areas such as industrial facilities, commercial buildings, and outdoor infrastructure. With its robust and weather-resistant design, this sensor ensures early detection of leaks, preventing costly damages and operational disruptions.

Leveraging LoRaWAN® technology, the EM300-ZLD provides long-range, low-power communication for seamless integration with IoT platforms. The sensor features a flexible detection cable that covers a wide area, ensuring reliable monitoring across pipelines, storage tanks, and outdoor spaces.

Technical Specifications

• Model: EM300-ZLD LoRaWAN® Outdoor Zone Liquid Leakage Sensor
• LoRaWAN® Frequency: 868 MHz (EU868)
• Leak Detection Method: Conductive sensing cable
• Detection Length: Up to 10 meters (extendable)
• Alarm Trigger: Immediate notification upon liquid detection
• Connectivity: LoRaWAN® Class A compatible
• Communication Distance: Up to 10 km (line-of-sight)
• Power Supply: Built-in 4000 mAh Li-SOCL2 battery
• Battery Life: Up to 5 years (depending on reporting intervals)
• Protection Rating: IP67 (dustproof and waterproof)
• Material: Industrial-grade plastic housing
• Installation: Wall or surface mounting with adhesive or screws
• Operating Temperature: -30°C to +70°C
• Humidity: 0–95% RH (non-condensing)
• Dimensions: 88 mm × 87 mm × 27 mm
• Weight: Approx. 200 g

Key Features

• Reliable Leak Detection: Conductive sensing cable for rapid detection of liquid leaks.
• LoRaWAN® Connectivity: Provides long-range, low-power communication for remote monitoring.
• Weatherproof Design: IP67-rated for outdoor and harsh industrial environments.
• Wide Coverage Area: Flexible detection cable ensures comprehensive monitoring.
• Extended Battery Life: Up to 5 years of operation with minimal maintenance.
• Versatile Applications: Ideal for industrial sites, commercial buildings, and pipeline monitoring.
• Easy Deployment: Quick installation with mounting accessories for flexible placement.
