Milesight EM500-SWL-868M-L005-4846W

Description

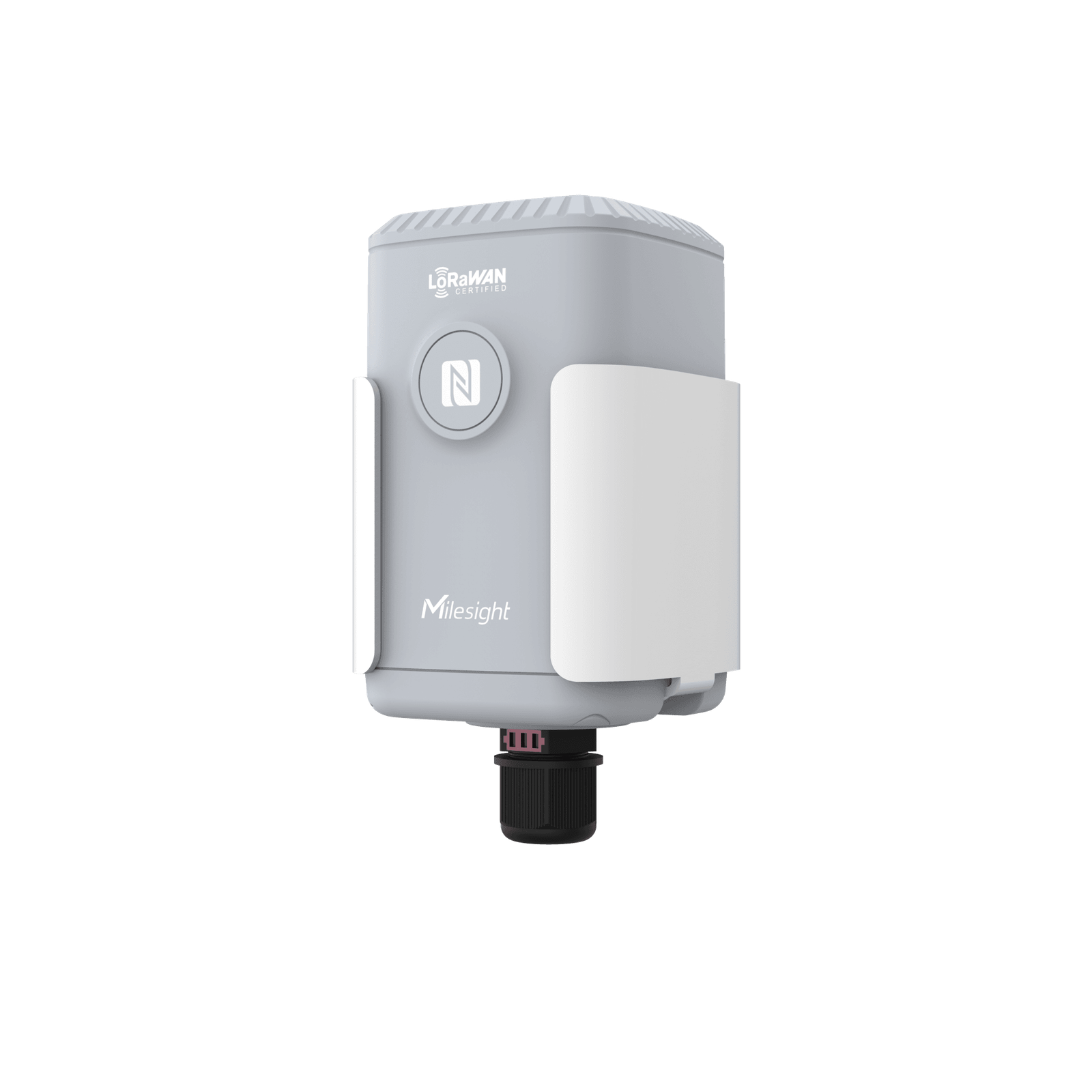

The Milesight EM500-SWL LoRaWAN® Submersible Water Level Sensor is a high-precision device designed to monitor water levels in wells, tanks, rivers, and reservoirs with a measurement range of up to 3 meters. Utilizing LoRaWAN® technology, this sensor ensures long-range, low-power data transmission to IoT platforms, making it an ideal solution for remote water monitoring and management.

Built with a durable stainless steel probe and an IP68-rated enclosure, the EM500-SWL is resistant to harsh environmental conditions, providing reliable performance in water management, flood monitoring, and agricultural irrigation. Its long-lasting battery ensures up to 10 years of maintenance-free operation.

Technical Specifications

• Model: EM500-SWL LoRaWAN® Submersible Water Level Sensor
• LoRaWAN® Frequency: 868 MHz (EU868)
• Measurement Range: 0 to 3 meters
• Accuracy: ±0.5% FS
• Resolution: 1 mm
• Connectivity: LoRaWAN® Class A and Class C compatible
• Communication Distance: Up to 10 km (line-of-sight)
• Power Supply: Built-in 19000 mAh Li-SOCL2 battery
• Battery Life: Up to 10 years (depending on reporting intervals)
• Protection Rating: IP68 (dustproof and waterproof)

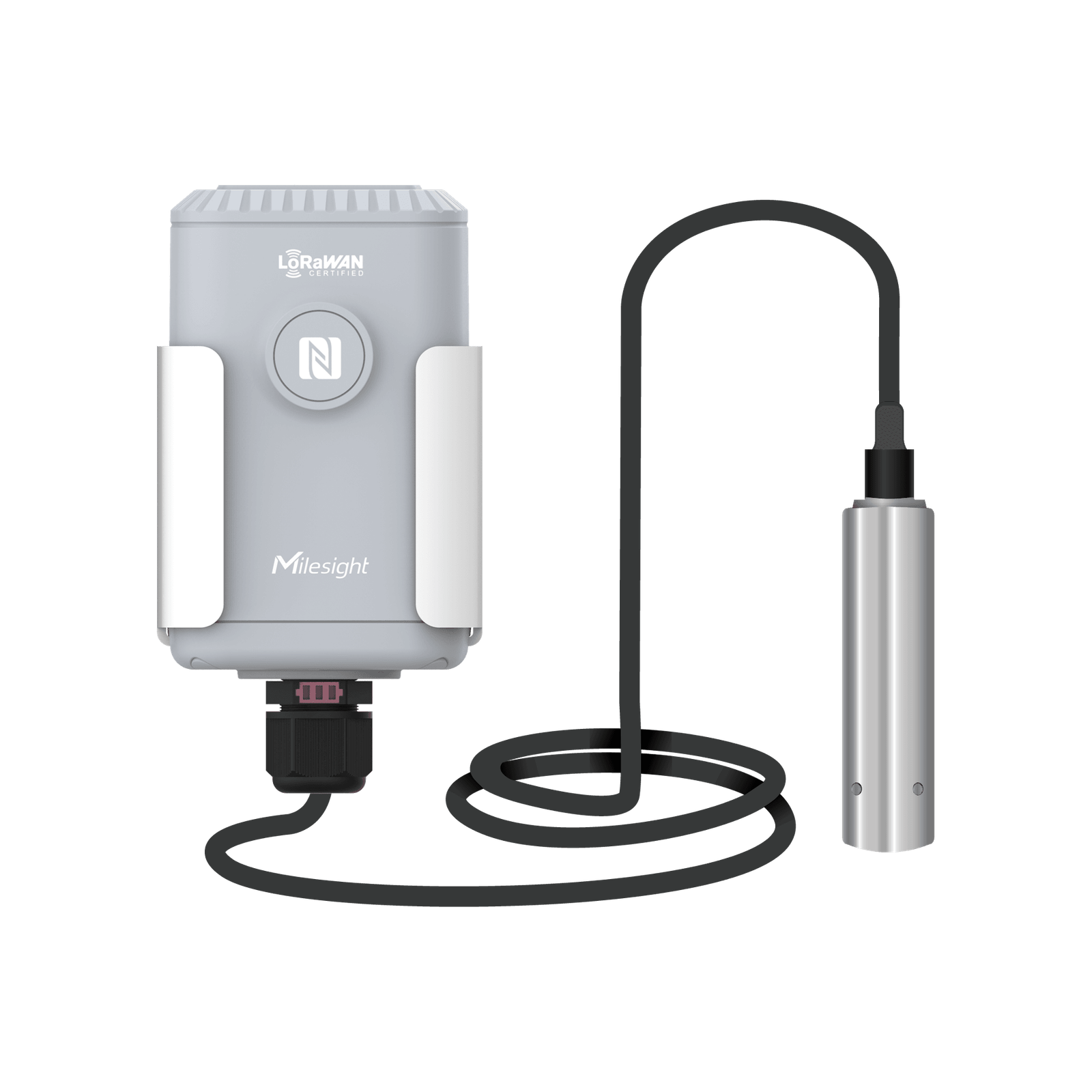

• Material: Stainless steel probe with high corrosion resistance
• Installation: Submersible with cable for secure deployment
• Operating Temperature: -20°C to +60°C
• Humidity: 0–100% RH
• Dimensions: Probe: 22 mm diameter × 100 mm length
• Cable Length: 5 meters
• Weight: Approx. 650 g

Key Features

• High-Precision Monitoring: Accurately measures water levels up to 3 meters depth.
• LoRaWAN® Connectivity: Long-range, low-power data transmission for remote monitoring.
• Robust Construction: IP68-rated waterproof and dustproof design for underwater use.
• Extended Battery Life: Up to 10 years of operation with low maintenance.
• Wide Application Scope: Suitable for water reservoirs, tanks, flood monitoring, and agricultural irrigation.
• Easy Installation: Simple submersible deployment with durable cabling for secure placement.
