Milesight FT101

Description

The Milesight FT101 LoRaWAN® Field Tester is a compact and highly efficient device designed to provide accurate real-time analysis of LoRaWAN® network coverage and performance. Equipped with a user-friendly interface and built-in GPS, the FT101 allows users to measure key signal parameters such as RSSI, SNR, and gateway connectivity in various deployment scenarios.

With its lightweight and portable design, the FT101 is an essential tool for network operators, installers, and IoT professionals who need to optimize and troubleshoot LoRaWAN® deployments across smart cities, agriculture, industrial applications, and more.

Technical Specifications

• Model: FT101 LoRaWAN® Field Tester
• LoRaWAN® Frequency: 868 MHz (EU868), other regional bands available

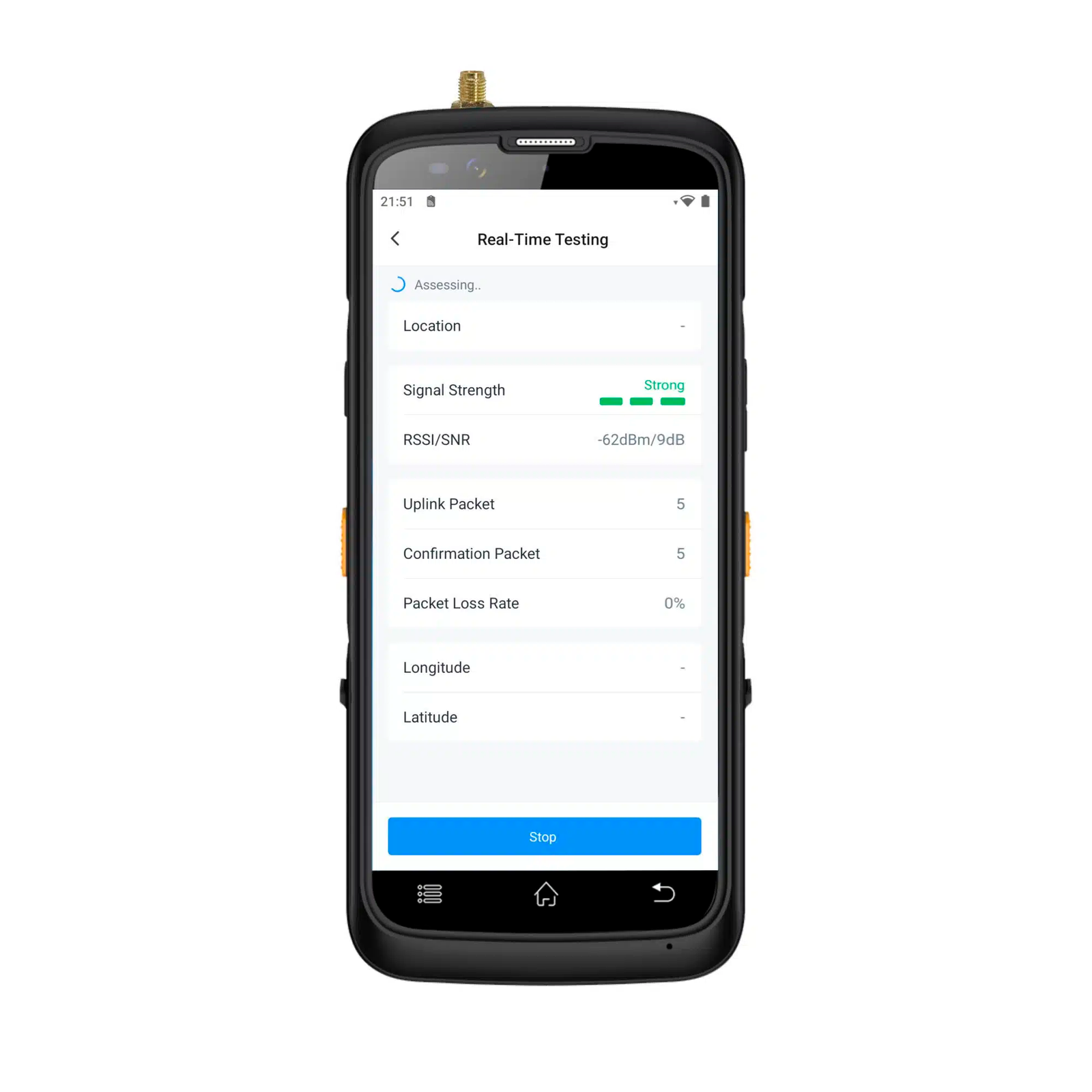

• Display: 2.4-inch LCD screen for real-time data visualization
• Measured Parameters:
  • Received Signal Strength Indicator (RSSI)
  • Signal-to-Noise Ratio (SNR)
  • Packet Success Rate (PSR)
  • GPS coordinates for precise location tracking
• Connectivity: LoRaWAN® Class A, B, C support
• Power Supply: Rechargeable Li-ion battery (up to 12 hours of operation)
• Charging Interface: USB Type-C
• Integration: Compatible with most LoRaWAN® networks and platforms
• Operating Environment: -20°C to +60°C, 10–90% RH (non-condensing)
• Dimensions: 150 mm × 80 mm × 25 mm
• Weight: 250 g

Key Features

• Comprehensive Testing: Measures RSSI, SNR, and PSR to assess LoRaWAN® network performance accurately.
• GPS Tracking: Built-in GPS module for precise positioning of signal test locations.
• User-Friendly Interface: 2.4-inch LCD display for easy operation and result visualization.
• Long Battery Life: Up to 12 hours of continuous testing with rechargeable Li-ion battery.
• Portable Design: Compact and lightweight for easy field deployment.
• Wide Compatibility: Supports EU868 and other LoRaWAN® regional bands.
