Milesight WS202-868M

Description

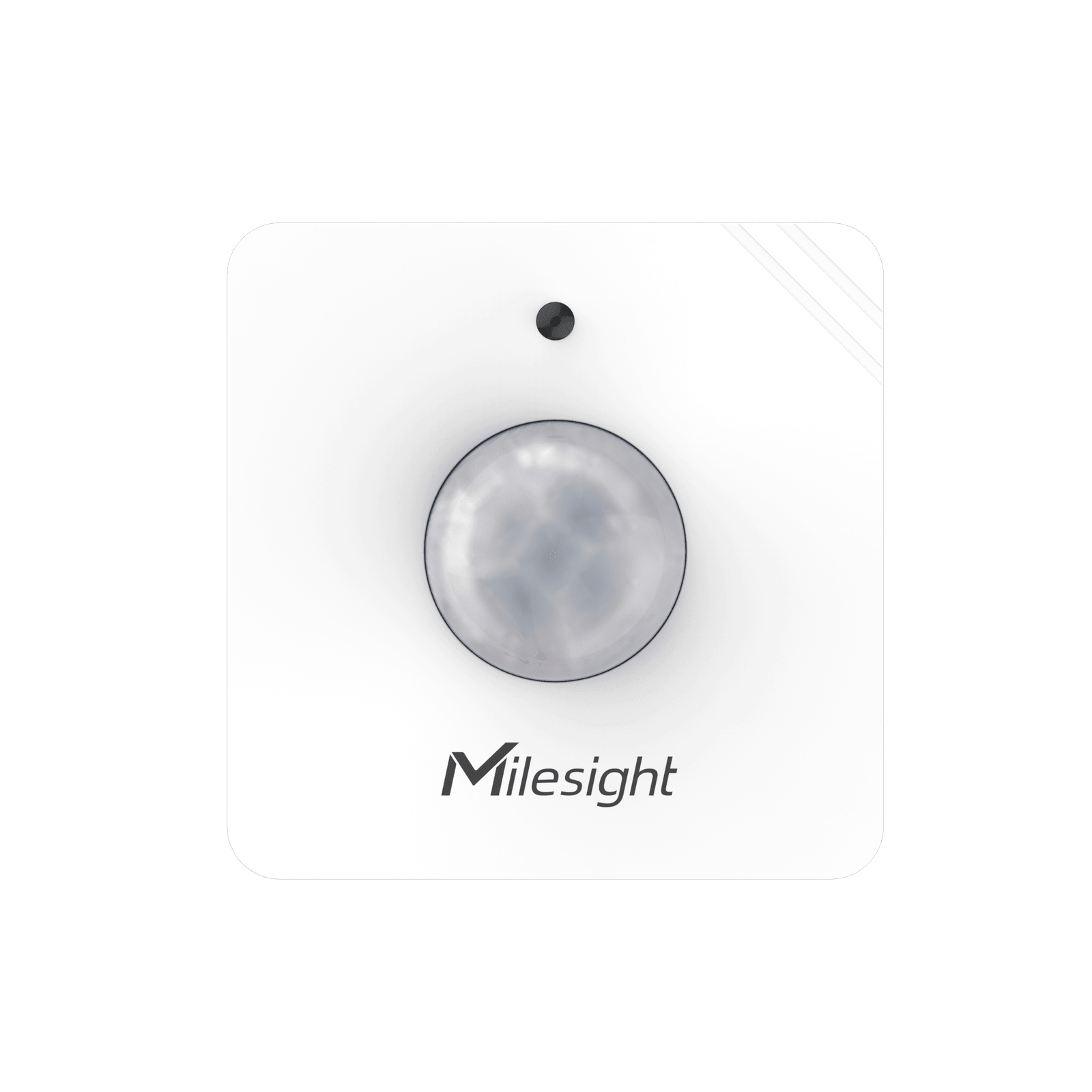

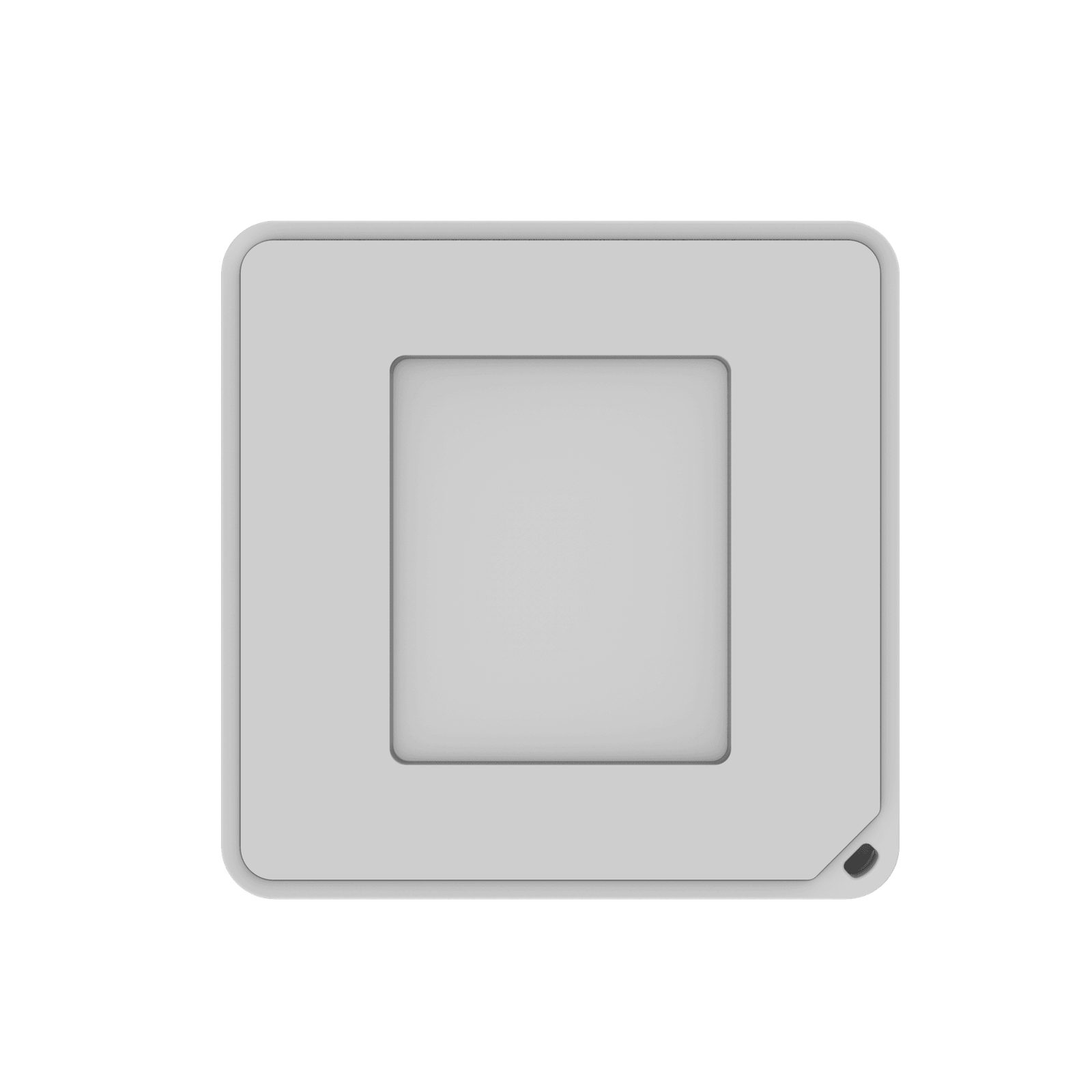

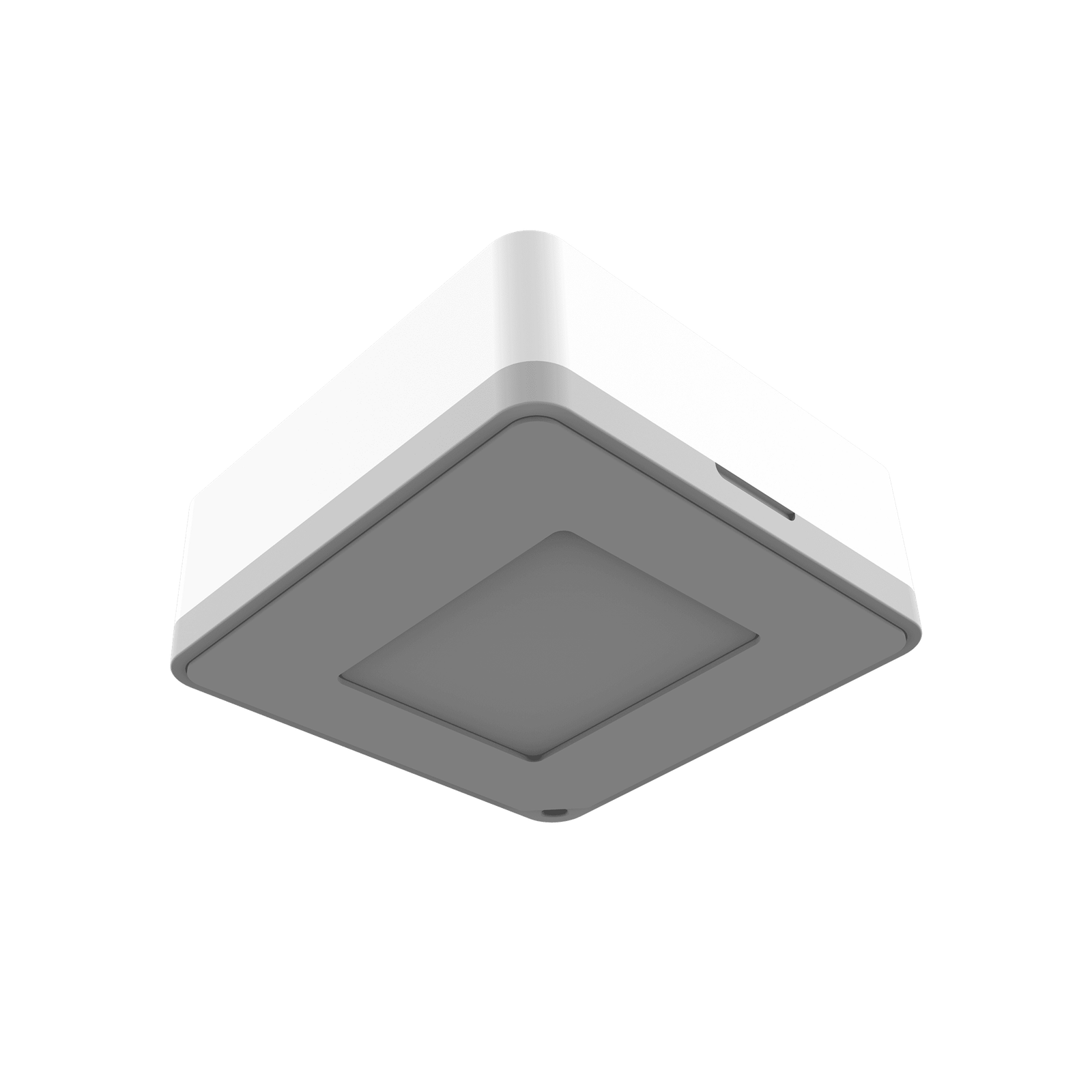

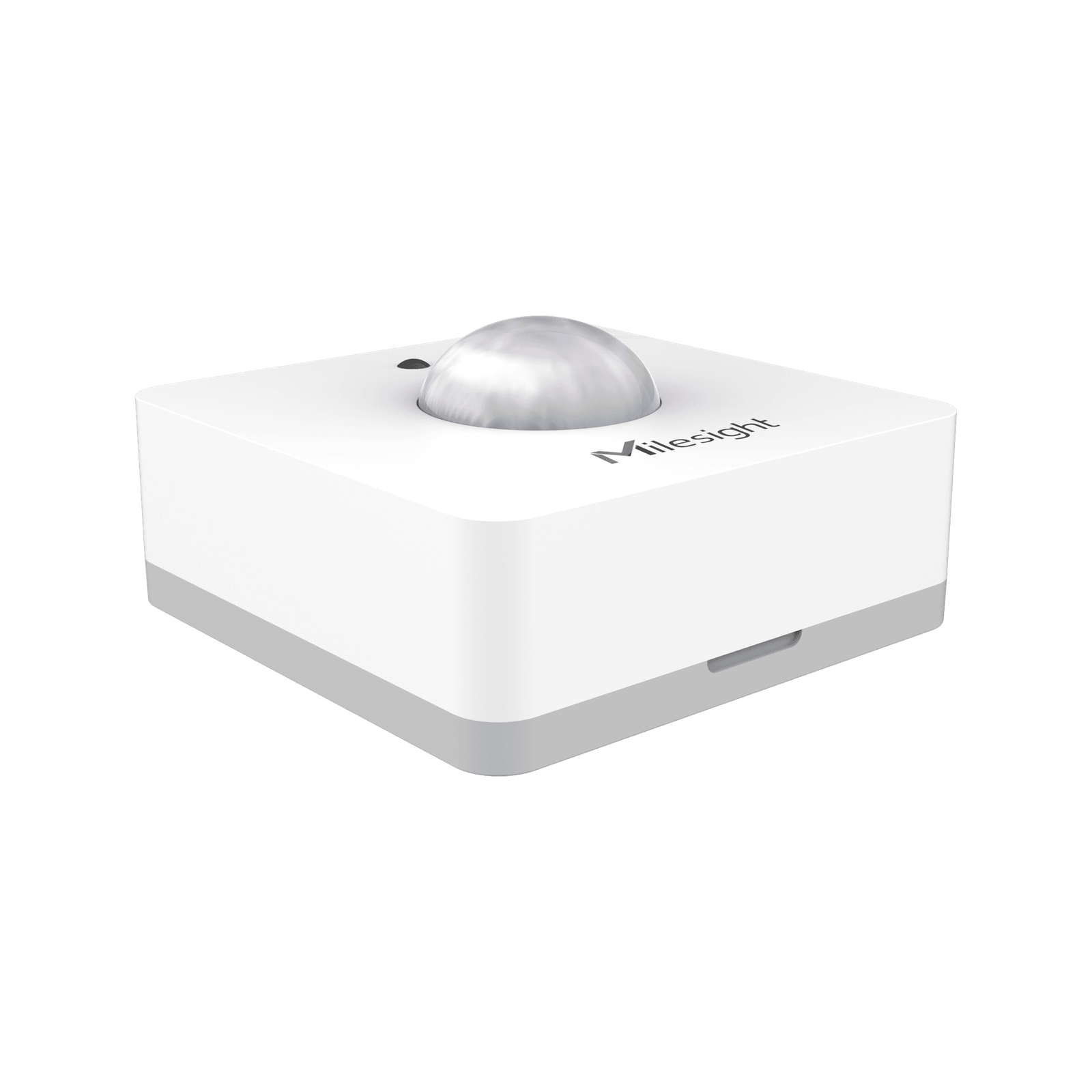

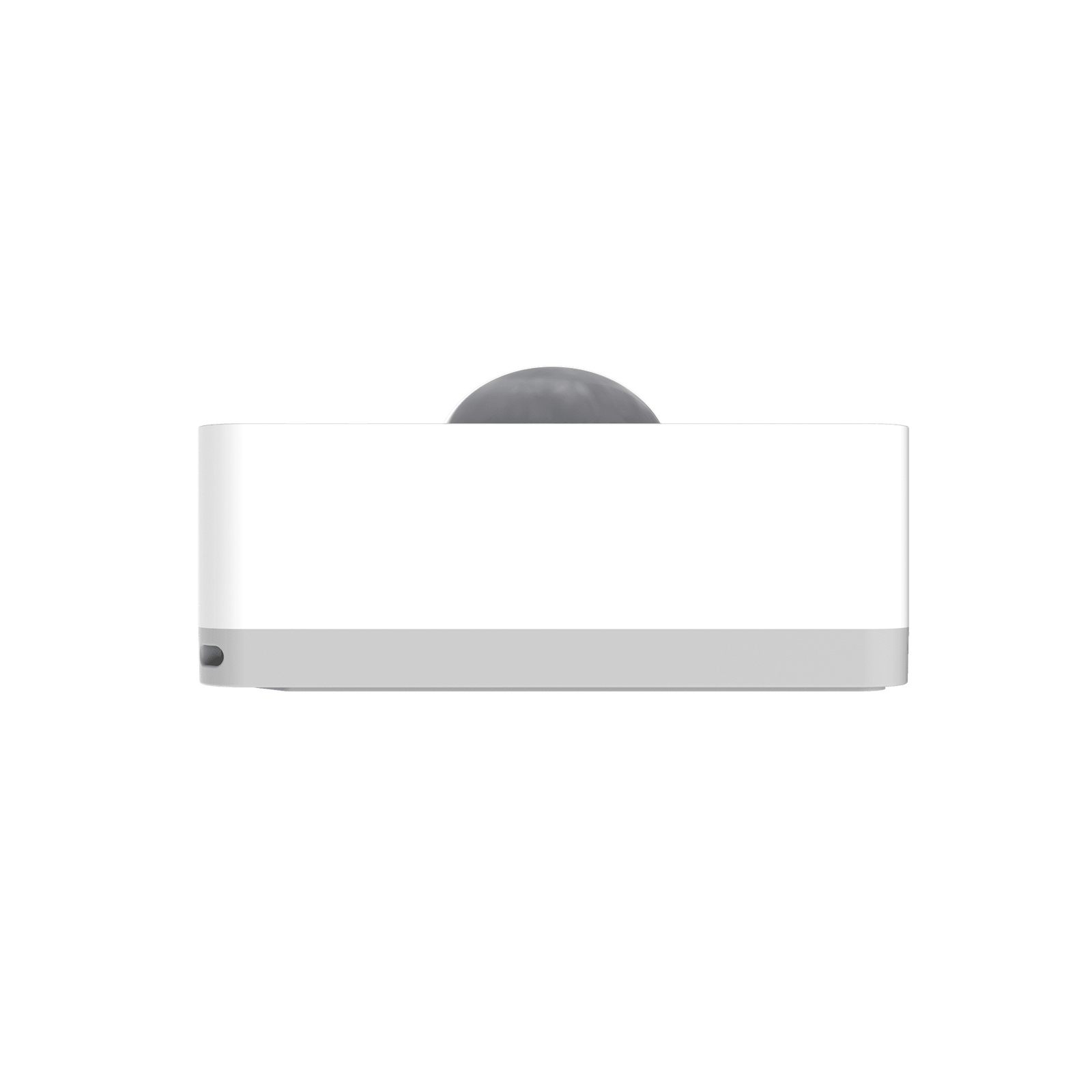

The Milesight WS202 LoRaWAN® PIR Presence and Illumination Sensor is a powerful dual-function device designed for detecting motion and monitoring ambient light levels. This sensor is perfect for applications such as smart lighting, occupancy-based HVAC control, and security systems.

With LoRaWAN® connectivity, the WS202 enables seamless integration into IoT platforms for real-time monitoring and automation. Its compact and durable design ensures reliable performance, while its ultra-low power consumption supports long battery life. The WS202 is an essential component for creating smart, energy-efficient environments.

Technical Specifications

• Model: WS202 LoRaWAN® PIR Presence and Illumination Sensor
• Application: Motion detection and ambient light monitoring
• Detection Method: PIR (Passive Infrared) motion sensing
• Illumination Range: 0–1000 lux
• Motion Detection Range: Up to 8 meters
• Communication Protocol: LoRaWAN®
• Frequency: 868 MHz
• Power Supply: Replaceable battery (CR2450 or similar)
• Battery Life: Up to 5 years
• Integration: Compatible with IoT platforms for automation and monitoring
• Enclosure: Compact design with wall or ceiling mount options
• Operating Environment: -10°C to +50°C, 10–90% RH (non-condensing)
• Dimensions: 70 mm x 70 mm x 27 mm
• Weight: 85 g
