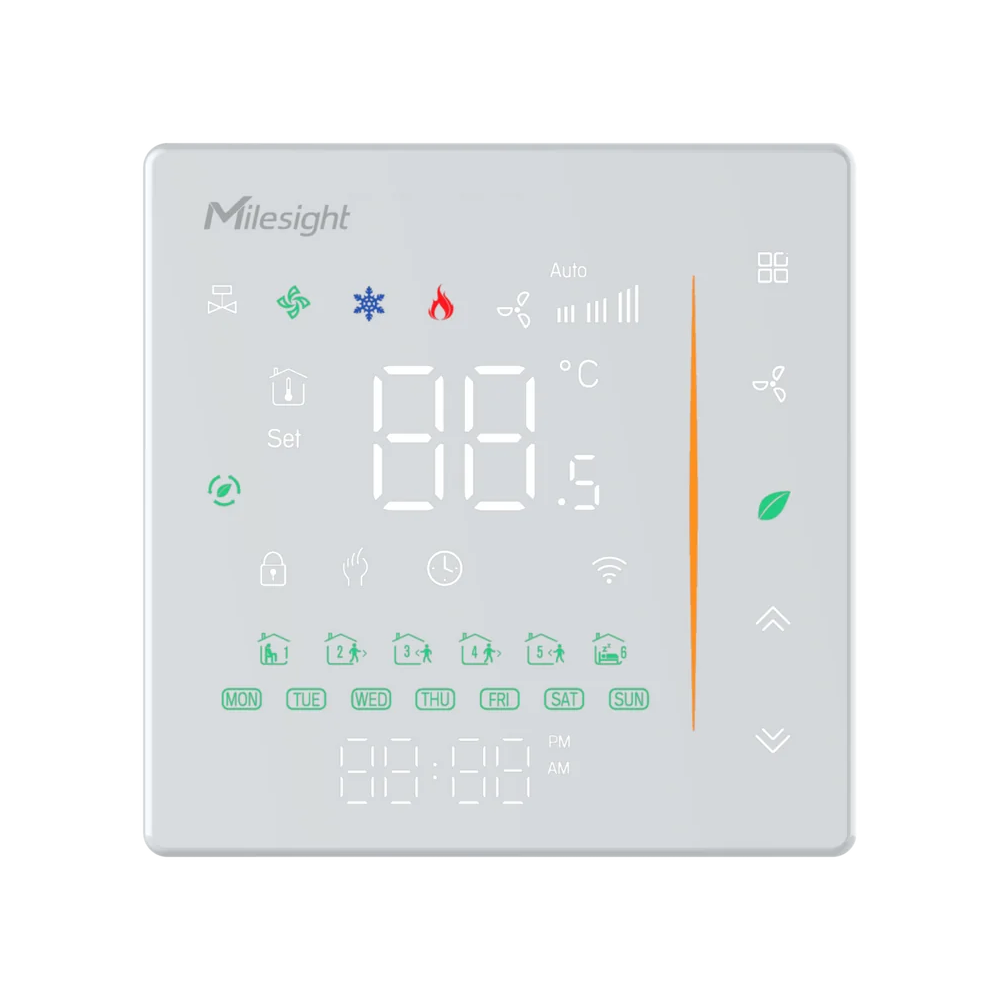

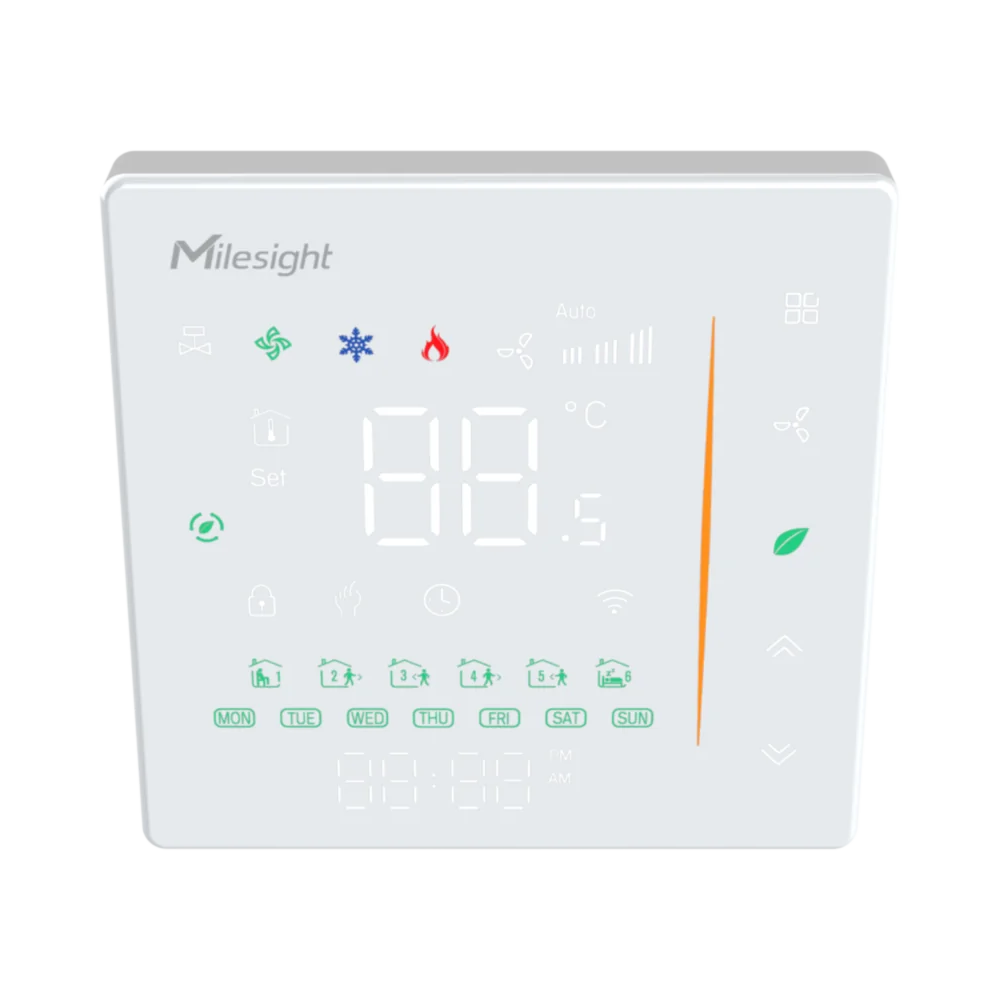

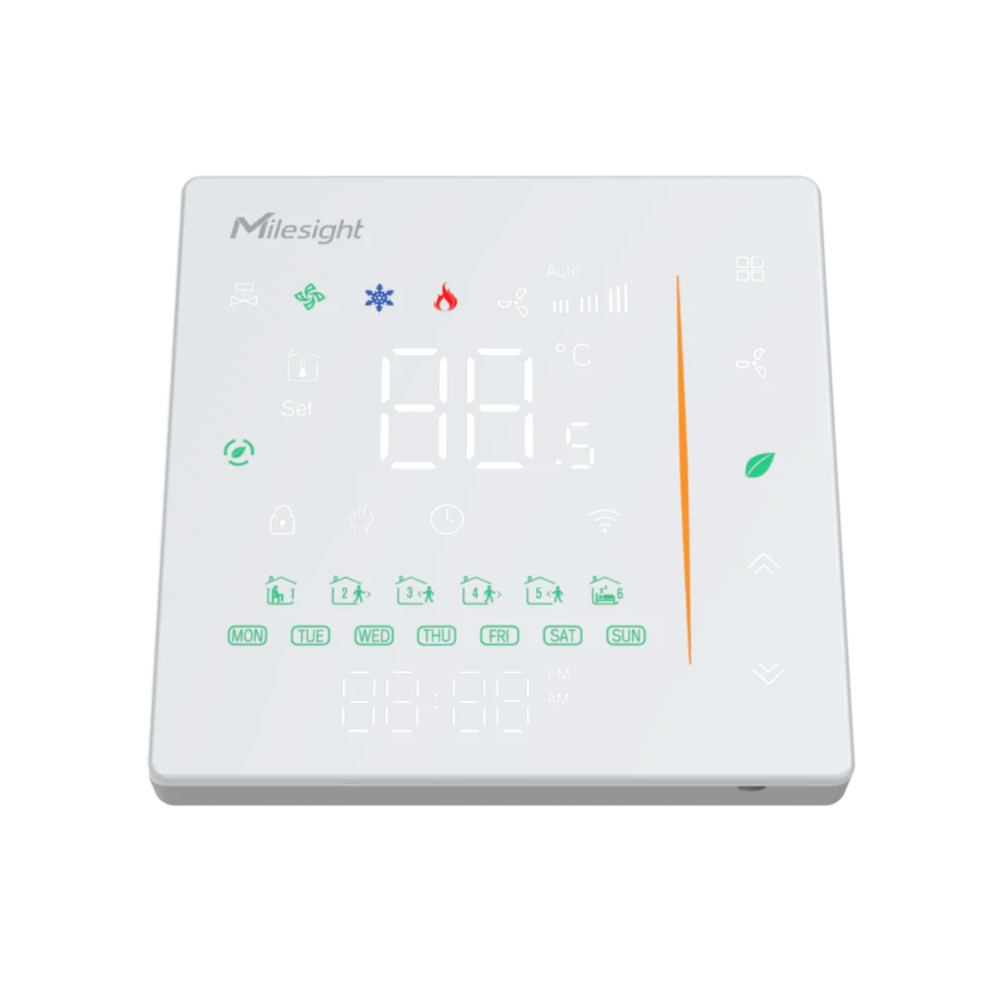

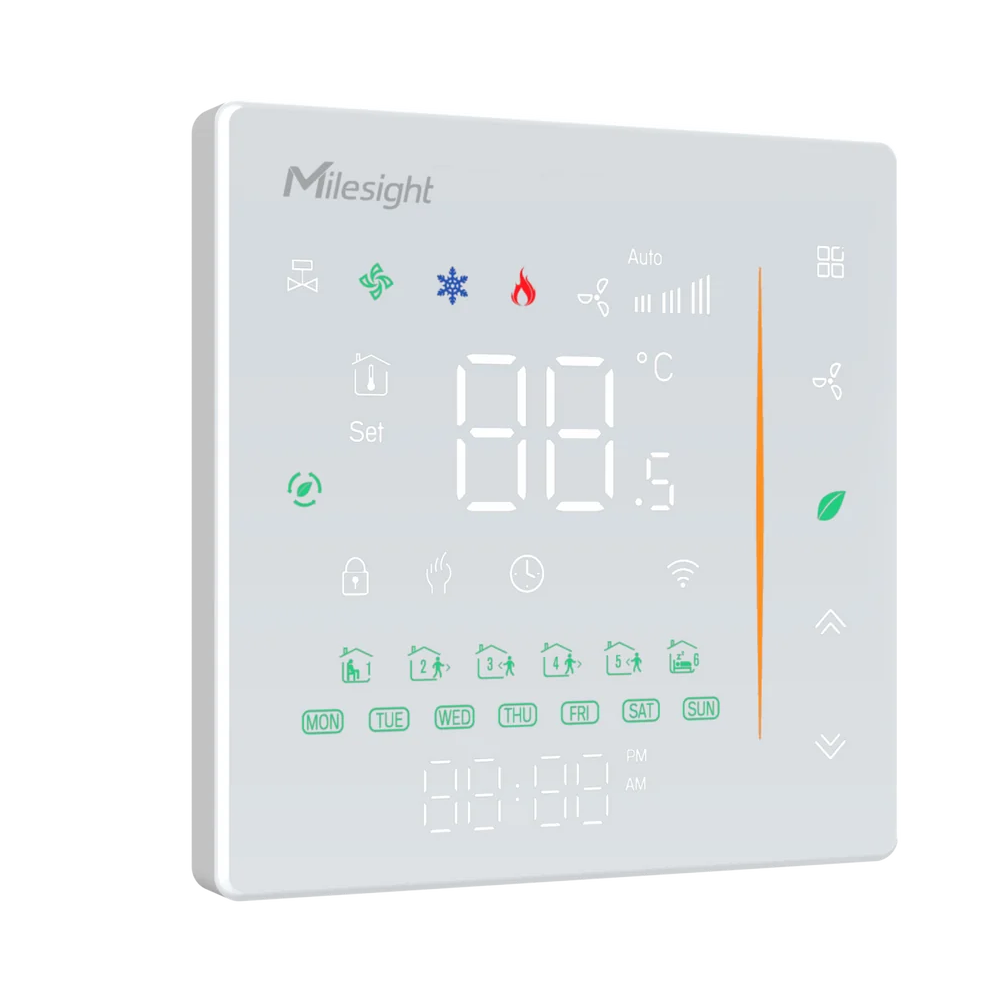

Milesight WT302-868M

Description

The Milesight WT302 LoRaWAN® Fan Coil Thermostat is an advanced device tailored for controlling fan coil units with integrated temperature and humidity sensors. With a wide voltage input range of 95-240V AC, it is versatile for various residential, commercial, and industrial environments.

Supporting LoRaWAN® connectivity, the WT302 offers seamless integration into IoT networks for remote monitoring and management. Its sleek design fits modern interiors, and its intuitive controls ensure ease of use. Designed for durability and efficiency, this thermostat provides precise climate control while optimizing energy consumption.

Technical Specifications

• Model: WT302 Fan Coil Thermostat
• Application: Fan coil unit control with temperature and humidity sensing
• Power Supply: 95-240V AC
• Temperature Control Range: 0°C to +50°C (+32°F to +122°F)
• Humidity Measurement Range: 0–100% RH
• Accuracy:
  • Temperature: ±0.5°C
  • Humidity: ±3% RH
• Fan Speed Control: Low, Medium, High, and Auto
• Communication Protocol: LoRaWAN®
• Frequency: 868 MHz
• Display: LCD screen with backlight and easy-to-use interface
• Battery Life: N/A (AC-powered)

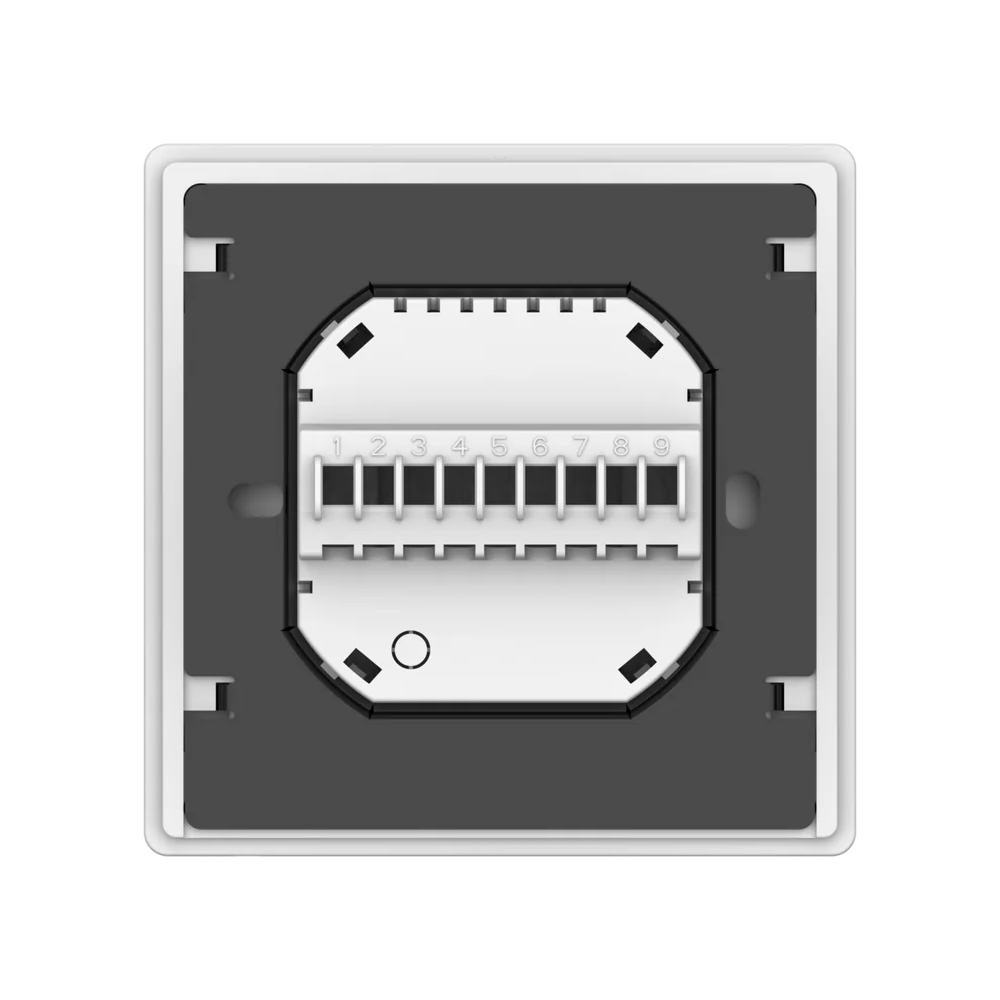

• Enclosure: Wall-mountable, IP30-rated design
• Operating Environment: 0°C to +50°C, 10–90% RH (non-condensing)
• Dimensions: 86 mm x 86 mm x 25 mm
• Weight: 150 g
