Ubiquiti AirMax Loco5AC

Description

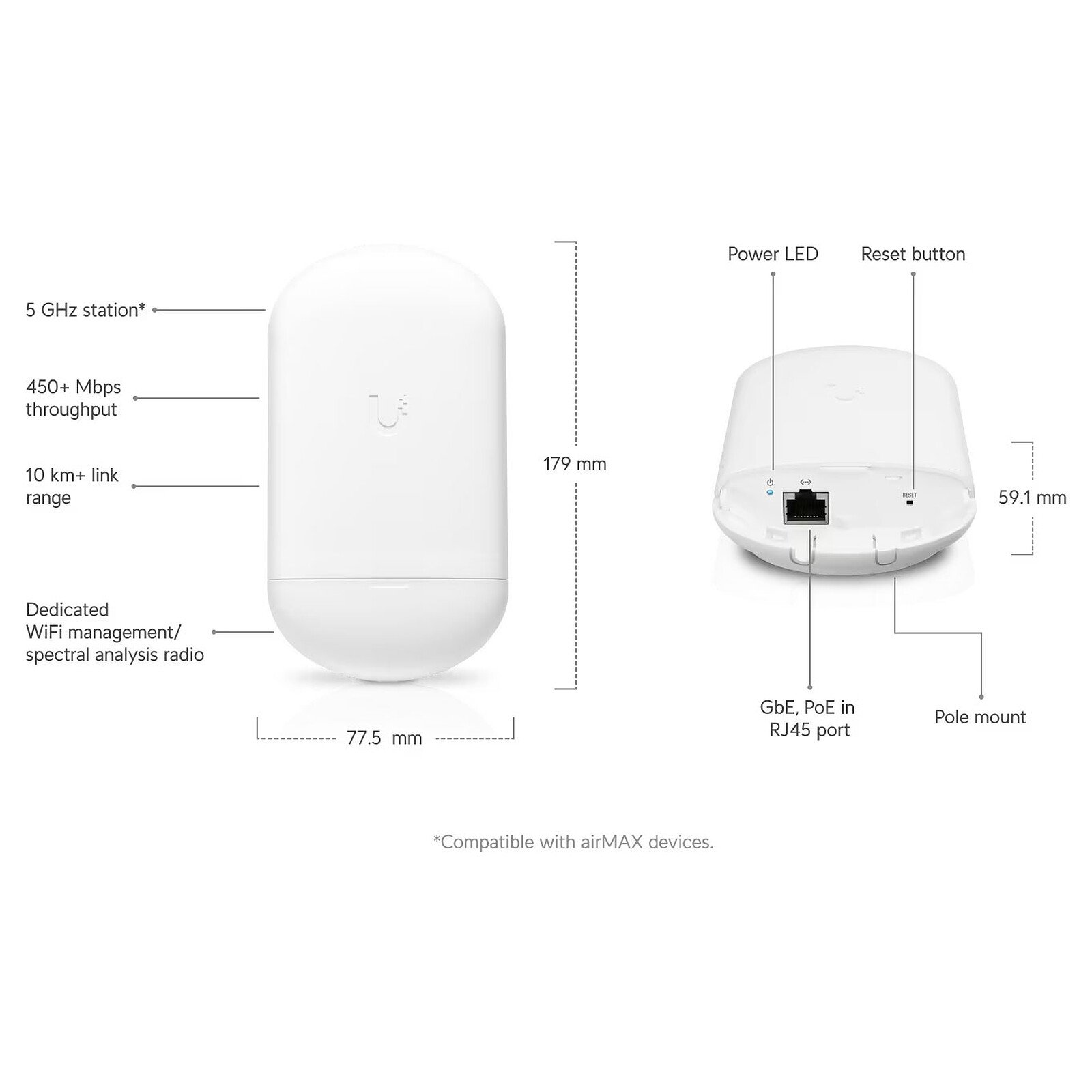

The Ubiquiti NanoStation 5AC Loco (Loco5AC) is a high-performance, compact wireless device designed for point-to-point (PtP) and point-to-multipoint (PtMP) applications. With a 5 GHz frequency band, it delivers over 450 Mbps real TCP/IP throughput, ensuring reliable and fast data transmission. The integrated 13 dBi dual-linear antenna provides a 45° beamwidth, supporting long-range links exceeding 10 km. Equipped with a dedicated Wi-Fi management radio, the NanoStation 5AC Loco simplifies configuration and monitoring via airOS or the Ubiquiti mobile app. Its sleek, lightweight design and support for passive PoE make it a versatile solution for internet service providers, surveillance systems, and rural connectivity.

Technical Specifications:

• Processor: MIPS 74Kc
• Memory: 64 MB DDR2
• Networking Interface: 1× 10/100/1000 Ethernet Port
• Frequency Band: 5 GHz
• Maximum Throughput: 450+ Mbps
• Integrated Antenna Gain: 13 dBi
• Beamwidth: 45°
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (not included)
• Max. Power Consumption: 7W
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% Noncondensing
• Certifications: CE, FCC, IC

Applications:

• Establishing high-speed wireless links between locations (PtP).
• Providing last-mile connectivity for ISPs.
• Integrating IP cameras into surveillance networks.
• Delivering rural and underserved area internet access.

Key Features:

• Compact and lightweight design for flexible installations.
• Passive PoE support reduces cabling requirements.
• Long-range connectivity exceeding 10 km.
• Dedicated Wi-Fi management radio for simplified setup and monitoring.

Purchasing Note:

Please note that the PoE adapter is sold separately.
