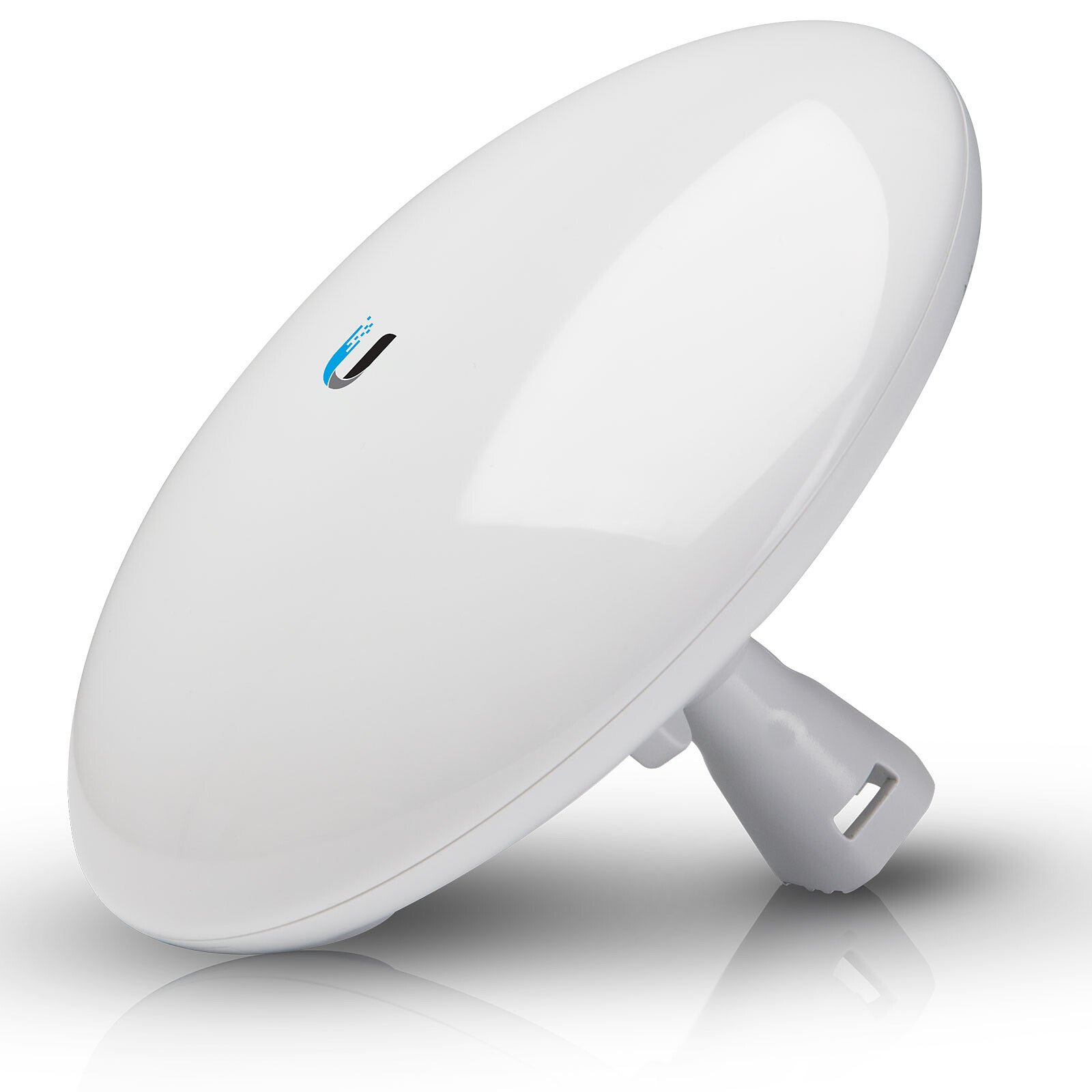

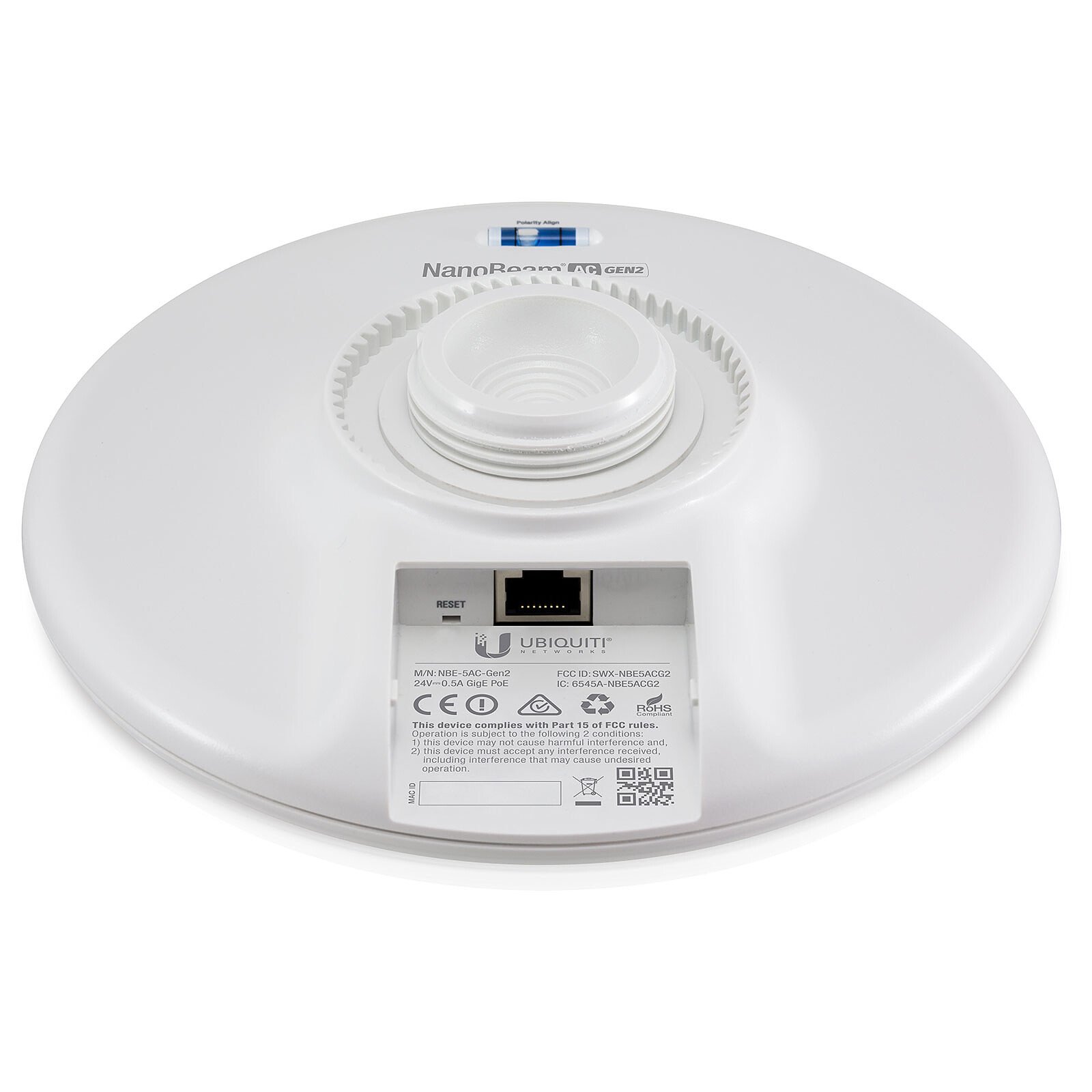

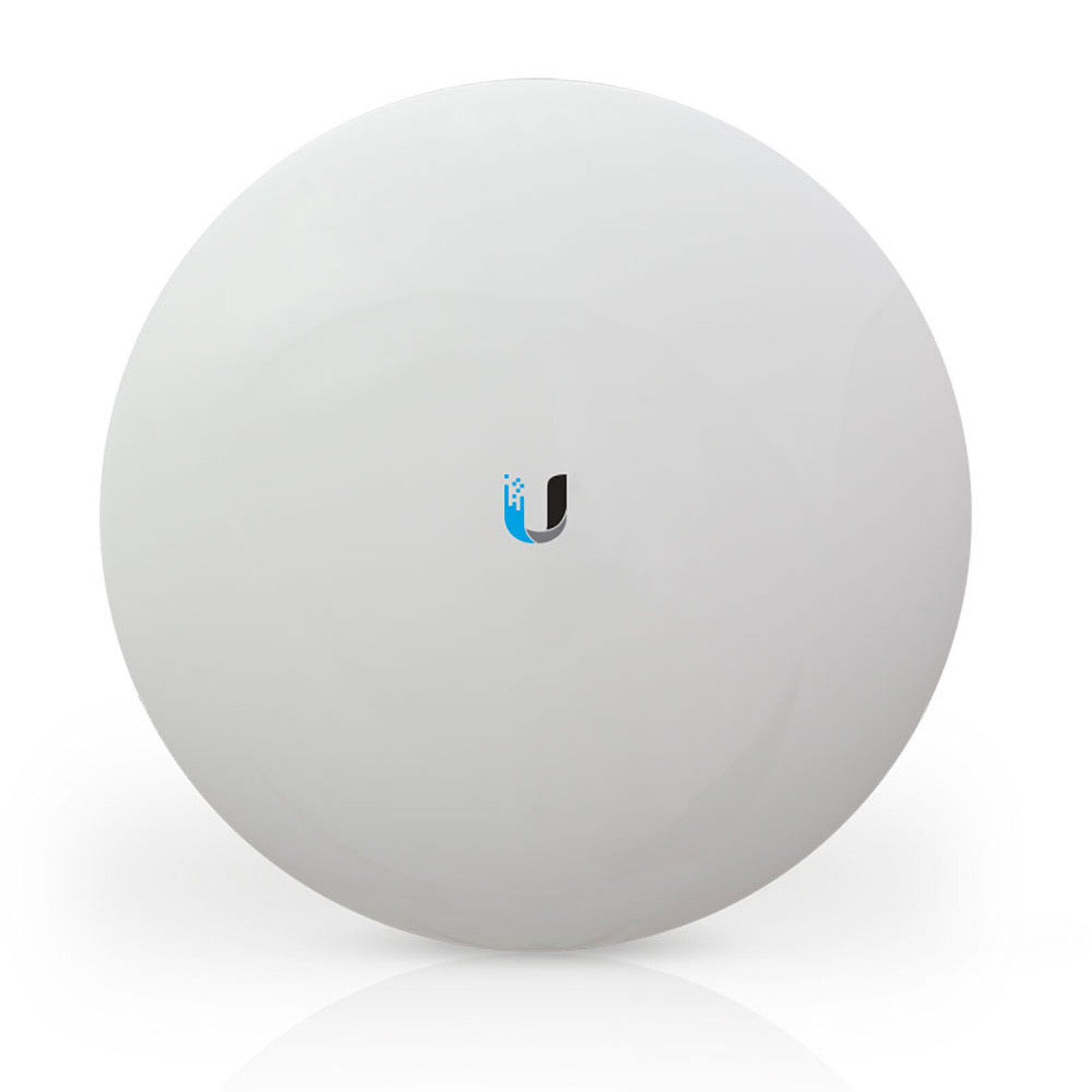

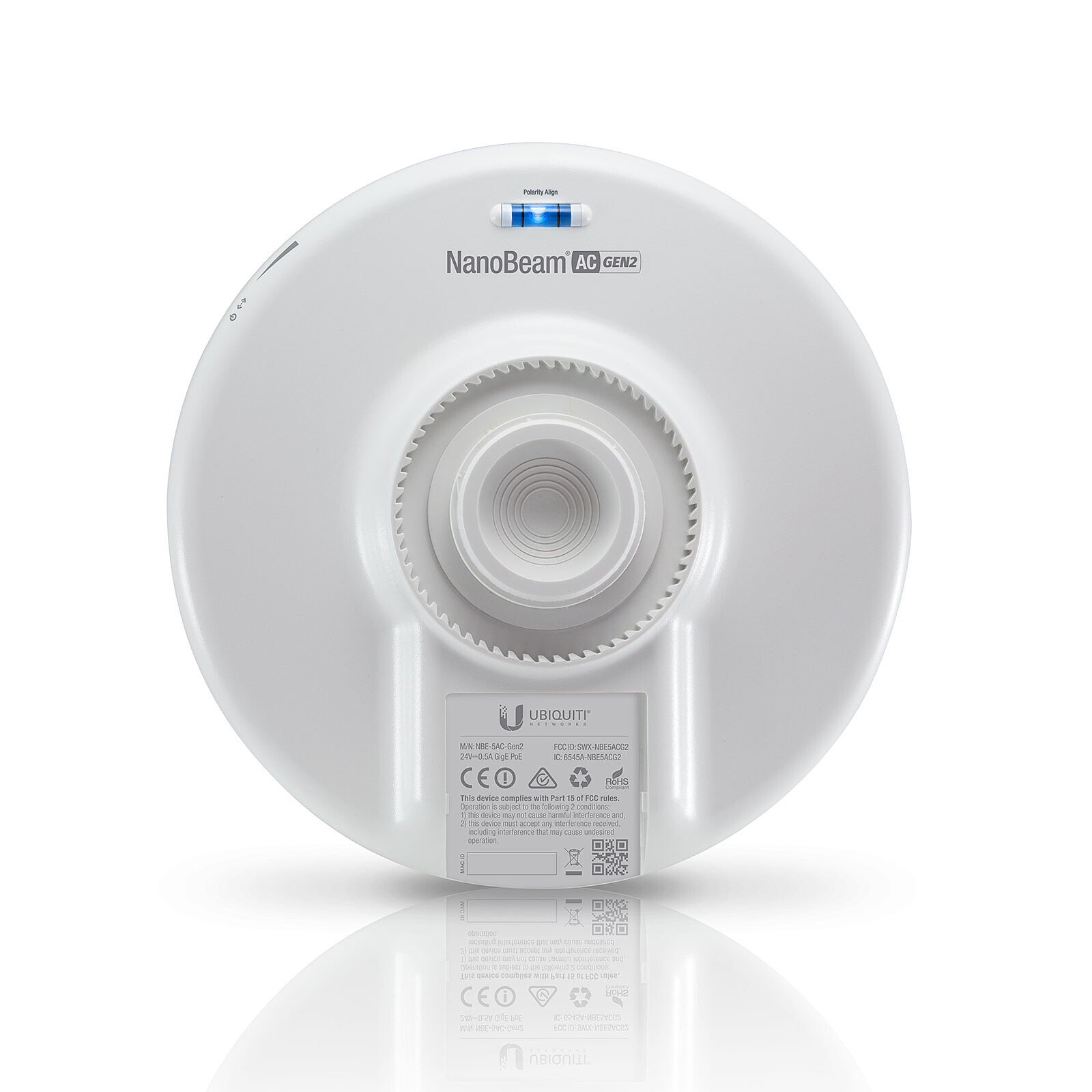

Ubiquiti AirMax NanoBeam NBE-5AC-Gen2

Description

The Ubiquiti NanoBeam 5AC Gen 2 (NBE-5AC-Gen2) is a high-performance Customer Premises Equipment (CPE) designed for point-to-point (PtP) and point-to-multipoint (PtMP) wireless bridging applications. Operating in the 5 GHz frequency band, it delivers real TCP/IP throughput exceeding 450 Mbps, ensuring robust and reliable data transmission over distances up to 15 km.

The integrated 19 dBi antenna with a uniform beamwidth enhances noise immunity by focusing RF energy in a narrow direction, making it suitable for high-density environments with significant RF interference.

The NanoBeam 5AC Gen 2 features a dedicated Wi-Fi radio for seamless setup and management via Ubiquiti’s mobile app, streamlining installation and configuration processes.

Technical Specifications:

• Processor: MIPS 74Kc
• Memory: 128 MB DDR2
• Networking Interfaces:
  • 1× 10/100/1000 Mbps Ethernet Port
  • 1× 10/100/1000 Mbps Ethernet Port (Management)
• Frequency Band: 5 GHz
• Maximum Throughput: 450+ Mbps
• Integrated Antenna Gain: 19 dBi
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Max. Power Consumption: 8.5W
• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Operating Humidity: 5% to 95% Noncondensing
• Certifications: CE, FCC, IC

Applications:

• Wireless Bridging: Establishing high-speed wireless links between two locations.
• Internet Service Providers (ISPs): Deploying as CPE for last-mile connectivity.
• Surveillance Systems: Connecting remote IP cameras to the central network.
• Rural Connectivity: Providing internet access to remote or underserved areas.

Key Features:

• Enhanced Noise Immunity: Uniform beamwidth maximizes noise immunity, improving performance in high-interference environments.
  Ubiquiti Downloads
• Dedicated Management Radio: Separate Wi-Fi radio for quick and easy setup using mobile devices.
  Ubiquiti Downloads
• Integrated Design: Combines radio and antenna into a compact form factor, simplifying installation and reducing cable losses.
  Ubiquiti Downloads

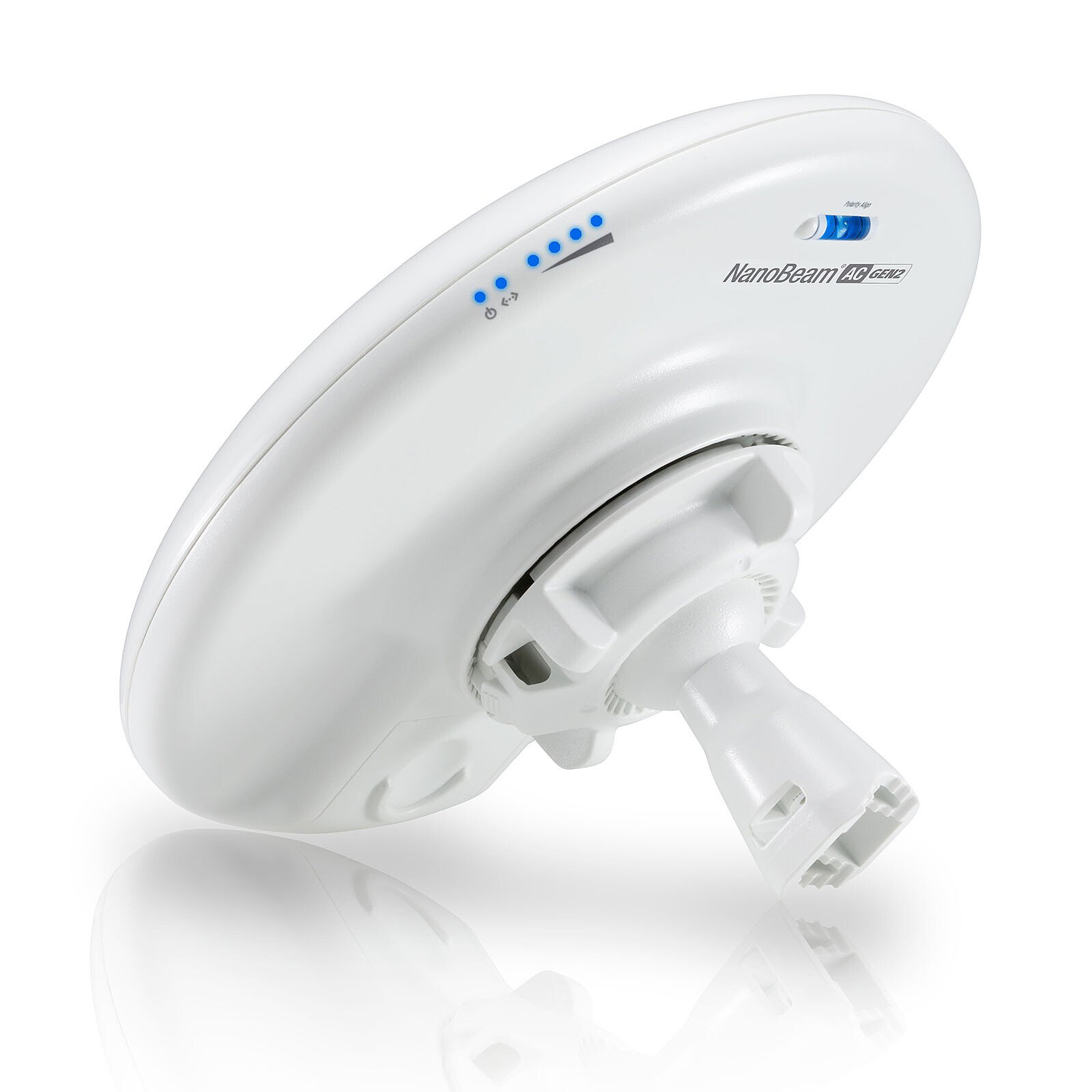

• Versatile Mounting: Flexible mounting options with a ball joint mount for easy alignment.
  Ubiquiti Downloads

Purchasing Information: The package includes a 24V, 0.5A Gigabit PoE adapter and mounting hardware.

For more detailed specifications and user guides, please refer to the official Ubiquiti documentation:

• NanoBeam 5AC Gen 2 Datasheet
• NBE-5AC-Gen2 Quick Start Guide

The Ubiquiti NanoBeam 5AC Gen 2 offers a cost-effective and reliable solution for high-speed wireless networking, making it a popular choice among network professionals and service providers.
