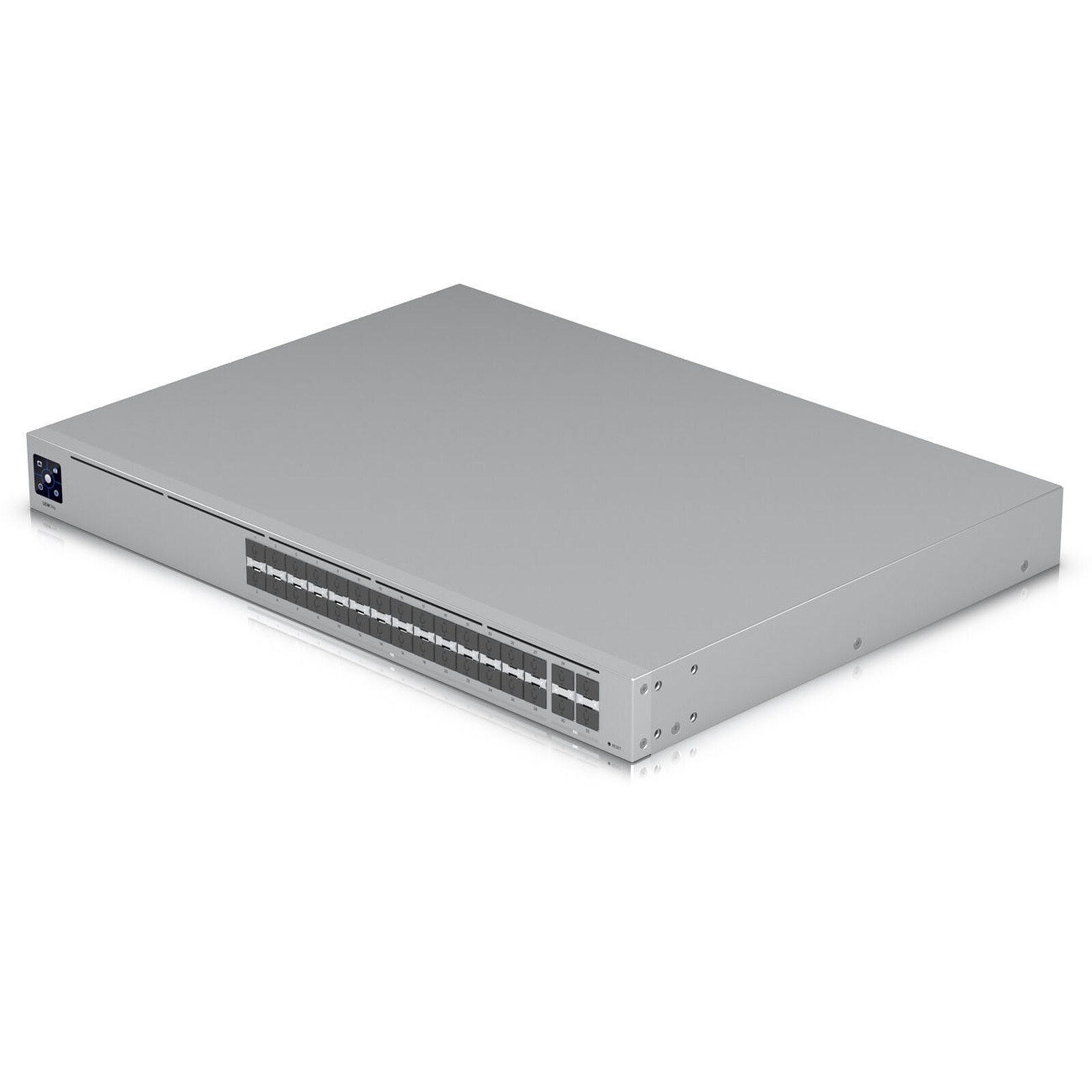

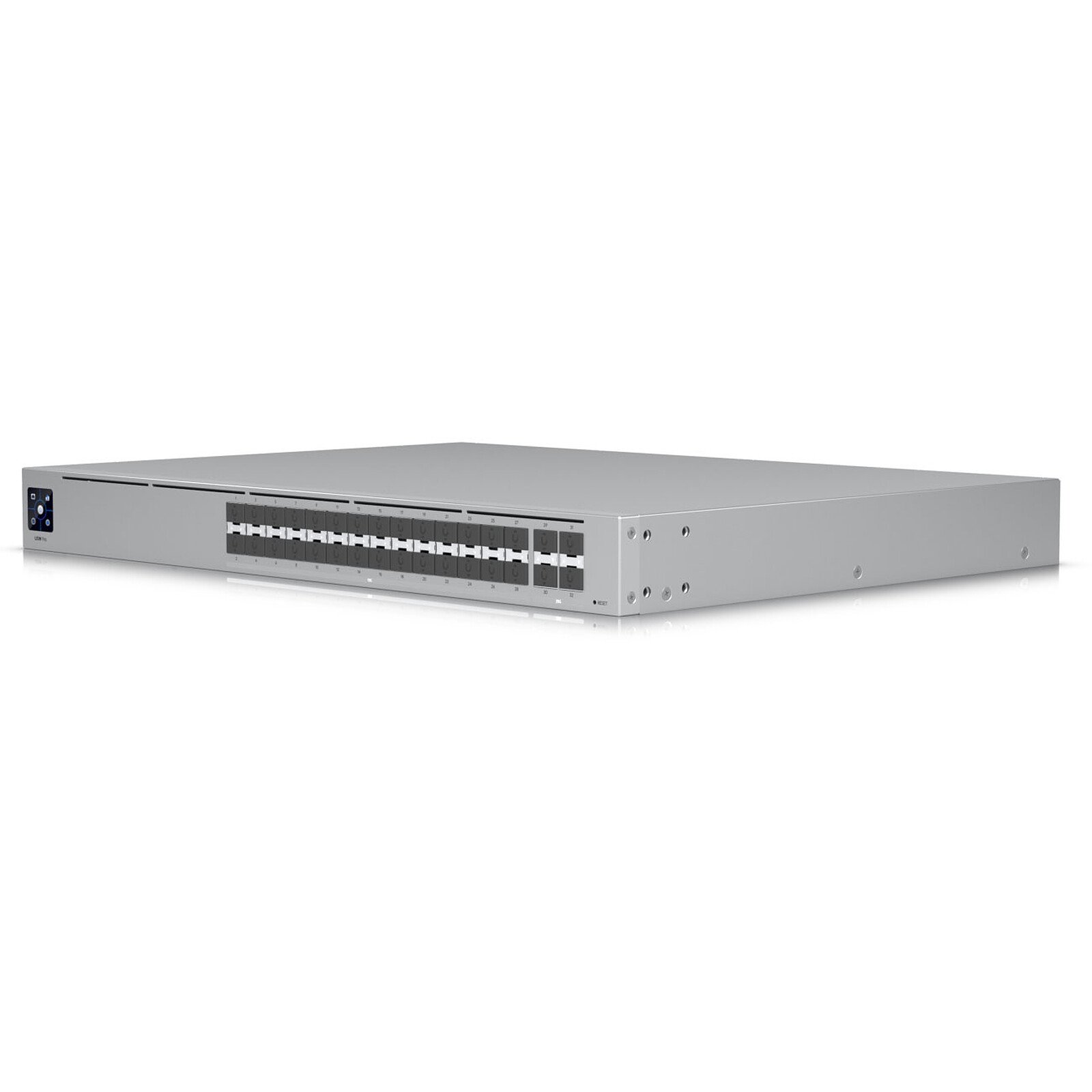

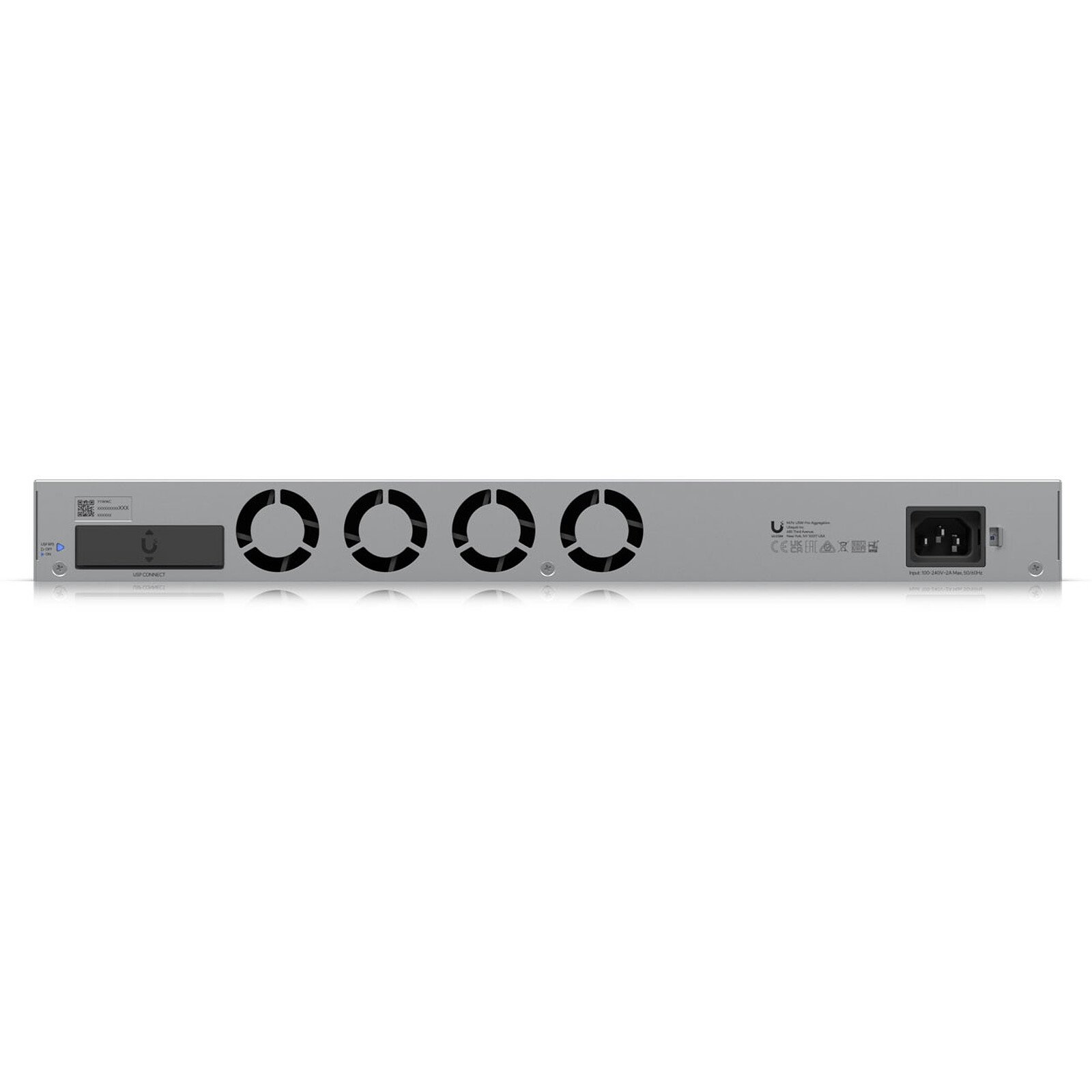

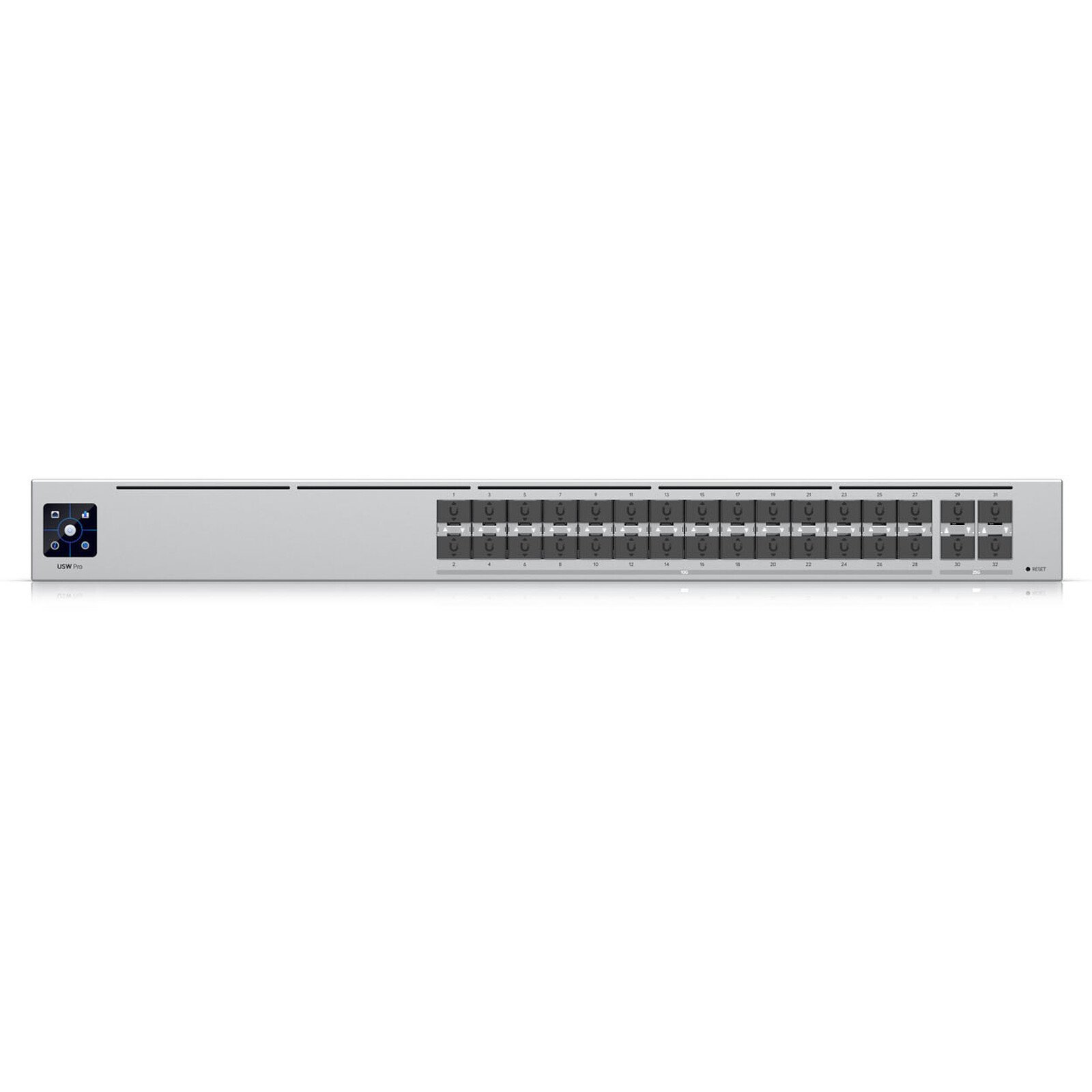

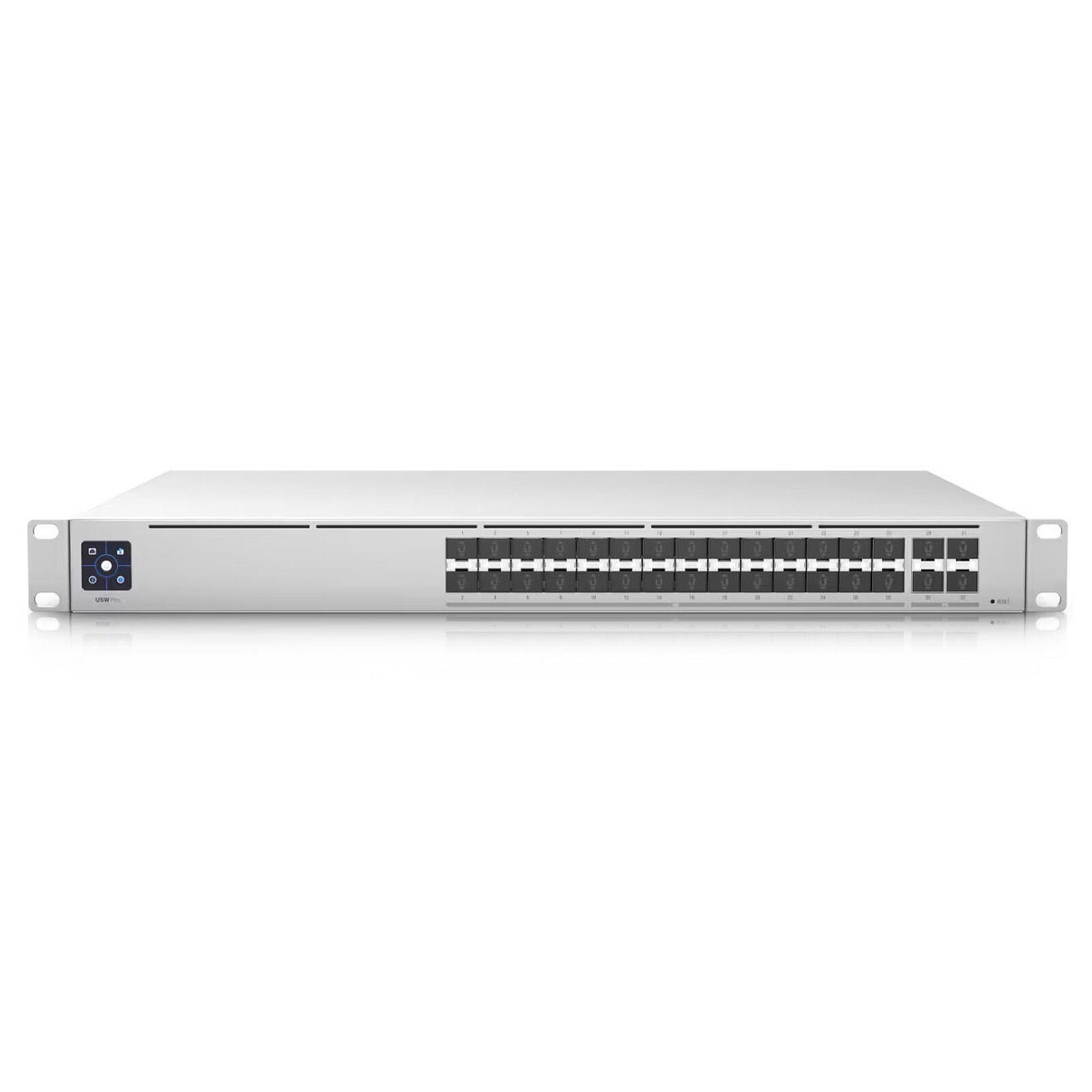

Ubiquiti UnFi USW-Pro-Aggregation

Description

The Ubiquiti UniFi Switch Pro Aggregation (USW-Pro-Aggregation) is a fully managed Layer 3 fiber switch engineered to enhance network performance in enterprise environments. Equipped with 28× 10G SFP+ ports and 4× 25G SFP28 ports, it facilitates high-speed fiber connections, making it ideal for aggregating multiple switches and managing substantial data traffic. The switch features a 1.3″ color touchscreen for real-time monitoring and diagnostics, ensuring efficient network management. Managed through the intuitive UniFi Network Controller, the USW-Pro-Aggregation offers comprehensive configuration and monitoring capabilities, making it an excellent choice for scalable and high-performance network deployments.

Technical Specifications:

• Total Non-Blocking Throughput: 380 Gbps
• Switching Capacity: 760 Gbps
• Forwarding Rate: 565.44 Mpps
• Max. Power Consumption: 100W
• Power Method:
  • Universal AC Input: 100–240V AC, 50/60 Hz
  • USP-RPS DC Input: 11.5V DC, 8.7A
• Power Supply: Internal AC/DC, 100W
• Networking Interfaces:
  • 28× 1/10G SFP+ Ethernet Ports
  • 4× 1/10/25G SFP28 Ethernet Ports
• Management Interface: Ethernet In-Band
• Operating Temperature: -5°C to 40°C (23°F to 104°F)
• Operating Humidity: 10% to 90% Noncondensing
• Certifications: CE, FCC, IC
• Dimensions: 442 mm × 325 mm × 44 mm (17.4 in × 12.8 in × 1.7 in)
• Weight:
  • Without Mount: 4.6 kg (10.14 lb)
  • With Mount: 4.7 kg (10.36 lb)

The UniFi Switch Pro Aggregation is an ideal solution for network administrators seeking high-capacity fiber switching with advanced Layer 3 capabilities, seamless integration, and efficient management through the UniFi Network Controller.
