Ubiquiti UniFi U6-IW

Description

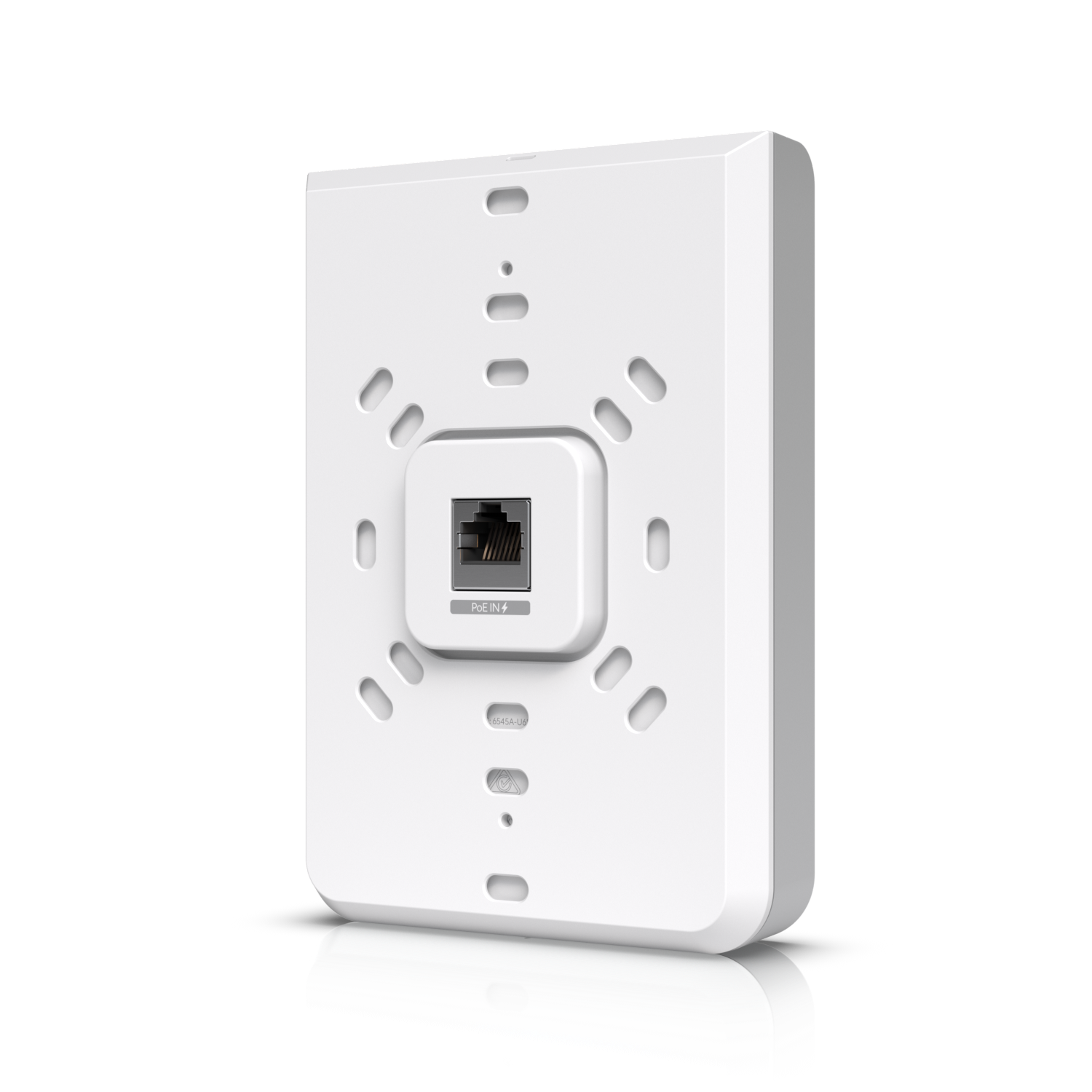

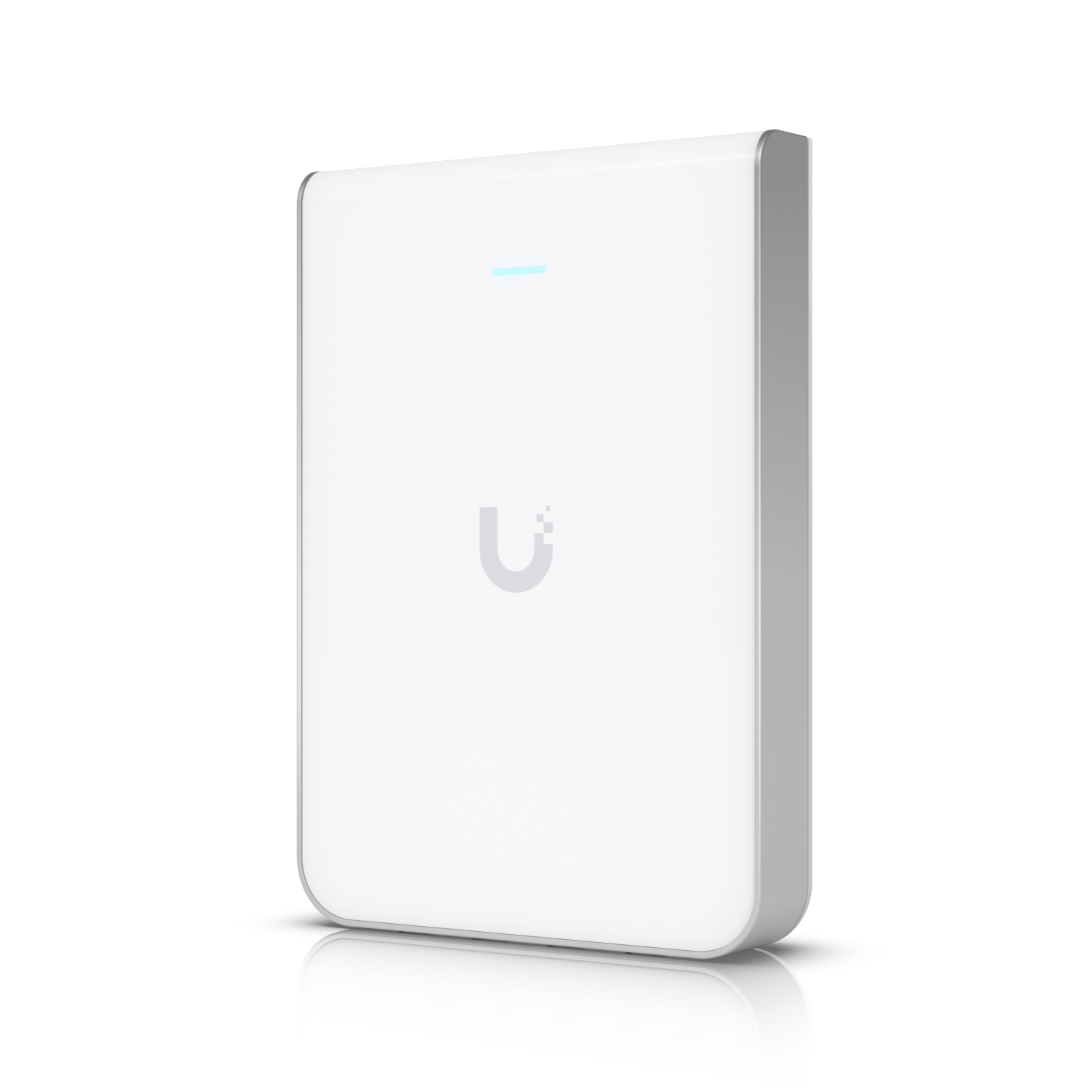

The Ubiquiti UniFi U6 In-Wall (U6-IW) is a sleek, wall-mounted WiFi 6 access point designed to seamlessly blend into any environment while delivering robust wireless connectivity. Featuring dual-band support with 2×2 MIMO on the 2.4 GHz band and 4×4 MU-MIMO on the 5 GHz band, it offers an aggregate data rate of up to 5.3 Gbps, ensuring high-speed connections for multiple devices. The built-in 4-port Gigabit switch includes one port with PoE output, allowing you to power and connect an additional PoE device such as an IP phone or security camera. Powered via PoE+ (802.3at), the U6-IW simplifies installation by reducing the need for additional cabling. Its compact design makes it an ideal choice for single-room deployments in hotels, offices, and residential settings, providing reliable and high-performance WiFi coverage.

Technical Specifications:

• WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
• Frequency Bands: 2.4 GHz and 5 GHz
• MIMO Configuration:
  • 2.4 GHz: 2×2 UL MU-MIMO
  • 5 GHz: 4×4 DL/UL MU-MIMO
• Maximum Data Rates:
  • 2.4 GHz: 573.5 Mbps
  • 5 GHz: 4.8 Gbps
• Antenna Gain:
  • 2.4 GHz: 5 dBi
  • 5 GHz: 5.9 dBi
• Ethernet Ports:
  • 1× 1 Gbps RJ45 (PoE In)
  • 4× 1 Gbps RJ45 (Data Out), with 1 port supporting PoE Out
• PoE Output: 15.4W (802.3af) on one port (requires PoE+ input)
• Power Supply: PoE+ (802.3at)
• Power Consumption: Maximum 13.5W (excluding PoE output)
• Mounting Options: Wall-mounted (mounting hardware included)
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Operating Humidity: 5% to 95% non-condensing
• Dimensions: 139.6 mm x 96 mm x 31.2 mm (5.5 x 3.8 x 1.3 inches)
• Weight: 460 g (1.01 lb)
• Certifications: CE, FCC, IC

The U6-IW is an excellent choice for enhancing wireless connectivity in individual rooms, providing high-speed WiFi 6 performance and the convenience of additional wired connections through its integrated switch.
