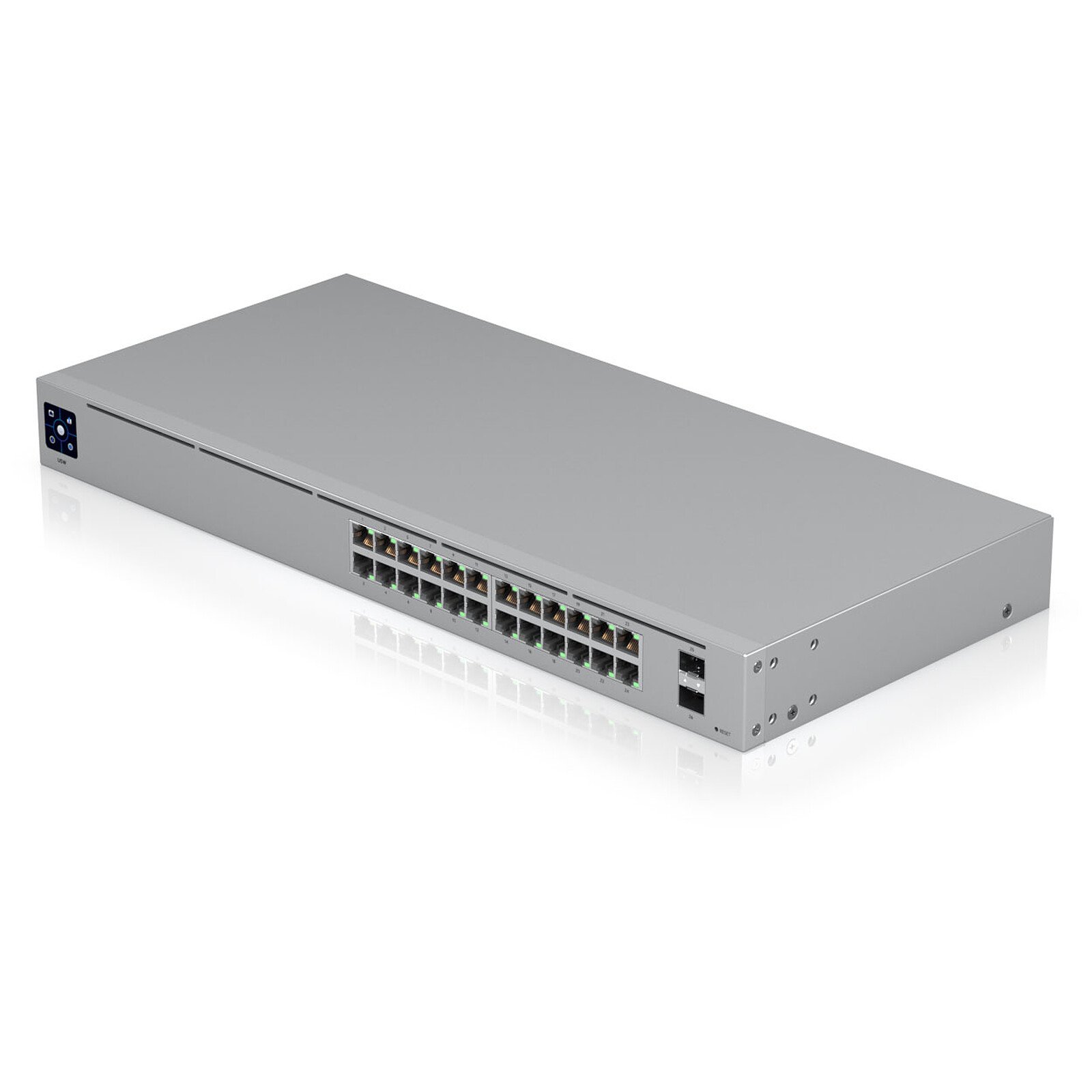

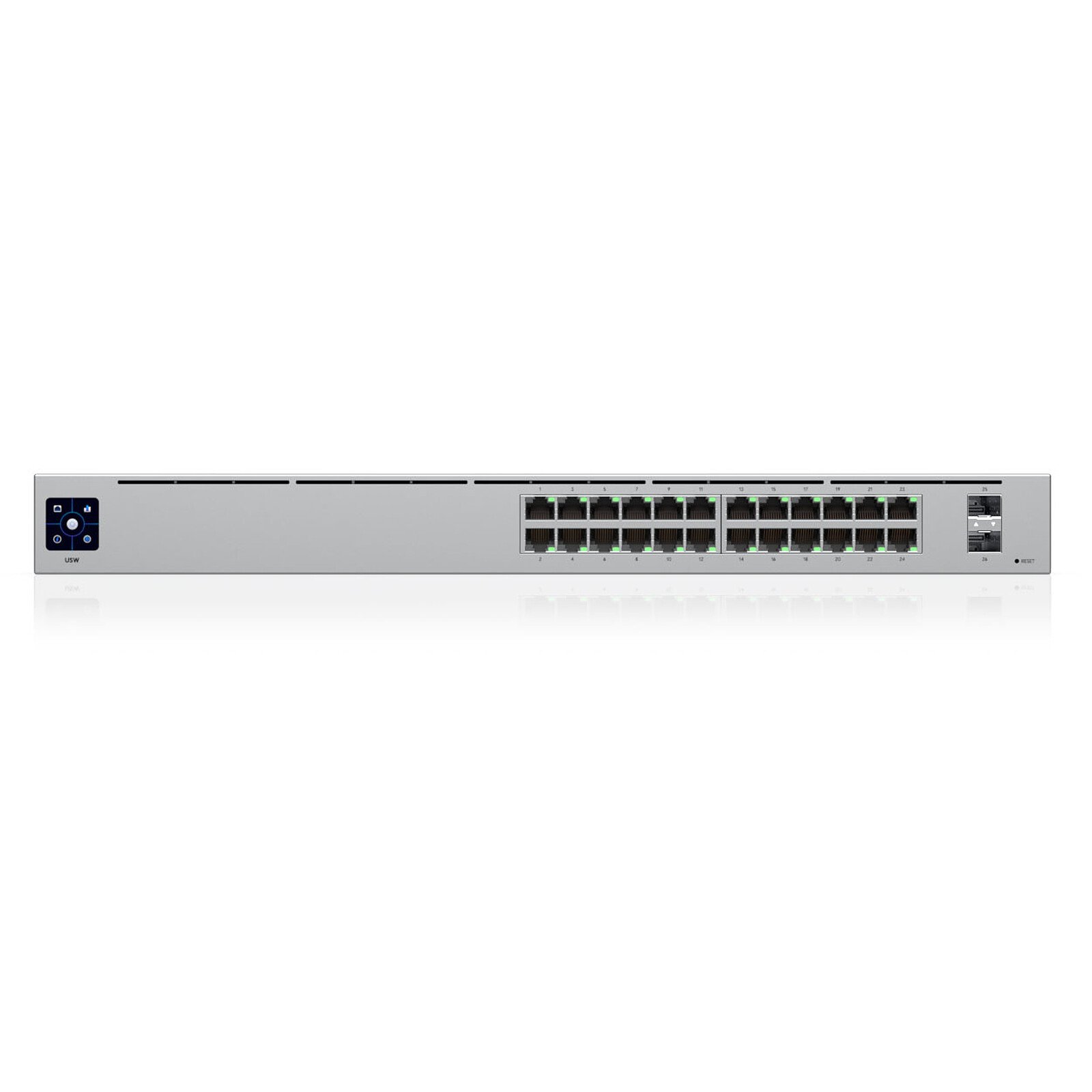

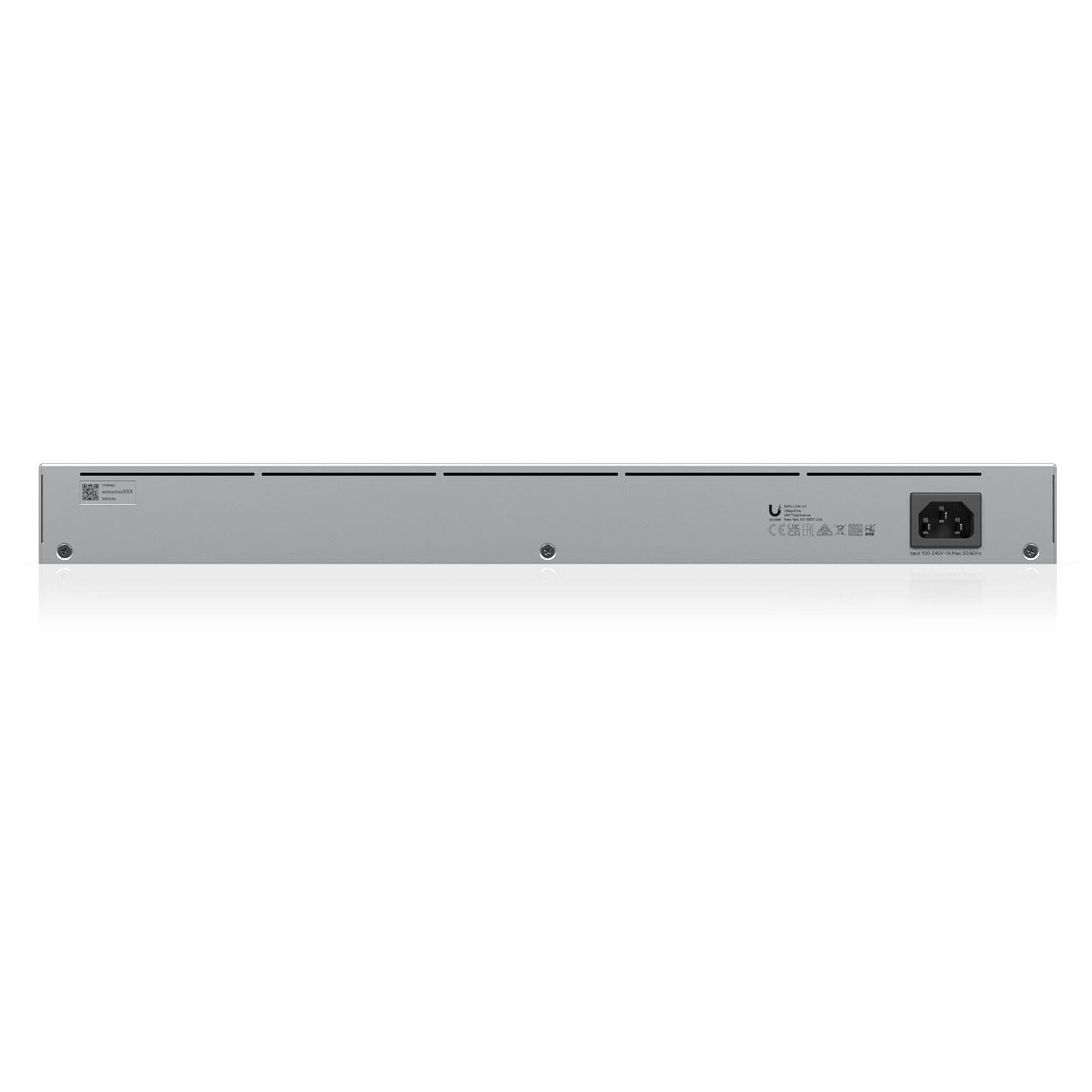

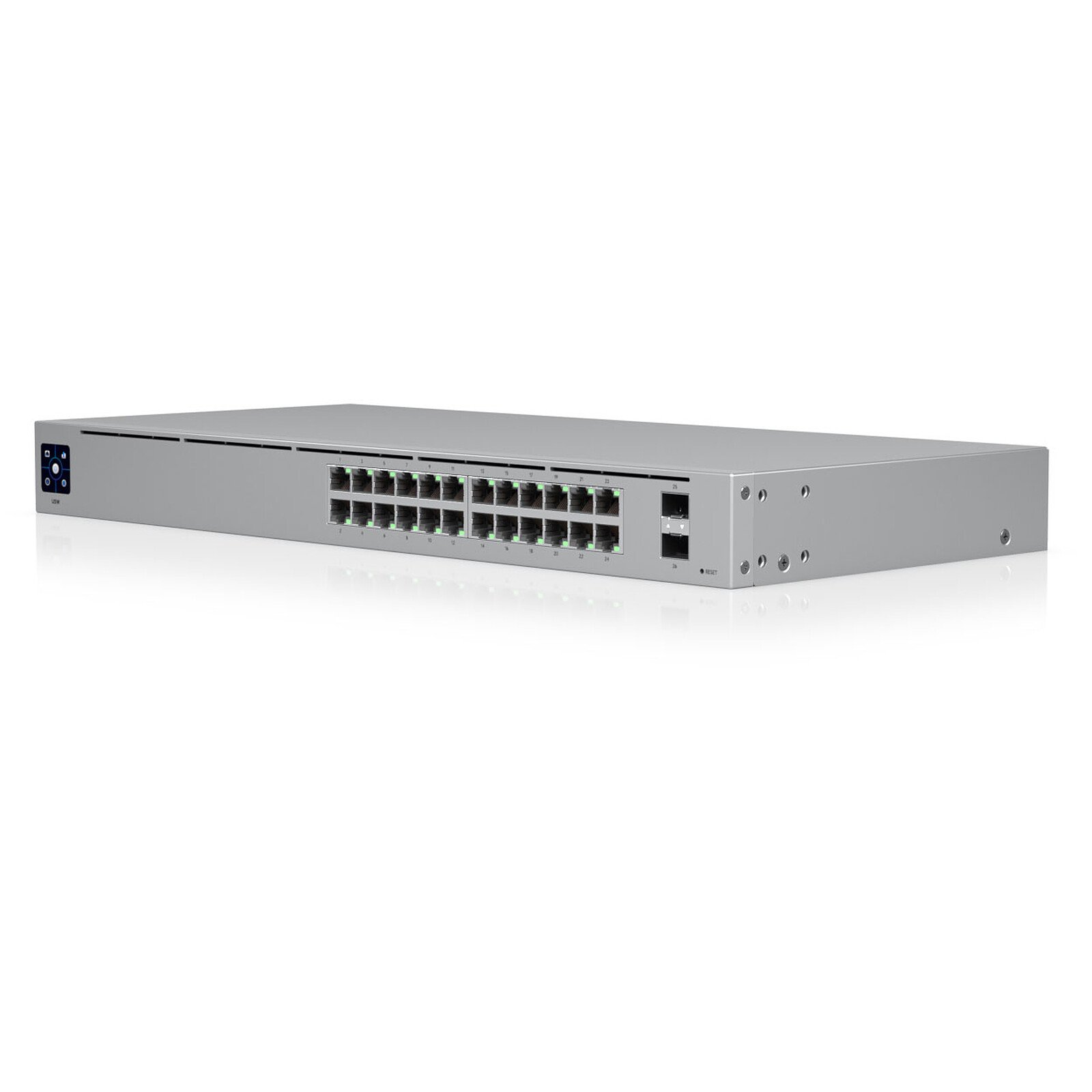

Ubiquiti UniFi USW-24

Description

The Ubiquiti UniFi Switch 24 (USW-24) is a configurable Layer 2 switch designed to enhance network performance in small to medium-sized business environments. Equipped with 24 Gigabit Ethernet ports and 2 SFP ports, it provides versatile connectivity options, including 1 Gbps fiber uplinks for extended network reach. The switch features a fanless design for silent operation and includes a 1.3″ touchscreen for real-time status monitoring and quick troubleshooting. Managed through the UniFi Network Controller, the USW-24 offers a user-friendly interface for comprehensive configuration and monitoring, making it a reliable and efficient addition to any enterprise network.

Technical Specifications:

• Total Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Max. Power Consumption: 25W
• Power Method: Universal AC Input: 100-240V AC, 50/60 Hz
• Power Supply: Internal 36W AC/DC
• Networking Interfaces:
  • 24× 10/100/1000 Mbps Ethernet RJ45 Ports
  • 2× 1 Gbps SFP Ports
• Management Interface: Ethernet In-Band
• Operating Temperature: -5°C to 45°C (23°F to 113°F)
• Operating Humidity: 10% to 90% Noncondensing
• Certifications: CE, FCC, IC
• Dimensions: 442.4 mm × 200 mm × 43.7 mm (17.42 in × 7.87 in × 1.72 in)
• Weight:
  • Without Mount: 2.70 kg (5.95 lb)
  • With Mount: 2.79 kg (6.15 lb)

The UniFi Switch 24 is an excellent choice for network administrators seeking to expand and manage their network infrastructure with a reliable and silent operation switch, offering ample connectivity options and seamless integration into the UniFi ecosystem.
